HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115749

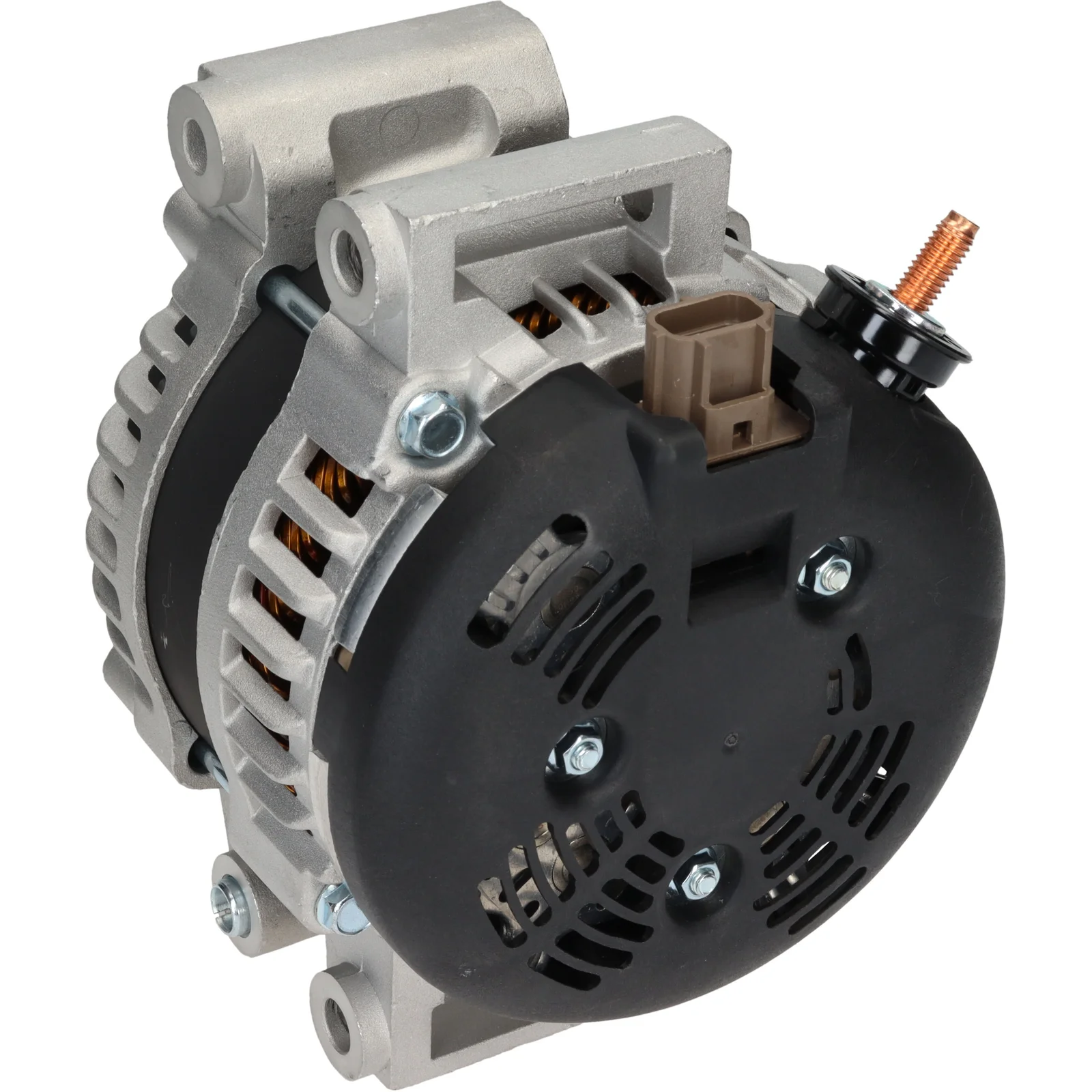

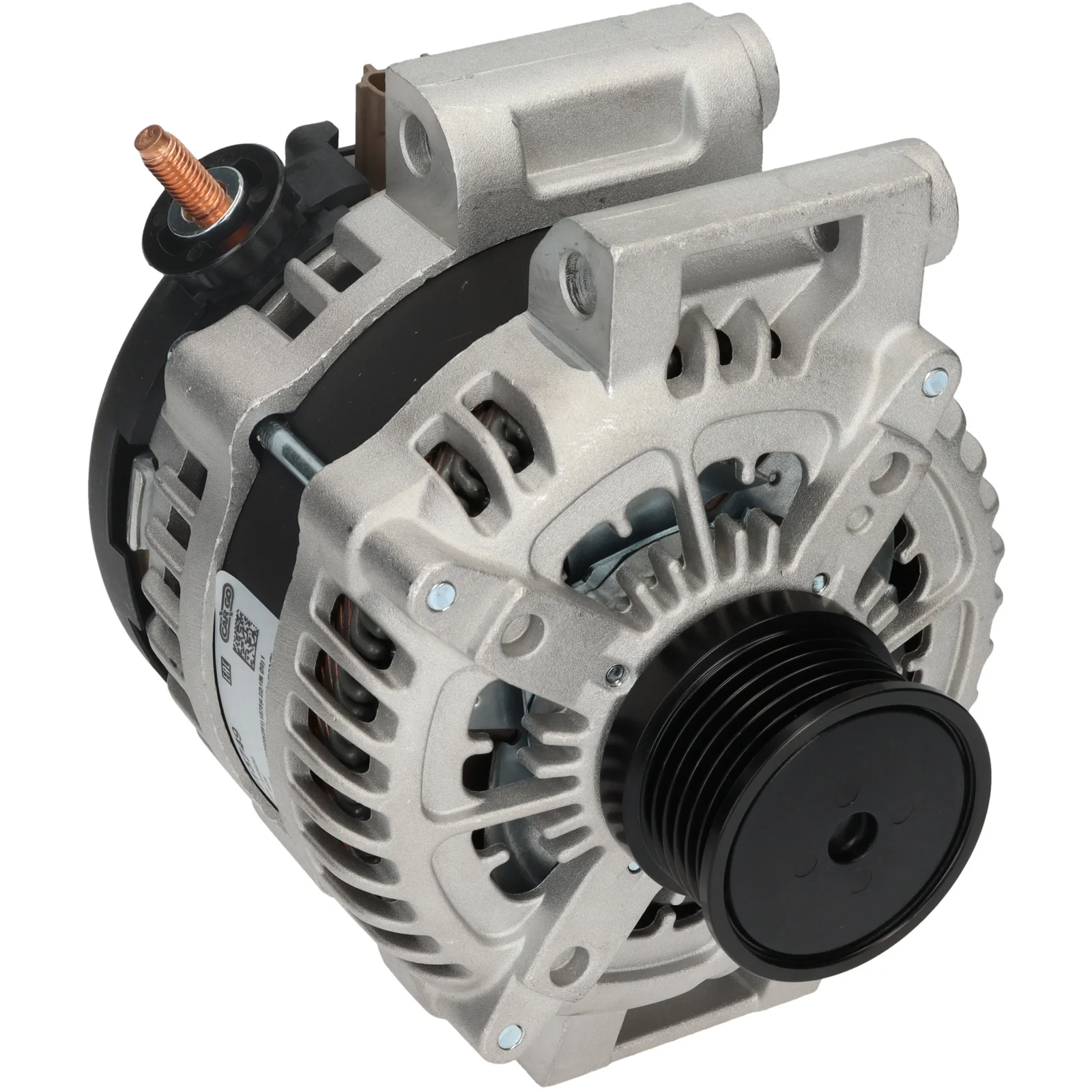

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 220, Roterer: CW, Montering. brakett avstand: 41,50

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsnivå: 14
Ampere: 220
Drevkugg for remskive: 52,00
Bredde/festebue arm: 70,00
Festebue avstand monteringsbrakett: 41,50
Brakettåpning for brakett: 8,90
Remjusteringsbrakettåpning 1: 8,20x9,50
Remjusteringsbrakettåpning 2: 10,50
Drevkugg dia.: 52,50
Skåror/drevkugg: 6
Radius: 79,50
Radius 2: 83,50
B+: M8
Posisjon/B+ i min.: 6
Rotasjon: med urviseren
Støpenummer: PL154
Total lengde mm: 170,00
Terminaltype: COM
Kommunikasjon: LIN
Drevkugg: SP/FW
Viftemotor: IF
Regulator type: IR
Anmerkninger: Denne Generator har en COM-terminal på Regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 41.50
Belt. adj. bracket hole 1 8.20x9.50
Belt. adj. bracket hole 2 10.50
Plug no. PL154
Bracket hole 8.90
Position/B+ in min. 6
Pulley SP/FW
Pulley dia. 52.50
Pulley dist. 52.00
Radius 79.50
Radius 2 83.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 170.00 mm
Width/holder arm 70.00
Amp 220

  • OEM
    F032115749, K04801835AB, k04801835ab, K04801835AD, P04801835AB, P04801835AC, 104210-6590, 104210-6591, 104210-6592, 04801835AB, 04801835AC, 04801835AD, 4801835AB, 4801835AD

  • Konkurrentreferens
    A6274, A6274S, CAL40415, dra1366, 8EL015630-721, 28-6964, 570.110.2202, 835.922.220, 20402N, 20402N-OS, 20402R, 554253RI, 12090731

  • NormaliseratArtNr
    a6274, a6274s, cal40415, dra1366, f032115749, k04801835ab, k04801835ad, p04801835ab, p04801835ac, 8el015630721, 20402n, 20402nos, 20402r, 286964, 554253ri, 04801835ab, 04801835ac, 04801835ad, 4801835ab, 4801835ad, 12090731, 835922220, 1042106590, 1042106591, 1042106592, 5701102202

  • Passar modeller
    Chrysler Model: 300 C Model series: 300 C Type of engine: CRD Size of motor: 3.0 Brand of engine: EXF From date: 01-09-2011 Fuel: Diesel Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: 4x4 Type of engine: CRD V6 Size of motor: 3.0 Brand of engine: EXF Type description: WK, WK2 Body: SUV From date: 01-01-2011 Fuel: Diesel Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: 4x4 Type of engine: CRD V6 Size of motor: 3.0 Brand of engine: EXF Type description: WK, WK2 From date: 01-07-2013 Fuel: Diesel Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: 4x4 Type of engine: TD V6 Size of motor: 3.0 Type description: WK, WK2 From date: 01-04-2014 Fuel: Diesel Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: CRD Size of motor: 3.0 Brand of engine: EXF Type description: WK, WK2 Body: SUV From date: 01-09-2013 Fuel: Diesel Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: V6 CRD Size of motor: 3.0 Brand of engine: EXF Type description: WK From date: 01-02-2011 Fuel: Diesel Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Van Type of engine: CRD Size of motor: 3.0 Brand of engine: EXF Type description: WK2 Body: SUV Van From date: 01-01-2017 Fuel: Diesel Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Van Type of engine: CRD Size of motor: 3.0 Brand of engine: EXF Type description: WK2 Body: SUV Van From date: 01-07-2013 Fuel: Diesel Approved: Yes
    Lancia Model: Thema Model series: Thema Type of engine: V6 CRD Size of motor: 3.0 Brand of engine: EXF From date: 01-09-2011 To date: 01-10-2014 Fuel: Diesel Approved: Yes
