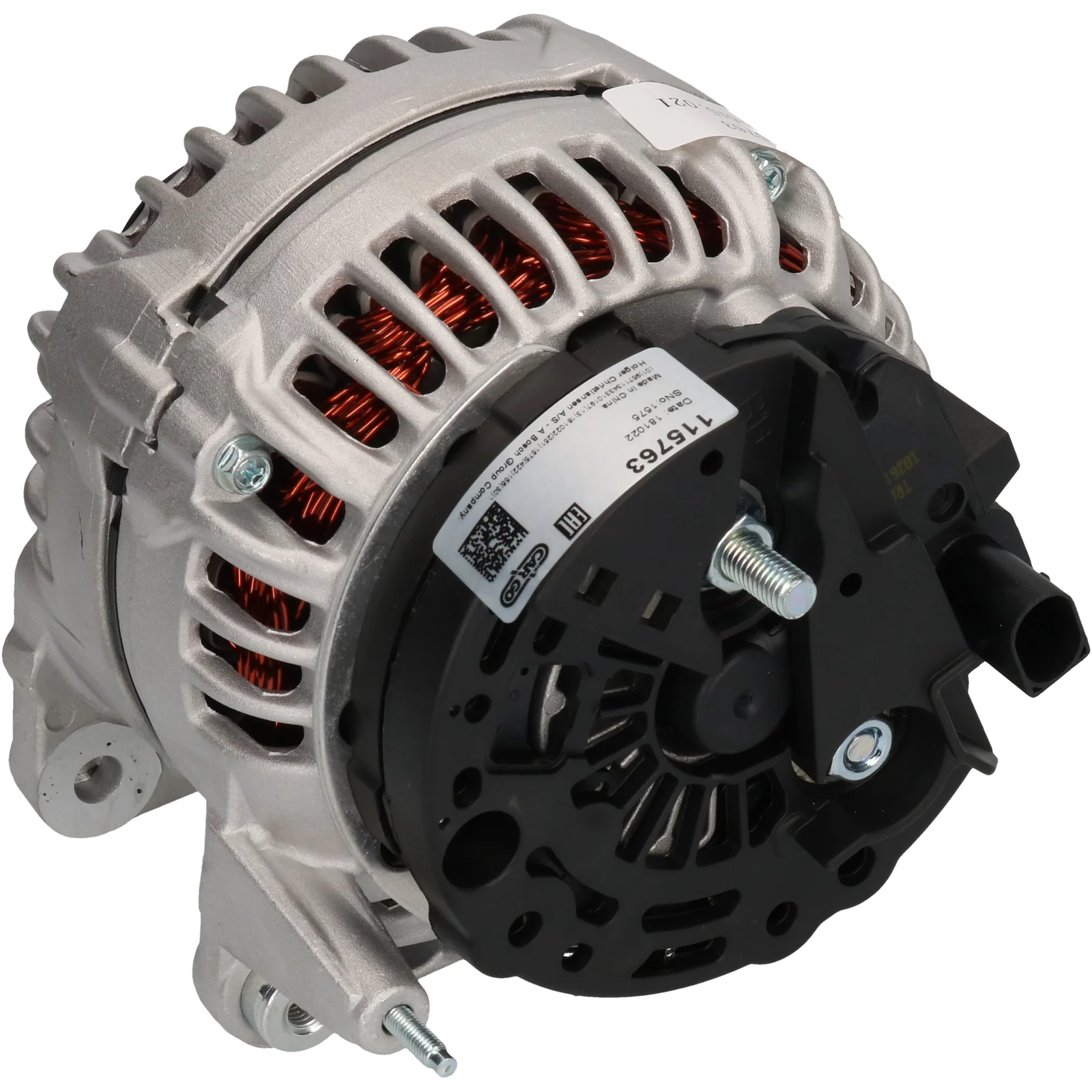

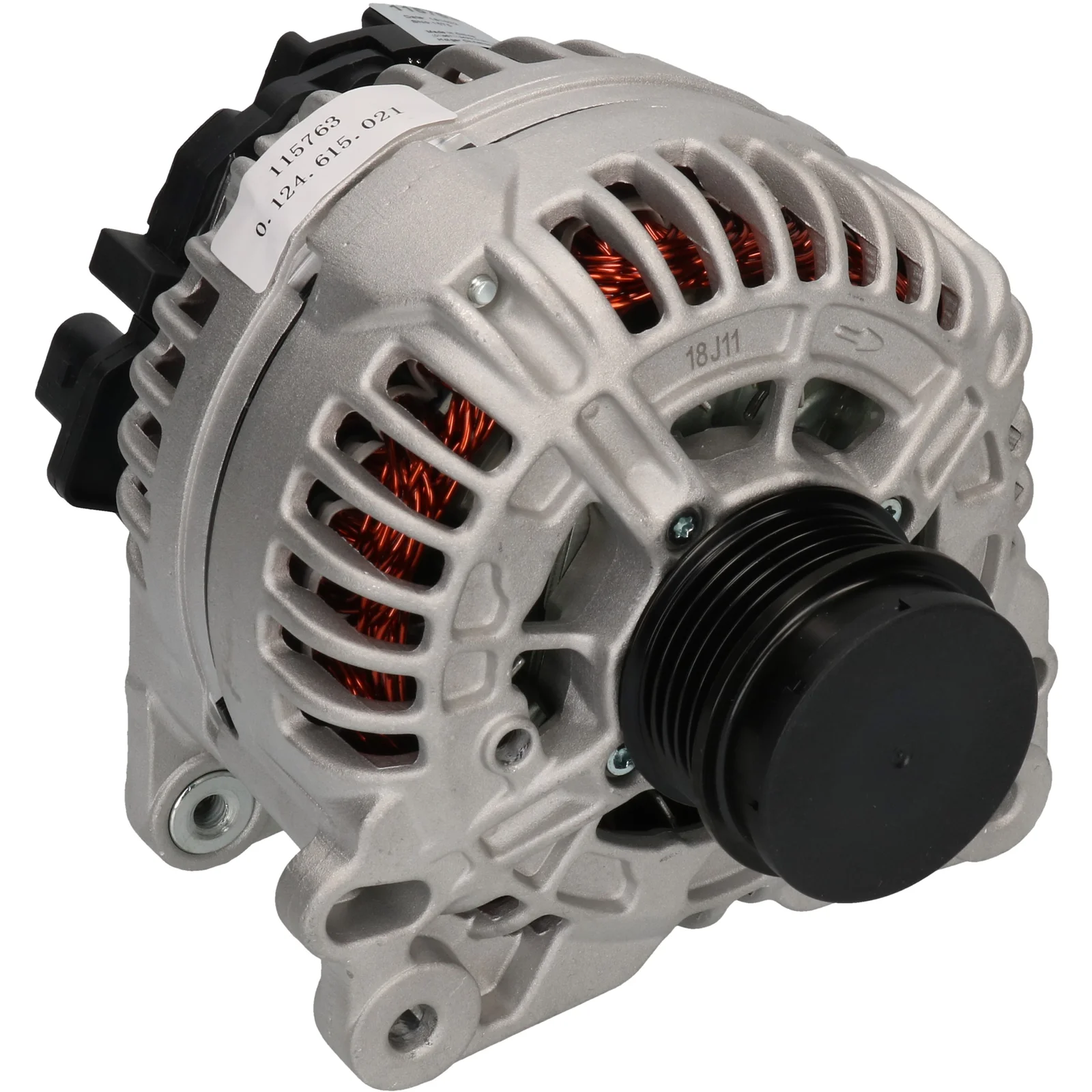

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115763

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 150, Rotasjon: med urviseren, Montasjebrakett dist.: 60,70

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsnivå: 14
Ampere: 150
Bøssing av drivehjul: 30,20
Bredde/holderarm: 14,20
Monteringsbrakett avstand: 60,70
Brakettshull: 8,50
Beltetilpassingsbrakettposisjon: 15
Beltetilpassingsbrakettshull 1: 8,50
Drevskive diameter: 56,00
Grooves/drevskive: 5
Radius: 90,00
Radius 2: 90,00
B+: M8
Posisjon/B+ i min.: 5
Rotasjon: med klokken
Propp nr.: PL61
Total lengde mm: 199,50
Terminaltype: L-DFM
Bøssing: SP/FW
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 60.70
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 15
Plug no. PL61
Bracket hole 8.50
Position/B+ in min. 5
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 30.20
Radius 90.00
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 5
Terminal type L-DFM
Voltage 14
Total length 199.50 mm
Width/holder arm 14.20
Amp 150

  • OEM
    F032115763, 06B903019X, 028903029N, 028903029NX, 0124615021

  • Konkurrentreferens
    A0495, DRA0753, LRA03158, 28-5770, 211.197.1502, 305.525.150, 112552, 12090472

  • NormaliseratArtNr
    a0495, dra0753, f032115763, lra03158, 06b903019x, 112552, 285770, 12090472, 028903029n, 028903029nx, 0124615021, 305525150, 2111971502

  • Passar modeller
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E2 From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E5 Body: Estate From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 8E2,B6 From date: 01-05-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 8E5 Body: Estate From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E2,B6 From date: 01-11-2000 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E5 Body: Estate From date: 01-09-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 8E2,B6 From date: 01-11-2000 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 8E5, B6 Body: Estate From date: 01-09-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: BKE Type description: 8EC From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: BKE Type description: 8ED Body: Estate From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: BRB Type description: 8EC From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: BRB Type description: 8ED Body: Estate From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    1 / 4
  • Beskrivelse
    Spenningsnivå: 14
    Ampere: 150
    Bøssing av drivehjul: 30,20
    Bredde/holderarm: 14,20
    Monteringsbrakett avstand: 60,70
    Brakettshull: 8,50
    Beltetilpassingsbrakettposisjon: 15
    Beltetilpassingsbrakettshull 1: 8,50
    Drevskive diameter: 56,00
    Grooves/drevskive: 5
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Posisjon/B+ i min.: 5
    Rotasjon: med klokken
    Propp nr.: PL61
    Total lengde mm: 199,50
    Terminaltype: L-DFM
    Bøssing: SP/FW
    Regulator type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 60.70
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 15
    Plug no. PL61
    Bracket hole 8.50
    Position/B+ in min. 5
    Pulley SP/FW
    Pulley dia. 56.00
    Pulley dist. 30.20
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 5
    Terminal type L-DFM
    Voltage 14
    Total length 199.50 mm
    Width/holder arm 14.20
    Amp 150
  • Kjøretøymatching

    • OEM
      F032115763, 06B903019X, 028903029N, 028903029NX, 0124615021

    • Konkurrentreferens
      A0495, DRA0753, LRA03158, 28-5770, 211.197.1502, 305.525.150, 112552, 12090472

    • NormaliseratArtNr
      a0495, dra0753, f032115763, lra03158, 06b903019x, 112552, 285770, 12090472, 028903029n, 028903029nx, 0124615021, 305525150, 2111971502

    • Passar modeller
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E2 From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E5 Body: Estate From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 8E2,B6 From date: 01-05-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 8E5 Body: Estate From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E2,B6 From date: 01-11-2000 To date: 01-12-2004 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E5 Body: Estate From date: 01-09-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 8E2,B6 From date: 01-11-2000 To date: 01-12-2004 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 8E5, B6 Body: Estate From date: 01-09-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: BKE Type description: 8EC From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: BKE Type description: 8ED Body: Estate From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: BRB Type description: 8EC From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: BRB Type description: 8ED Body: Estate From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
