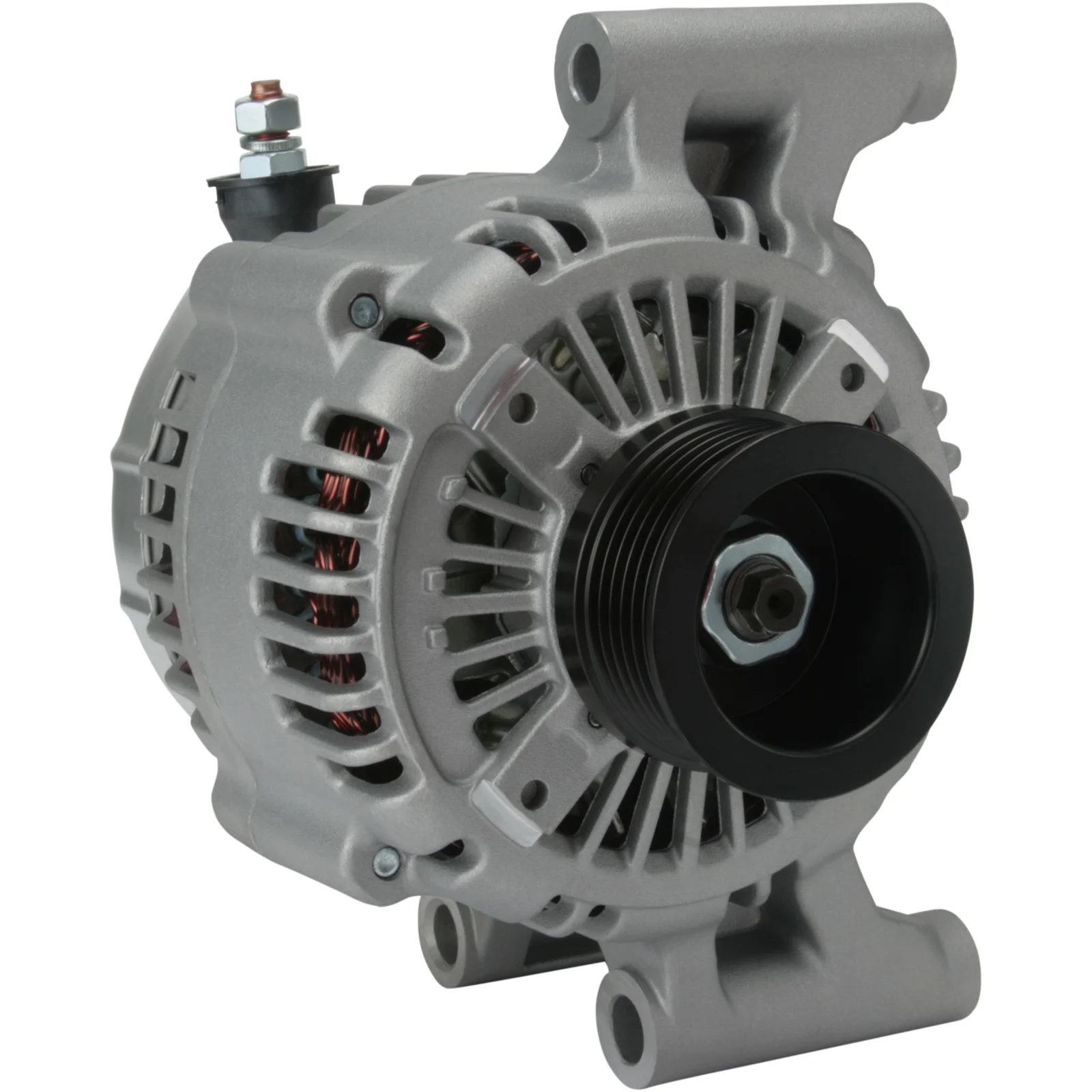

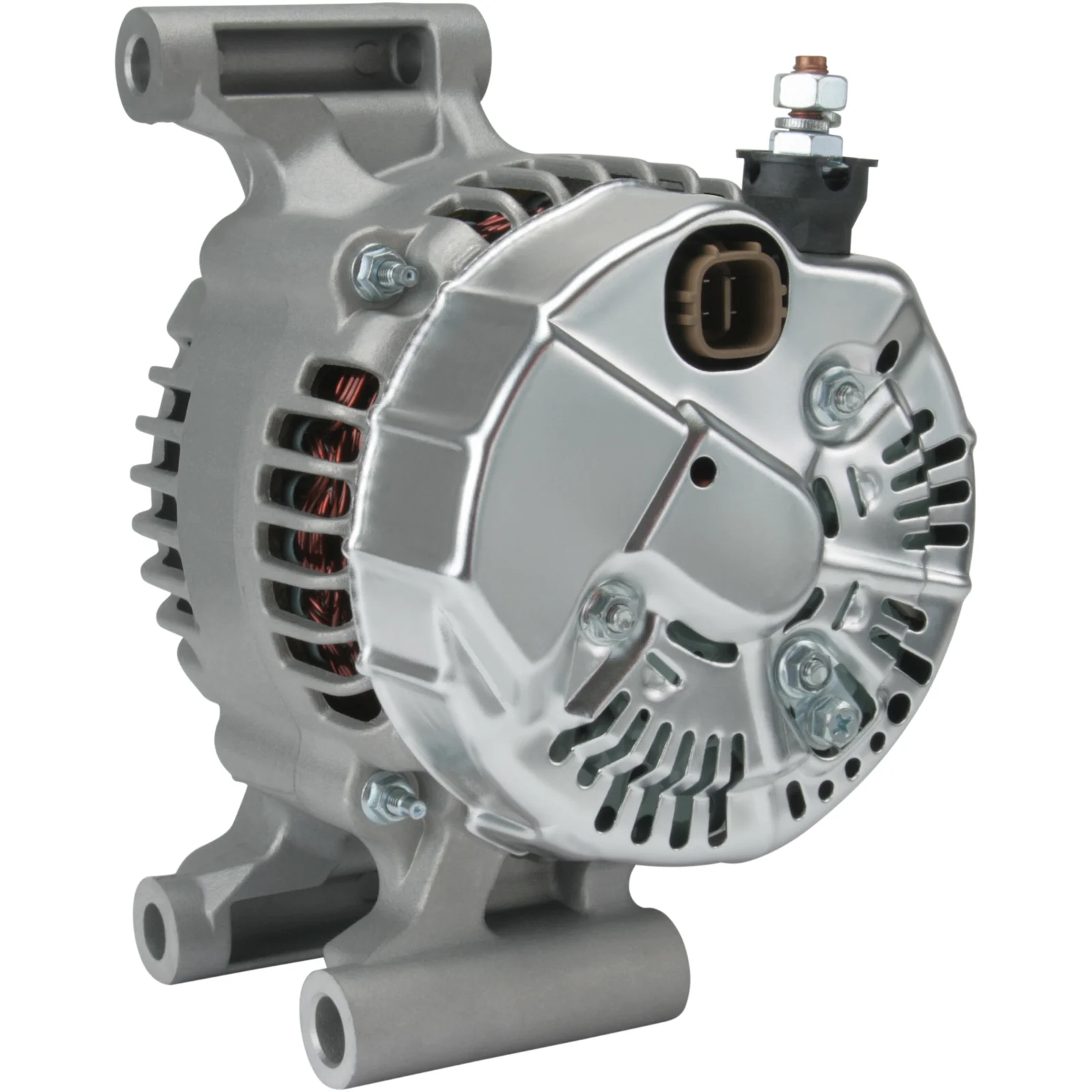

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115789

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 120, Rotasjon: CW, Monteringsbrakett avstand.: 74.00

Beskrivelse

Spenning: 14
Amp: 120
Drevkugg.dist.: 40.00
Monteringsbrakett dist.: 74.00
Brakett-hole: 10.20
Bånd. justering brakkethole pos.: 60
Bånd. justering brakethole 1: 12.20
Drevkugg dia.: 59.00
Grooves/drevkugg: 6
Radius: 87.50
Radius 2: 87.50
B+: M8
Posisjon/B+ i min.: 5
D+ Størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL92
Drevkugg: SP
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 74.00
Belt. adj. bracket hole 1 12.20
Belt. adj. brackethole pos. 60
Plug no. PL92
Bracket hole 10.20
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 59.00
Pulley dist. 40.00
Radius 87.50
D+ Size Plug
Radius 2 87.50
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Amp 120

  • OEM
    A6141, ALT31118, CAL40237, DRA0151, F032115789, LRA02937, XR817076, XR817077, XR83-10300-BD, XR8310300BA, XR8310300BC, XR8310300BD32, XR8310300CC, XR8310300CD, XR837164, XR837165, XR83BC, XR83CC, XR842452, XR852802, XR88577, 2R8310300AA, 2R8310300AB, 2R8310300BA, 2R8310300BB, 28-5551, 214.142.1202, 595.534.120, 13908, 13908N, 101211-7890, 101211-7891, 101211-7892, 102211-0512, 102211-0970, 102211-0971, 12060968, 12090771, 12090816

  • Konkurrentreferens
    A6141, ALT31118, CAL40237, DRA0151, LRA02937, 28-5551, 214.142.1202, 595.534.120, 13908, 13908N, 12060968, 12090771, 12090816

  • Bilmärken
    JAGUAR

  • NormaliseratArtNr
    a6141, alt31118, cal40237, dra0151, f032115789, lra02937, xr817076, xr817077, xr8310300ba, xr8310300bc, xr8310300bd, xr8310300bd32, xr8310300cc, xr8310300cd, xr837164, xr837165, xr83bc, xr83cc, xr842452, xr852802, xr88577, 2r8310300aa, 2r8310300ab, 2r8310300ba, 2r8310300bb, 13908, 13908n, 285551, 12060968, 12090771, 12090816, 595534120, 1012117890, 1012117891, 1012117892, 1022110512, 1022110970, 1022110971, 2141421202

  • Passar modeller
    JAGUAR S-TYPE II (X200) 2.5 V6 Engine volume: 2.5 Engine type: JB(AJV6) Year: 04.02-10.07
    JAGUAR S-TYPE II (X200) 3.0 V6 Engine volume: 3.0 Engine type: FB(AJV6), FG(AJV6) Year: 01.99-10.07
    JAGUAR XJ (X350, X358) 3.0 Engine volume: 3.0 Engine type: AJV6(3.0 Liter) Year: 04.04-01.07
    JAGUAR XJ (X350, X358) 3.0 Engine volume: 3.0 Engine type: VB(AJV6), VG(AJV6) Year: 05.03-03.09
  • Beskrivelse
    Spenning: 14
    Amp: 120
    Drevkugg.dist.: 40.00
    Monteringsbrakett dist.: 74.00
    Brakett-hole: 10.20
    Bånd. justering brakkethole pos.: 60
    Bånd. justering brakethole 1: 12.20
    Drevkugg dia.: 59.00
    Grooves/drevkugg: 6
    Radius: 87.50
    Radius 2: 87.50
    B+: M8
    Posisjon/B+ i min.: 5
    D+ Størrelse: Plugg
    Rotasjon: CW
    Plugg nr.: PL92
    Drevkugg: SP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 74.00
    Belt. adj. bracket hole 1 12.20
    Belt. adj. brackethole pos. 60
    Plug no. PL92
    Bracket hole 10.20
    Position/B+ in min. 5
    Prod. info BN
    Pulley SP
    Pulley dia. 59.00
    Pulley dist. 40.00
    Radius 87.50
    D+ Size Plug
    Radius 2 87.50
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Amp 120
  • Kjøretøymatching

    • OEM
      A6141, ALT31118, CAL40237, DRA0151, F032115789, LRA02937, XR817076, XR817077, XR83-10300-BD, XR8310300BA, XR8310300BC, XR8310300BD32, XR8310300CC, XR8310300CD, XR837164, XR837165, XR83BC, XR83CC, XR842452, XR852802, XR88577, 2R8310300AA, 2R8310300AB, 2R8310300BA, 2R8310300BB, 28-5551, 214.142.1202, 595.534.120, 13908, 13908N, 101211-7890, 101211-7891, 101211-7892, 102211-0512, 102211-0970, 102211-0971, 12060968, 12090771, 12090816

    • Konkurrentreferens
      A6141, ALT31118, CAL40237, DRA0151, LRA02937, 28-5551, 214.142.1202, 595.534.120, 13908, 13908N, 12060968, 12090771, 12090816

    • Bilmärken
      JAGUAR

    • NormaliseratArtNr
      a6141, alt31118, cal40237, dra0151, f032115789, lra02937, xr817076, xr817077, xr8310300ba, xr8310300bc, xr8310300bd, xr8310300bd32, xr8310300cc, xr8310300cd, xr837164, xr837165, xr83bc, xr83cc, xr842452, xr852802, xr88577, 2r8310300aa, 2r8310300ab, 2r8310300ba, 2r8310300bb, 13908, 13908n, 285551, 12060968, 12090771, 12090816, 595534120, 1012117890, 1012117891, 1012117892, 1022110512, 1022110970, 1022110971, 2141421202

    • Passar modeller
      JAGUAR S-TYPE II (X200) 2.5 V6 Engine volume: 2.5 Engine type: JB(AJV6) Year: 04.02-10.07
      JAGUAR S-TYPE II (X200) 3.0 V6 Engine volume: 3.0 Engine type: FB(AJV6), FG(AJV6) Year: 01.99-10.07
      JAGUAR XJ (X350, X358) 3.0 Engine volume: 3.0 Engine type: AJV6(3.0 Liter) Year: 04.04-01.07
      JAGUAR XJ (X350, X358) 3.0 Engine volume: 3.0 Engine type: VB(AJV6), VG(AJV6) Year: 05.03-03.09
