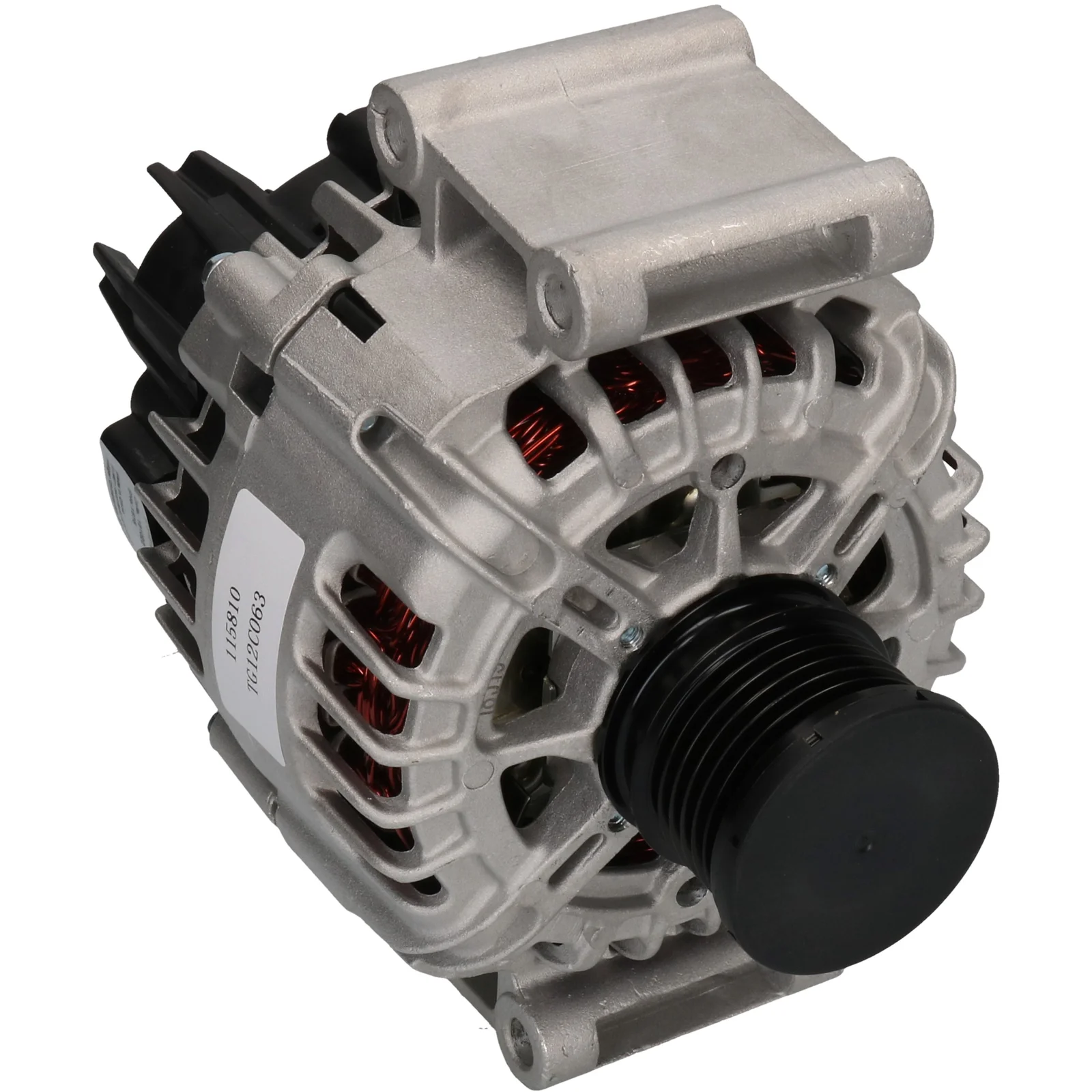

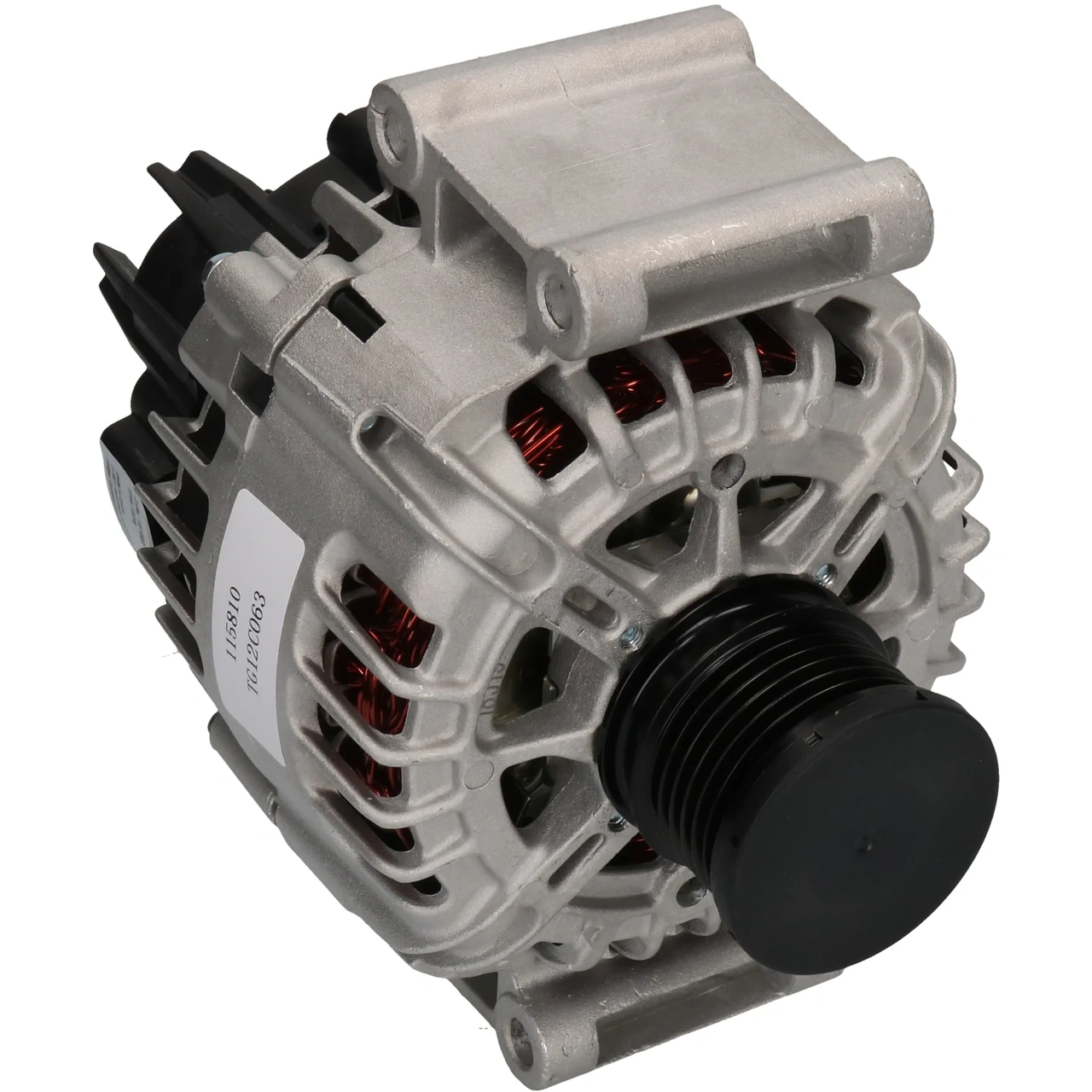

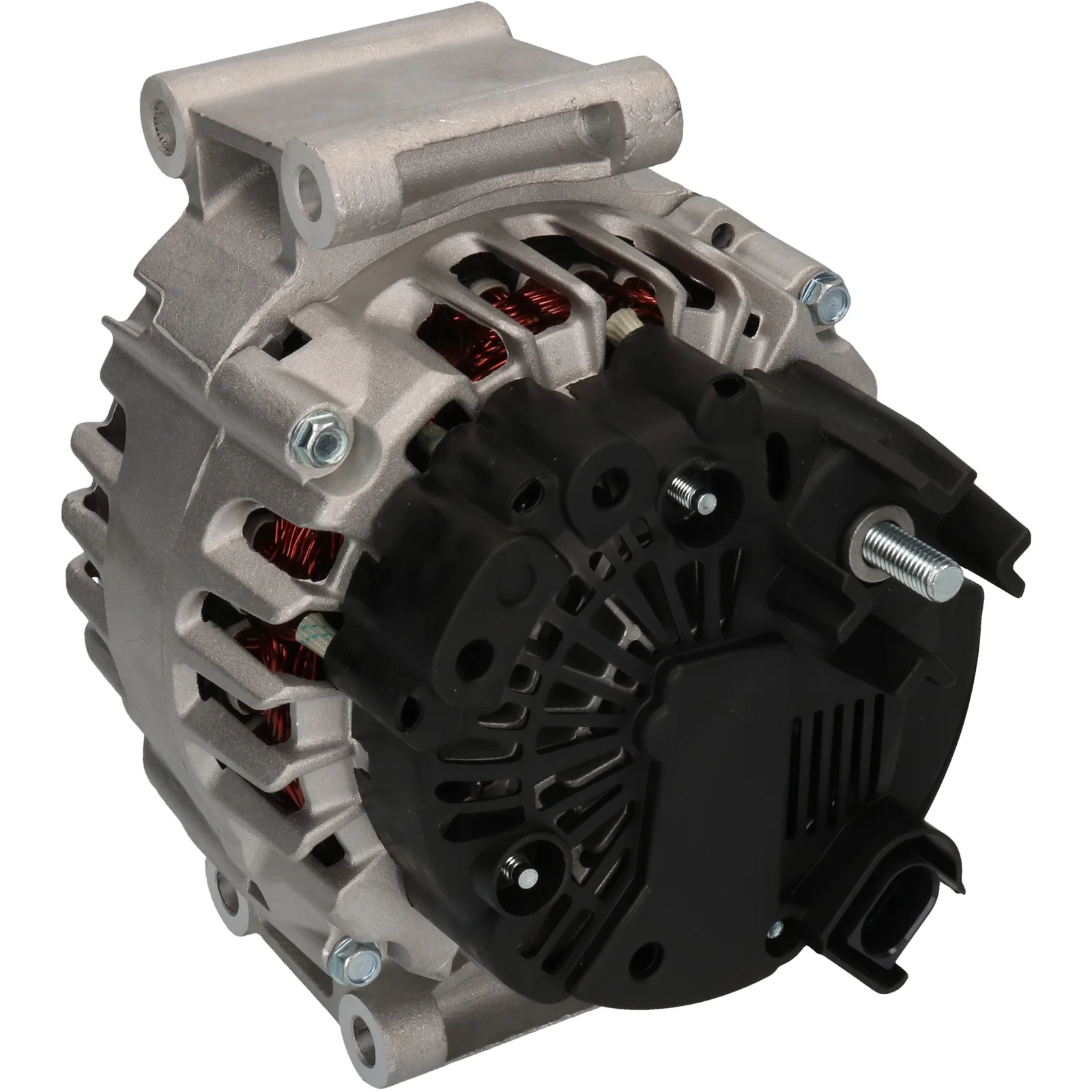

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115810

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 120, Rotasjon: CW, Monteringsbukkeavstand: 56,00

Beskrivelse

HC-Cargo Dynamo 14V - 120A, 6•

Spenning: 14
Ampere: 120
Bøssing dist.: 31.00
Bredde/holderarm: 70.00
Montasje. beslag dist.: 56.00
Beslagshull: 9.50
Bøssing justering. beslagpos.: 60
Bøssing justering. beslagshull 1: 9.50
Bøssing diameter: 50.00
Gavler/holk: 6
Radius: 81.50
Radius 2: 81.50
B+: M8
Posisjon/B+ i min.: 8
Rotasjon: CW
Kontakt nr.: PL125
Total lengde mm: 195.00
Terminaltype: KOM
Bøssing: SP/FW
Regulator type: IR
Anmerkninger: Denne Generator har en KOM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.50
Belt. adj. brackethole pos. 60
Plug no. PL125
Bracket hole 9.50
Position/B+ in min. 8
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 31.00
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 195.00 mm
Width/holder arm 70.00
Amp 120

  • OEM
    A014 1541402, a0141541402, F032115810, TG12C063, 014 154 1402, 115810, 2605420, 2605420A, 0141541402

  • Konkurrentreferens
    A3284, A3284PR, CAL15493, DRA0984, LRA03481, 8EL011713-301, 8EL012240-151, 28-6591, 225.306.1202, 555.584.120, 11716N, 209221, 209221A, 439678, 440263, 9090606, 12090558

  • Bilmärken
    Mercedes Benz

  • NormaliseratArtNr
    a0141541402, a3284, a3284pr, cal15493, dra0984, f032115810, lra03481, tg12c063, 8el011713301, 8el012240151, 11716n, 115810, 209221, 209221a, 286591, 439678, 440263, 2605420, 2605420a, 9090606, 12090558, 0141541402, 555584120, 2253061202

  • Passar modeller
    Mercedes Benz Series: C-KLASS (W204) Model: C 180 CGI Engine volume: 1.8 Engine type: M 271.820 Year: 01.07-01.14
    Mercedes Benz Series: C-KLASS (W204) Model: C 200 CGI Engine volume: 1.8 Engine type: M 271.820/M 271.860 Year: 01.07-01.24
    Mercedes Benz Series: C-KLASS (W204) Model: C 250 CGI (204.047) Engine volume: 1.8 Engine type: M 271.860 Year: 07.09-01.14
    Mercedes Benz Series: C-KLASS Coupé (C204) Model: C 180 (204.349) Engine volume: 1.8 Engine type: M 271.820 Year: 06.11-
    Mercedes Benz Series: C-KLASS Coupé (C204) Model: C 250 (204.347) Engine volume: 1.8 Engine type: M 271.860 Year: 06.11-
    Mercedes Benz Series: C-KLASS T-Model Model: C 180 CGI Engine volume: 1.8 Engine type: M 271.820 Year: 11.09-08.14
    Mercedes Benz Series: C-KLASS T-Model Model: C 200 CGI Engine volume: 1.8 Engine type: M 271.820/M 271.860 Year: 08.07-08.14
    Mercedes Benz Series: C-KLASS T-Model Model: C 250 CGI Engine volume: 1.8 Engine type: M 271.860 Year: 07.09-08.14
    Mercedes Benz Series: E-KLASS (W212) Model: E 200 CGI Engine volume: 1.8 Engine type: M 271.820/M 271.860 Year: 08.09-12.15
    Mercedes Benz Series: E-KLASS (W212) Model: E 250 CGI Engine volume: 1.8 Engine type: M 271.860 Year: 01.09-12.15
    Mercedes Benz Series: E-KLASS Cabriolet Model: E 200 CGI Engine volume: 1.8 Engine type: M 271.820/M 271.860 Year: 01.10-12.16
    Mercedes Benz Series: E-KLASS Cabriolet Model: E 250 CGI Engine volume: 1.8 Engine type: E 250 CGI Year: 01.10-12.16
    Mercedes Benz Series: E-KLASS Coupé Model: E 200 CGI Engine volume: 1.8 Engine type: M 271.820/M 271.860 Year: 01.10-12.16
    Mercedes Benz Series: E-KLASS T-Model Model: E 200 CGI Engine volume: 1.8 Engine type: M 271.860 Year: 11.09-12.16
    Mercedes Benz Series: E-KLASS T-Model Model: E 250 CGI Engine volume: 1.8 Engine type: M 271.860 Year: 11.09-12.13
    Mercedes Benz Series: SLK (R172) Model: 200 Engine volume: 1.8 Engine type: M 271.860/M 271.861 Year: 02.11-
    Mercedes Benz Series: SLK (R172) Model: 250 Engine volume: 1.8 Engine type: M 271.860, M 271.861 Year: 02.11-
    Mercedes-Benz Model: 180 Model series: C 180 Size of motor: 1.8 Brand of engine: M271.820 Type description: C204 Body: Coupe From date: 01-06-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 180 Model series: C 180 Size of motor: 1.8 Brand of engine: M271.820 Type description: S204 Body: Estate From date: 01-11-2009 To date: 01-08-2014 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 180 Model series: C 180 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.820 Type description: W204 From date: 01-01-2007 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: C 200 Size of motor: 1.8 Brand of engine: M271.820 Type description: S204 Body: Estate From date: 01-08-2007 To date: 01-08-2014 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 200 Model series: C 200 Size of motor: 1.8 Brand of engine: M271.860 Type description: S204 Body: Estate From date: 01-08-2007 To date: 01-08-2014 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 200 Model series: C 200 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.820 Type description: W204 From date: 01-01-2007 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Model type: CGI Size of motor: 1.8 Brand of engine: M271.820 Type description: A207 Body: Convertible From date: 01-01-2010 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Model type: CGI Size of motor: 1.8 Brand of engine: M271.820 Type description: C207 Body: Coupe From date: 01-01-2010 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Model type: CGI Size of motor: 1.8 Brand of engine: M271.860 Type description: A207 Body: Convertible From date: 01-01-2010 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Model type: CGI Size of motor: 1.8 Brand of engine: M271.860 Type description: C207 Body: Coupe From date: 01-01-2010 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.820 Type description: S212 Body: Estate From date: 01-11-2009 To date: 01-12-2016 Fuel: Gasoline Approved: Yes Manufacture type: T-model
    Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.820 Type description: W212 From date: 01-08-2009 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.860 Type description: S212 Body: Estate From date: 01-11-2009 To date: 01-12-2016 Fuel: Gasoline Approved: Yes Manufacture type: T-model
    Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.860 Type description: W212 From date: 01-08-2009 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: SLK 200 Size of motor: 1.8 Brand of engine: M271.860 Type description: R172 Body: Convertible From date: 01-02-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: SLK 200 Size of motor: 1.8 Brand of engine: M271.861 Type description: R172 Body: Convertible From date: 01-02-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: C 250 Model type: CGI Size of motor: 1.8 Brand of engine: M271.860 Type description: S204 Body: Estate From date: 01-07-2009 To date: 01-08-2014 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 250 Model series: C 250 Size of motor: 1.8 Brand of engine: M271.860 Type description: C204 Body: Coupe From date: 01-06-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: C 250 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.860 Type description: W204 From date: 01-07-2009 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: E 250 Model type: CGI Size of motor: 1.8 Brand of engine: M271.860 Type description: A207 Body: Convertible From date: 01-01-2010 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: E 250 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.860 Type description: C207 Body: Coupe From date: 01-01-2009 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: E 250 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.860 Type description: S212 Body: Estate From date: 01-11-2009 To date: 01-12-2013 Fuel: Gasoline Approved: Yes Manufacture type: T-model
    Mercedes-Benz Model: 250 Model series: E 250 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.860 Type description: W212 From date: 01-01-2009 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: SLK 250 Size of motor: 1.8 Brand of engine: M271.860 Type description: R172 Body: Convertible From date: 01-02-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: SLK 250 Size of motor: 1.8 Brand of engine: M271.861 Type description: R172 Body: Convertible From date: 01-02-2011 Fuel: Gasoline Approved: Yes
