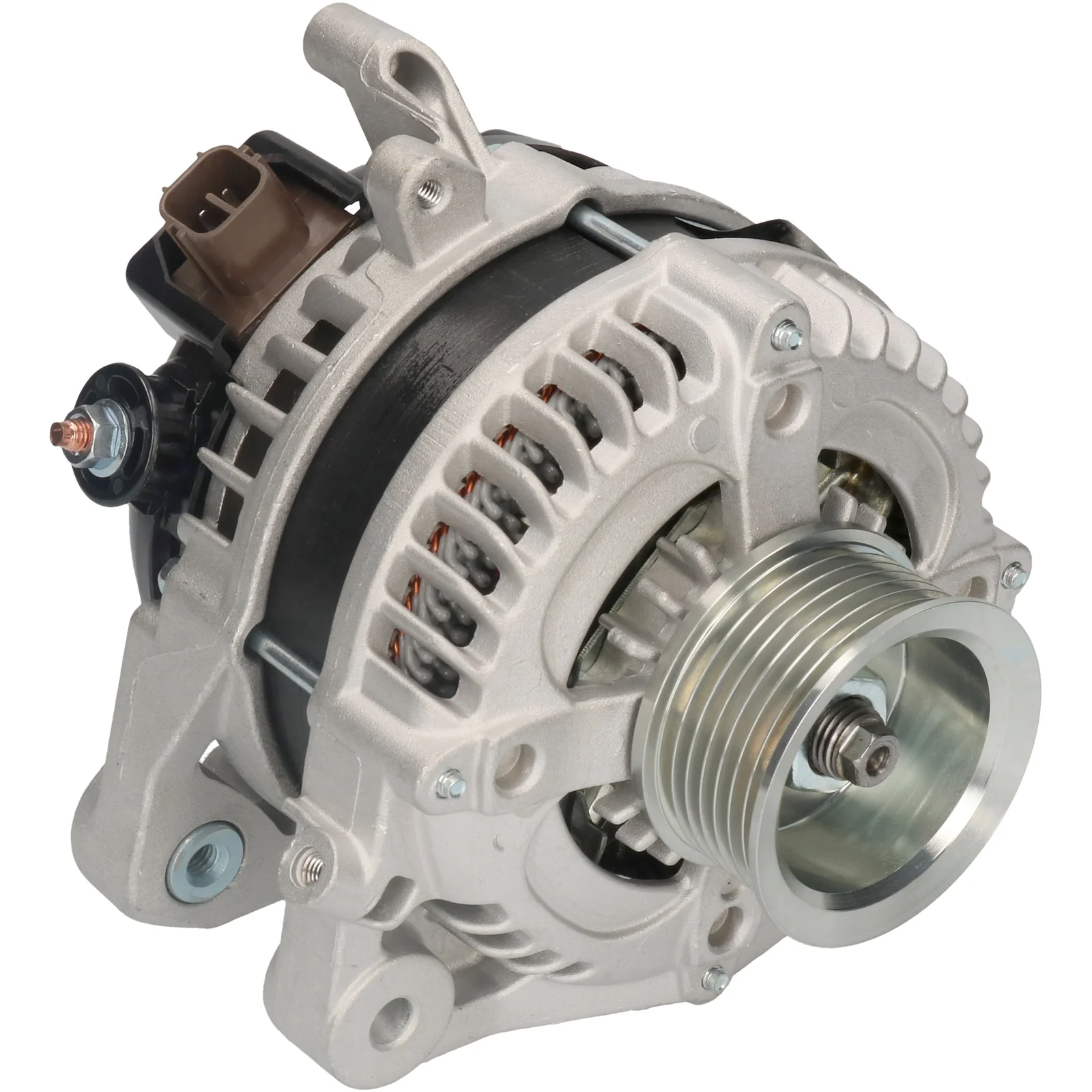

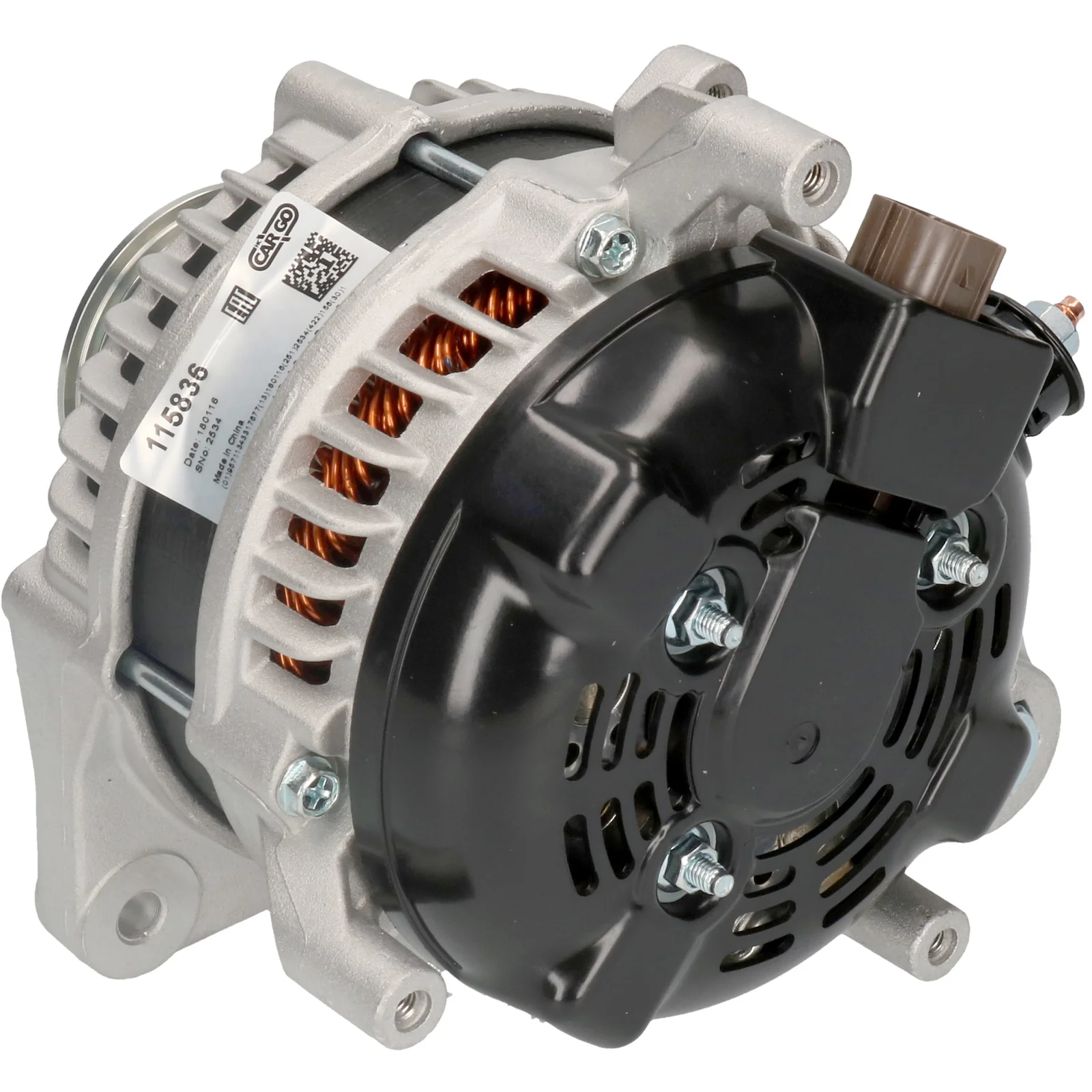

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115836

HC-Cargo Dynamo

Teknisk info:

Spenningsgiver: 14, Amp: 105, Rotasjon: med urviseren, Festebrakett avstand: 38.00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Honda CR-V Dynamo 12V-100A 12V - 100A, 7gr, (L, IG, FR, C) For Yourex produkt bestilling 90-222-4537

Volk: 14
Ampere: 105
Remskive dist.: 45.00
Bredde/bærestang: 20.00
Monteringsfeste avstand: 38.00
Festehull: 9.00
Belt. justering festehull pos.: 13
Belt. justering festehull 1: 8.50
Remskivedi.: 60.00
Groover/remskive: 7
Radius: 85.00
Radius 2: 86.50
B+: M6
Posisjon/B+ i min.: 20
D+ Størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL60
Total lengde mm: 160.00
Remskive: SP
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 38.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 13
Plug no. PL60
Bracket hole 9.00
Position/B+ in min. 20
Prod. info BN
Pulley SP
Pulley dia. 60.00
Pulley dist. 45.00
Radius 85.00
D+ Size Plug
Radius 2 86.50
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 160.00 mm
Width/holder arm 20.00
Amp 105

  • OEM
    CSF 37, CSF37, F032115836, 1986A00580, 2078ir, 021080-1610, 31100-RZP-G01, 31100-RZPG01, 104210-5370

  • Konkurrentreferens
    A6172, A6483(DENSO), CAL40349, DAN1148, DRA0887, F042302178, LRA03491, 28-6601, 125.556.130, 222.161.1002, 20493R, 113420, 209412, 209412A, 440553, 440977, 553677RI, 9090685, 12060977, 32082410, 0986082410

  • Bilmärken
    Honda

  • NormaliseratArtNr
    a6172, a6483denso, cal40349, csf37, dan1148, dra0887, f032115836, f042302178, lra03491, 1986a00580, 2078ir, 20493r, 31100rzpg01, 113420, 209412, 209412a, 286601, 440553, 440977, 553677ri, 9090685, 12060977, 32082410, 125556130, 0210801610, 0986082410, 1042105370, 2221611002

  • Passar modeller
    Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: R20A3 Body: Estate From date: 01-07-2008 Fuel: Gasoline Approved: Yes Manufacture type: kombi
    Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: R20A3 From date: 01-06-2008 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accordi Model type: i-VTEC (CP1) Size of motor: 2.0 Brand of engine: R20A3 Type description: CP Body: Saloon From date: 01-07-2008 To date: 01-09-2012 Fuel: Petrol Approved: Yes
    Honda Model: CR-V Model series: CR-V Model type: Flex (RE5) Size of motor: 2.0 Brand of engine: R20A1 Type description: RM_ Body: SUV From date: 01-01-2013 Fuel: Petrol/Ethanol Approved: Yes
    Honda Model: CR-V Model series: CR-V Type of engine: i-VTEC Size of motor: 2.0 Brand of engine: R20A2 Body: SUV From date: 01-10-2006 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
    Honda Model: Crossroad Model series: Crossroad Size of motor: 2.0 Brand of engine: R20A Type description: RT_ Body: SUV From date: 01-02-2007 To date: 01-08-2010 Fuel: Petrol Approved: Yes
    Honda Model: Stream Model series: Stream Model type: Vtec AWD (RN9) Size of motor: 2.0 Brand of engine: R20A4 Type description: RN Body: MPV Fuel: Petrol Approved: Yes
    Honda Series: Accord VIII Kombi Model: 2.0i Engine volume: 2.0 Engine type: R20 A3 Year: 07.08-
    Honda Series: Accord VIII Model: 2.0i Engine volume: 2.0 Engine type: R20 A3 Year: 07.08-
    Honda Series: CR-V III Model: 2.0 i 4WD Engine volume: 2.0 Engine type: R20 A2 Year: 01.07-
