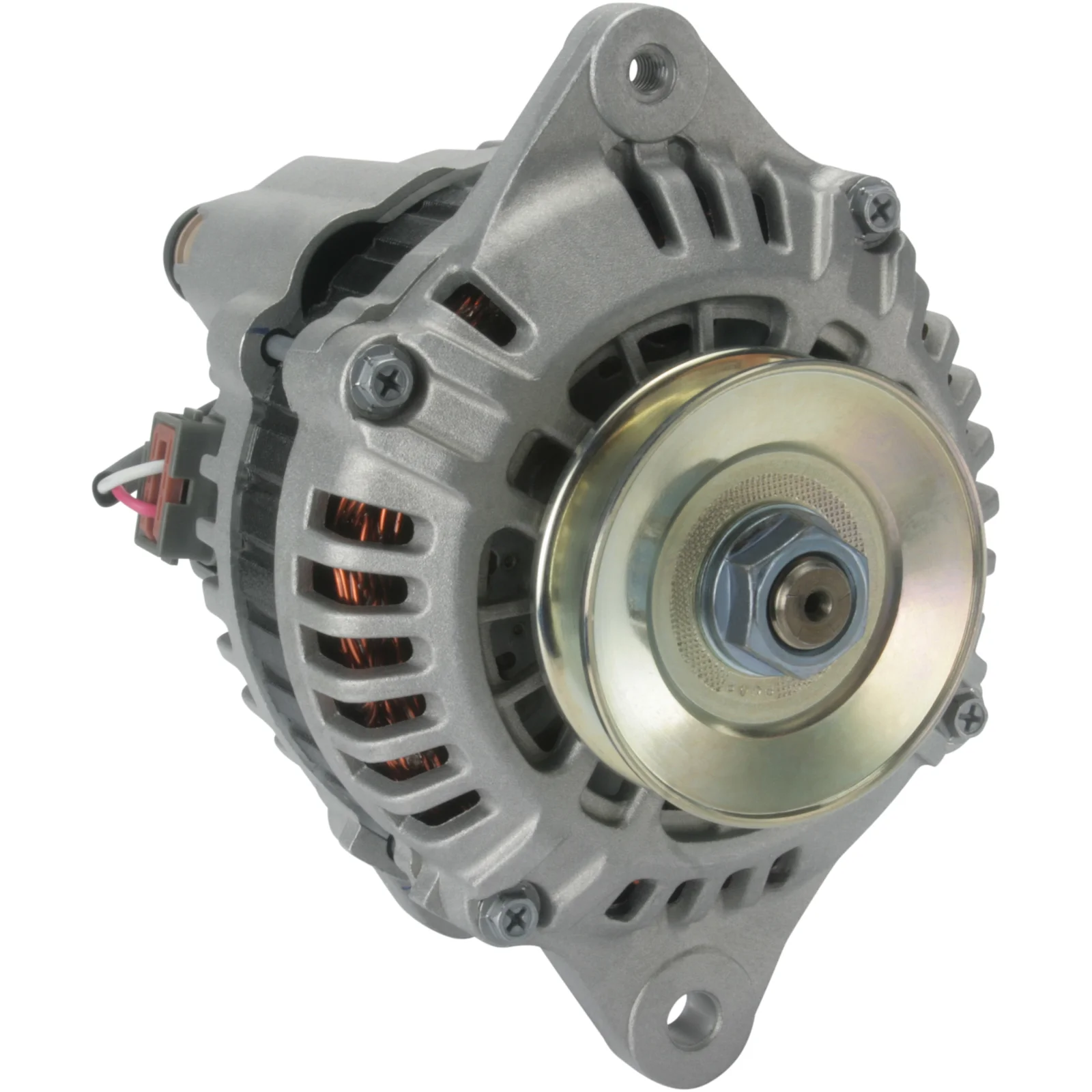

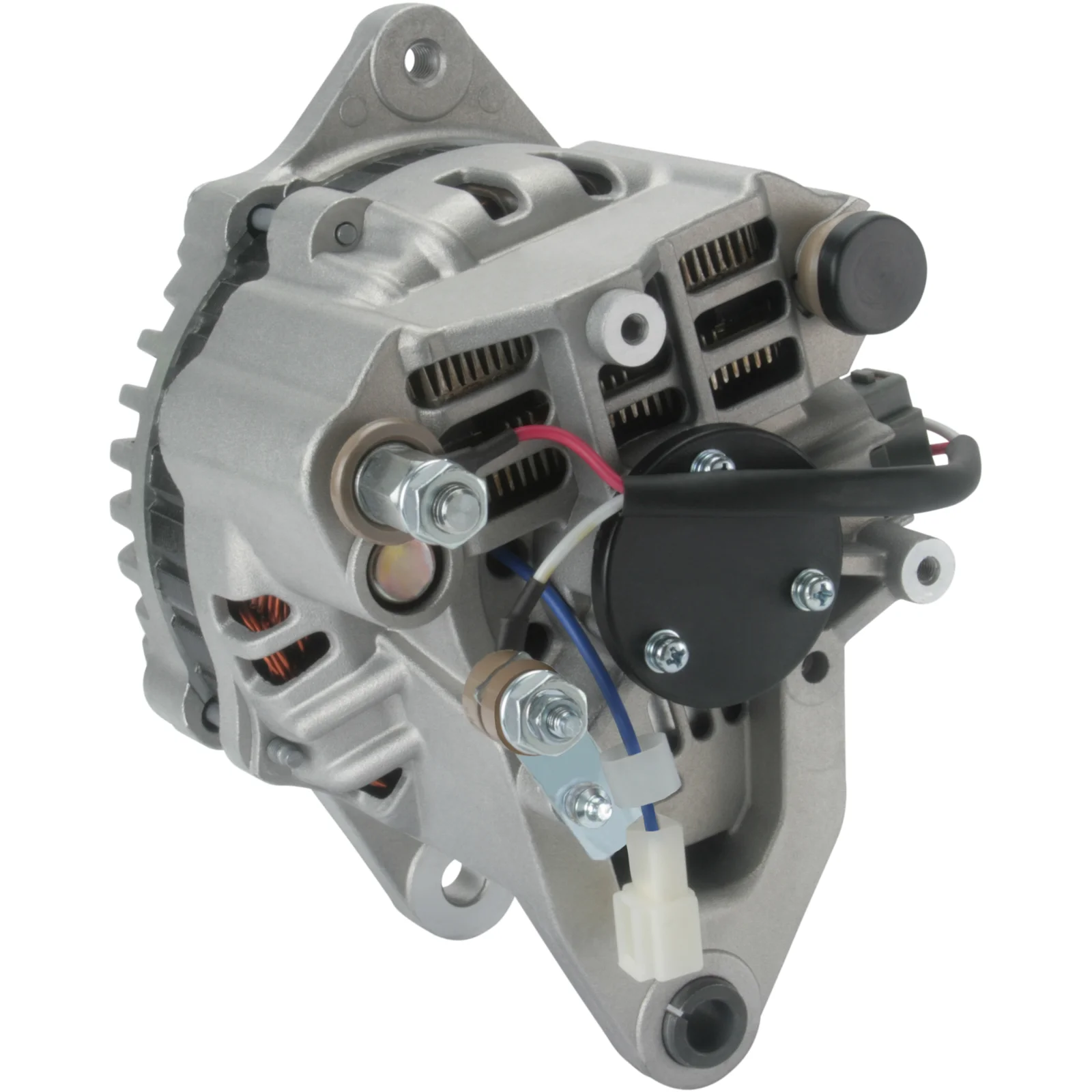

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115837

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 70, Rotasjon: CW, Monteringsbrakett avstand: 80,50

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Amp: 70
Terminal: W
Drevets dist.: 42.00
Bredde/holderarm: 13.00
Festebrakett avstand: 80.50
Brakettåpning: 10.20
Båndjusteringsbrakettposisjon: 60
Båndjusteringsbrakettåpning 1: M8
Drevdia.: 80.00
Grove/drev: 1
Radius: 90.00
Radius 2: 85.00
B+: M8
Posisjon/B+ i min.: 50
D+ Størrelse: M5
Rotasjon: medur
W-kontakttype: Kontakt
Total lengde mm: 183.00
Drev: P
Regulator type: IR
Merknader: Som HC-CARGO 111980

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 80.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Bracket hole 10.20
Position/B+ in min. 50
Pulley P
Pulley dia. 80.00
Pulley dist. 42.00
Radius 90.00
D+ Size M5
Radius 2 85.00
Regulator type IR
Remarks Like HC-CARGO 111980
Rotation CW
Grooves/pulley 1
Terminal W
Voltage 14
W plug type Plug
Total length 183.00 mm
Width/holder arm 13.00
Amp 70

  • OEM
    F032115837, 23100-69t60, 0123310052

  • Konkurrentreferens
    A0787S, CAL10313, CAL45118, DRB7200, 28-4831, 165.573.070, 227.183.702, 440963, 12060800, 0986047200

  • NormaliseratArtNr
    a0787s, cal10313, cal45118, drb7200, f032115837, 284831, 440963, 2310069t60, 12060800, 0123310052, 165573070, 227183702, 0986047200

  • Passar modeller
    Ford Model: Maverick Model series: Maverick Type of engine: TD Size of motor: 2.7 Brand of engine: TD27E Type description: UDS,UNS From date: 01-09-1996 To date: 01-04-1998 Fuel: Diesel Approved: Yes
    Nissan Model: Atleon Model series: 110.35 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Atleon Model series: 110.56 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Atleon Model series: 120.35 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Atleon Model series: 120.56 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Atleon Model series: 120.56 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2003 Fuel: Diesel Approved: Yes
    Nissan Model: Terrano Model series: Terrano Model type: 4WD Type of engine: TDi Size of motor: 2.7 Brand of engine: TD27TI Type description: R20 Body: Van From date: 01-06-1998 To date: 01-09-2007 Fuel: Diesel Approved: Yes
    Nissan Model: Terrano Model series: Terrano Model type: 4WD Type of engine: TDi Size of motor: 2.7 Brand of engine: TD27TI Type description: R20 From date: 01-05-1996 To date: 01-09-2007 Fuel: Diesel Approved: Yes
    Nissan Model: Terrano Model series: Terrano Type of engine: TD Size of motor: 2.7 Brand of engine: TD27T Type description: R20 From date: 01-02-1993 To date: 01-01-2002 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 14
    Amp: 70
    Terminal: W
    Drevets dist.: 42.00
    Bredde/holderarm: 13.00
    Festebrakett avstand: 80.50
    Brakettåpning: 10.20
    Båndjusteringsbrakettposisjon: 60
    Båndjusteringsbrakettåpning 1: M8
    Drevdia.: 80.00
    Grove/drev: 1
    Radius: 90.00
    Radius 2: 85.00
    B+: M8
    Posisjon/B+ i min.: 50
    D+ Størrelse: M5
    Rotasjon: medur
    W-kontakttype: Kontakt
    Total lengde mm: 183.00
    Drev: P
    Regulator type: IR
    Merknader: Som HC-CARGO 111980

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 80.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Bracket hole 10.20
    Position/B+ in min. 50
    Pulley P
    Pulley dia. 80.00
    Pulley dist. 42.00
    Radius 90.00
    D+ Size M5
    Radius 2 85.00
    Regulator type IR
    Remarks Like HC-CARGO 111980
    Rotation CW
    Grooves/pulley 1
    Terminal W
    Voltage 14
    W plug type Plug
    Total length 183.00 mm
    Width/holder arm 13.00
    Amp 70
  • Kjøretøymatching

    • OEM
      F032115837, 23100-69t60, 0123310052

    • Konkurrentreferens
      A0787S, CAL10313, CAL45118, DRB7200, 28-4831, 165.573.070, 227.183.702, 440963, 12060800, 0986047200

    • NormaliseratArtNr
      a0787s, cal10313, cal45118, drb7200, f032115837, 284831, 440963, 2310069t60, 12060800, 0123310052, 165573070, 227183702, 0986047200

    • Passar modeller
      Ford Model: Maverick Model series: Maverick Type of engine: TD Size of motor: 2.7 Brand of engine: TD27E Type description: UDS,UNS From date: 01-09-1996 To date: 01-04-1998 Fuel: Diesel Approved: Yes
      Nissan Model: Atleon Model series: 110.35 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
      Nissan Model: Atleon Model series: 110.56 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
      Nissan Model: Atleon Model series: 120.35 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
      Nissan Model: Atleon Model series: 120.56 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
      Nissan Model: Atleon Model series: 120.56 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2003 Fuel: Diesel Approved: Yes
      Nissan Model: Terrano Model series: Terrano Model type: 4WD Type of engine: TDi Size of motor: 2.7 Brand of engine: TD27TI Type description: R20 Body: Van From date: 01-06-1998 To date: 01-09-2007 Fuel: Diesel Approved: Yes
      Nissan Model: Terrano Model series: Terrano Model type: 4WD Type of engine: TDi Size of motor: 2.7 Brand of engine: TD27TI Type description: R20 From date: 01-05-1996 To date: 01-09-2007 Fuel: Diesel Approved: Yes
      Nissan Model: Terrano Model series: Terrano Type of engine: TD Size of motor: 2.7 Brand of engine: TD27T Type description: R20 From date: 01-02-1993 To date: 01-01-2002 Fuel: Diesel Approved: Yes
      1 / 2
