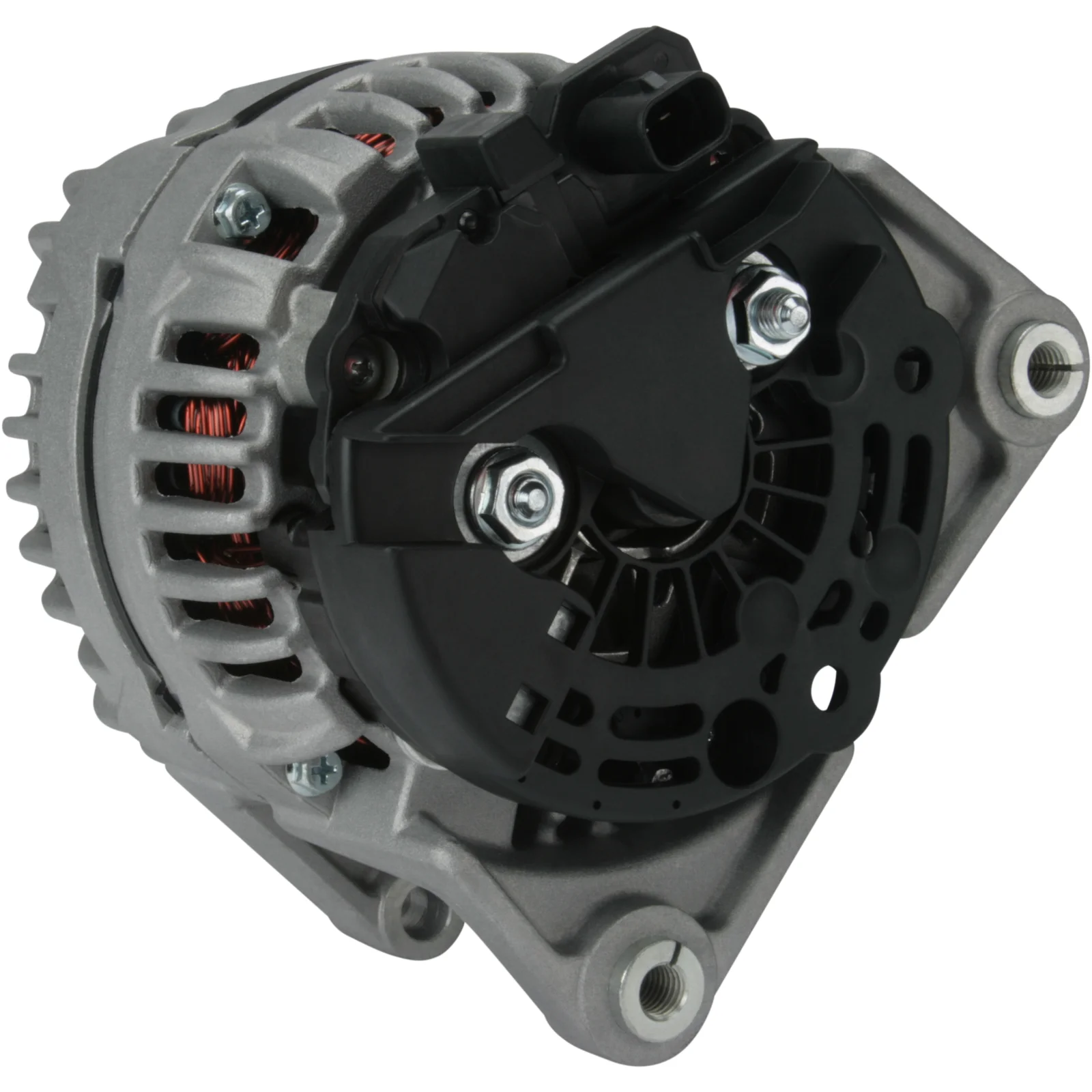

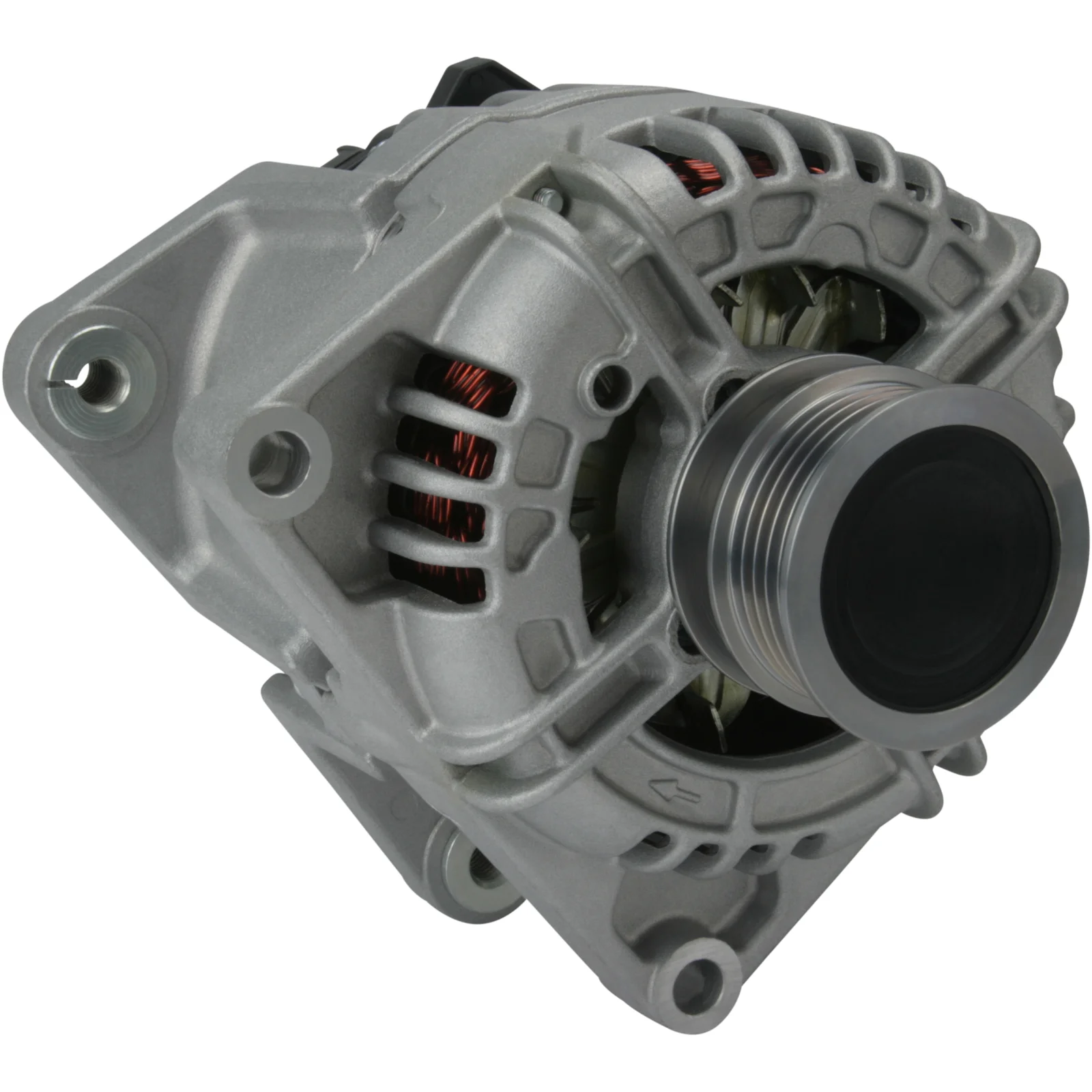

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115843

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 120, Rotasjon: CW, Monteringsbeslag avstand: 57,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsnivå: 14
Amp: 120
Pulley dist.: 64.00
Bredde/holderarm: 23.00
Festebrakett dist.: 57.00
Brakettåpning: 10.50
Belt. justering brakettåpning pos.: 47
Belt. justering brakettåpning 1: 10.50
Drev diameter: 55.70
Evner/renko: 5
Radius: 92.00
Radius 2: 92.00
B+: M8
Posisjon/B+ i min.: 7
D+ Størrelse: Plugg
Rotasjon: med urviseren
Pluggnr.: PL75
Total lengde mm: 185.00
Terminaltype: L-DFM
Drev: SP/FW
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 57.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 47
Plug no. PL75
Bracket hole 10.50
Position/B+ in min. 7
Prod. info BN
Pulley SP/FW
Pulley dia. 55.70
Pulley dist. 64.00
Radius 92.00
D+ Size Plug
Radius 2 92.00
Regulator type IR
Rotation CW
Grooves/pulley 5
Terminal type L-DFM
Voltage 14
Total length 185.00 mm
Width/holder arm 23.00
Amp 120

  • OEM
    F032115843, 1973ir, 1986A01471, 6204218, 13222933, 93188158, 0124425060

  • Konkurrentreferens
    A0239, CAL10511, DRA0317, 28-6660, 135.576.120, 228.190.1202, 11501N, 11501R, 209242, 209242A, 440646, 12090327, 32046140, 32080100, 0986080100

  • NormaliseratArtNr
    a0239, cal10511, dra0317, f032115843, 1973ir, 1986a01471, 11501n, 11501r, 209242, 209242a, 286660, 440646, 6204218, 12090327, 13222933, 32046140, 32080100, 93188158, 0124425060, 135576120, 0986080100, 2281901202

  • Passar modeller
    Opel Model: Astra Model series: Astra Classic Size of motor: 1.8 Brand of engine: Z18XER Type description: L48 Body: Hatchback From date: 01-02-2013 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra H Model type: GTC Type of engine: Turbo Size of motor: 1.6 Brand of engine: Z16LET Body: Hatchback From date: 01-02-2007 To date: 01-10-2010 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra H Type of engine: Turbo Size of motor: 1.6 Brand of engine: Z16LET Body: Convertible From date: 01-02-2007 To date: 01-10-2010 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra H Type of engine: Turbo Size of motor: 1.6 Brand of engine: Z16LET Body: Estate From date: 01-02-2007 To date: 01-10-2010 Fuel: Gasoline Approved: Yes Manufacture type: CARAVAN
    Opel Model: Astra Model series: Astra H Type of engine: Turbo Size of motor: 1.6 Brand of engine: Z16LET Body: Hatchback From date: 01-02-2007 To date: 01-10-2010 Fuel: Gasoline Approved: Yes
    Opel Model: Corsa Model series: Corsa D Model type: L08 Size of motor: 1.6 Brand of engine: Z16LER Type description: S07 Body: Box From date: 01-07-2012 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: Turbo Size of motor: 1.6 Brand of engine: A16LEL Body: Hatchback From date: 01-05-2007 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: Turbo Size of motor: 1.6 Brand of engine: A16LER Body: Hatchback From date: 01-11-2006 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: Turbo Size of motor: 1.6 Brand of engine: A16LES Body: Hatchback From date: 01-06-2011 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: Turbo Size of motor: 1.6 Brand of engine: B16LER Body: Hatchback From date: 01-11-2006 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: Turbo Size of motor: 1.6 Brand of engine: B16LES Body: Hatchback From date: 01-06-2011 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: Turbo Size of motor: 1.6 Brand of engine: Z16LEL Body: Hatchback From date: 01-05-2007 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: Turbo Size of motor: 1.6 Brand of engine: Z16LER Body: Hatchback From date: 01-11-2006 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Meriva Model series: Meriva A Type of engine: Turbo Size of motor: 1.6 Brand of engine: Z16LET Body: MPV From date: 01-09-2005 To date: 01-05-2010 Fuel: Gasoline Approved: Yes
    Opel Model: Zafira Model series: Zafira B Model type: CNG Type of engine: Turbo Size of motor: 1.6 Brand of engine: A16XNT Body: Van From date: 01-02-2009 To date: 01-04-2015 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Zafira Model series: Zafira B Model type: CNG Type of engine: Turbo Size of motor: 1.6 Brand of engine: Z16XNT Body: Van From date: 01-02-2009 To date: 01-04-2015 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Zafira Model series: Zafira B Model type: Ecoflex CNG Size of motor: 1.6 Brand of engine: A16XNT Body: MPV From date: 01-04-2010 To date: 01-04-2015 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Zafira Model series: Zafira B Model type: Ecoflex CNG Size of motor: 1.6 Brand of engine: Z16XNT Body: MPV From date: 01-04-2010 To date: 01-04-2015 Fuel: Bi-Fuel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK V Type of engine: Turbo Size of motor: 1.6 Brand of engine: Z16LET Type description: H Schr?heck Body: Hatchback From date: 01-09-2006 To date: 01-09-2009 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra Size of motor: 1.6 Brand of engine: Z16LET Body: Hatchback From date: 01-10-2006 To date: 01-11-2010 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa Mk III Model type: L08 VXR Size of motor: 1.6 Brand of engine: A16LES Type description: D Body: Hatchback From date: 01-06-2011 To date: 01-03-2012 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa MK III Size of motor: 1.6 Brand of engine: Z16LEL Body: Hatchback From date: 01-05-2007 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa Mk III Type of engine: Turbo Size of motor: 1.6 Brand of engine: Z16LER Body: Hatchback From date: 01-11-2006 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Meriva Model series: Meriva A Type of engine: Turbo Size of motor: 1.6 Brand of engine: Z16LET Body: MPV From date: 01-05-2006 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
