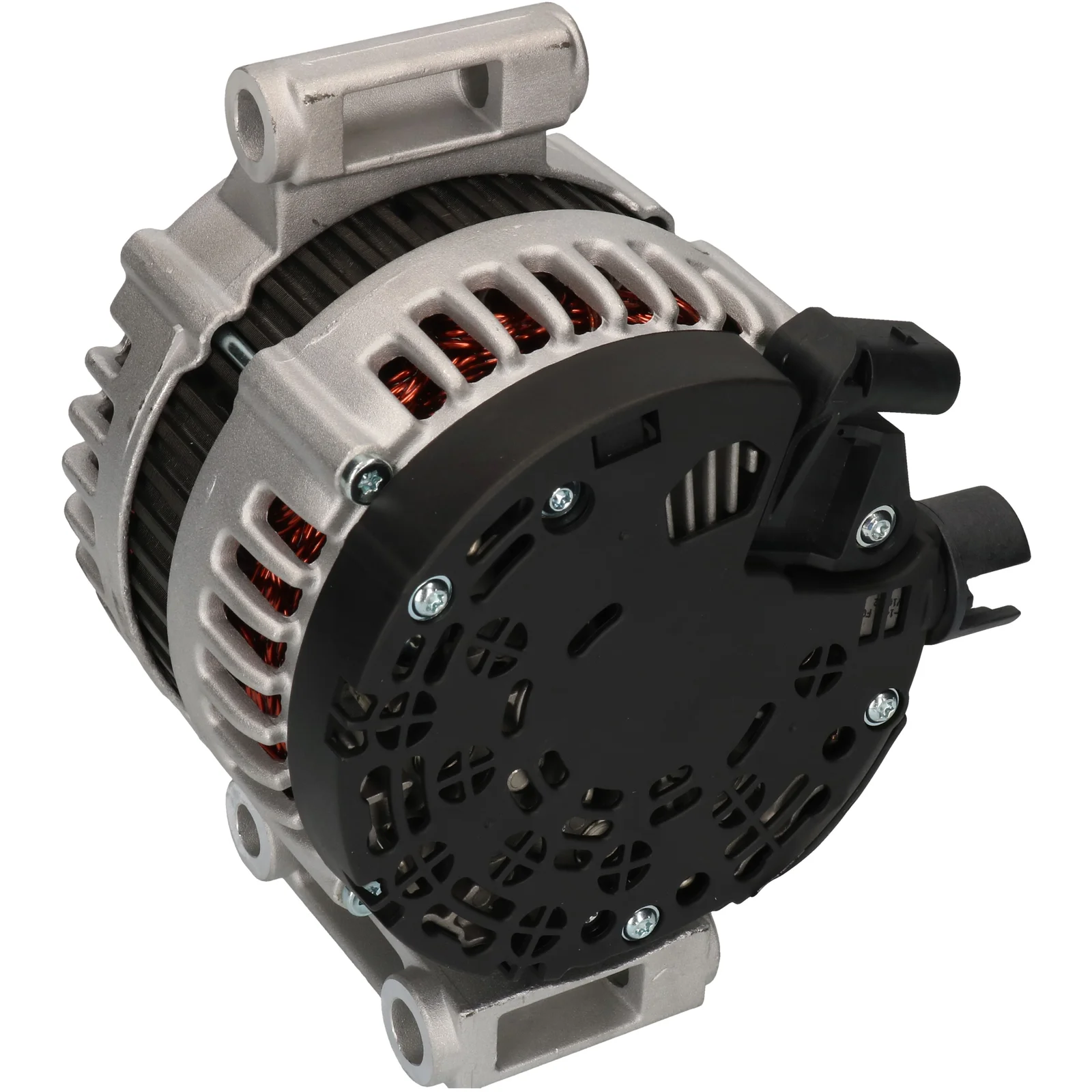

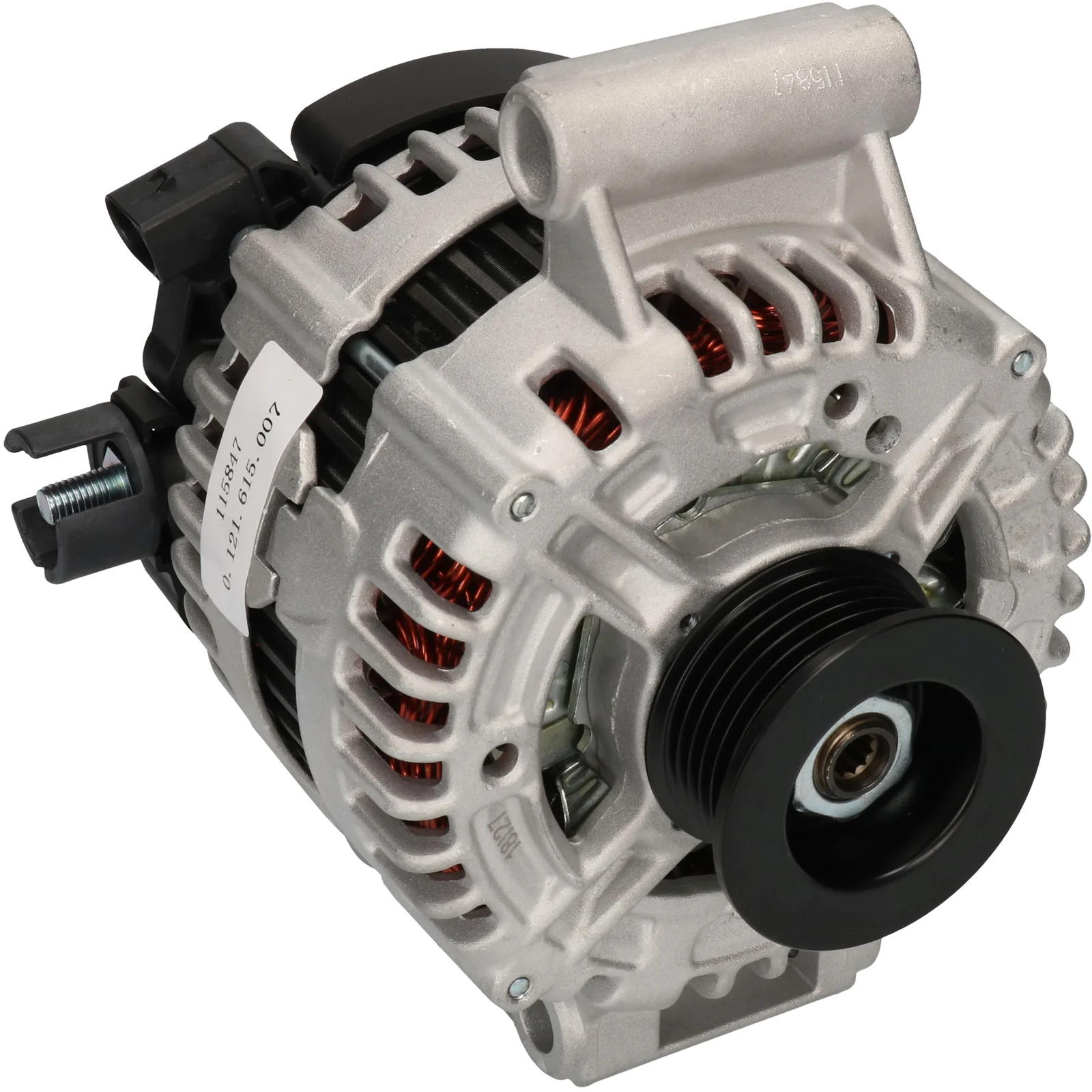

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115847

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 150, Rotasjon: CW, Monteringsbrakett avstand: 74.00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsnivå: 14
Ampere: 150
Puller avstand: 40,80
Bredde/beslagarm: 70,00
Festebrakett avstand: 74,00
Brakett hull: 14,50
Brakett hull 2: 12,50
Belt. justeringsbrakett hull pos.: 60
Belt. justeringsbrakett hull 1: 12,50
Puller dia.: 53,00
Groover/pulley: 6
Radius: 91,00
Radius 2: 85,00
B+: M8
Posisjon/B+ i min.: 15
Rotasjon: CW
Plugg nr.: PL137
Total lengde mm: 164,00
Terminaltype: COM
Kommunikasjon: LIN
Pulley: SP
Regulator type: IR
Merk: Denne Dynamo har en COM-terminal på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnetheten før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 74.00
Belt. adj. bracket hole 1 12.50
Belt. adj. brackethole pos. 60
Plug no. PL137
Bracket hole 14.50
Bracket hole 2 12.50
Position/B+ in min. 15
Pulley SP
Pulley dia. 53.00
Pulley dist. 40.80
Radius 91.00
Radius 2 85.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 164.00 mm
Width/holder arm 70.00
Amp 150

  • OEM
    F032115847, 6G9J10300DA, 6G9N10300DA, 6g9n10300db, 6G9N10300DC, 6G9N10300DD, 1379700, 1388003, 1469400, 2099437, 0121615007, 0121615107

  • Konkurrentreferens
    A0282, CAL10002, DRA0056, LRA03144, 28-5756, 595.567.150, 20010N, 20010R, 210429, 210429A, 440481, 9090483, 12090250, 0986047950

  • NormaliseratArtNr
    a0282, cal10002, dra0056, f032115847, lra03144, 6g9j10300da, 6g9n10300da, 6g9n10300db, 6g9n10300dc, 6g9n10300dd, 20010n, 20010r, 210429, 210429a, 285756, 440481, 1379700, 1388003, 1469400, 2099437, 9090483, 12090250, 0121615007, 0121615107, 595567150, 0986047950

  • Passar modeller
    Ford Model: Galaxy Model series: Galaxy Size of motor: 2.0 Brand of engine: AOWA Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Size of motor: 2.0 Brand of engine: AOWA Type description: WA6 Body: Van From date: 01-05-2006 To date: 01-06-2015 Fuel: Petrol Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Size of motor: 2.0 Brand of engine: AOWB Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Size of motor: 2.3 Brand of engine: SEWA Body: MPV From date: 01-09-2007 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Type of engine: FlexFuel Size of motor: 2.0 Brand of engine: TBWA Type description: WA6 Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Bi-Fuel Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Type of engine: FlexFuel Size of motor: 2.0 Brand of engine: TBWB Type description: WA6 Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Bi-Fuel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Size of motor: 2.3 Brand of engine: SEBA Body: Estate From date: 01-07-2007 To date: 01-01-2015 Fuel: Gasoline Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Size of motor: 2.3 Brand of engine: SEBA Body: Hatchback From date: 01-07-2007 To date: 01-01-2015 Fuel: Gasoline Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Size of motor: 2.3 Brand of engine: SEBA From date: 01-07-2007 To date: 01-01-2015 Fuel: Gasoline Approved: Yes
    Ford Model: S-Max Model series: S-Max Size of motor: 2.0 Brand of engine: AOWA Body: MPV From date: 01-05-2006 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Ford Model: S-Max Model series: S-Max Size of motor: 2.0 Brand of engine: AOWB Body: MPV From date: 01-05-2006 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Ford Model: S-Max Model series: S-Max Size of motor: 2.3 Brand of engine: SEWA Body: MPV From date: 01-07-2007 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Ford Model: S-Max Model series: S-Max Type of engine: FlexFuel Size of motor: 2.0 Brand of engine: TBWA Body: MPV From date: 01-05-2006 To date: 01-12-2014 Fuel: Flex Approved: Yes
    Ford Model: S-Max Model series: S-Max Type of engine: FlexFuel Size of motor: 2.0 Brand of engine: TBWB Body: MPV From date: 01-05-2006 To date: 01-12-2014 Fuel: Flex Approved: Yes
    Ford Model: S-Max Van Model series: S-Max Van Size of motor: 2.0 Brand of engine: AODE Type description: WA6 Body: Box Body/MPV From date: 01-03-2010 To date: 01-12-2014 Fuel: Petrol Approved: Yes
