Varenr.: F032115866

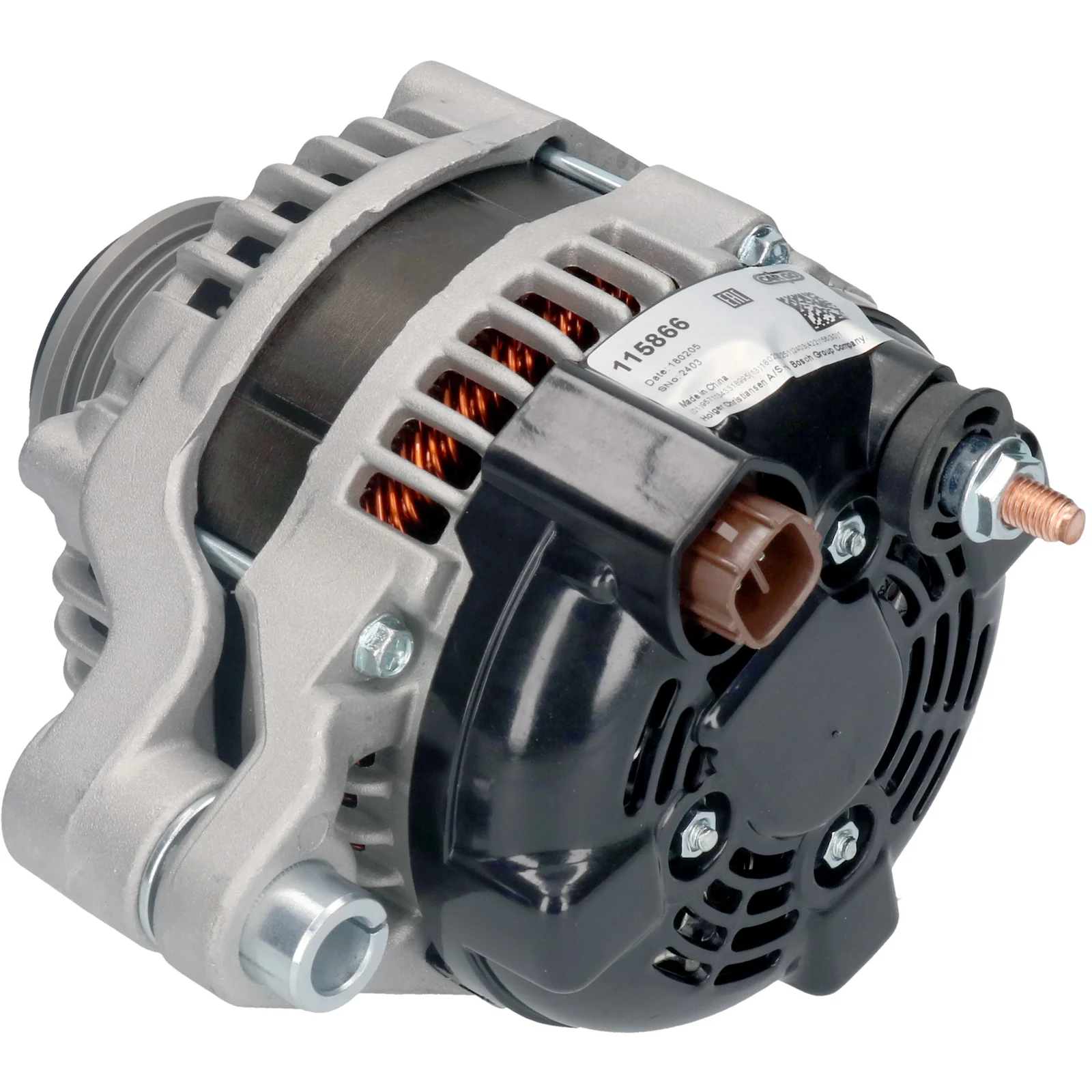

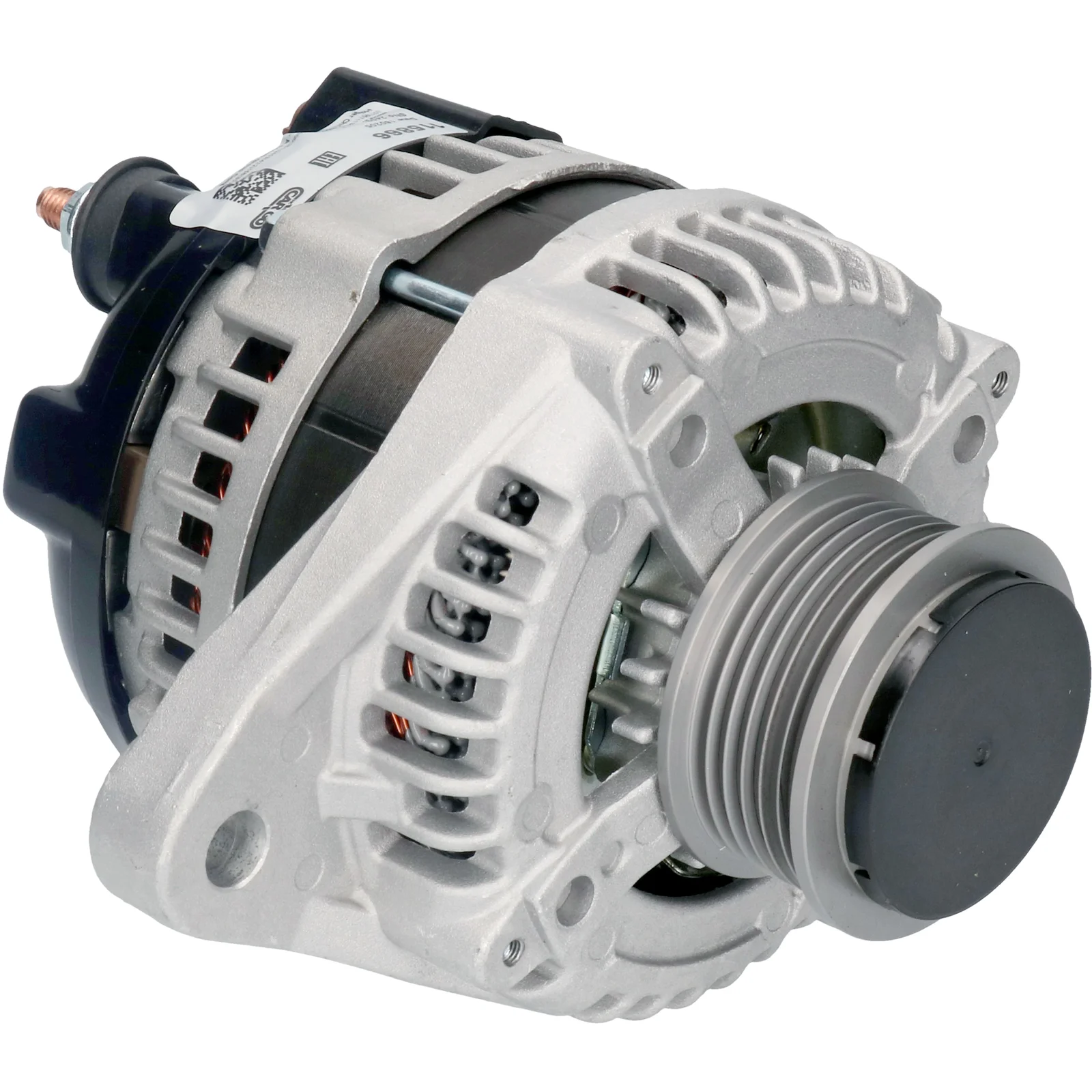

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, A: 150, Rotasjon: CW, Remskive dia.: 62,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Voltage: 14
Amp: 150
Reimhjul: 101.50
Bredde/holderarm: 61.00
Bjelkefeste hull: 12.20
Beltejustering bjelkefeste posisjon: 59
Beltejustering bjelkefeste hull 1: 12.20
Reimhjul diameter: 62.00
Riller/reimhjul: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 50
D+ Størrelse: Stikk
Rotasjon: CW
Stikk nr.: PL60
Total lengde mm: 192.00
Kontaktype: C-FR-IG-L
Reimhjul: SP/FW
Vifte: IF
Regulatorstype: IR
Prod.informasjon: BN

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 12.20
Belt. adj. brackethole pos. 59
Plug no. PL60
Bracket hole 12.20
Position/B+ in min. 50
Prod. info BN
Pulley SP/FW
Pulley dia. 62.00
Pulley dist. 101.50
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type C-FR-IG-L
Voltage 14
Total length 192.00 mm
Width/holder arm 61.00
Amp 150
  • OEM

    F032115866, 31400-57L00, 104210-1170, 71750988, 71768682
  • Konkurrentreferens

    A6351, CAL40564, DRA1381, 28-6993, 185.528.130, 245.134.1402, 554146RI, 12061014
  • NormaliseratArtNr

    a6351, cal40564, dra1381, f032115866, 286993, 554146ri, 3140057l00, 12061014, 71750988, 71768682, 185528130, 1042101170, 2451341402
  • Passar modeller

    Fiat Model: Sedici Model series: Sedici Model type: 4x4 Type of engine: Multijet Size of motor: 2.0 Brand of engine: D20AA From date: 01-06-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Fiat Model: Sedici Model series: Sedici Type of engine: Multijet Size of motor: 2.0 Brand of engine: D20AA From date: 01-06-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Suzuki Model: SX4 Model series: SX4 Model type: 4x4 Type of engine: DDiS Size of motor: 2.0 Brand of engine: D20AA Type description: RW420D Body: Hatchback From date: 01-07-2009 Fuel: Diesel Approved: Yes
    Suzuki Model: SX4 Model series: SX4 Type of engine: DDiS Size of motor: 2.0 Brand of engine: D20AA Type description: RW420D Body: Hatchback From date: 01-07-2009 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Voltage: 14
    Amp: 150
    Reimhjul: 101.50
    Bredde/holderarm: 61.00
    Bjelkefeste hull: 12.20
    Beltejustering bjelkefeste posisjon: 59
    Beltejustering bjelkefeste hull 1: 12.20
    Reimhjul diameter: 62.00
    Riller/reimhjul: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Posisjon/B+ i min.: 50
    D+ Størrelse: Stikk
    Rotasjon: CW
    Stikk nr.: PL60
    Total lengde mm: 192.00
    Kontaktype: C-FR-IG-L
    Reimhjul: SP/FW
    Vifte: IF
    Regulatorstype: IR
    Prod.informasjon: BN
  • Spesifikasjon
    B+ M8
    Belt. adj. bracket hole 1 12.20
    Belt. adj. brackethole pos. 59
    Plug no. PL60
    Bracket hole 12.20
    Position/B+ in min. 50
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 62.00
    Pulley dist. 101.50
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type C-FR-IG-L
    Voltage 14
    Total length 192.00 mm
    Width/holder arm 61.00
    Amp 150
  • Kjøretøymatching
    • OEM

      F032115866, 31400-57L00, 104210-1170, 71750988, 71768682
    • Konkurrentreferens

      A6351, CAL40564, DRA1381, 28-6993, 185.528.130, 245.134.1402, 554146RI, 12061014
    • NormaliseratArtNr

      a6351, cal40564, dra1381, f032115866, 286993, 554146ri, 3140057l00, 12061014, 71750988, 71768682, 185528130, 1042101170, 2451341402
    • Passar modeller

      Fiat Model: Sedici Model series: Sedici Model type: 4x4 Type of engine: Multijet Size of motor: 2.0 Brand of engine: D20AA From date: 01-06-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
      Fiat Model: Sedici Model series: Sedici Type of engine: Multijet Size of motor: 2.0 Brand of engine: D20AA From date: 01-06-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
      Suzuki Model: SX4 Model series: SX4 Model type: 4x4 Type of engine: DDiS Size of motor: 2.0 Brand of engine: D20AA Type description: RW420D Body: Hatchback From date: 01-07-2009 Fuel: Diesel Approved: Yes
      Suzuki Model: SX4 Model series: SX4 Type of engine: DDiS Size of motor: 2.0 Brand of engine: D20AA Type description: RW420D Body: Hatchback From date: 01-07-2009 Fuel: Diesel Approved: Yes
