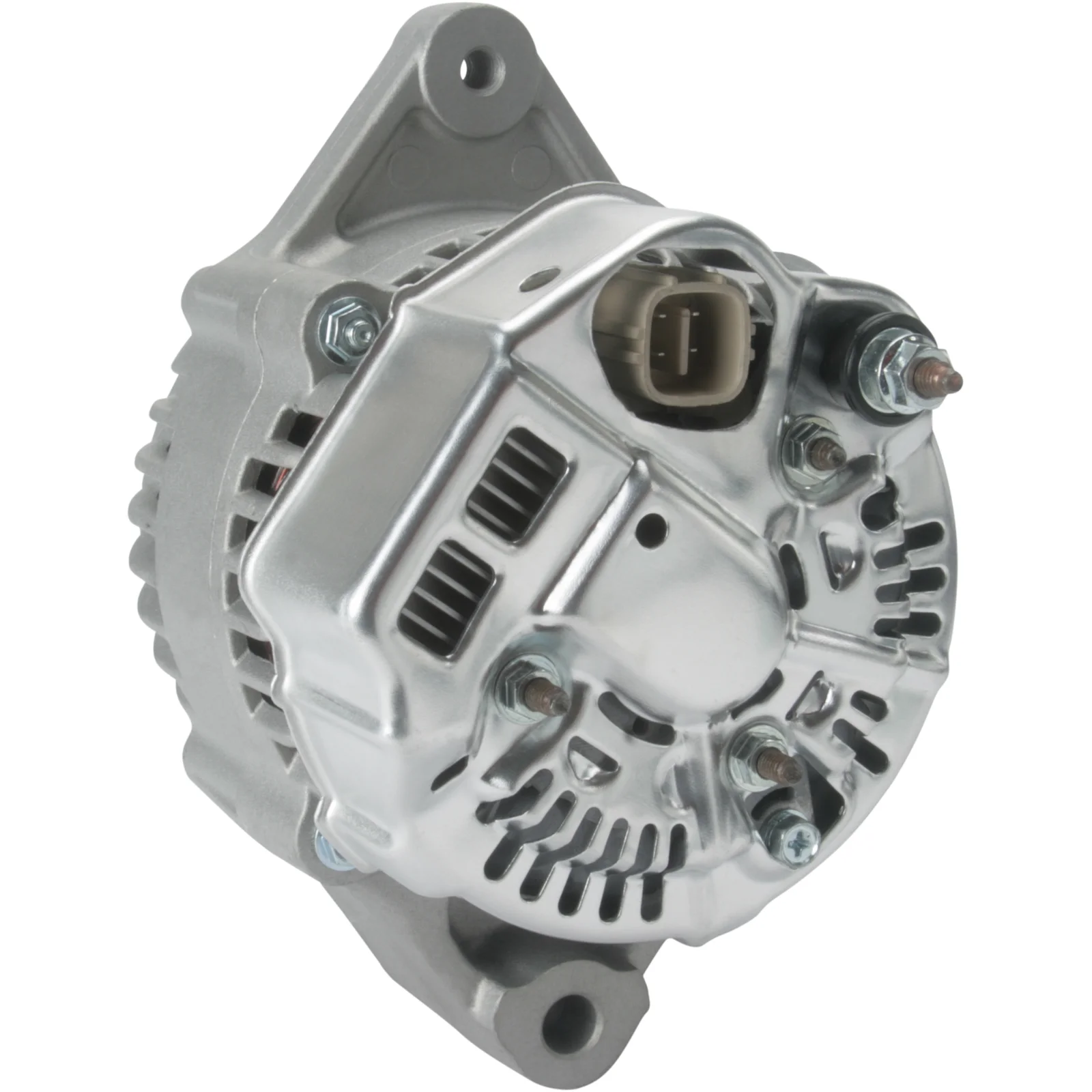

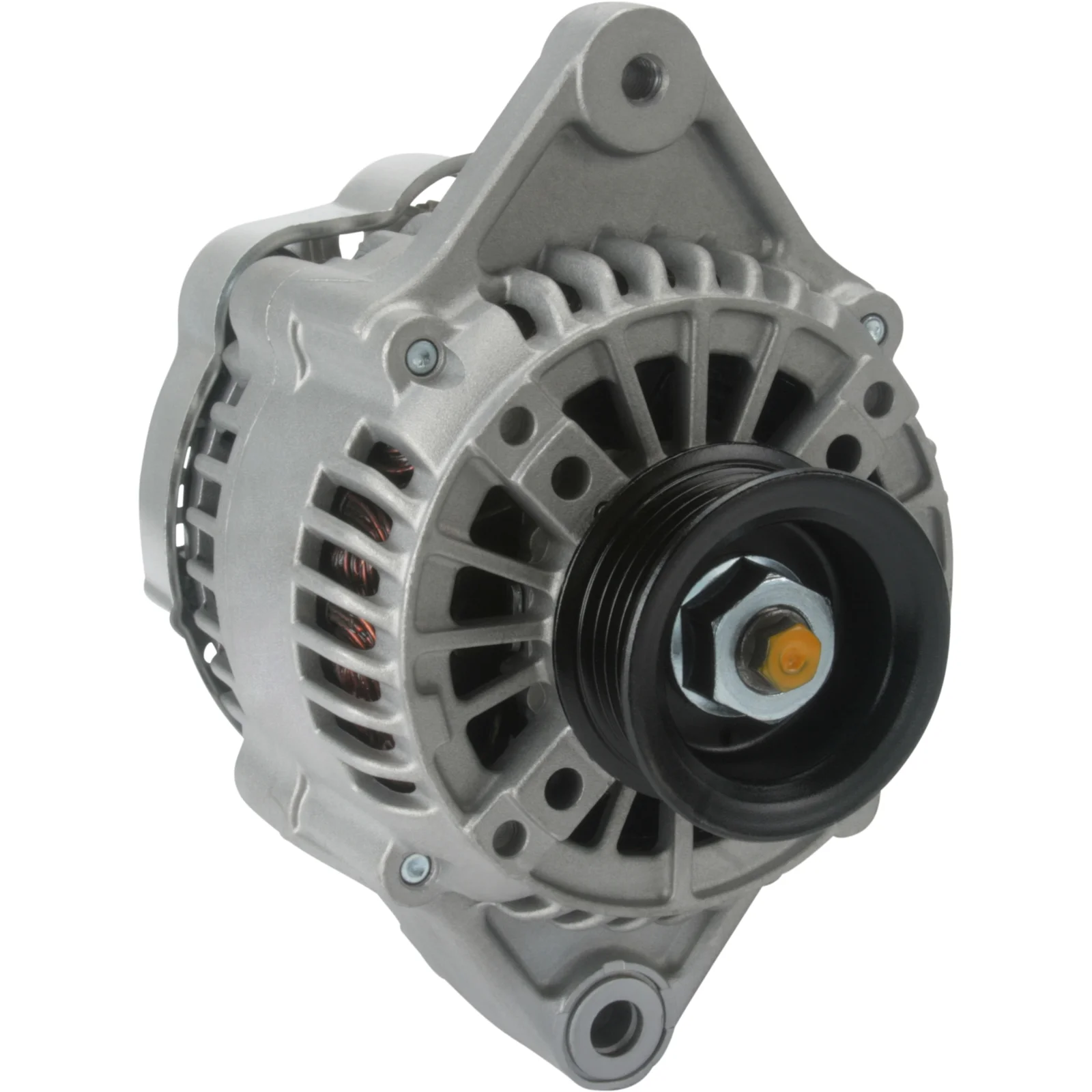

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115868

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Ampere: 70, Rotasjon: CW, Reimhjul diameter: 51,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningskilde: 14
Ampere: 70
Reimskive avstand.: 91.00
Bredde/holderarm: 58.20
Beslagshull: 10.30
Reim. justering. beslagshull pos.: 60
Reim. justering. beslagshull 1: M8
Reimskivens dia.: 51.00
Grooves/reimskive: 5
Radius: 80.00
Radius 2: 82.00
B+: M6
Posisjon/B+ i min.: 7
D+ størrelse: Plugg
Rotasjon: medur → medur (CW)
Plugg nr.: PL78
Total lengde mm: 168.00
Lysstoff: Inaktiveres
Reimskive: SP
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL78
Bracket hole 10.30
Position/B+ in min. 7
Prod. info BN
Pulley SP
Pulley dia. 51.00
Pulley dist. 91.00
Radius 80.00
D+ Size Plug
Radius 2 82.00
Regulator type IR
Rotation CW
Grooves/pulley 5
Lamp type Inactive
Voltage 14
Total length 168.00 mm
Width/holder arm 58.20
Amp 70

  • OEM
    F032115868, 2107ir, 23100-4a00c, 31400-68k10, 31400-m68k10, 102211-6100

  • Konkurrentreferens
    A6382S, CAL40444, DRA1018, LRA03374, 8EL011712-941, 28-5986, 165.580.070, 245.130.702, 20623N-OS, 444245, 12060951, 0986082300

  • NormaliseratArtNr
    a6382s, cal40444, dra1018, f032115868, lra03374, 8el011712941, 2107ir, 20623nos, 31400m68k10, 231004a00c, 285986, 444245, 3140068k10, 12060951, 165580070, 245130702, 0986082300, 1022116100

  • Passar modeller
    Nissan Model: Pixo Model series: Pixo Model type: LPG Type of engine: LPG Size of motor: 1.0 Brand of engine: K10B Type description: UA0 Body: Hatchback From date: 01-06-2009 Fuel: Petrol/Electro Approved: Yes
    Nissan Model: Pixo Model series: Pixo Size of motor: 1.0 Brand of engine: K10B Type description: UA0 Body: Hatchback From date: 01-06-2009 Fuel: Gasoline Approved: Yes
    Suzuki Model: Alto Model series: Alto K10 Size of motor: 1.0 Brand of engine: K10B Body: Hatchback From date: 01-10-2012 To date: 01-11-2014 Fuel: Gasoline Approved: Yes
    Suzuki Model: Alto Model series: Alto Size of motor: 1.0 Brand of engine: K10B Type description: GF Body: Hatchback From date: 01-01-2009 Fuel: Gasoline Approved: Yes
    Suzuki Model: Alto Model series: Alto Size of motor: 1.0 Brand of engine: K10B Type description: GF Body: Hatchback From date: 01-10-2012 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spenningskilde: 14
    Ampere: 70
    Reimskive avstand.: 91.00
    Bredde/holderarm: 58.20
    Beslagshull: 10.30
    Reim. justering. beslagshull pos.: 60
    Reim. justering. beslagshull 1: M8
    Reimskivens dia.: 51.00
    Grooves/reimskive: 5
    Radius: 80.00
    Radius 2: 82.00
    B+: M6
    Posisjon/B+ i min.: 7
    D+ størrelse: Plugg
    Rotasjon: medur → medur (CW)
    Plugg nr.: PL78
    Total lengde mm: 168.00
    Lysstoff: Inaktiveres
    Reimskive: SP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL78
    Bracket hole 10.30
    Position/B+ in min. 7
    Prod. info BN
    Pulley SP
    Pulley dia. 51.00
    Pulley dist. 91.00
    Radius 80.00
    D+ Size Plug
    Radius 2 82.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 5
    Lamp type Inactive
    Voltage 14
    Total length 168.00 mm
    Width/holder arm 58.20
    Amp 70
  • Kjøretøymatching

    • OEM
      F032115868, 2107ir, 23100-4a00c, 31400-68k10, 31400-m68k10, 102211-6100

    • Konkurrentreferens
      A6382S, CAL40444, DRA1018, LRA03374, 8EL011712-941, 28-5986, 165.580.070, 245.130.702, 20623N-OS, 444245, 12060951, 0986082300

    • NormaliseratArtNr
      a6382s, cal40444, dra1018, f032115868, lra03374, 8el011712941, 2107ir, 20623nos, 31400m68k10, 231004a00c, 285986, 444245, 3140068k10, 12060951, 165580070, 245130702, 0986082300, 1022116100

    • Passar modeller
      Nissan Model: Pixo Model series: Pixo Model type: LPG Type of engine: LPG Size of motor: 1.0 Brand of engine: K10B Type description: UA0 Body: Hatchback From date: 01-06-2009 Fuel: Petrol/Electro Approved: Yes
      Nissan Model: Pixo Model series: Pixo Size of motor: 1.0 Brand of engine: K10B Type description: UA0 Body: Hatchback From date: 01-06-2009 Fuel: Gasoline Approved: Yes
      Suzuki Model: Alto Model series: Alto K10 Size of motor: 1.0 Brand of engine: K10B Body: Hatchback From date: 01-10-2012 To date: 01-11-2014 Fuel: Gasoline Approved: Yes
      Suzuki Model: Alto Model series: Alto Size of motor: 1.0 Brand of engine: K10B Type description: GF Body: Hatchback From date: 01-01-2009 Fuel: Gasoline Approved: Yes
      Suzuki Model: Alto Model series: Alto Size of motor: 1.0 Brand of engine: K10B Type description: GF Body: Hatchback From date: 01-10-2012 Fuel: Gasoline Approved: Yes
