HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115902

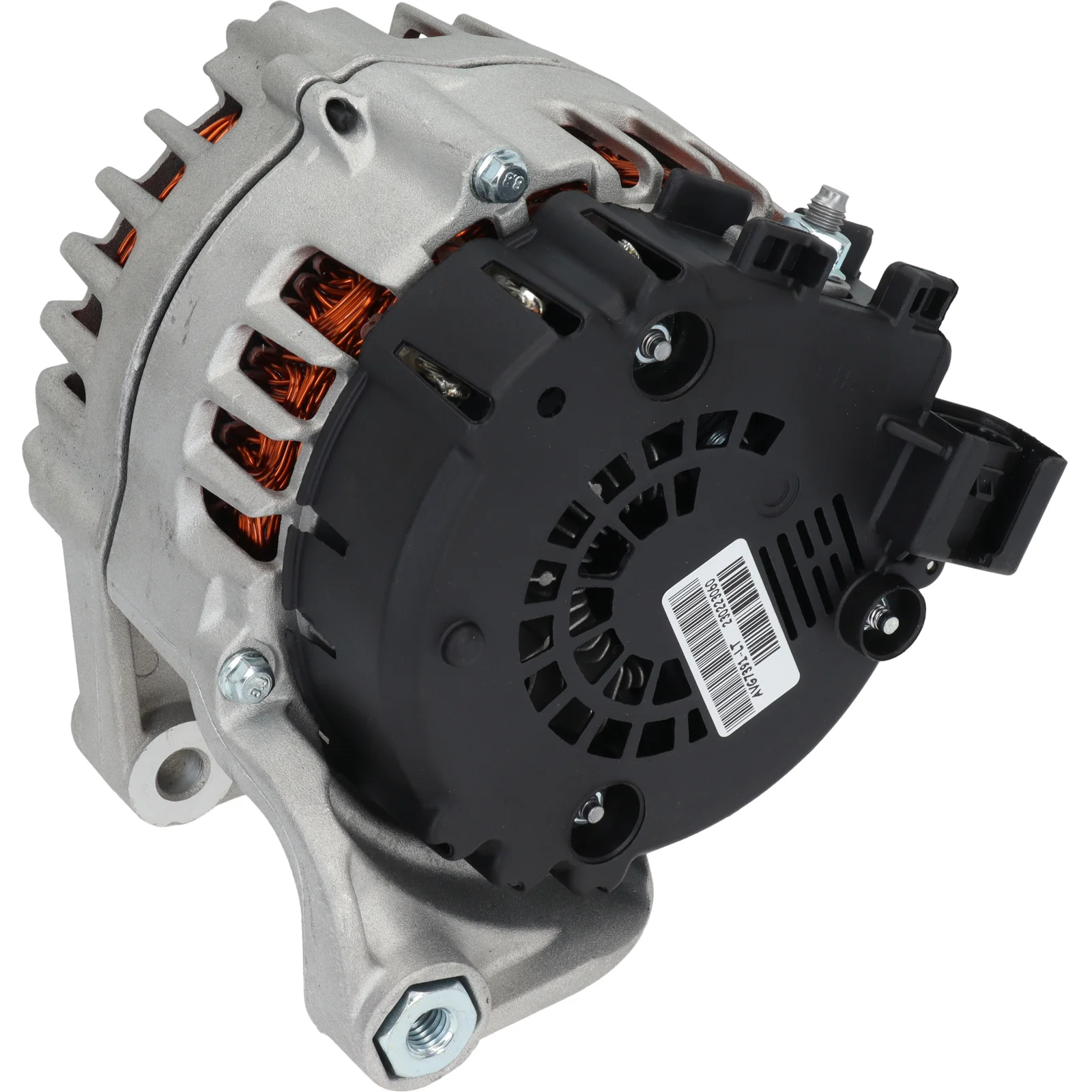

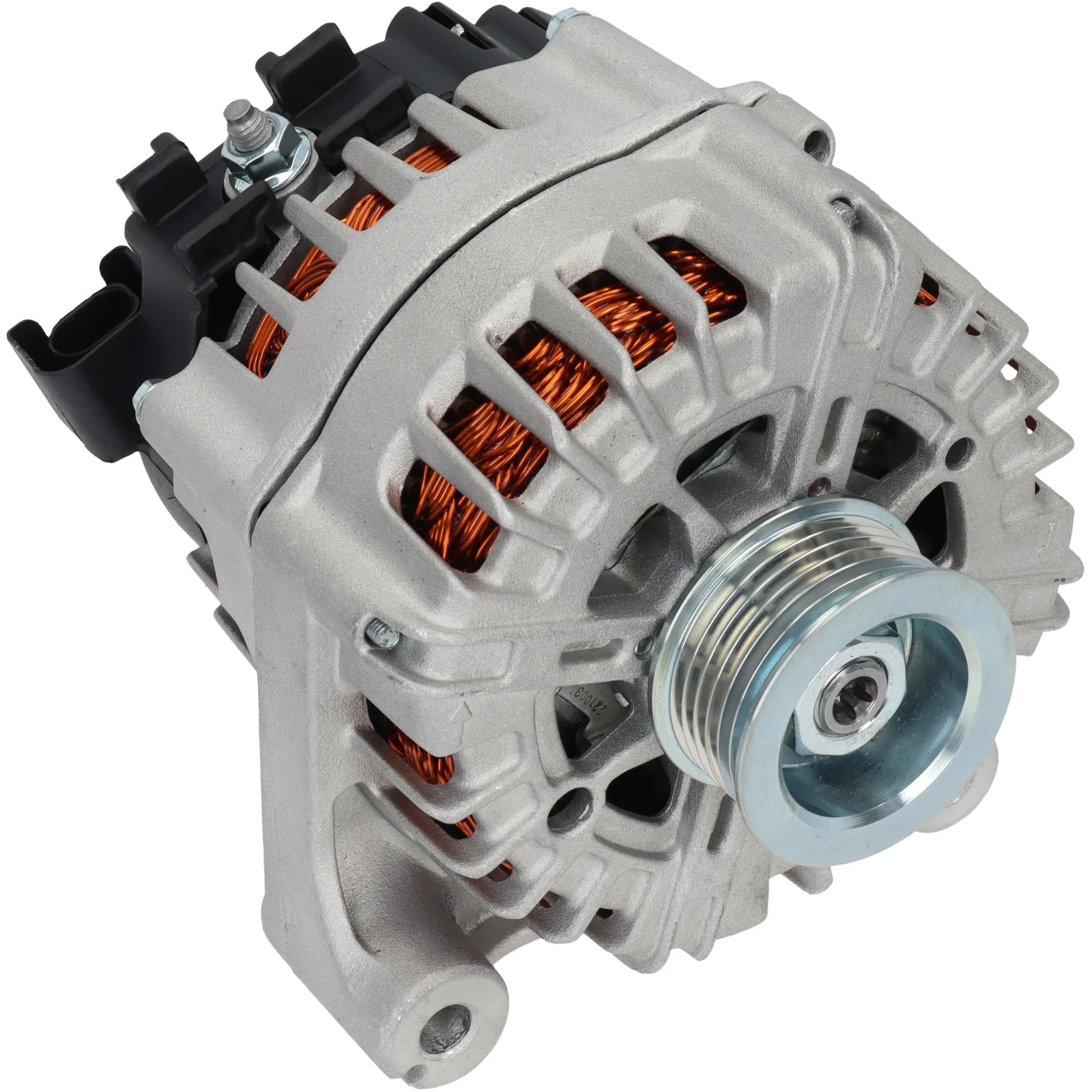

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 230, Rotasjon: CW, Montering. festeavstand: 75,50

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Amp: 230
Drevskive dist.: 57.80
Bredde/holderarm: 28.00
Festebrakett dist.: 75.50
Brakettånhull: 10.50
Båndjustering brakkethull pos.: 20
Drevskive dia.: 53.30
Riller/drevskive: 6
Radius: 92.00
Radius 2: 92.00
B+-lengde mm: 14.50
B+: M8
Posisjon/B+ i min.: 55
Rotasjon: medur → medur (med ur)
Kontakt nr.: PL125
Total lengde mm: 182.00
Terminaltype: COM
Kommunikasjon: BSS
Drevskive: SP
Vifte: IF
Regulator-type: IR
Merknader: Denne Generator har en COM-terminal på regulatoren. Det anbefales at OEM-nummer brukes for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication BSS
Mount. bracket dist. 75.50
Belt. adj. brackethole pos. 20
Plug no. PL125
Bracket hole 10.50
Position/B+ in min. 55
Pulley SP
Pulley dia. 53.30
Pulley dist. 57.80
Radius 92.00
Radius 2 92.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 182.00 mm
Width/holder arm 28.00
Amp 230
B+ Length 14.50 mm

  • OEM
    F032115902, FG23S058, 2613207A, 12317823341, 12317823342, 12318515754, 12318516094

  • Konkurrentreferens
    A3461S, CAL15528, CAL15531, DRA0953, LRA03429, 28-6541, 215.194.2202, 215.194.2302, 215.566.220, 24120N, 209210, 209210A, 439731, 439810, 440321, 12090594, 12090941, 32440321

  • NormaliseratArtNr
    a3461s, cal15528, cal15531, dra0953, f032115902, fg23s058, lra03429, 24120n, 209210, 209210a, 286541, 439731, 439810, 440321, 2613207a, 12090594, 12090941, 32440321, 215566220, 2151942202, 2151942302, 12317823341, 12317823342, 12318515754, 12318516094

  • Passar modeller
    BMW Model: 5 Model series: 530 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10 From date: 01-03-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10, F18 From date: 01-03-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F11 Body: Estate From date: 01-03-2011 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10 From date: 01-09-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10, F18 From date: 01-09-2010 To date: 01-10-2016 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 5 Model series: 535 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F10 From date: 01-09-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 535 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 5 Model series: 535 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F10 From date: 01-09-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 535 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 5 Model series: M 550 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30C Type description: F11 Body: Estate From date: 01-03-2012 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 6 Model series: 640 Model type: Cran Coupe Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F06 Body: Coupe From date: 01-03-2012 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    BMW Model: 6 Model series: 640 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F12 Body: Convertible From date: 01-03-2012 To date: 01-06-2018 Fuel: Diesel Approved: Yes
    BMW Model: 6 Model series: 640 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F13, F06 Body: Coupe From date: 01-03-2012 To date: 01-10-2017 Fuel: Diesel Approved: Yes
    BMW Model: 6 Model series: 640 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F12 Body: Convertible From date: 01-09-2011 To date: 01-06-2018 Fuel: Diesel Approved: Yes
    BMW Model: 6 Model series: 640 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F13 Body: Coupe From date: 01-09-2011 To date: 01-10-2017 Fuel: Diesel Approved: Yes
    BMW Model: X3 Model series: X3 Model type: xDrive 30 d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F25 From date: 01-06-2016 To date: 01-08-2017 Fuel: Diesel Approved: Yes
    BMW Model: X3 Model series: X3 Model type: xDrive 30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F25 From date: 01-04-2011 To date: 01-08-2017 Fuel: Diesel Approved: Yes
    BMW Model: X3 Model series: X3 Model type: xDrive 35d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F25 From date: 01-10-2011 To date: 01-08-2017 Fuel: Diesel Approved: Yes
    BMW Model: X3 Model series: X3 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F25 From date: 01-06-2011 To date: 01-08-2017 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: xDrive 30 d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F25 From date: 01-04-2011 To date: 01-08-2017 Fuel: Diesel Approved: Yes
    1 / 5
  • Beskrivelse
    Spenning: 14
    Amp: 230
    Drevskive dist.: 57.80
    Bredde/holderarm: 28.00
    Festebrakett dist.: 75.50
    Brakettånhull: 10.50
    Båndjustering brakkethull pos.: 20
    Drevskive dia.: 53.30
    Riller/drevskive: 6
    Radius: 92.00
    Radius 2: 92.00
    B+-lengde mm: 14.50
    B+: M8
    Posisjon/B+ i min.: 55
    Rotasjon: medur → medur (med ur)
    Kontakt nr.: PL125
    Total lengde mm: 182.00
    Terminaltype: COM
    Kommunikasjon: BSS
    Drevskive: SP
    Vifte: IF
    Regulator-type: IR
    Merknader: Denne Generator har en COM-terminal på regulatoren. Det anbefales at OEM-nummer brukes for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication BSS
    Mount. bracket dist. 75.50
    Belt. adj. brackethole pos. 20
    Plug no. PL125
    Bracket hole 10.50
    Position/B+ in min. 55
    Pulley SP
    Pulley dia. 53.30
    Pulley dist. 57.80
    Radius 92.00
    Radius 2 92.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 182.00 mm
    Width/holder arm 28.00
    Amp 230
    B+ Length 14.50 mm
  • Kjøretøymatching

    • OEM
      F032115902, FG23S058, 2613207A, 12317823341, 12317823342, 12318515754, 12318516094

    • Konkurrentreferens
      A3461S, CAL15528, CAL15531, DRA0953, LRA03429, 28-6541, 215.194.2202, 215.194.2302, 215.566.220, 24120N, 209210, 209210A, 439731, 439810, 440321, 12090594, 12090941, 32440321

    • NormaliseratArtNr
      a3461s, cal15528, cal15531, dra0953, f032115902, fg23s058, lra03429, 24120n, 209210, 209210a, 286541, 439731, 439810, 440321, 2613207a, 12090594, 12090941, 32440321, 215566220, 2151942202, 2151942302, 12317823341, 12317823342, 12318515754, 12318516094

    • Passar modeller
      BMW Model: 5 Model series: 530 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10 From date: 01-03-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 530 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10, F18 From date: 01-03-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 530 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F11 Body: Estate From date: 01-03-2011 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10 From date: 01-09-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10, F18 From date: 01-09-2010 To date: 01-10-2016 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 5 Model series: 535 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F10 From date: 01-09-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 535 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 5 Model series: 535 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F10 From date: 01-09-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 535 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 5 Model series: M 550 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30C Type description: F11 Body: Estate From date: 01-03-2012 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 6 Model series: 640 Model type: Cran Coupe Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F06 Body: Coupe From date: 01-03-2012 To date: 01-10-2018 Fuel: Diesel Approved: Yes
      BMW Model: 6 Model series: 640 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F12 Body: Convertible From date: 01-03-2012 To date: 01-06-2018 Fuel: Diesel Approved: Yes
      BMW Model: 6 Model series: 640 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F13, F06 Body: Coupe From date: 01-03-2012 To date: 01-10-2017 Fuel: Diesel Approved: Yes
      BMW Model: 6 Model series: 640 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F12 Body: Convertible From date: 01-09-2011 To date: 01-06-2018 Fuel: Diesel Approved: Yes
      BMW Model: 6 Model series: 640 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F13 Body: Coupe From date: 01-09-2011 To date: 01-10-2017 Fuel: Diesel Approved: Yes
      BMW Model: X3 Model series: X3 Model type: xDrive 30 d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F25 From date: 01-06-2016 To date: 01-08-2017 Fuel: Diesel Approved: Yes
      BMW Model: X3 Model series: X3 Model type: xDrive 30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F25 From date: 01-04-2011 To date: 01-08-2017 Fuel: Diesel Approved: Yes
      BMW Model: X3 Model series: X3 Model type: xDrive 35d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F25 From date: 01-10-2011 To date: 01-08-2017 Fuel: Diesel Approved: Yes
      BMW Model: X3 Model series: X3 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F25 From date: 01-06-2011 To date: 01-08-2017 Fuel: Diesel Approved: Yes
      BMW Model: X5 Model series: X5 Model type: xDrive 30 d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F25 From date: 01-04-2011 To date: 01-08-2017 Fuel: Diesel Approved: Yes
      1 / 5
