HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115959

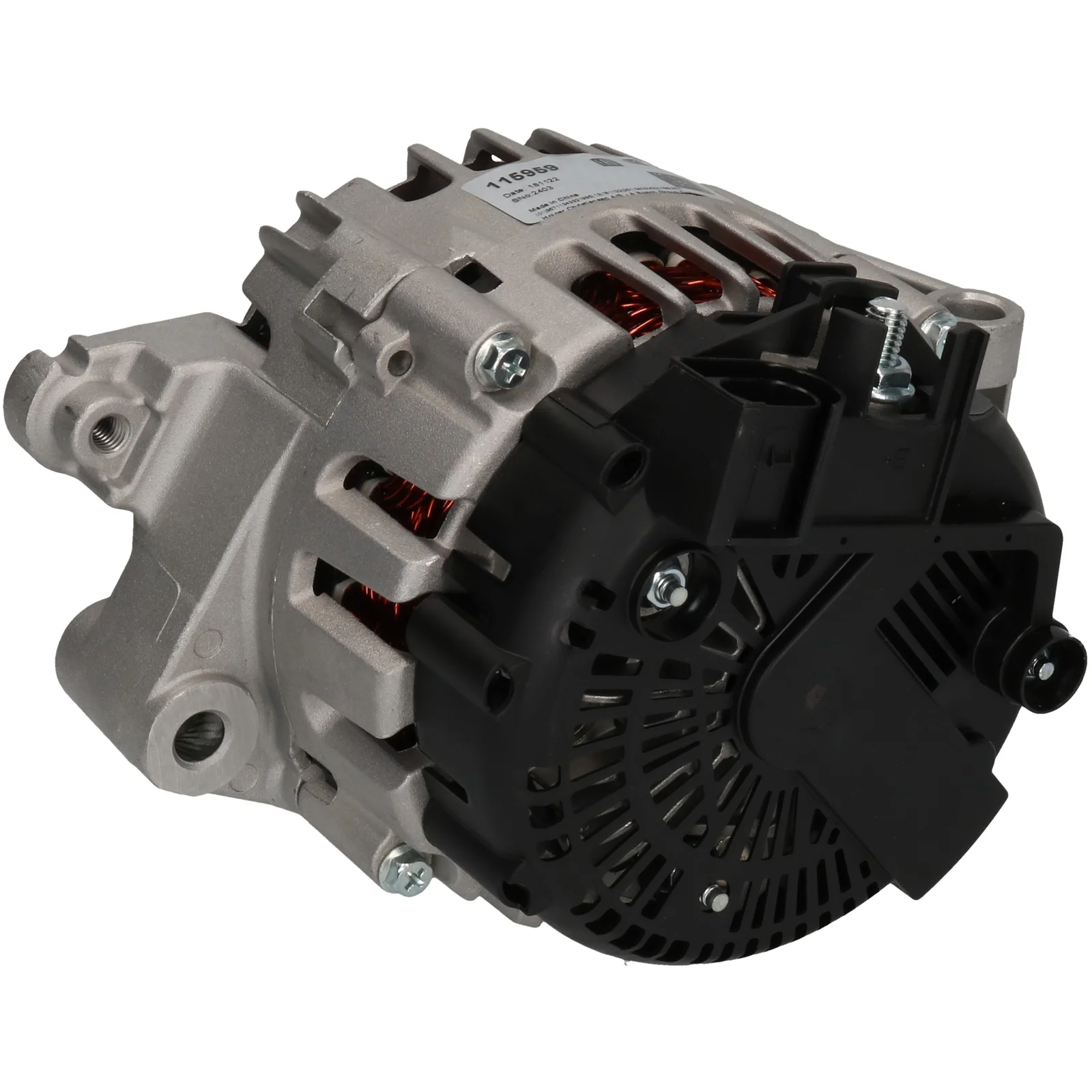

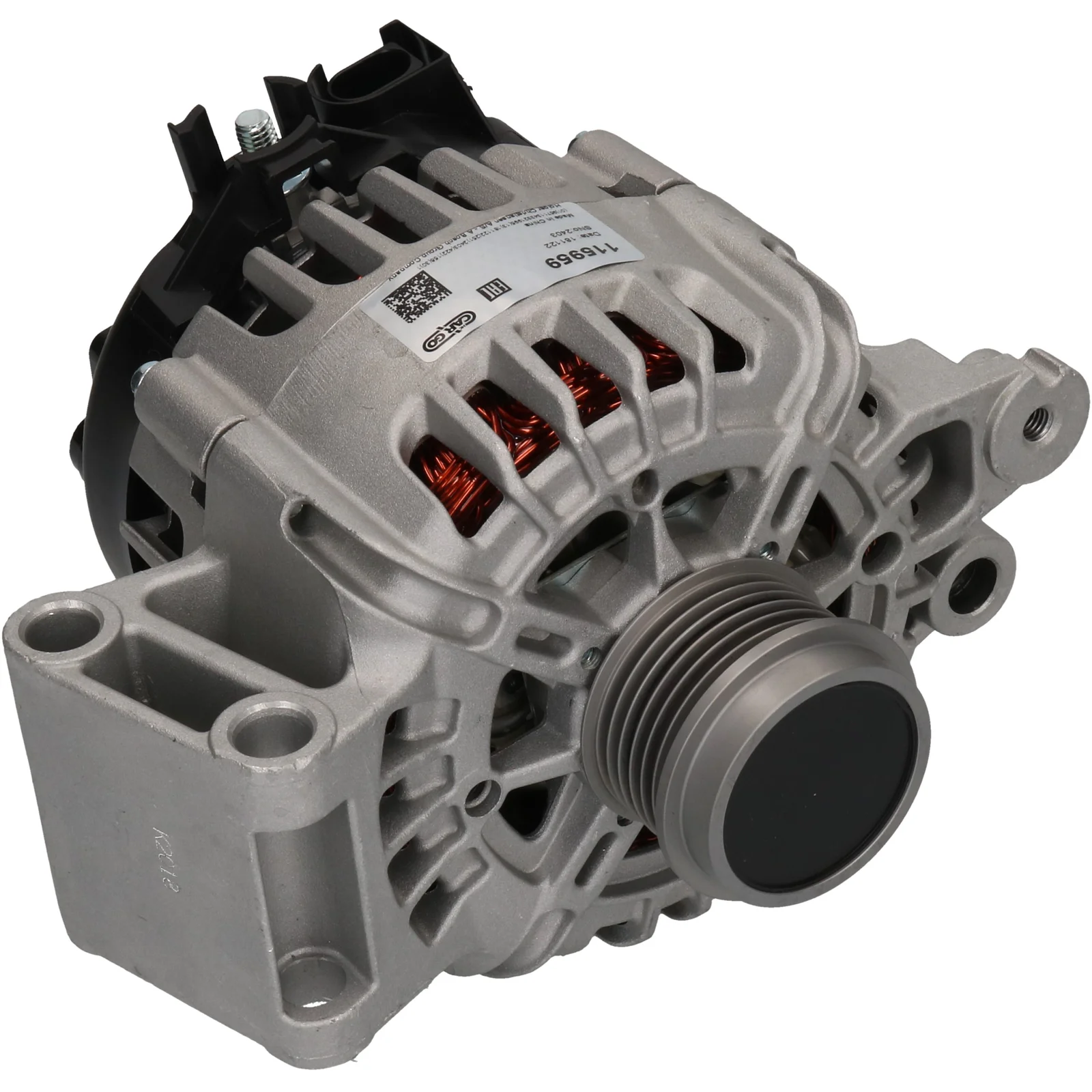

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 120, Dreiing: CW, Monteringsbrakett avstand: 51,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Amp: 120
Reimavstand: 11.50
Bredde/holderarm: 71.50
Festebrakettavstand: 51.00
Brakettåpningshull: 12.50
Belt. justeringsbrakettposisjon: 4
Belt. justeringsbrakett hull 1: 10.50
Reimdiameter: 51.70
Grooves/reim: 6
Radius: 84.50
Radius 2: 87.00
B+: M8
Posisjon/B+ i min.: 16
Rotasjon: CW
Støpselel.nr.: PL174
Total lengde mm: 186.50
Terminaltype: COM
Kommunikasjon: LIN
Reim: SP/FW
Regulator type: IR
Merknader: Denne Generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnetheten før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 51.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 4
Plug no. PL174
Bracket hole 12.50
Position/B+ in min. 16
Pulley SP/FW
Pulley dia. 51.70
Pulley dist. 11.50
Radius 84.50
Radius 2 87.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 186.50 mm
Width/holder arm 71.50
Amp 120

  • OEM
    bv6n10300aa, F032115959, tg12c107, 1704925

  • Konkurrentreferens
    CAL15478, DRA1412, LRA03768, 28-6878, 219.321.1202, 595.592.120, 11698N, 210963, 210963A, 439899, 553824RI, 12090627

  • NormaliseratArtNr
    bv6n10300aa, cal15478, dra1412, f032115959, lra03768, tg12c107, 11698n, 210963, 210963a, 286878, 439899, 553824ri, 1704925, 12090627, 595592120, 2193211202

  • Passar modeller
    Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.6 Brand of engine: JQDA Body: MPV From date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.6 Brand of engine: JQDB Body: MPV From date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.6 Brand of engine: JTDA Body: MPV From date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.6 Brand of engine: JTDA,JTDB Body: Van From date: 01-12-2010 Fuel: Petrol Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.6 Brand of engine: JTDB Body: MPV From date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Model type: ST200 Size of motor: 1.6 Brand of engine: JTJC Type description: CB1, CCN Body: Hatchback From date: 01-04-2016 To date: 01-04-2017 Fuel: Petrol Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDA Body: Estate From date: 01-07-2010 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDA Body: Hatchback From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDA From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDA From date: 01-11-2011 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDB Body: Estate From date: 01-07-2010 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDB Body: Hatchback From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDB From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDB From date: 01-11-2011 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDA Body: Estate From date: 01-07-2010 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDA Body: Hatchback From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDA From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDA From date: 01-11-2011 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDB Body: Estate From date: 01-07-2010 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDB Body: Hatchback From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDB From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDB From date: 01-11-2011 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: YUDA Body: Estate From date: 01-07-2010 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: YUDA From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: YUDA From date: 01-11-2011 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: Flexifuel Size of motor: 1.6 Brand of engine: YUDA Body: Estate From date: 01-07-2013 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Model type: Flexifuel Size of motor: 1.6 Brand of engine: YUDA Body: Hatchback From date: 01-07-2013 Fuel: Diesel Approved: Yes
    Ford Model: Focus Model series: Focus Model type: Flexifuel Size of motor: 1.6 Brand of engine: YUDA From date: 01-07-2013 Fuel: Diesel Approved: Yes
    Ford Model: Grand C-Max Model series: Grand C-Max Van Model type: Ecoboost Size of motor: 1.6 Brand of engine: JTDA,JTDB Body: Van From date: 01-12-2010 Fuel: Petrol Approved: Yes
    1 / 6
  • Beskrivelse
    Spenning: 14
    Amp: 120
    Reimavstand: 11.50
    Bredde/holderarm: 71.50
    Festebrakettavstand: 51.00
    Brakettåpningshull: 12.50
    Belt. justeringsbrakettposisjon: 4
    Belt. justeringsbrakett hull 1: 10.50
    Reimdiameter: 51.70
    Grooves/reim: 6
    Radius: 84.50
    Radius 2: 87.00
    B+: M8
    Posisjon/B+ i min.: 16
    Rotasjon: CW
    Støpselel.nr.: PL174
    Total lengde mm: 186.50
    Terminaltype: COM
    Kommunikasjon: LIN
    Reim: SP/FW
    Regulator type: IR
    Merknader: Denne Generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnetheten før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 51.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 4
    Plug no. PL174
    Bracket hole 12.50
    Position/B+ in min. 16
    Pulley SP/FW
    Pulley dia. 51.70
    Pulley dist. 11.50
    Radius 84.50
    Radius 2 87.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 186.50 mm
    Width/holder arm 71.50
    Amp 120
  • Kjøretøymatching

    • OEM
      bv6n10300aa, F032115959, tg12c107, 1704925

    • Konkurrentreferens
      CAL15478, DRA1412, LRA03768, 28-6878, 219.321.1202, 595.592.120, 11698N, 210963, 210963A, 439899, 553824RI, 12090627

    • NormaliseratArtNr
      bv6n10300aa, cal15478, dra1412, f032115959, lra03768, tg12c107, 11698n, 210963, 210963a, 286878, 439899, 553824ri, 1704925, 12090627, 595592120, 2193211202

    • Passar modeller
      Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.6 Brand of engine: JQDA Body: MPV From date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.6 Brand of engine: JQDB Body: MPV From date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.6 Brand of engine: JTDA Body: MPV From date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.6 Brand of engine: JTDA,JTDB Body: Van From date: 01-12-2010 Fuel: Petrol Approved: Yes
      Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.6 Brand of engine: JTDB Body: MPV From date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Model type: ST200 Size of motor: 1.6 Brand of engine: JTJC Type description: CB1, CCN Body: Hatchback From date: 01-04-2016 To date: 01-04-2017 Fuel: Petrol Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDA Body: Estate From date: 01-07-2010 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDA Body: Hatchback From date: 01-07-2010 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDA From date: 01-07-2010 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDA From date: 01-11-2011 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDB Body: Estate From date: 01-07-2010 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDB Body: Hatchback From date: 01-07-2010 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDB From date: 01-07-2010 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDB From date: 01-11-2011 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDA Body: Estate From date: 01-07-2010 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDA Body: Hatchback From date: 01-07-2010 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDA From date: 01-07-2010 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDA From date: 01-11-2011 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDB Body: Estate From date: 01-07-2010 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDB Body: Hatchback From date: 01-07-2010 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDB From date: 01-07-2010 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDB From date: 01-11-2011 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: YUDA Body: Estate From date: 01-07-2010 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: YUDA From date: 01-07-2010 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: YUDA From date: 01-11-2011 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: Flexifuel Size of motor: 1.6 Brand of engine: YUDA Body: Estate From date: 01-07-2013 Fuel: Diesel Approved: Yes Manufacture type: Turnier
      Ford Model: Focus Model series: Focus Model type: Flexifuel Size of motor: 1.6 Brand of engine: YUDA Body: Hatchback From date: 01-07-2013 Fuel: Diesel Approved: Yes
      Ford Model: Focus Model series: Focus Model type: Flexifuel Size of motor: 1.6 Brand of engine: YUDA From date: 01-07-2013 Fuel: Diesel Approved: Yes
      Ford Model: Grand C-Max Model series: Grand C-Max Van Model type: Ecoboost Size of motor: 1.6 Brand of engine: JTDA,JTDB Body: Van From date: 01-12-2010 Fuel: Petrol Approved: Yes
      1 / 6
