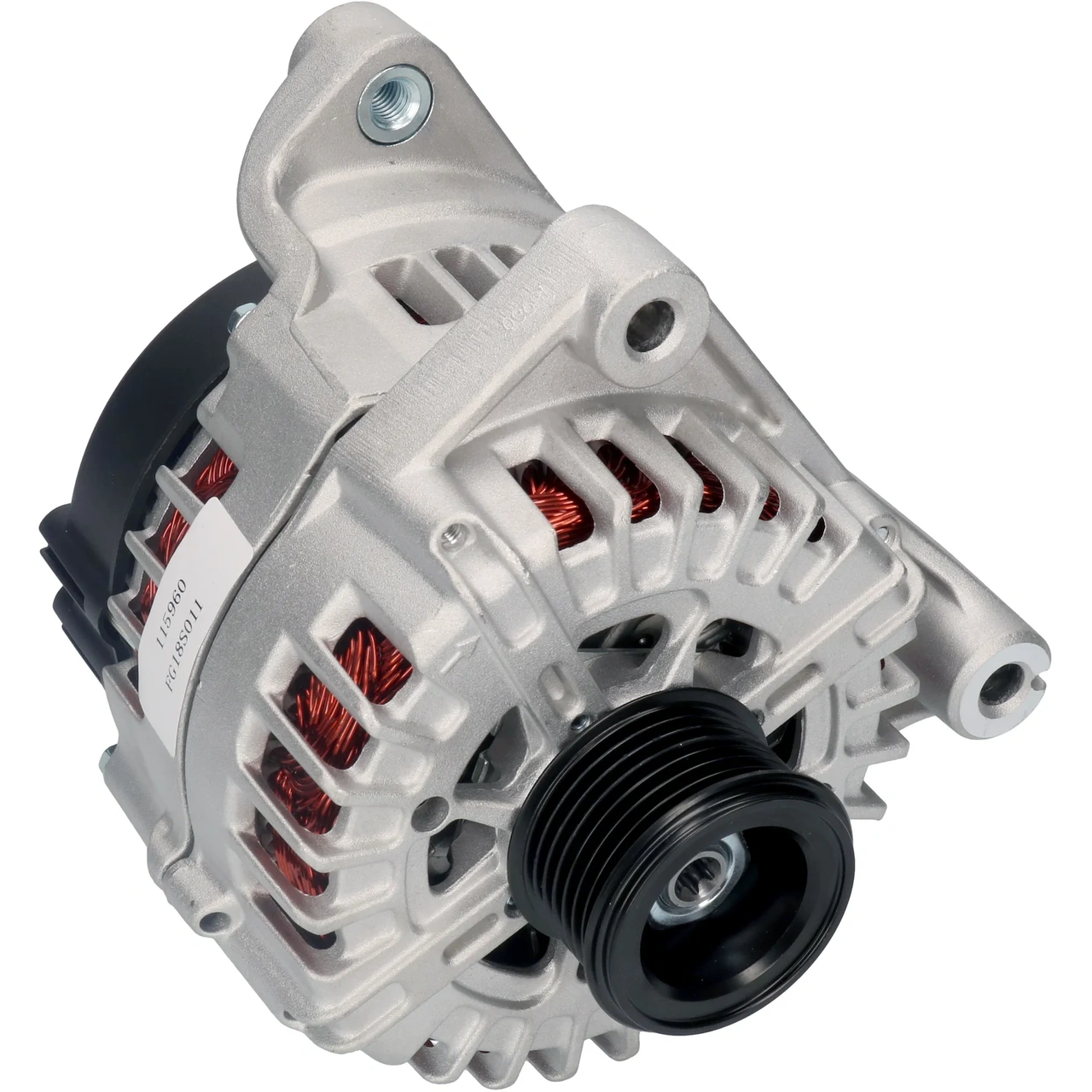

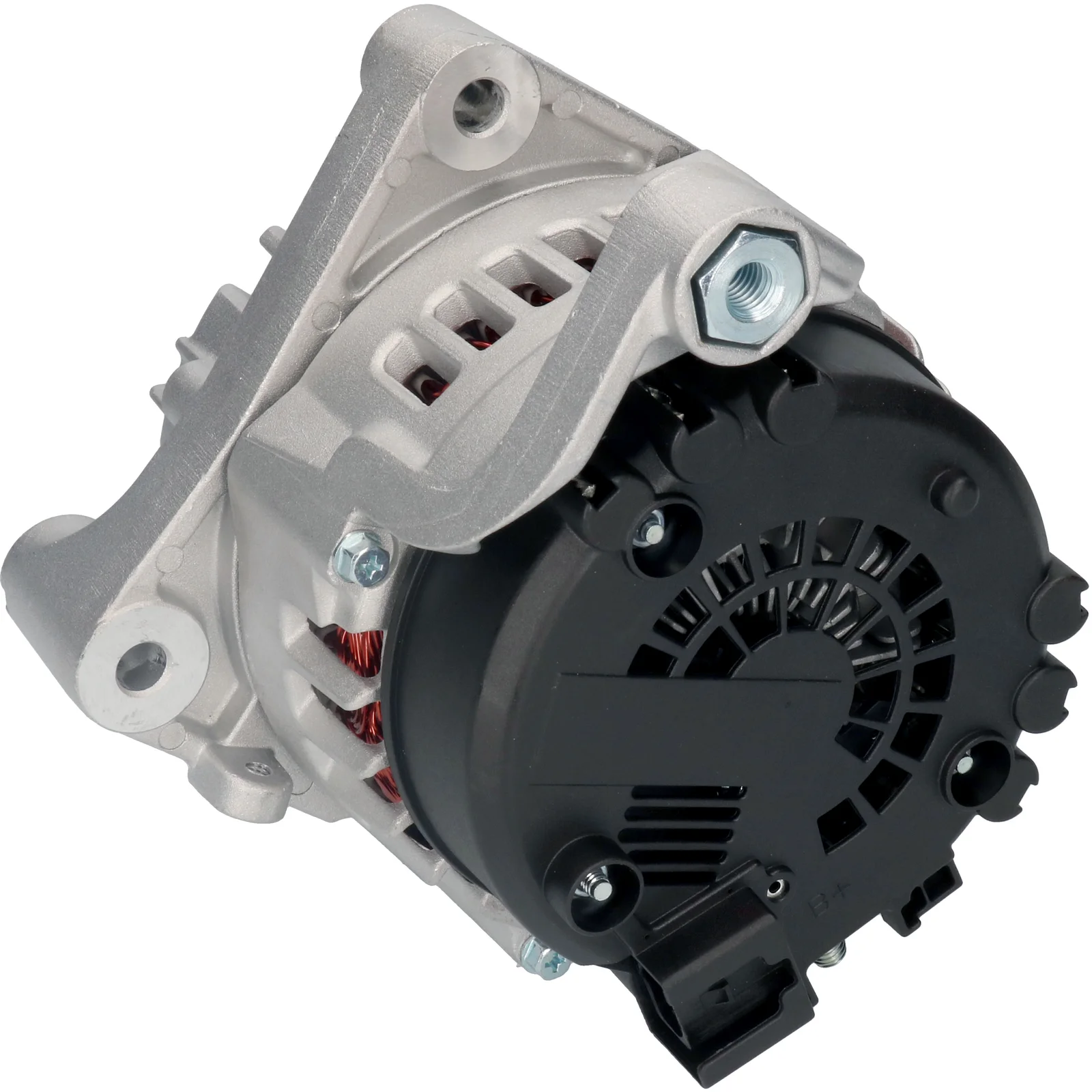

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115960

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 180, Rotasjon: CW, Festebrakettavstand: 75,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Amp: 180
Remskive avstand: 55,50
Bredde/holderarm: 27,70
Festebrakett avstand: 75,00
Brakettåpning: 10,50
Belt. justering brakettåpning pos.: 45
Belt. justering brakettåpning 1: 10,50
Remskivens diameter: 53,80
Gater/remskive: 7
Radius: 93,00
Radius 2: 93,00
B+: M8
Posisjon/B+ i min.: 60
Rotasjon: med urviseren
Plugg nr.: PL86
Total lengde mm: 188,00
Terminaltype: COM
Remskive: SP
Regulator type: IR
Prod. info: BN
Merknader: Denne Generator har en COM-terminal på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 75.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 45
Plug no. PL86
Bracket hole 10.50
Position/B+ in min. 60
Prod. info BN
Pulley SP
Pulley dia. 53.80
Pulley dist. 55.50
Radius 93.00
Radius 2 93.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 188.00 mm
Width/holder arm 27.70
Amp 180

  • OEM
    F032115960, FG18S011, 2543403B, 2543403C, 7803724, 7808074, 12317803724, 12317808074

  • Konkurrentreferens
    A3469S, CAL15469, DRA0971, LRA03683, 8EL012240-281, 28-6744, 215.198.1802, 20979N, 200261, 209169, 209169A, 439668, 440255, 9090573, 12090299

  • NormaliseratArtNr
    a3469s, cal15469, dra0971, f032115960, fg18s011, lra03683, 8el012240281, 20979n, 200261, 209169, 209169a, 286744, 439668, 440255, 2543403b, 2543403c, 7803724, 7808074, 9090573, 12090299, 2151981802, 12317803724, 12317808074

  • Passar modeller
    BMW Model: 5 Model series: 525 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10 From date: 01-03-2010 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Model type: Gran Turismo Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F07 Body: Hatchback From date: 01-08-2009 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Model type: GRAN TURISMO Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F07 Body: Hatchback From date: 01-09-2010 To date: 01-02-2017 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F07GT Body: Hatchback From date: 01-06-2010 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10 From date: 01-01-2010 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 7 Model series: 730 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F01, F02 From date: 01-09-2008 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    BMW Model: 7 Model series: 730 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F01, F02, F03, F04 From date: 01-02-2008 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    BMW Model: 7 Model series: 740 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57SD30B Type description: F01, F02 From date: 01-09-2010 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    BMW Model: 7 Model series: 740 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F01, F02, F03, F04 From date: 01-09-2009 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: xDrive30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E70 From date: 01-04-2010 To date: 01-07-2013 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: xDrive40d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: E70 From date: 01-09-2010 To date: 01-06-2013 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Size of motor: 3.0 Brand of engine: N57D30A Type description: E70 From date: 01-10-2008 To date: 01-07-2013 Fuel: Diesel Approved: Yes
    BMW Model: X6 Model series: X6 Model type: xDrive30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D3) Type description: E71, E72 From date: 01-04-2010 To date: 01-07-2014 Fuel: Diesel Approved: Yes
    BMW Model: X6 Model series: X6 Model type: xDrive30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E71, E72 From date: 01-04-2010 To date: 01-07-2014 Fuel: Diesel Approved: Yes
    BMW Model: X6 Model series: X6 Model type: xDrive40d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: E71, E72 From date: 01-07-2009 To date: 01-06-2014 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spenning: 14
    Amp: 180
    Remskive avstand: 55,50
    Bredde/holderarm: 27,70
    Festebrakett avstand: 75,00
    Brakettåpning: 10,50
    Belt. justering brakettåpning pos.: 45
    Belt. justering brakettåpning 1: 10,50
    Remskivens diameter: 53,80
    Gater/remskive: 7
    Radius: 93,00
    Radius 2: 93,00
    B+: M8
    Posisjon/B+ i min.: 60
    Rotasjon: med urviseren
    Plugg nr.: PL86
    Total lengde mm: 188,00
    Terminaltype: COM
    Remskive: SP
    Regulator type: IR
    Prod. info: BN
    Merknader: Denne Generator har en COM-terminal på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 75.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 45
    Plug no. PL86
    Bracket hole 10.50
    Position/B+ in min. 60
    Prod. info BN
    Pulley SP
    Pulley dia. 53.80
    Pulley dist. 55.50
    Radius 93.00
    Radius 2 93.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 7
    Terminal type COM
    Voltage 14
    Total length 188.00 mm
    Width/holder arm 27.70
    Amp 180
  • Kjøretøymatching

    • OEM
      F032115960, FG18S011, 2543403B, 2543403C, 7803724, 7808074, 12317803724, 12317808074

    • Konkurrentreferens
      A3469S, CAL15469, DRA0971, LRA03683, 8EL012240-281, 28-6744, 215.198.1802, 20979N, 200261, 209169, 209169A, 439668, 440255, 9090573, 12090299

    • NormaliseratArtNr
      a3469s, cal15469, dra0971, f032115960, fg18s011, lra03683, 8el012240281, 20979n, 200261, 209169, 209169a, 286744, 439668, 440255, 2543403b, 2543403c, 7803724, 7808074, 9090573, 12090299, 2151981802, 12317803724, 12317808074

    • Passar modeller
      BMW Model: 5 Model series: 525 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10 From date: 01-03-2010 To date: 01-08-2011 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 530 Model type: Gran Turismo Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F07 Body: Hatchback From date: 01-08-2009 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 530 Model type: GRAN TURISMO Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F07 Body: Hatchback From date: 01-09-2010 To date: 01-02-2017 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 530 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F07GT Body: Hatchback From date: 01-06-2010 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10 From date: 01-01-2010 To date: 01-08-2011 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 7 Model series: 730 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F01, F02 From date: 01-09-2008 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      BMW Model: 7 Model series: 730 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F01, F02, F03, F04 From date: 01-02-2008 To date: 01-05-2015 Fuel: Diesel Approved: Yes
      BMW Model: 7 Model series: 740 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57SD30B Type description: F01, F02 From date: 01-09-2010 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      BMW Model: 7 Model series: 740 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F01, F02, F03, F04 From date: 01-09-2009 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      BMW Model: X5 Model series: X5 Model type: xDrive30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E70 From date: 01-04-2010 To date: 01-07-2013 Fuel: Diesel Approved: Yes
      BMW Model: X5 Model series: X5 Model type: xDrive40d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: E70 From date: 01-09-2010 To date: 01-06-2013 Fuel: Diesel Approved: Yes
      BMW Model: X5 Model series: X5 Size of motor: 3.0 Brand of engine: N57D30A Type description: E70 From date: 01-10-2008 To date: 01-07-2013 Fuel: Diesel Approved: Yes
      BMW Model: X6 Model series: X6 Model type: xDrive30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D3) Type description: E71, E72 From date: 01-04-2010 To date: 01-07-2014 Fuel: Diesel Approved: Yes
      BMW Model: X6 Model series: X6 Model type: xDrive30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E71, E72 From date: 01-04-2010 To date: 01-07-2014 Fuel: Diesel Approved: Yes
      BMW Model: X6 Model series: X6 Model type: xDrive40d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: E71, E72 From date: 01-07-2009 To date: 01-06-2014 Fuel: Diesel Approved: Yes
      1 / 4
