HC-Cargo Dynamo

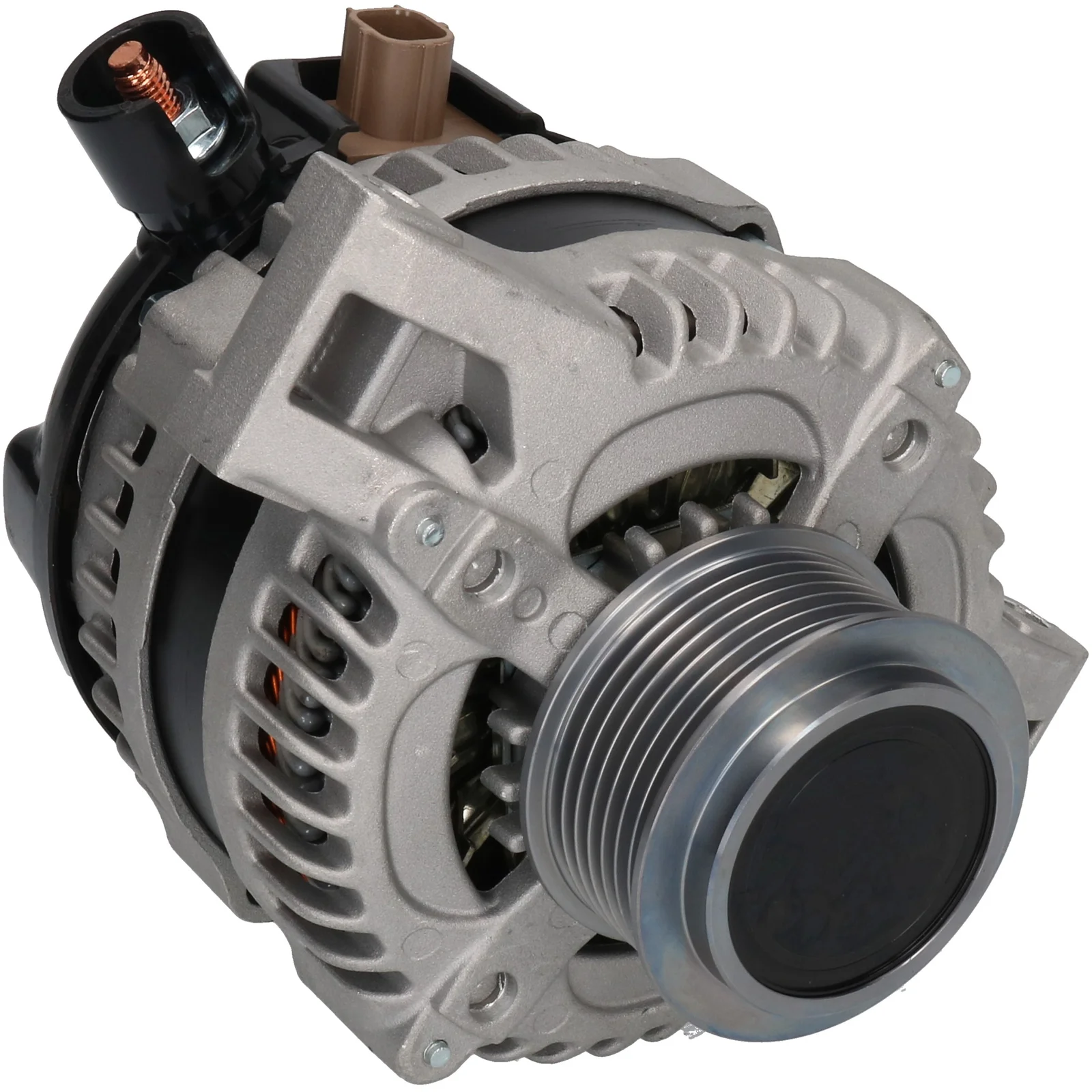

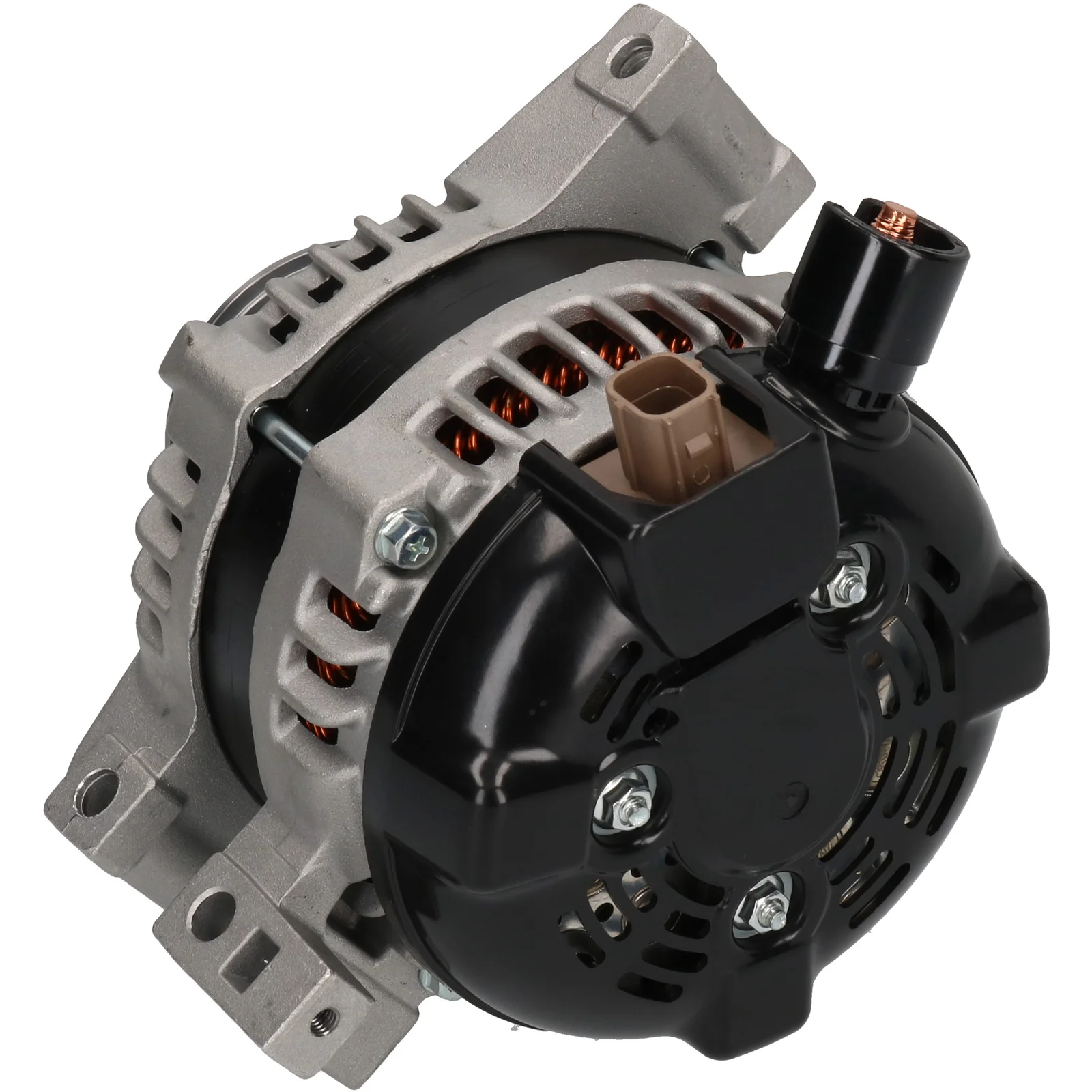

HC-Cargo Dynamo
Varenr.: F032115983

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 130, Rotasjon: medur, Monteringsfeste avstand: 44,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningskarakteristikk: 14
Ampere: 130
Drevdekkets avstand: 36.00
Bredde/holderarm: 46.00
Festebraktdistanse: 44.00
Krokhull: 8.90
Reimhjuljustering hull 1: 8.80
Reimhjul diameter: 70.00
Groover/reimhjul: 7
Radius: 81.00
Radius 2: 81.00
B+: M8
Posisjon/B+ i min.: 55
D+ Størrelse: Stekker
Rotasjon: medur
Stekker nr.: PL167
Total lengde mm: 165.00
Reimhjul: SP/FW
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 44.00
Belt. adj. bracket hole 1 8.80
Plug no. PL167
Bracket hole 8.90
Position/B+ in min. 55
Pulley SP/FW
Pulley dia. 70.00
Pulley dist. 36.00
Radius 81.00
D+ Size Plug
Radius 2 81.00
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 165.00 mm
Width/holder arm 46.00
Amp 130

  • OEM
    CSJ14, CSJ15, F032115983, 31100-rfw-g01, 31100-rfw-g51, 104210-1140, 104210-1150

  • Konkurrentreferens
    A6413S, CAL40545, DRA0892, 125.559.130, 554210RI, 12061143

  • NormaliseratArtNr
    a6413s, cal40545, csj14, csj15, dra0892, f032115983, 31100rfwg01, 31100rfwg51, 554210ri, 12061143, 125559130, 1042101140, 1042101150

  • Passar modeller
    Honda Model: Accord Model series: Accord Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B1 Body: Estate From date: 01-07-2008 Fuel: Diesel Approved: Yes Manufacture type: kombi
    Honda Model: Accord Model series: Accord Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B2 Type description: CU3 From date: 01-07-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Honda Model: Accord Model series: Accord Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B2 Type description: CW3 Body: Estate From date: 01-07-2008 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Honda Model: Civic Model series: Civic Size of motor: 1.8 Brand of engine: R18Z1 Type description: FB, FG From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Size of motor: 1.8 Brand of engine: R18Z4 Type description: FB, FG From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Honda Model: CR-V Model series: CR-V Type of engine: i CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: RE_ Body: SUV From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Honda Model: CR-V Model series: CR-V Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B3 Type description: RE6 From date: 01-01-2007 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningskarakteristikk: 14
    Ampere: 130
    Drevdekkets avstand: 36.00
    Bredde/holderarm: 46.00
    Festebraktdistanse: 44.00
    Krokhull: 8.90
    Reimhjuljustering hull 1: 8.80
    Reimhjul diameter: 70.00
    Groover/reimhjul: 7
    Radius: 81.00
    Radius 2: 81.00
    B+: M8
    Posisjon/B+ i min.: 55
    D+ Størrelse: Stekker
    Rotasjon: medur
    Stekker nr.: PL167
    Total lengde mm: 165.00
    Reimhjul: SP/FW
    Regulator type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 44.00
    Belt. adj. bracket hole 1 8.80
    Plug no. PL167
    Bracket hole 8.90
    Position/B+ in min. 55
    Pulley SP/FW
    Pulley dia. 70.00
    Pulley dist. 36.00
    Radius 81.00
    D+ Size Plug
    Radius 2 81.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 7
    Voltage 14
    Total length 165.00 mm
    Width/holder arm 46.00
    Amp 130
  • Kjøretøymatching

    • OEM
      CSJ14, CSJ15, F032115983, 31100-rfw-g01, 31100-rfw-g51, 104210-1140, 104210-1150

    • Konkurrentreferens
      A6413S, CAL40545, DRA0892, 125.559.130, 554210RI, 12061143

    • NormaliseratArtNr
      a6413s, cal40545, csj14, csj15, dra0892, f032115983, 31100rfwg01, 31100rfwg51, 554210ri, 12061143, 125559130, 1042101140, 1042101150

    • Passar modeller
      Honda Model: Accord Model series: Accord Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B1 Body: Estate From date: 01-07-2008 Fuel: Diesel Approved: Yes Manufacture type: kombi
      Honda Model: Accord Model series: Accord Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B2 Type description: CU3 From date: 01-07-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Honda Model: Accord Model series: Accord Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B2 Type description: CW3 Body: Estate From date: 01-07-2008 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Honda Model: Civic Model series: Civic Size of motor: 1.8 Brand of engine: R18Z1 Type description: FB, FG From date: 01-02-2012 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Size of motor: 1.8 Brand of engine: R18Z4 Type description: FB, FG From date: 01-02-2012 Fuel: Gasoline Approved: Yes
      Honda Model: CR-V Model series: CR-V Type of engine: i CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: RE_ Body: SUV From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Honda Model: CR-V Model series: CR-V Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B3 Type description: RE6 From date: 01-01-2007 Fuel: Diesel Approved: Yes
