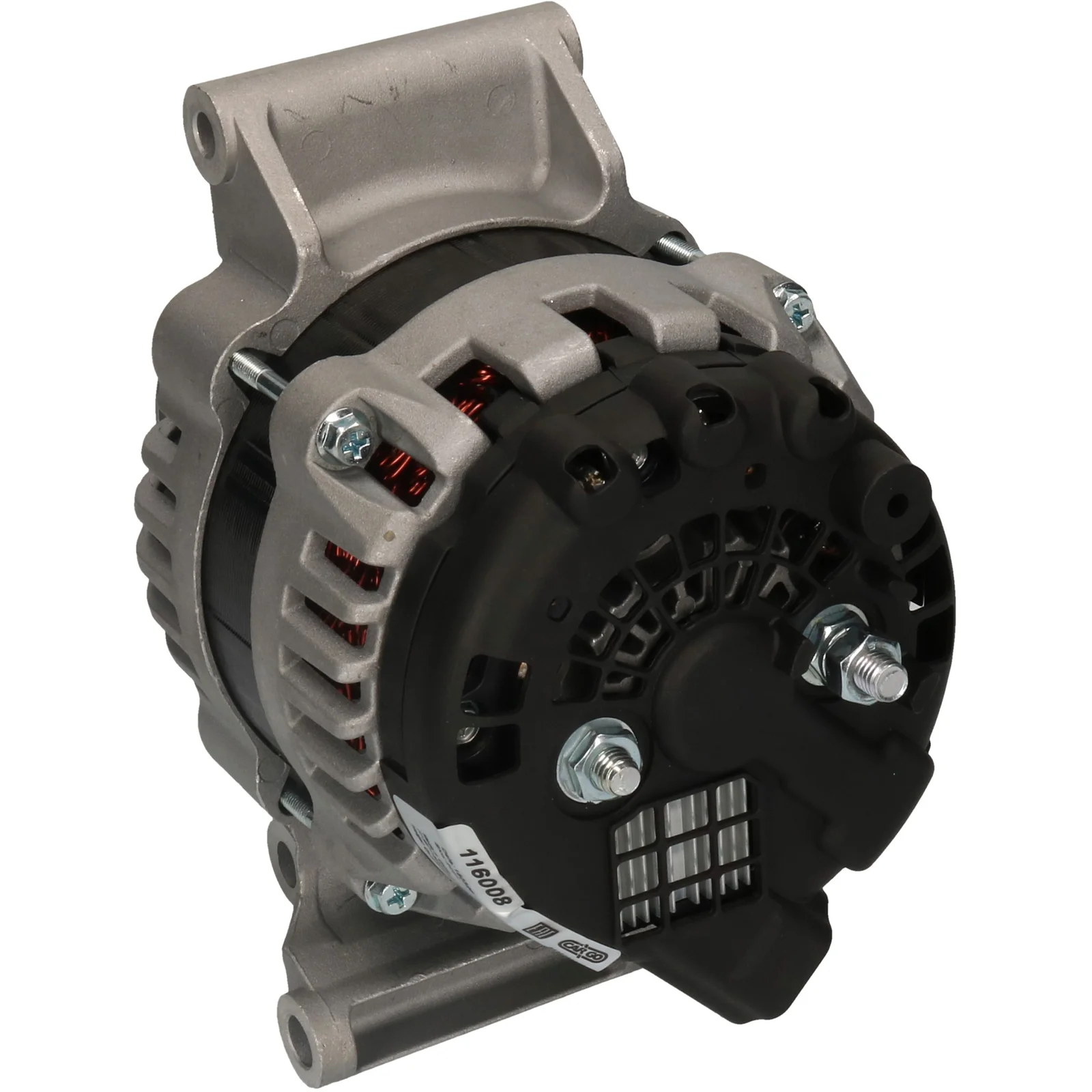

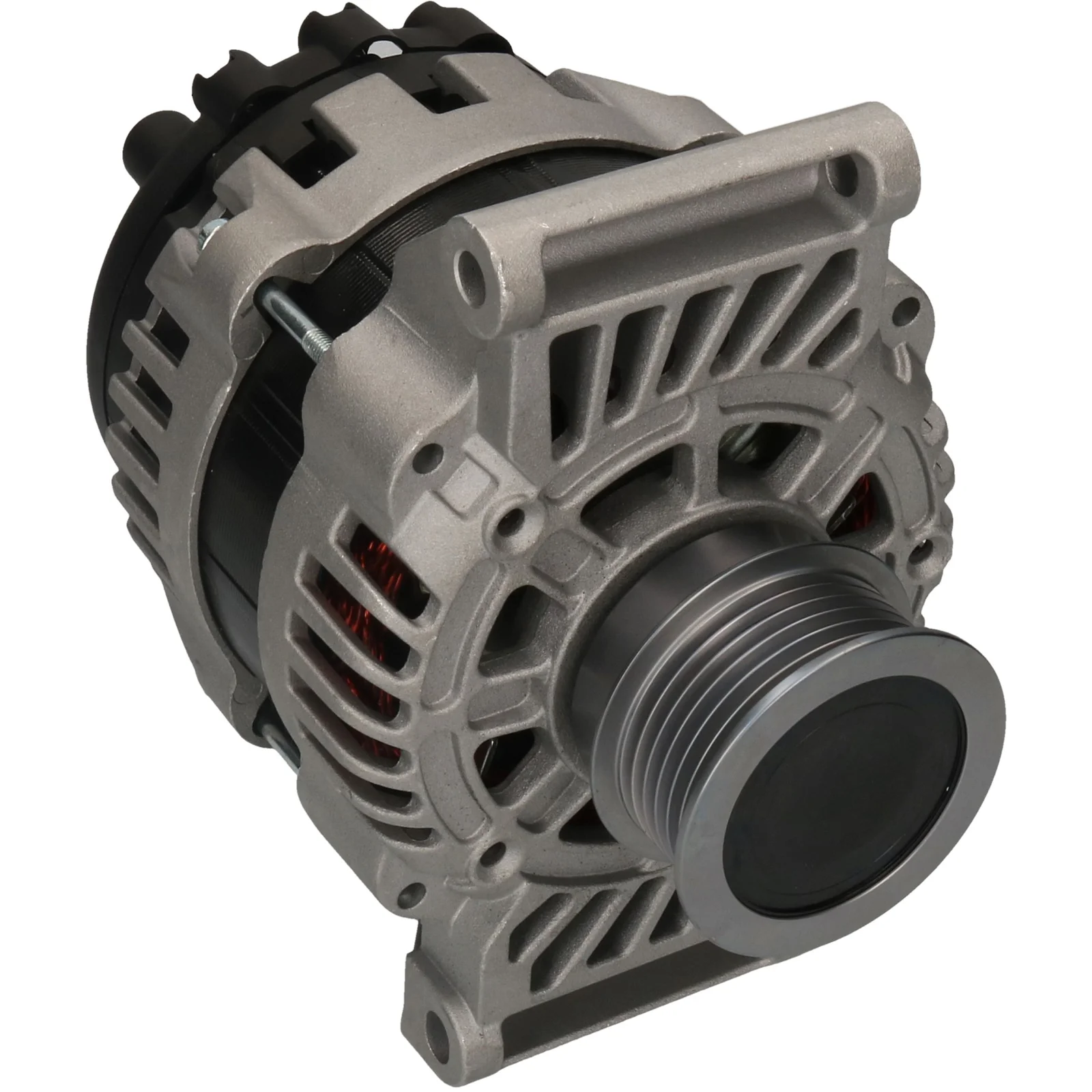

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116008

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 100, Rotasjon: med klokken, Festebrakett avstand.: 56,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spennings: 14
Amp: 100
Drevkugg dist.: 32,00
Bredde/holderarm: 79,00
Monteringsbeslag dist.: 56,00
Beslagshull: 10,20
Bånd. justering beslaghull pos.: 60
Bånd. justering beslag hull 1: 8,20
Drevkugg dia.: 56,00
Grooves/drevkugg: 6
Radius: 81,50
Radius 2: 81,50
B+: M8
Posisjon/B+ i min.: 15
D+ Størrelse: Propp
Rotasjon: medurs
Propp nr.: PL75
Total lengde mm: 194,00
Drevkugg: SP/FW

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 8.20
Belt. adj. brackethole pos. 60
Plug no. PL75
Bracket hole 10.20
Position/B+ in min. 15
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 32.00
Radius 81.50
D+ Size Plug
Radius 2 81.50
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 194.00 mm
Width/holder arm 79.00
Amp 100

  • OEM
    F032116008, 1204648, 13500330, 13502592, 13579673

  • Konkurrentreferens
    28-7778, 135.929.100, 228.313.1002, 209245, 209245A

  • NormaliseratArtNr
    f032116008, 209245, 209245a, 287778, 1204648, 13500330, 13502592, 13579673, 135929100, 2283131002

  • Passar modeller
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Sports Tourer Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Estate From date: 01-09-2011 To date: 01-06-2013 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-07-2011 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT From date: 01-07-2011 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-06-2011 Fuel: Gasoline Approved: Yes Manufacture type: SportsTour
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-06-2013 Fuel: Gasoline Approved: Yes Manufacture type: CARAVAN
    Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Estate From date: 01-09-2010 To date: 01-11-2011 Fuel: Bi-Fuel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-10-2010 To date: 01-03-2017 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-09-2010 To date: 01-11-2011 Fuel: Bi-Fuel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-10-2010 To date: 01-03-2017 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Insignia Model series: Insignia Sports Tourer Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-04-2014 To date: 01-11-2014 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-04-2014 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-04-2014 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT From date: 01-09-2011 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes Manufacture type: Estate
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Sports Tourer Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Estate From date: 01-07-2011 To date: 01-05-2017 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
    Vauxhall Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-07-2011 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
    1 / 5
  • Beskrivelse
    Spennings: 14
    Amp: 100
    Drevkugg dist.: 32,00
    Bredde/holderarm: 79,00
    Monteringsbeslag dist.: 56,00
    Beslagshull: 10,20
    Bånd. justering beslaghull pos.: 60
    Bånd. justering beslag hull 1: 8,20
    Drevkugg dia.: 56,00
    Grooves/drevkugg: 6
    Radius: 81,50
    Radius 2: 81,50
    B+: M8
    Posisjon/B+ i min.: 15
    D+ Størrelse: Propp
    Rotasjon: medurs
    Propp nr.: PL75
    Total lengde mm: 194,00
    Drevkugg: SP/FW

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 8.20
    Belt. adj. brackethole pos. 60
    Plug no. PL75
    Bracket hole 10.20
    Position/B+ in min. 15
    Pulley SP/FW
    Pulley dia. 56.00
    Pulley dist. 32.00
    Radius 81.50
    D+ Size Plug
    Radius 2 81.50
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 194.00 mm
    Width/holder arm 79.00
    Amp 100
  • Kjøretøymatching

    • OEM
      F032116008, 1204648, 13500330, 13502592, 13579673

    • Konkurrentreferens
      28-7778, 135.929.100, 228.313.1002, 209245, 209245A

    • NormaliseratArtNr
      f032116008, 209245, 209245a, 287778, 1204648, 13500330, 13502592, 13579673, 135929100, 2283131002

    • Passar modeller
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Sports Tourer Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Estate From date: 01-09-2011 To date: 01-06-2013 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-07-2011 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT From date: 01-07-2011 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-06-2011 Fuel: Gasoline Approved: Yes Manufacture type: SportsTour
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-06-2013 Fuel: Gasoline Approved: Yes Manufacture type: CARAVAN
      Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Estate From date: 01-09-2010 To date: 01-11-2011 Fuel: Bi-Fuel Approved: Yes Manufacture type: Sports Tou
      Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-10-2010 To date: 01-03-2017 Fuel: Bi-Fuel Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-09-2010 To date: 01-11-2011 Fuel: Bi-Fuel Approved: Yes Manufacture type: Sports Tou
      Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-10-2010 To date: 01-03-2017 Fuel: Bi-Fuel Approved: Yes
      Opel Model: Insignia Model series: Insignia Sports Tourer Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-04-2014 To date: 01-11-2014 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
      Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-04-2014 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-04-2014 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT From date: 01-09-2011 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes Manufacture type: Estate
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Sports Tourer Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Estate From date: 01-07-2011 To date: 01-05-2017 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
      Vauxhall Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-07-2011 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
