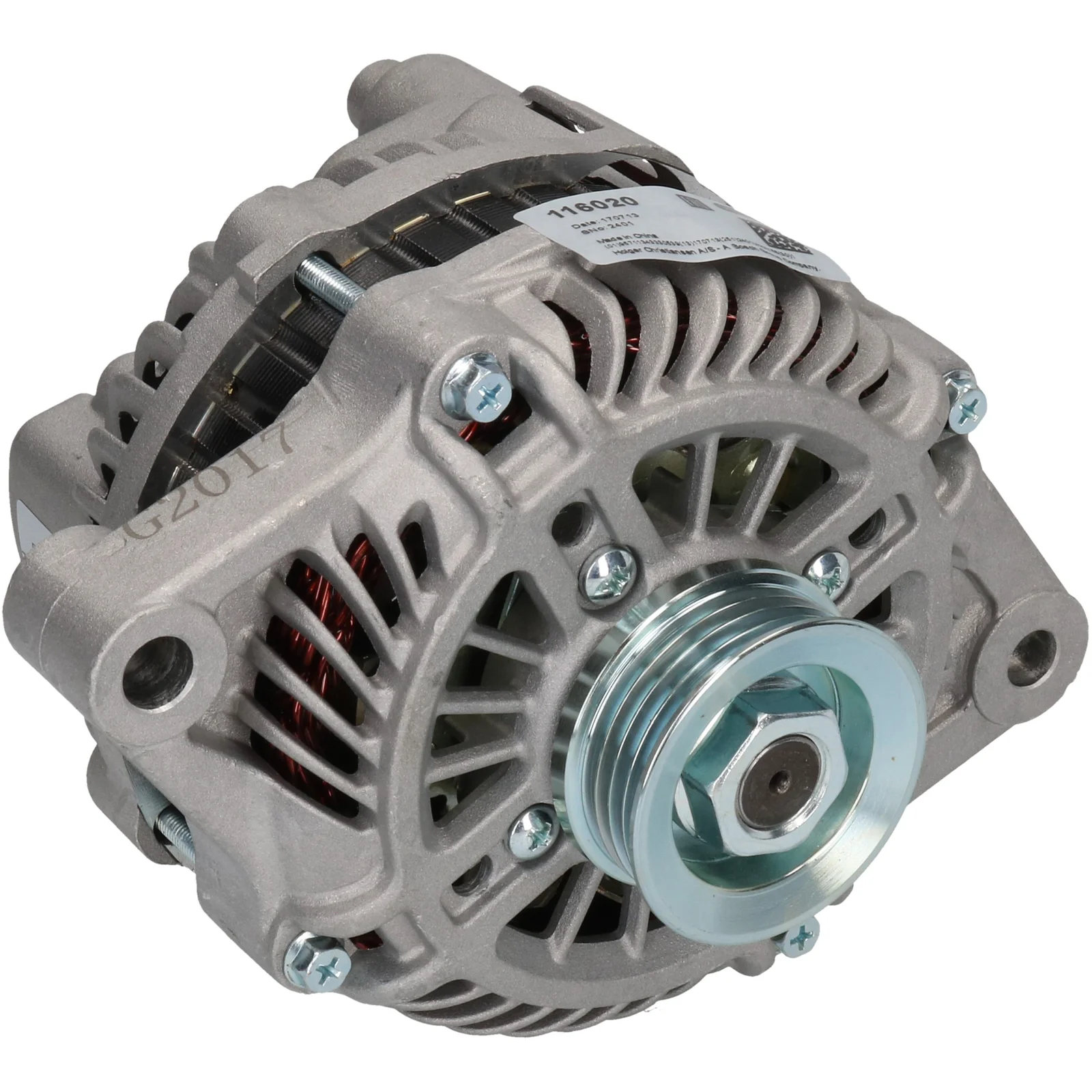

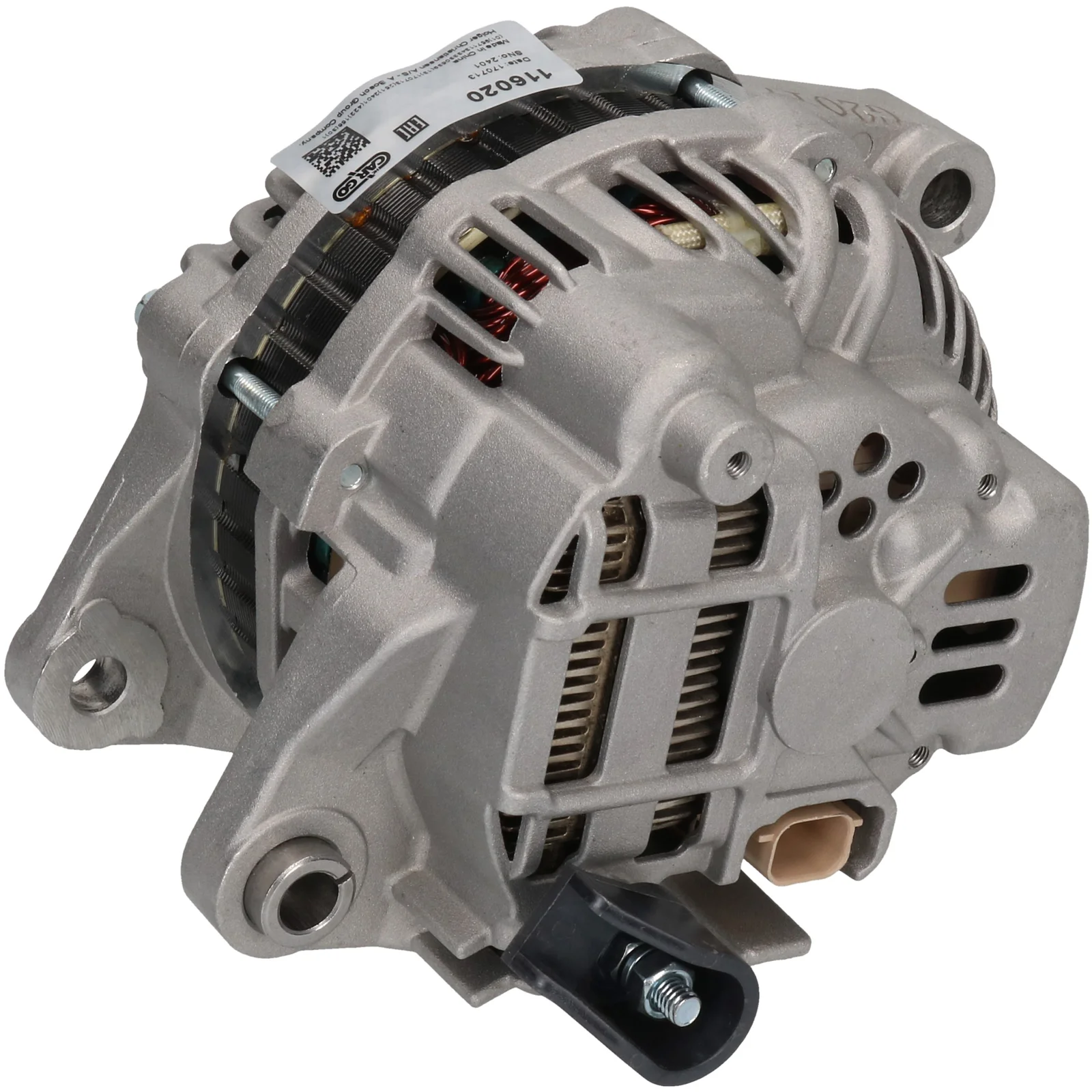

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116020

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 100, Rotasjon: med urviseren, Monteringsbrakett avstand.: 51,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsspenning: 14
Amp: 100
Drivskive dist.: 36.50
Bredde/holderarm: 12.00
Monteringsbrakett dist.: 51.00
Brakett hull: 10.50
Remjustering brakett hullet pos.: 60
Remjustering brakett hull 1: 11.50
Drivskive dia.: 50.00
Groper/drivskive: 4
Radius: 87.00
Radius 2: 86.00
B+: M6
Posisjon/B+ i min.: 23
D+ Størrelse: Plugg
Rotasjon: medur
Plugg nr.: PL153
Total lengde mm: 172.00
Drivskive: SP
Regulator: uten
Prod. info: BN

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 51.00
Belt. adj. bracket hole 1 11.50
Belt. adj. brackethole pos. 60
Plug no. PL153
Bracket hole 10.50
Position/B+ in min. 23
Prod. info BN
Pulley SP
Pulley dia. 50.00
Pulley dist. 36.50
Radius 87.00
D+ Size Plug
Radius 2 86.00
Regulator w/o
Rotation CW
Grooves/pulley 4
Voltage 14
Total length 172.00 mm
Width/holder arm 12.00
Amp 100

  • OEM
    A002TG0191ZC, A2TG0191, A2TG0191ZC, F032116020, 5033253aa

  • Konkurrentreferens
    A5246, CAL35155, LRA03700, 27-6761, 534.019.1002, 835.537.100, 835.572.100, 13995, 13995N, 13995R, 554316, 12090374

  • NormaliseratArtNr
    a002tg0191zc, a2tg0191, a2tg0191zc, a5246, cal35155, f032116020, lra03700, 13995, 13995n, 13995r, 276761, 554316, 5033253aa, 12090374, 835537100, 835572100, 5340191002

  • Passar modeller
    Chrysler Model: PT Cruiser Model series: PT Cruiser Model type: GT Size of motor: 2.4 Brand of engine: EDV Body: Convertible From date: 01-03-2004 To date: 01-03-2008 Fuel: Gasoline Approved: Yes
    Chrysler Model: PT Cruiser Model series: PT Cruiser Size of motor: 2.0 Brand of engine: ECC Type description: PT_ From date: 01-10-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Chrysler Model: PT Cruiser Model series: PT Cruiser Size of motor: 2.4 Brand of engine: EDZ Body: Convertible From date: 01-03-2004 To date: 01-03-2008 Fuel: Gasoline Approved: Yes
    Chrysler Model: PT Cruiser Model series: PT Cruiser Size of motor: 2.4 Brand of engine: EDZ Type description: PT_ From date: 01-08-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Chrysler Model: PT Cruiser Model series: PT Cruiser Type of engine: 16V Size of motor: 2.0 Brand of engine: ECC Type description: PT_ From date: 01-06-2000 To date: 01-09-2004 Fuel: Gasoline Approved: Yes
    Chrysler Model: PT Cruiser Model series: PT Cruiser Type of engine: 16V Size of motor: 2.4 Brand of engine: EDZ Type description: PT_ From date: 01-06-2000 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Dodge Model: Neon Model series: Neon Size of motor: 2.0 Brand of engine: ECH From date: 01-10-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Dodge Model: Neon Model series: Neon Type of engine: 16V Size of motor: 2.0 Brand of engine: ECB From date: 01-08-1999 Fuel: Gasoline Approved: Yes
    Dodge Model: Neon Model series: Neon Type of engine: 16V Size of motor: 2.0 Brand of engine: ECH From date: 01-08-1999 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsspenning: 14
    Amp: 100
    Drivskive dist.: 36.50
    Bredde/holderarm: 12.00
    Monteringsbrakett dist.: 51.00
    Brakett hull: 10.50
    Remjustering brakett hullet pos.: 60
    Remjustering brakett hull 1: 11.50
    Drivskive dia.: 50.00
    Groper/drivskive: 4
    Radius: 87.00
    Radius 2: 86.00
    B+: M6
    Posisjon/B+ i min.: 23
    D+ Størrelse: Plugg
    Rotasjon: medur
    Plugg nr.: PL153
    Total lengde mm: 172.00
    Drivskive: SP
    Regulator: uten
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 51.00
    Belt. adj. bracket hole 1 11.50
    Belt. adj. brackethole pos. 60
    Plug no. PL153
    Bracket hole 10.50
    Position/B+ in min. 23
    Prod. info BN
    Pulley SP
    Pulley dia. 50.00
    Pulley dist. 36.50
    Radius 87.00
    D+ Size Plug
    Radius 2 86.00
    Regulator w/o
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Total length 172.00 mm
    Width/holder arm 12.00
    Amp 100
  • Kjøretøymatching

    • OEM
      A002TG0191ZC, A2TG0191, A2TG0191ZC, F032116020, 5033253aa

    • Konkurrentreferens
      A5246, CAL35155, LRA03700, 27-6761, 534.019.1002, 835.537.100, 835.572.100, 13995, 13995N, 13995R, 554316, 12090374

    • NormaliseratArtNr
      a002tg0191zc, a2tg0191, a2tg0191zc, a5246, cal35155, f032116020, lra03700, 13995, 13995n, 13995r, 276761, 554316, 5033253aa, 12090374, 835537100, 835572100, 5340191002

    • Passar modeller
      Chrysler Model: PT Cruiser Model series: PT Cruiser Model type: GT Size of motor: 2.4 Brand of engine: EDV Body: Convertible From date: 01-03-2004 To date: 01-03-2008 Fuel: Gasoline Approved: Yes
      Chrysler Model: PT Cruiser Model series: PT Cruiser Size of motor: 2.0 Brand of engine: ECC Type description: PT_ From date: 01-10-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Chrysler Model: PT Cruiser Model series: PT Cruiser Size of motor: 2.4 Brand of engine: EDZ Body: Convertible From date: 01-03-2004 To date: 01-03-2008 Fuel: Gasoline Approved: Yes
      Chrysler Model: PT Cruiser Model series: PT Cruiser Size of motor: 2.4 Brand of engine: EDZ Type description: PT_ From date: 01-08-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Chrysler Model: PT Cruiser Model series: PT Cruiser Type of engine: 16V Size of motor: 2.0 Brand of engine: ECC Type description: PT_ From date: 01-06-2000 To date: 01-09-2004 Fuel: Gasoline Approved: Yes
      Chrysler Model: PT Cruiser Model series: PT Cruiser Type of engine: 16V Size of motor: 2.4 Brand of engine: EDZ Type description: PT_ From date: 01-06-2000 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Dodge Model: Neon Model series: Neon Size of motor: 2.0 Brand of engine: ECH From date: 01-10-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Dodge Model: Neon Model series: Neon Type of engine: 16V Size of motor: 2.0 Brand of engine: ECB From date: 01-08-1999 Fuel: Gasoline Approved: Yes
      Dodge Model: Neon Model series: Neon Type of engine: 16V Size of motor: 2.0 Brand of engine: ECH From date: 01-08-1999 Fuel: Gasoline Approved: Yes
