HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116022

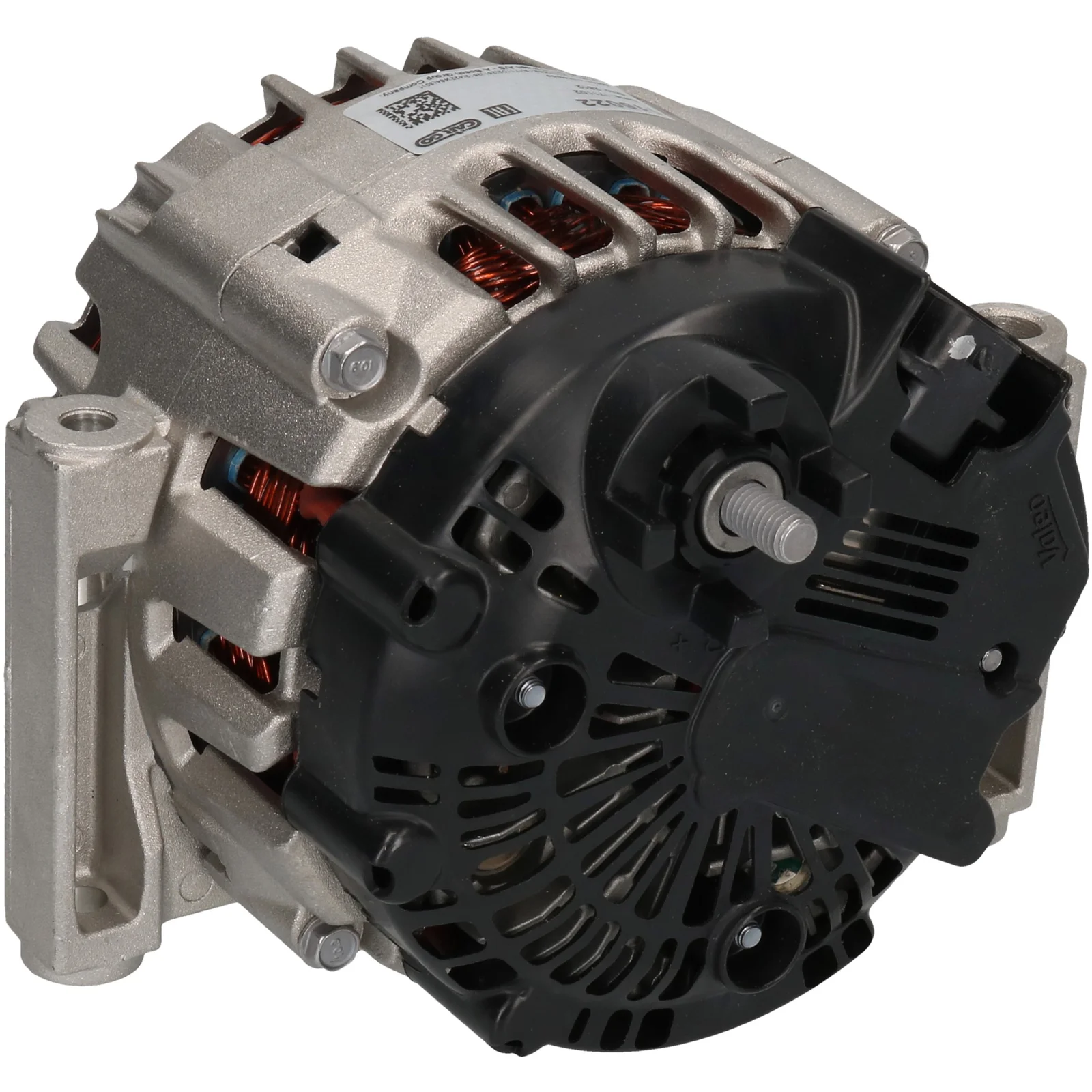

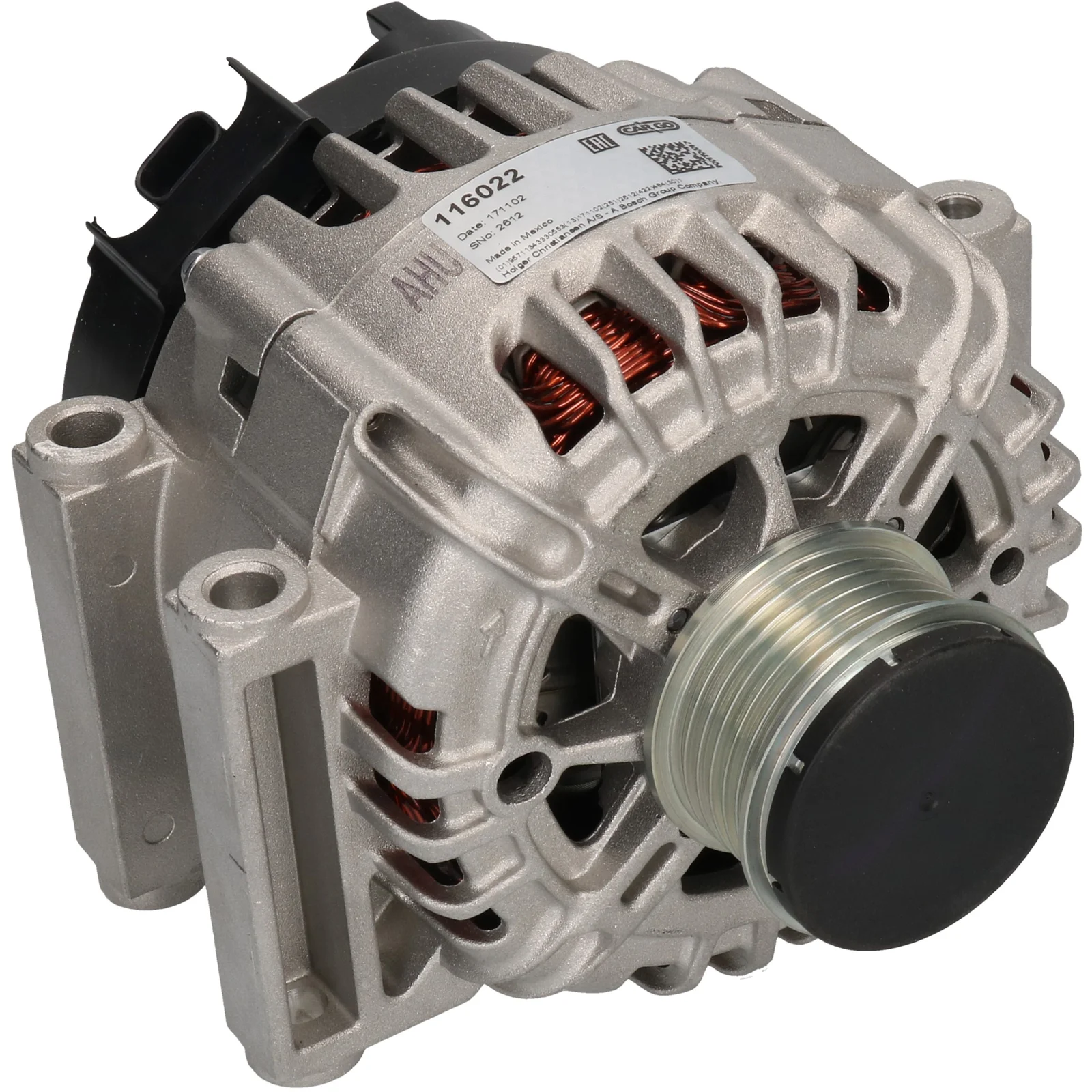

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 140, Rotasjon: CW, Festebrakett avstand.: 55,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Ampere: 140
Bøssingavstand: 41,50
Bredde/beslagarm: 95,00
Festebrakett avstand: 55,00
Brakettåpning: 10,50
Brakettåpning 2: 8,00x9,30
Båndjusteringsbrakettåpning 1: 8,00
Bøssingdia.: 53,50
Groper/bøssing: 6
Radius: 76,00
Radius 2: 80,00
B+: M8
Posisjon/B+ i min.: 12
D+ Størrelse: Kontakt
Rotasjon: Med urviseren
Kontakt nr.: PL180
Total lengde mm: 189,00
Terminaltype: L-F
Kommunikasjon: PWM
Bøssing: SP/FW
Regulator type: IR
Merk: Denne generatoren har en PWM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication PWM
Mount. bracket dist. 55.00
Belt. adj. bracket hole 1 8.00
Plug no. PL180
Bracket hole 10.50
Bracket hole 2 8.00x9.30
Position/B+ in min. 12
Pulley SP/FW
Pulley dia. 53.50
Pulley dist. 41.50
Radius 76.00
D+ Size Plug
Radius 2 80.00
Regulator type IR
Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type L-F
Voltage 14
Total length 189.00 mm
Width/holder arm 95.00
Amp 140

  • OEM
    F032116022, TG12C105, TG12C193, 1202219, 1202341, 2610570, 2610570a, 2620379, 2620379a, 13505392, 13512755, 13588308, 95515971

  • Konkurrentreferens
    A3347PR, A3347S, CAL15009, DRA1542, 28-7540, 135.586.140, 228.305.1402, 24099-OS, 209241, 209241A, 439761, 440353, 554186RI, 849240, 12090641

  • NormaliseratArtNr
    a3347pr, a3347s, cal15009, dra1542, f032116022, tg12c105, tg12c193, 24099os, 209241, 209241a, 287540, 439761, 440353, 554186ri, 849240, 1202219, 1202341, 2610570, 2610570a, 2620379, 2620379a, 12090641, 13505392, 13512755, 13588308, 95515971, 135586140, 2283051402

  • Passar modeller
    Chevrolet Model: Aveo Model series: Aveo Type of engine: Diesel Size of motor: 1.3 Brand of engine: LDV Type description: T300 Body: Hatchback From date: 01-07-2011 Fuel: Diesel Approved: Yes
    Chevrolet Model: Aveo Model series: Aveo Type of engine: Diesel Size of motor: 1.3 Brand of engine: LDV Type description: T300 From date: 01-07-2011 Fuel: Diesel Approved: Yes
    Chevrolet Model: Aveo Model series: Aveo Type of engine: Diesel Size of motor: 1.3 Brand of engine: LSF Type description: T300 Body: Hatchback From date: 01-07-2011 Fuel: Diesel Approved: Yes
    Chevrolet Model: Aveo Model series: Aveo Type of engine: Diesel Size of motor: 1.3 Brand of engine: LSF Type description: T300 From date: 01-07-2011 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 1.2 Brand of engine: A13DTE Type description: P10 Body: Box Body / Estate From date: 01-10-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 1.2 Brand of engine: A13DTE Type description: P10 Body: Box Body / Hatchback From date: 01-05-2013 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Meriva Model series: Meriva B Model type: 75 Type of engine: CDTi Size of motor: 1.2 Brand of engine: A13DTE Type description: S10 Body: Van From date: 01-01-2013 To date: 01-11-2014 Fuel: Diesel Approved: Yes
