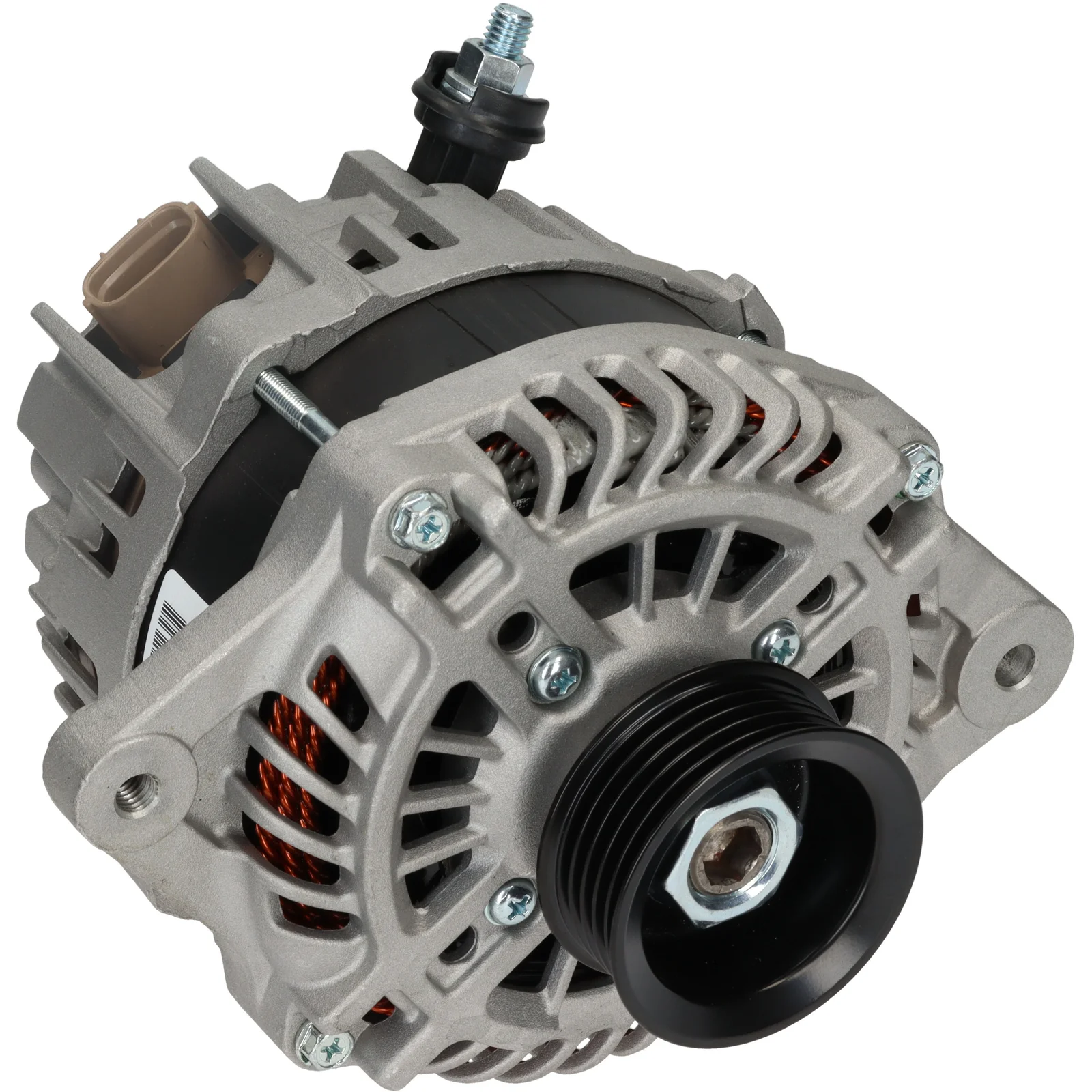

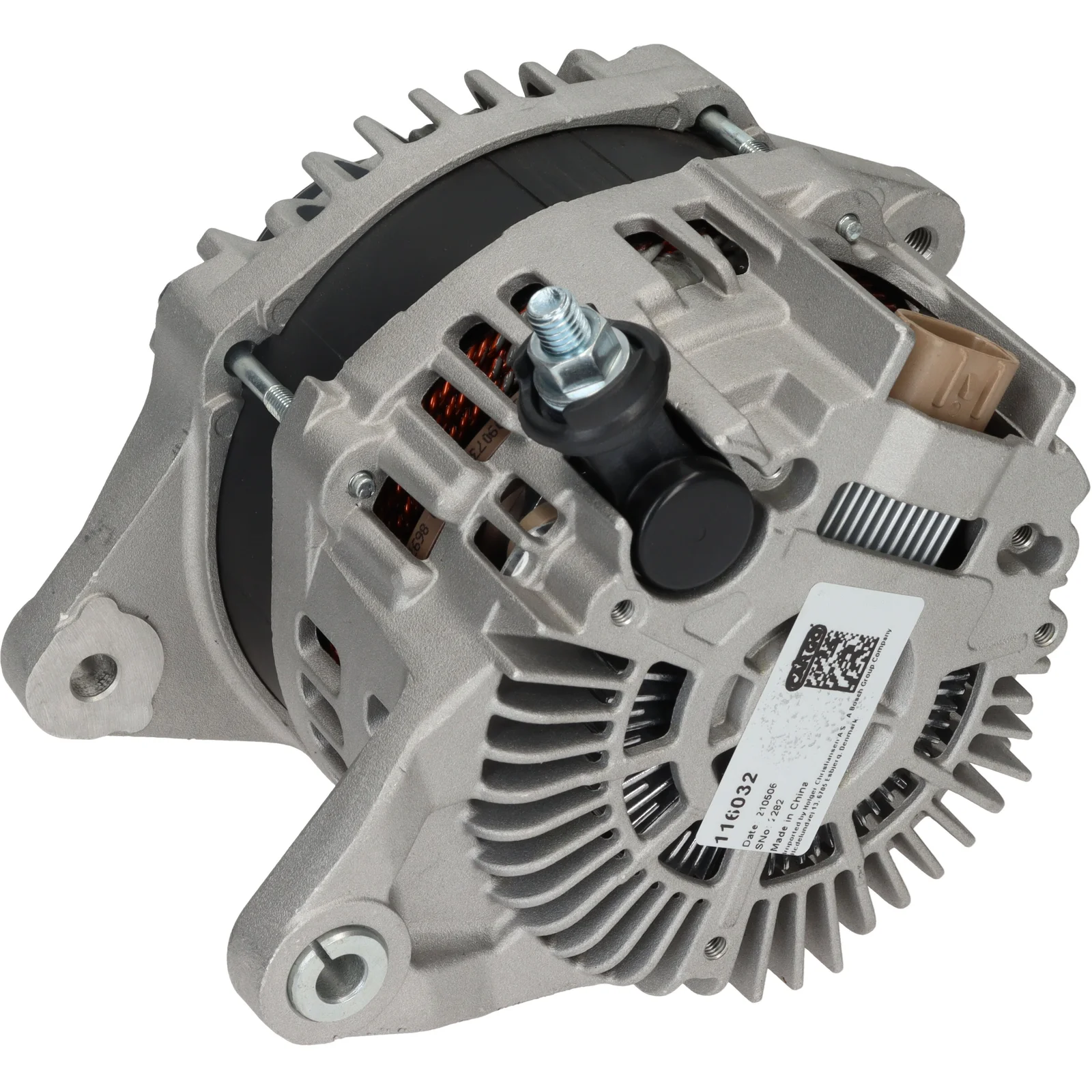

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116032

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 130, Rotasjon: CW, Monteringsbrakett avstand: 80.00

Beskrivelse

Spenning: 14
Ampere: 130
Civ. dist.: 47.00
Bredde/holder arm: 13.00
Monteringsbeslag dist.: 80.00
Beslaghull: 8.60
Belt. justering beslag hull pos.: 60
Belt. justering beslag hull 1: M8
Civ. diameter.: 55.00
Riller/pulley: 5
Radie: 90.00
Radie 2: 85.00
B+: M8
Posisjon/B+ i min.: 40
Rotasjon: CW
Støpselet nummer: PL163
Total lengde mm: 198.00
Terminaltype: L-S-C
Pulley: SP
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 80.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL163
Bracket hole 8.60
Position/B+ in min. 40
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 47.00
Radius 90.00
Radius 2 85.00
Regulator type IR
Rotation CW
Grooves/pulley 5
Terminal type L-S-C
Voltage 14
Total length 198.00 mm
Width/holder arm 13.00
Amp 130

  • OEM
    A002TX0691, A002TX0691ZC, A002XT0691, A2TX0691, A2TX0691ZC, F032116032, 23700-AA650, 23700-AA810

  • Konkurrentreferens
    A5286, CAL35346, DRA1439, 28-7668, 165.569.150, 554427RI, 12061050

  • NormaliseratArtNr
    a002tx0691, a002tx0691zc, a002xt0691, a2tx0691, a2tx0691zc, a5286, cal35346, dra1439, f032116032, 23700aa650, 23700aa810, 287668, 554427ri, 12061050, 165569150

  • Passar modeller
    Subaru Model: Legacy Model series: Legacy Size of motor: 2.0 Brand of engine: EJ204 From date: 01-09-2009 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Subaru Model: Legacy Model series: Legacy Size of motor: 2.5 Brand of engine: EJ253 Body: Estate From date: 01-09-2009 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Station Wa
    Subaru Model: Legacy Model series: Legacy Size of motor: 2.5 Brand of engine: EJ253 From date: 01-09-2009 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Subaru Model: Legacy Model series: Legacy Type of engine: i Size of motor: 2.0 Brand of engine: EJ204 Type description: BM, BR Body: Estate From date: 01-09-2009 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Station Wa
    Subaru Model: Legacy Model series: Legacy Type of engine: i Size of motor: 2.0 Brand of engine: FB20 Type description: BM, BR Body: Estate From date: 01-09-2009 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Station Wa
    Subaru Model: Legacy Model series: Legacy Type of engine: Turbo Size of motor: 2.5 Brand of engine: EJ25 Type description: B13_ Body: Estate From date: 01-01-2008 To date: 01-12-2009 Fuel: Gasoline Approved: Yes Manufacture type: Station Wa
    Subaru Model: Outback Model series: Outback Size of motor: 2.5 Brand of engine: EJ253 Body: Estate From date: 01-09-2009 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 14
    Ampere: 130
    Civ. dist.: 47.00
    Bredde/holder arm: 13.00
    Monteringsbeslag dist.: 80.00
    Beslaghull: 8.60
    Belt. justering beslag hull pos.: 60
    Belt. justering beslag hull 1: M8
    Civ. diameter.: 55.00
    Riller/pulley: 5
    Radie: 90.00
    Radie 2: 85.00
    B+: M8
    Posisjon/B+ i min.: 40
    Rotasjon: CW
    Støpselet nummer: PL163
    Total lengde mm: 198.00
    Terminaltype: L-S-C
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 80.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL163
    Bracket hole 8.60
    Position/B+ in min. 40
    Prod. info BN
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 47.00
    Radius 90.00
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 5
    Terminal type L-S-C
    Voltage 14
    Total length 198.00 mm
    Width/holder arm 13.00
    Amp 130
  • Kjøretøymatching

    • OEM
      A002TX0691, A002TX0691ZC, A002XT0691, A2TX0691, A2TX0691ZC, F032116032, 23700-AA650, 23700-AA810

    • Konkurrentreferens
      A5286, CAL35346, DRA1439, 28-7668, 165.569.150, 554427RI, 12061050

    • NormaliseratArtNr
      a002tx0691, a002tx0691zc, a002xt0691, a2tx0691, a2tx0691zc, a5286, cal35346, dra1439, f032116032, 23700aa650, 23700aa810, 287668, 554427ri, 12061050, 165569150

    • Passar modeller
      Subaru Model: Legacy Model series: Legacy Size of motor: 2.0 Brand of engine: EJ204 From date: 01-09-2009 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      Subaru Model: Legacy Model series: Legacy Size of motor: 2.5 Brand of engine: EJ253 Body: Estate From date: 01-09-2009 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Station Wa
      Subaru Model: Legacy Model series: Legacy Size of motor: 2.5 Brand of engine: EJ253 From date: 01-09-2009 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      Subaru Model: Legacy Model series: Legacy Type of engine: i Size of motor: 2.0 Brand of engine: EJ204 Type description: BM, BR Body: Estate From date: 01-09-2009 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Station Wa
      Subaru Model: Legacy Model series: Legacy Type of engine: i Size of motor: 2.0 Brand of engine: FB20 Type description: BM, BR Body: Estate From date: 01-09-2009 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Station Wa
      Subaru Model: Legacy Model series: Legacy Type of engine: Turbo Size of motor: 2.5 Brand of engine: EJ25 Type description: B13_ Body: Estate From date: 01-01-2008 To date: 01-12-2009 Fuel: Gasoline Approved: Yes Manufacture type: Station Wa
      Subaru Model: Outback Model series: Outback Size of motor: 2.5 Brand of engine: EJ253 Body: Estate From date: 01-09-2009 Fuel: Gasoline Approved: Yes
      1 / 2
