HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116037

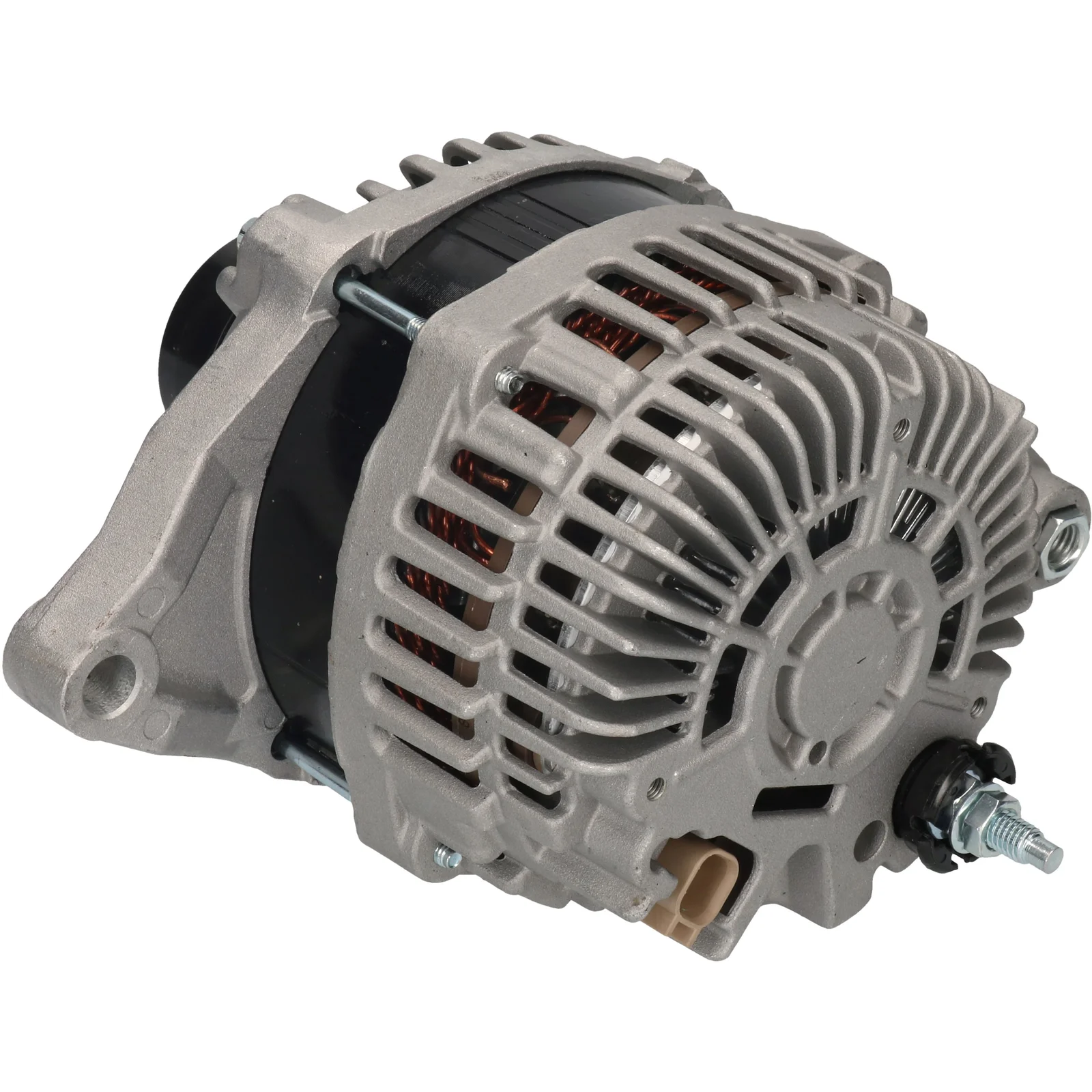

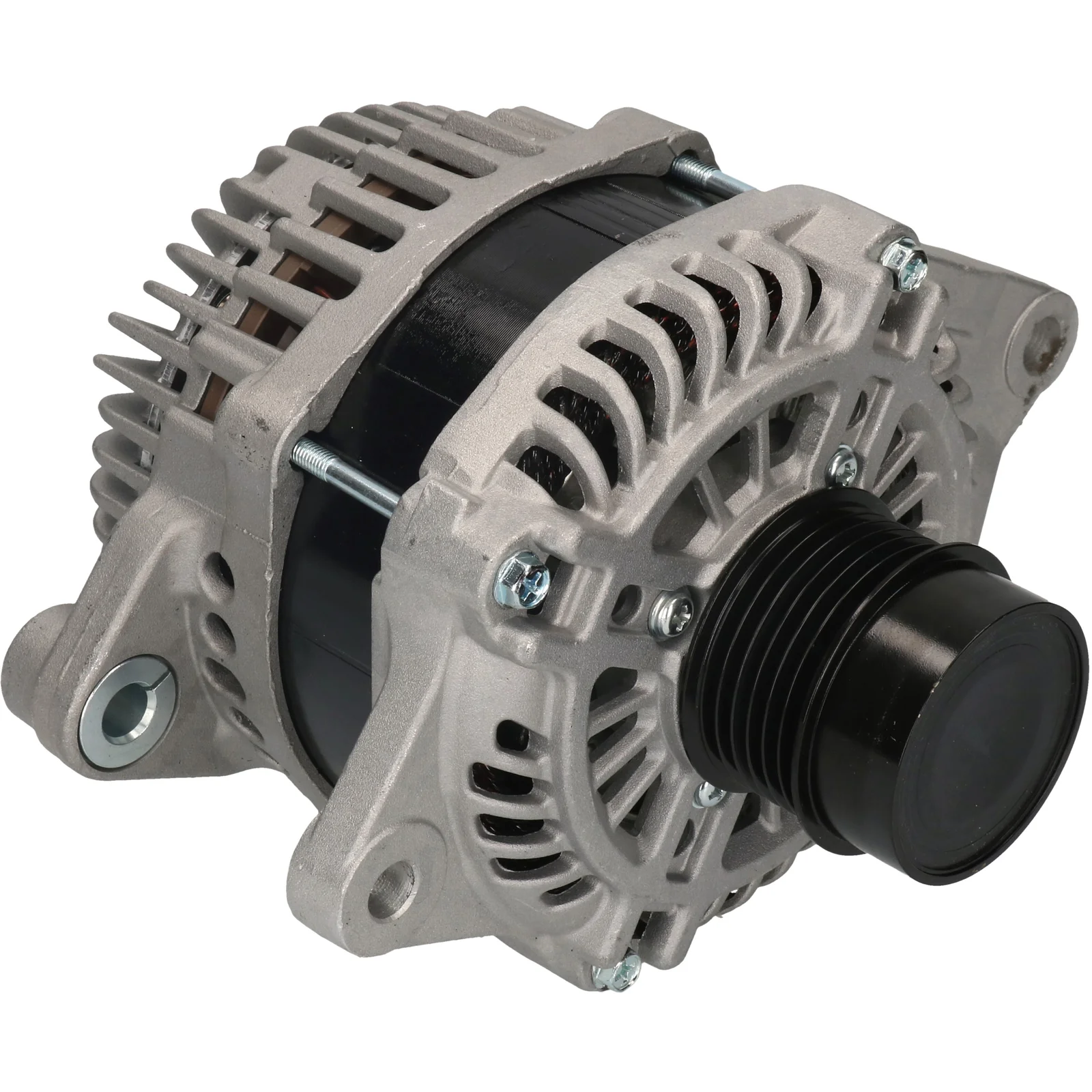

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 160, Rotasjon: CW, Monteringsbrakett avstand: 55,00

Beskrivelse

Spenning: 14
Ampere: 160
Skive dist.: 34,20
Bredde/holderarm: 13,00
Monteringsbrakett dist.: 55,00
Brakett-hole: 10,50
Bälte. juster. brakkeposisjon: 2
Bälte. juster. brakett hull 1: 11,50
Skive dia.: 53,00
Riller/skive: 6
Radius: 82,50
Radius 2: 102,50
B+: M8
Posisjon/B+ i min.: 37
Rotasjon: CW
Stikkontaktnummer: PL177
Total lengde mm: 204,00
Skive: SP/FW
Regulator: uten

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 55.00
Belt. adj. bracket hole 1 11.50
Belt. adj. brackethole pos. 2
Plug no. PL177
Bracket hole 10.50
Position/B+ in min. 37
Pulley SP/FW
Pulley dia. 53.00
Pulley dist. 34.20
Radius 82.50
Radius 2 102.50
Regulator w/o
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 204.00 mm
Width/holder arm 13.00
Amp 160

  • OEM
    A002TX0281, A002TX0281ZC, a2tx0281, A2TX0281ZC, F032116037, 04801490AA, 4801490aa

  • Konkurrentreferens
    A5232, LRA03689, 27-6750, 534.038.1602, 835.915.160, 11440N, 11440R, 554200RI, 12061033

  • NormaliseratArtNr
    a002tx0281, a002tx0281zc, a2tx0281, a2tx0281zc, a5232, f032116037, lra03689, 11440n, 11440r, 276750, 554200ri, 04801490aa, 4801490aa, 12061033, 835915160, 5340381602

  • Passar modeller
    Dodge Model: Journey Model series: Journey Model type: ECO+ Size of motor: 2.4 Brand of engine: EDG Body: MPV From date: 01-06-2008 Fuel: Bi-Fuel Approved: Yes
    Dodge Model: Journey Model series: Journey Size of motor: 2.4 Brand of engine: ED3 Body: MPV From date: 01-01-2009 Fuel: Gasoline Approved: Yes
    Dodge Model: Journey Model series: Journey Size of motor: 2.4 Brand of engine: ED3 Body: MPV From date: 01-09-2008 Fuel: Gasoline Approved: Yes
    Dodge Model: Journey Model series: Journey Size of motor: 2.4 Brand of engine: EDG Body: MPV From date: 01-09-2008 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spenning: 14
    Ampere: 160
    Skive dist.: 34,20
    Bredde/holderarm: 13,00
    Monteringsbrakett dist.: 55,00
    Brakett-hole: 10,50
    Bälte. juster. brakkeposisjon: 2
    Bälte. juster. brakett hull 1: 11,50
    Skive dia.: 53,00
    Riller/skive: 6
    Radius: 82,50
    Radius 2: 102,50
    B+: M8
    Posisjon/B+ i min.: 37
    Rotasjon: CW
    Stikkontaktnummer: PL177
    Total lengde mm: 204,00
    Skive: SP/FW
    Regulator: uten

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 55.00
    Belt. adj. bracket hole 1 11.50
    Belt. adj. brackethole pos. 2
    Plug no. PL177
    Bracket hole 10.50
    Position/B+ in min. 37
    Pulley SP/FW
    Pulley dia. 53.00
    Pulley dist. 34.20
    Radius 82.50
    Radius 2 102.50
    Regulator w/o
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 204.00 mm
    Width/holder arm 13.00
    Amp 160
  • Kjøretøymatching

    • OEM
      A002TX0281, A002TX0281ZC, a2tx0281, A2TX0281ZC, F032116037, 04801490AA, 4801490aa

    • Konkurrentreferens
      A5232, LRA03689, 27-6750, 534.038.1602, 835.915.160, 11440N, 11440R, 554200RI, 12061033

    • NormaliseratArtNr
      a002tx0281, a002tx0281zc, a2tx0281, a2tx0281zc, a5232, f032116037, lra03689, 11440n, 11440r, 276750, 554200ri, 04801490aa, 4801490aa, 12061033, 835915160, 5340381602

    • Passar modeller
      Dodge Model: Journey Model series: Journey Model type: ECO+ Size of motor: 2.4 Brand of engine: EDG Body: MPV From date: 01-06-2008 Fuel: Bi-Fuel Approved: Yes
      Dodge Model: Journey Model series: Journey Size of motor: 2.4 Brand of engine: ED3 Body: MPV From date: 01-01-2009 Fuel: Gasoline Approved: Yes
      Dodge Model: Journey Model series: Journey Size of motor: 2.4 Brand of engine: ED3 Body: MPV From date: 01-09-2008 Fuel: Gasoline Approved: Yes
      Dodge Model: Journey Model series: Journey Size of motor: 2.4 Brand of engine: EDG Body: MPV From date: 01-09-2008 Fuel: Gasoline Approved: Yes
