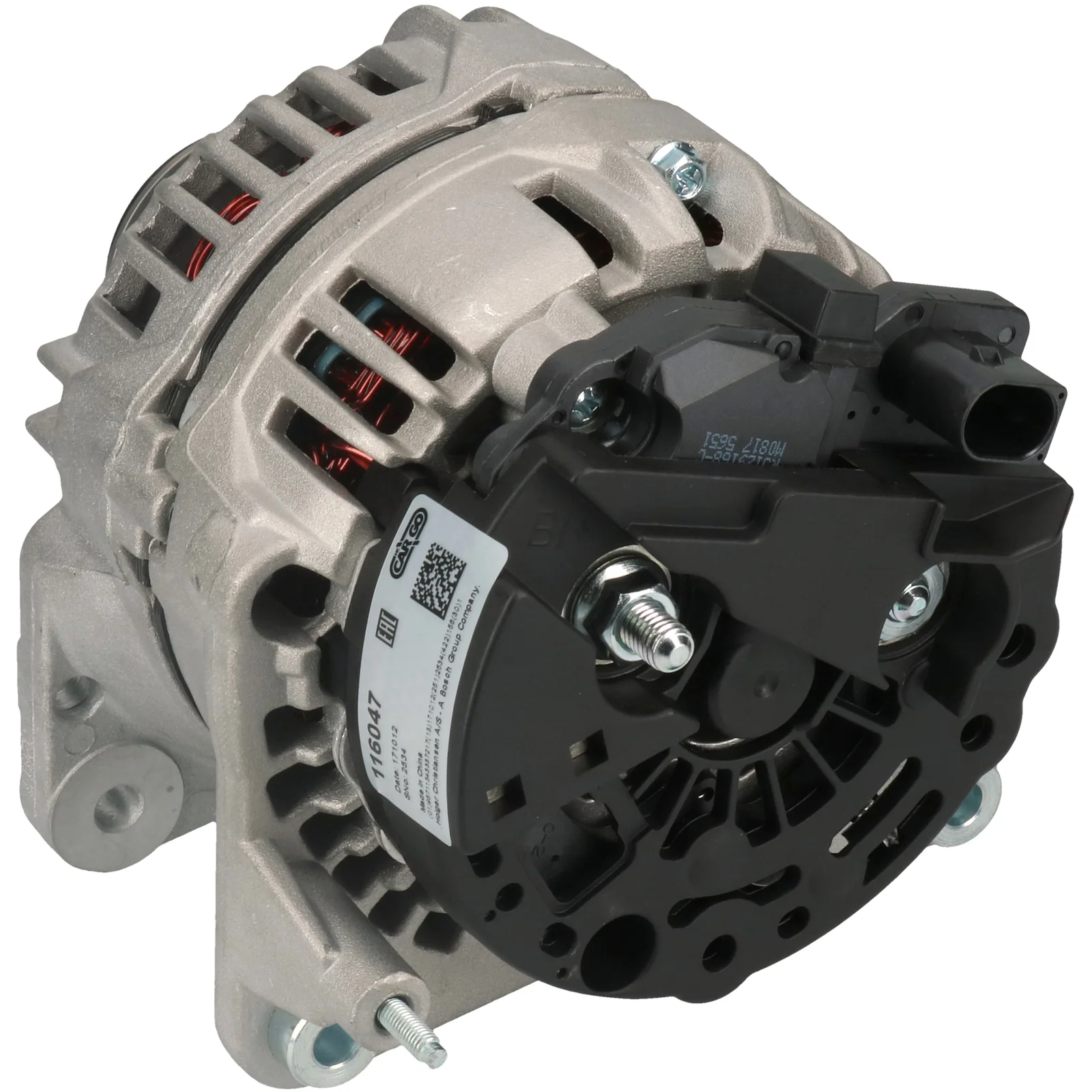

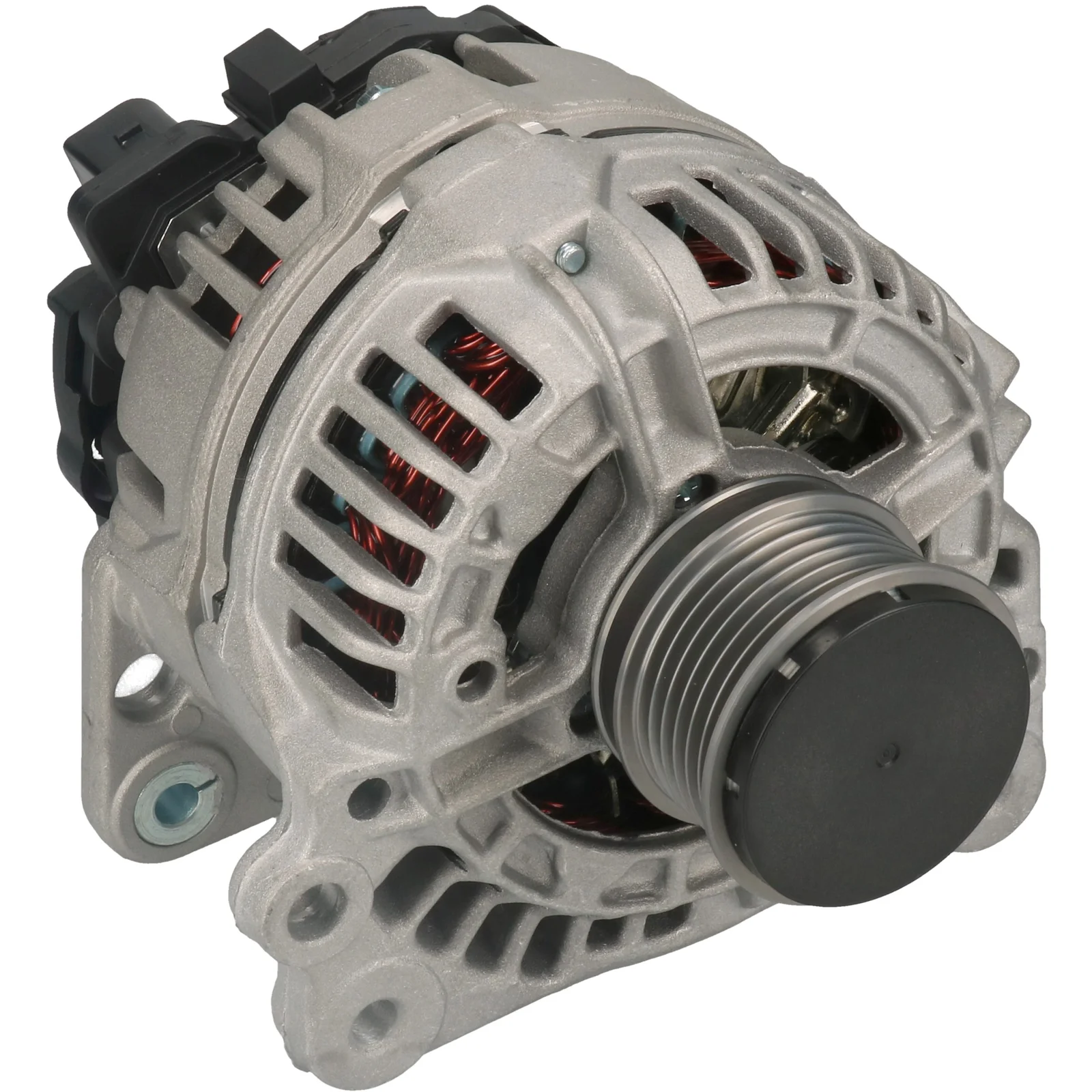

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116047

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 110, Rotasjon: CW, Festebraktdist.: 61,10

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsfase: 14
Ampere: 110
Drevskive avstand: 39,00
Bredde/holderarm: 14,00
Monteringsbeslag avstand: 61,10
Beslagshull: 8,50
Beltets justeringshullposisjon: 45
Beltets justeringshull: 8,50
Drevskivediameter: 56,00
Riller/drevskive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Posisjon/B+ i min.: 45
D+-størrelse: Stikk
Rotasjon: med urviseren
Stikkontaktnr.: PL61
Total lengde mm: 192,00
Drevskive: SP/FW
Regulator-type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 61.10
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL61
Bracket hole 8.50
Position/B+ in min. 45
Prod. info BN
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 39.00
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 192.00 mm
Width/holder arm 14.00
Amp 110

  • OEM
    F032116047, 3.852.2319F, 1986A00811, 0124325178, 0124325280, 528110010

  • Konkurrentreferens
    A0345, CAL10372, CAL21204, DRA0034, 8EL011713-351, 28-5891, 214.170.1102, 425.502.110, 20014N, 23949R, 12090451

  • NormaliseratArtNr
    a0345, cal10372, cal21204, dra0034, f032116047, 8el011713351, 1986a00811, 20014n, 23949r, 285891, 12090451, 38522319f, 0124325178, 0124325280, 425502110, 528110010, 2141701102

  • Passar modeller
    LDV Model: Maxus Model series: Maxus Type of engine: CDi Size of motor: 2.5 Brand of engine: VM39C Body: Bus From date: 01-02-2005 To date: 01-12-2009 Fuel: Diesel Approved: Yes
    LDV Model: Maxus Model series: Maxus Type of engine: CDi Size of motor: 2.5 Brand of engine: VM39C, VM40C Body: Bus From date: 01-02-2005 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    LDV Model: Maxus Model series: Maxus Type of engine: CDi Size of motor: 2.5 Brand of engine: VM39C, VM40C Body: Van From date: 01-02-2005 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    LDV Model: Maxus Model series: Maxus Type of engine: CRD Size of motor: 2.5 Brand of engine: VM39C Body: Platform / Chassis From date: 01-02-2005 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    LDV Model: V80 Model series: V80 Body: Platform / Chassis From date: 01-11-2016 Fuel: Electric Approved: Yes
    LDV Model: V80 Model series: V80 Box Size of motor: 2.5 Body: Van From date: 01-11-2016 Fuel: Diesel Approved: Yes
    Maxus Model: V80 Model series: V80 Type of engine: Diesel Size of motor: 2.5 Body: Bus From date: 01-09-2011 Fuel: Diesel Approved: Yes
    Maxus Model: V80 Model series: V80 Type of engine: Diesel Size of motor: 2.5 Body: Bus From date: 01-10-2010 Fuel: Diesel Approved: Yes
    Maxus Model: V80 Model series: V80 Type of engine: Diesel Size of motor: 2.5 Body: Van From date: 01-10-2010 Fuel: Diesel Approved: Yes
