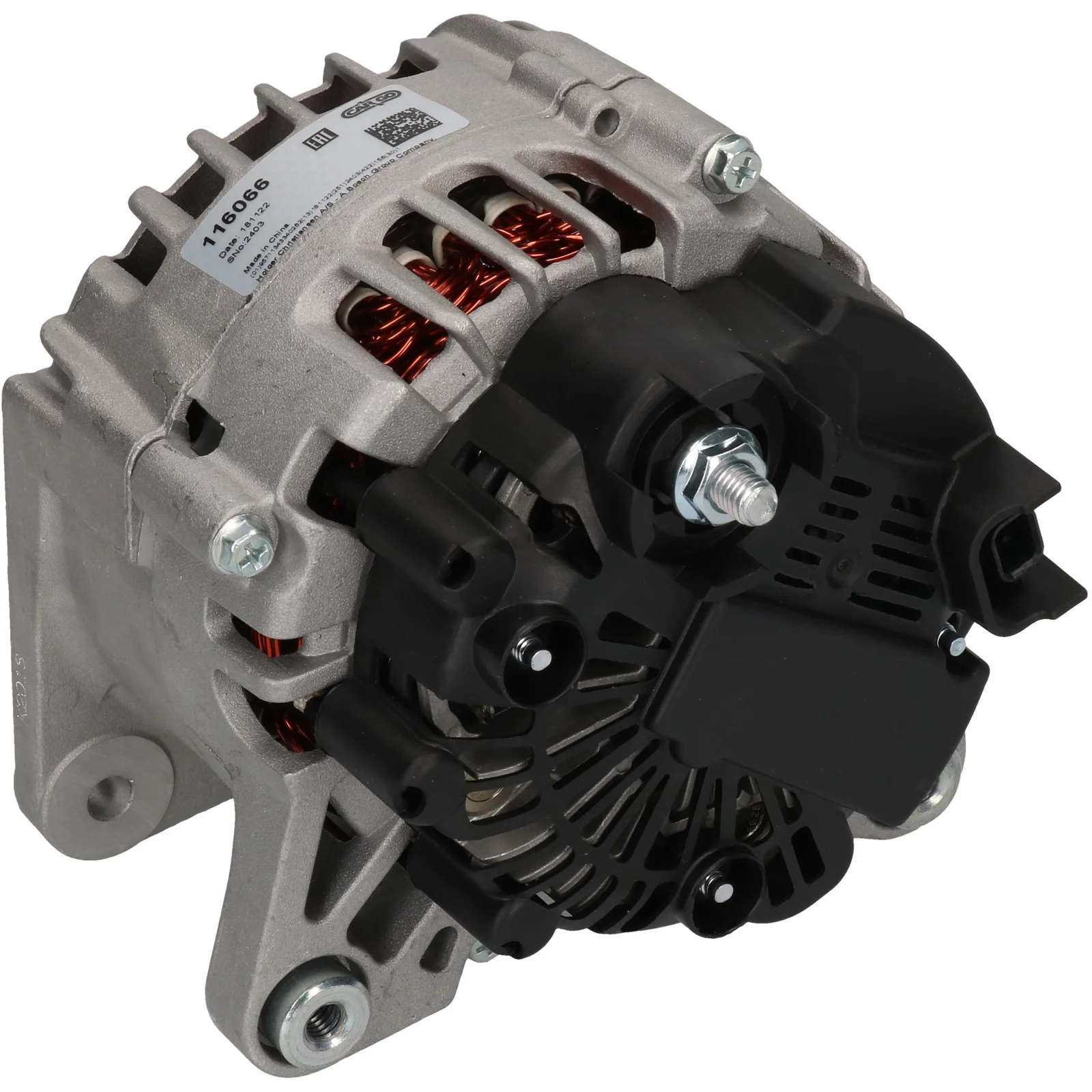

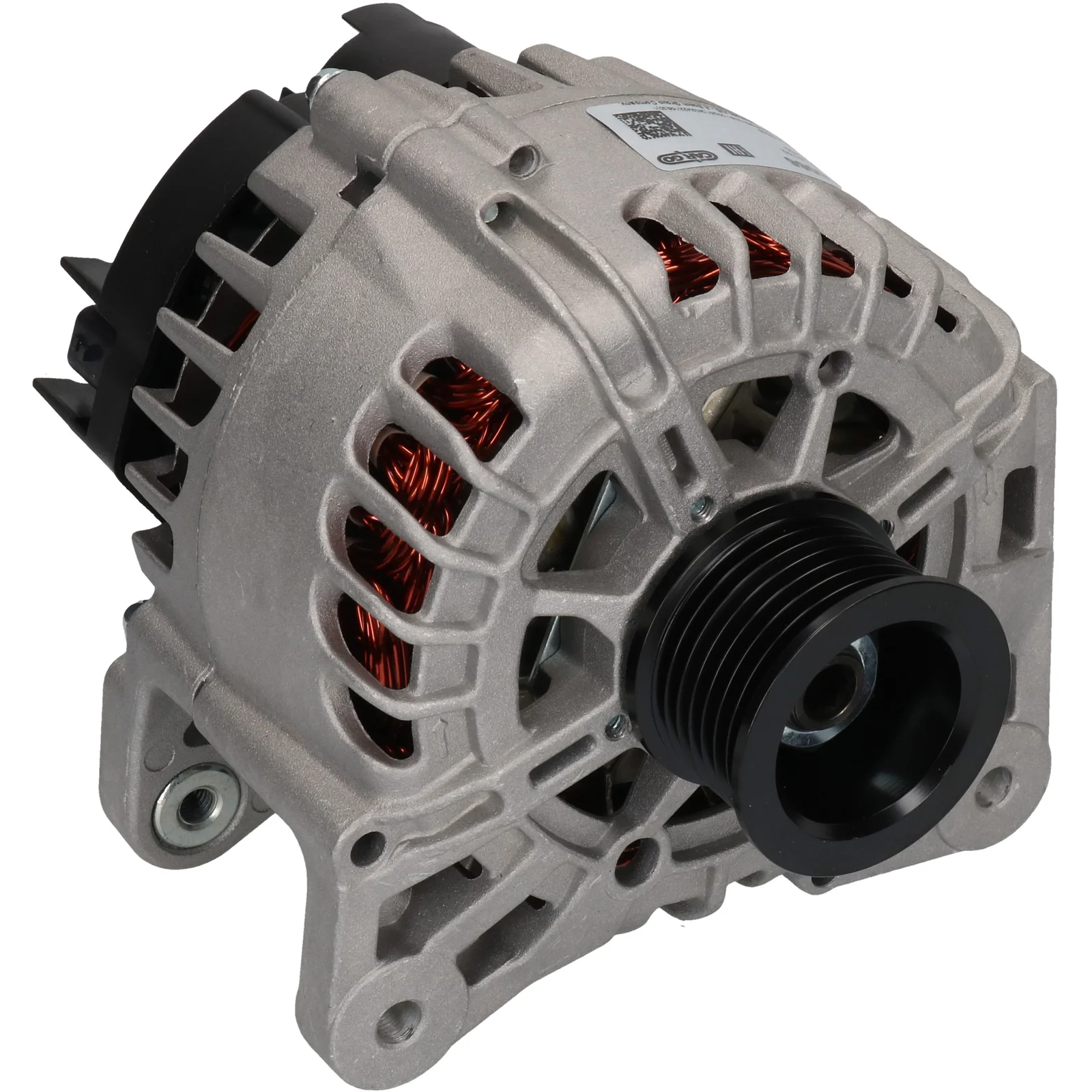

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116066

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 120, Rotasjon: CW, Monteringsbrakett avstand.: 60,50

Beskrivelse

Spenning: 14
Amp: 120
Bøssing av remskive: 33,50
Bredde/festearm: 13,70
Festestativavstand: 60,50
Festebolt hull: 8,20
Reimh.vinkel for justering av festestativhull: 45
Reimh.vinkel for justering av festestativhull 1: 8,20
Reimskivediameter: 49,00
Riller/reimskive: 7
Radius: 90,00
Radius 2: 90,00
B+: M8
Posisjon/B+ i min.: 6
Rotasjon: medurene (CW)
Kontakt nr.: PL131
Total lengde mm: 184,00
Terminaltype: COM
Kommunikasjon: BSS
Reimskive: SP
Regulator type: IR
Merknader: Denne Generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication BSS
Mount. bracket dist. 60.50
Belt. adj. bracket hole 1 8.20
Belt. adj. brackethole pos. 45
Plug no. PL131
Bracket hole 8.20
Position/B+ in min. 6
Pulley SP
Pulley dia. 49.00
Pulley dist. 33.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 184.00 mm
Width/holder arm 13.70
Amp 120

  • OEM
    A3313(VALEO), A3313S, CAL15391, DRA0379, F032116066, LR1100705F, LRA03253, tg12c062, TG12C062, 8EL012240-141, 28-5865, 230.344.1202, 575.913.120, 20878N-OE, 210698, 210698A, 231000W80A, 439648, 440218, 553593RI, 2605419B, 9090836, 12090480, 32005011, 7711497371, 8200757870

  • Konkurrentreferens
    A3313(VALEO), A3313S, CAL15391, DRA0379, LRA03253, 8EL012240-141, 28-5865, 230.344.1202, 575.913.120, 20878N-OE, 210698, 210698A, 439648, 440218, 553593RI, 9090836, 12090480, 32005011

  • Bilmärken
    RENAULT

  • NormaliseratArtNr
    a3313s, a3313valeo, cal15391, dra0379, f032116066, lr1100705f, lra03253, tg12c062, 8el012240141, 20878noe, 210698, 210698a, 231000w80a, 285865, 439648, 440218, 553593ri, 2605419b, 9090836, 12090480, 32005011, 575913120, 2303441202, 7711497371, 8200757870

  • Passar modeller
    RENAULT GRAND SCÉNIC III (JZ0/1_) 1.9 dCi (JZ0J, JZ0N, JZ1K, JZ1S) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 02.09-09.16
    RENAULT KANGOO Express (FW0/1_) 1.2 TCe 115 (FW02, FW14) Engine volume: 1.2 Engine type: H5F 400, H5F 412, H5F 408 Year: 07.13-
    RENAULT MEGANE CC (EZ0/1_) 1.2 TCe Engine volume: 1.2 Engine type: H5F 400 Year: 09.12-08.15
    RENAULT MEGANE CC (EZ0/1_) 1.9 dCi (EZ0J, EZ1S) Engine volume: 1.9 Engine type: F9Q 870 Year: 06.10-08.15
    RENAULT MEGANE CC (EZ0/1_) 2.0 TCe (EZ1T) Engine volume: 2.0 Engine type: F4R 870, F4R 872 Year: 06.10-08.15
    RENAULT MEGANE III Coupé (DZ0/1_) 1.9 dCi (DZ0N, DZ0J, DZ1J, DZ1K) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 11.08-08.15
    RENAULT MEGANE III Coupé (DZ0/1_) 2.0 R.S. Engine volume: 2.0 Engine type: F4R 874 Year: 07.14-09.16
    RENAULT MEGANE III Coupé (DZ0/1_) 2.0 R.S. Engine volume: 2.0 Engine type: F4R 874 Year: 11.08-09.16
    RENAULT MEGANE III Coupé (DZ0/1_) 2.0 TCe (DZ0K) Engine volume: 2.0 Engine type: F4R 870 Year: 11.08-08.15
    RENAULT MEGANE III Coupé (DZ0/1_) 2.0 TCe (DZ1N) Engine volume: 2.0 Engine type: F4R 874 Year: 05.09-08.15
    RENAULT MEGANE III Coupé (DZ0/1_) 2.0 TCe 220 Engine volume: 2.0 Engine type: F4R 874 Year: 11.13-08.15
    RENAULT MEGANE III Coupé (DZ0/1_) 2.0 TCe Engine volume: 2.0 Engine type: F4R 872 Year: 06.12-08.15
    RENAULT MEGANE III Grandtour (KZ0/1) 1.9 dCi (KZ0J, KZ0N, KZ1S) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 05.09-08.15
    RENAULT MEGANE III Grandtour (KZ0/1) 2.0 TCe (KZ0K, KZ1T) Engine volume: 2.0 Engine type: F4R 870, F4R 872 Year: 11.08-08.15
    RENAULT MEGANE III Grandtour (KZ0/1) 2.0 TCe Engine volume: 2.0 Engine type: F4R 872 Year: 09.12-08.15
    RENAULT MEGANE III Grandtour (KZ0/1) 2.0 TCe Engine volume: 2.0 Engine type: F4R 874 Year: 09.12-01.16
    RENAULT MEGANE III Halvkombi (BZ0/1_, B3_) 1.9 dCi (BZ0N, BZ0J) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 11.08-01.16
    RENAULT MEGANE III Halvkombi (BZ0/1_, B3_) 2.0 TCe (BZ0K) Engine volume: 2.0 Engine type: F4R 870 Year: 11.08-08.15
    RENAULT MEGANE III Halvkombi (BZ0/1_, B3_) 2.0 TCe 220 Engine volume: 2.0 Engine type: F4R 874 Year: 11.13-01.16
    RENAULT MEGANE III Halvkombi (BZ0/1_, B3_) 2.0 TCe Engine volume: 2.0 Engine type: F4R 872 Year: 06.12-08.15
    RENAULT SCÉNIC III (JZ0/1_) 1.9 dCi (JZ0J, JZ1J, JZ1K, JZ1S) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 02.09-09.16
    RENAULT SCÉNIC III VAN (JZ0/1_) 1.9 dCi (JZ0J, JZ1J, JZ1K, JZ1S) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 01.13-09.16
