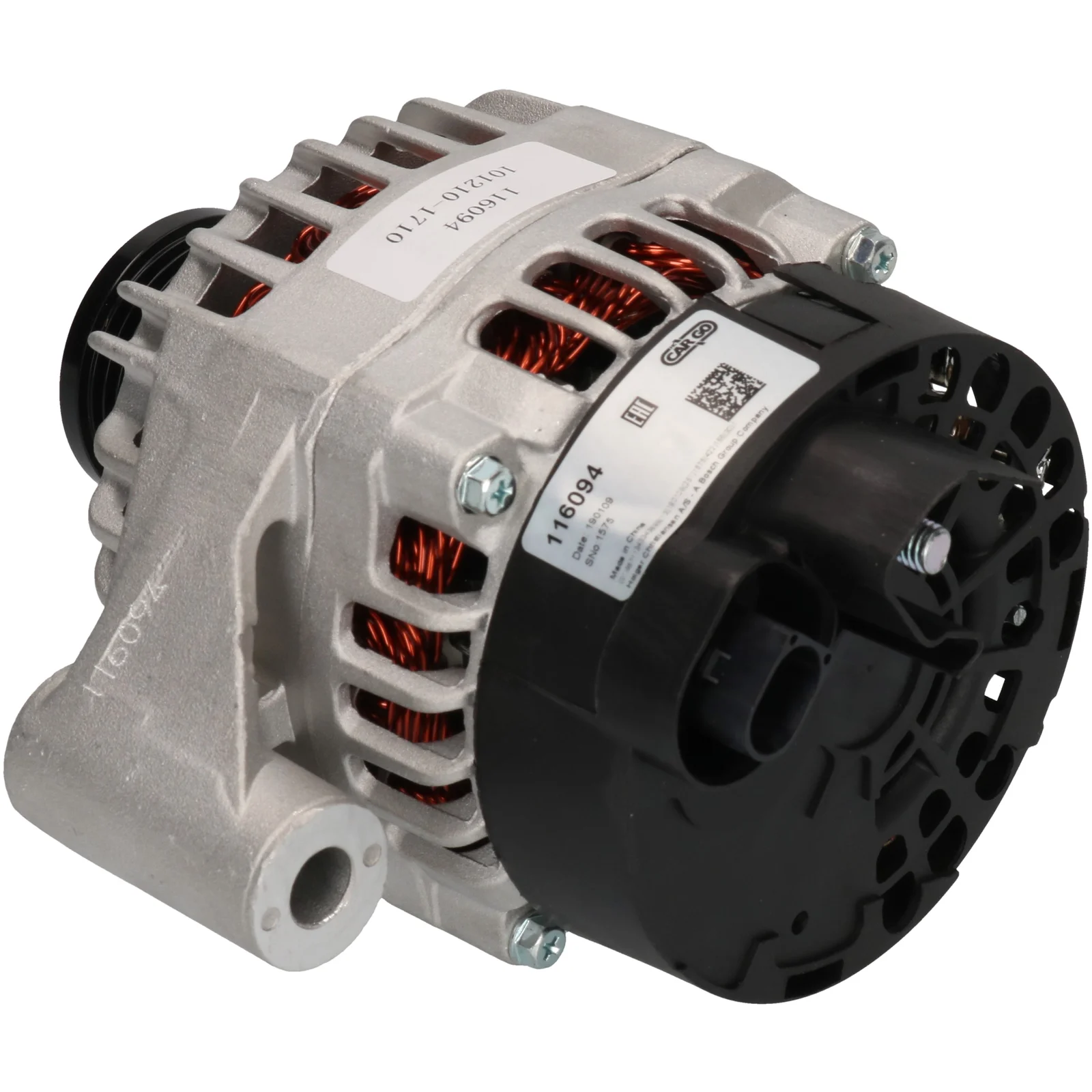

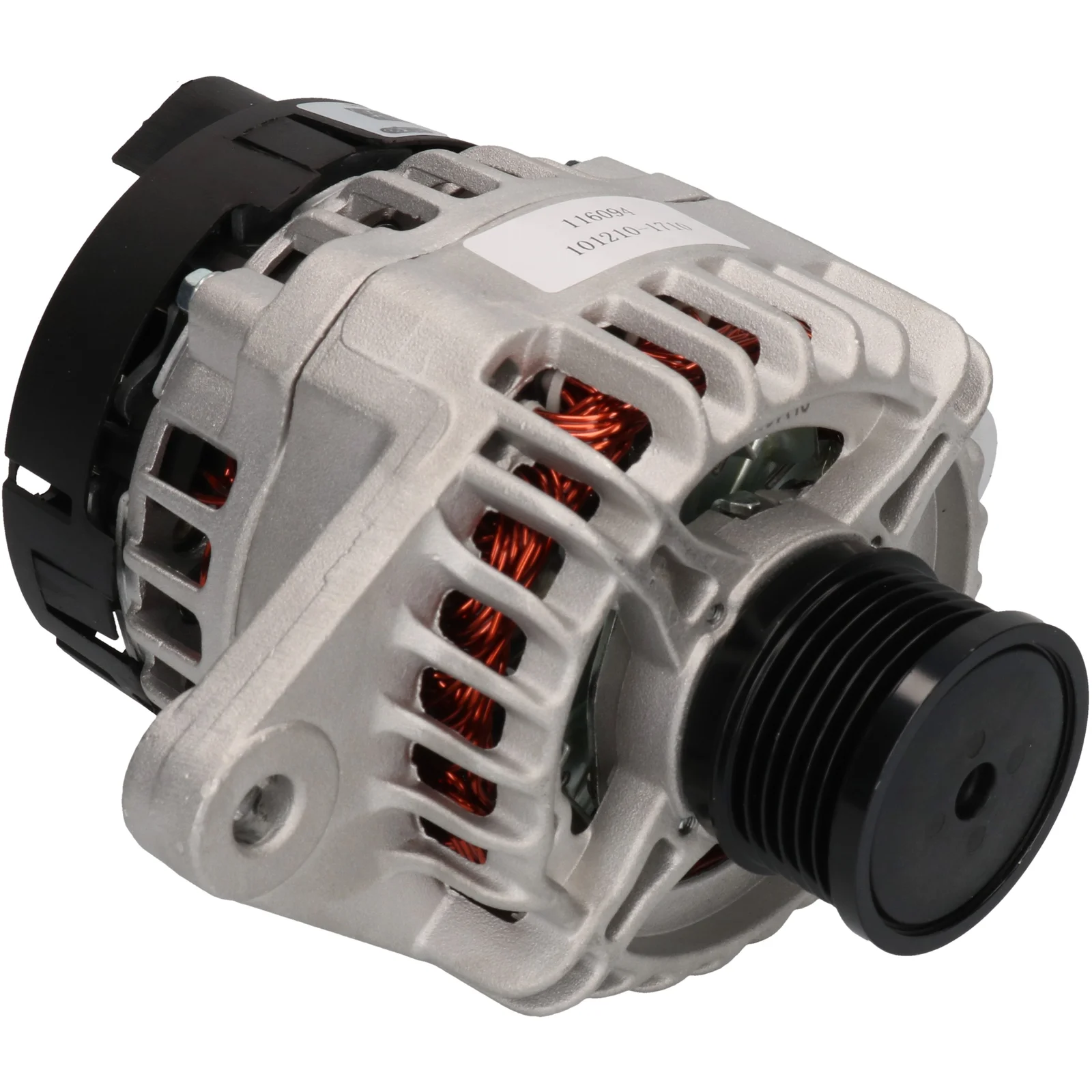

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116094

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 120, Rotasjon: CW, Remskive diameter: 54.00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsverdi: 14
Ampere: 120
Drevskive dist.: 112,50
Bredde/holderarm: 61,00
Bøssingshull: 12,80
Bånd. regulering. bøssingshull pos.: 59
Bånd. regulering. bøssingshull 1: 12,20
Drevdiameter: 54,00
Riller/drev: 6
Radius: 90,00
Radius 2: 90,00
B+ Lengde mm: 43,50
B+: M8
Posisjon/B+ i min.: 43
Roasjon: medur
Plugg nr.: PL174
Total lengde mm: 198,00
Terminaltype: KOM
Kommunikasjon: LIN
Drevskive: SP/FW
Vifte: IF
Regulator type: IR
Anmerkninger: Denne generatoren har en KOM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Belt. adj. bracket hole 1 12.20
Belt. adj. brackethole pos. 59
Plug no. PL174
Bracket hole 12.80
Position/B+ in min. 43
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 112.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 198.00 mm
Width/holder arm 61.00
Amp 120
B+ Length 43.50 mm

  • OEM
    F032116094, 1986A00608, 101210-1710, 101210-2010, 51884351, 51944891

  • Konkurrentreferens
    A6362, A6509PR, CAL30239, DAN1121, DRA1451, 8EL015637-011, 28-6943, 105.516.120, 218.329.1202, 24127N-OS, 210936, 210936A, 554221RI, 849227, 12090623, 0986084720

  • NormaliseratArtNr
    a6362, a6509pr, cal30239, dan1121, dra1451, f032116094, 8el015637011, 1986a00608, 24127nos, 210936, 210936a, 286943, 554221ri, 849227, 12090623, 51884351, 51944891, 105516120, 0986084720, 1012101710, 1012102010, 2183291202

  • Passar modeller
    Alfa Romeo Model: Giulietta Model series: Giuiletta Type of engine: JTDM Size of motor: 1.6 Brand of engine: 940A3.000 Type description: 940 Body: Hatchback From date: 01-04-2010 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giuiletta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940A4.000 Type description: 940 Body: Hatchback From date: 01-04-2010 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 1.6 Brand of engine: 940A3.000 Type description: 940_ Body: Box From date: 01-04-2011 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 1.6 Brand of engine: 940C1.000 Type description: 940 Body: Hatchback From date: 01-02-2015 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 1.6 Brand of engine: 940C5.000 Type description: 940 Body: Hatchback From date: 01-02-2015 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 1.6 Brand of engine: 940C5.000 Type description: 940 Body: Hatchback From date: 01-09-2015 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940A4.000 Type description: 940_ Body: Box From date: 01-04-2011 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940A5.000 Type description: 940 Body: Hatchback From date: 01-04-2010 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940A5.000 Type description: 940_ Body: Box From date: 01-07-2013 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940A7.000 Type description: 940 Body: Hatchback From date: 01-04-2010 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940A8.000 Type description: 940 Body: Hatchback From date: 01-04-2010 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940B4.000 Type description: 940 Body: Hatchback From date: 01-11-2013 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940B4.000 Type description: 940_ Body: Box From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940B5.000 Type description: 940 Body: Hatchback From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940B5.000 Type description: 940_ Body: Box From date: 01-08-2013 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940B6.000 Type description: 940 Body: Hatchback From date: 01-04-2010 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Fiat Model: 500 Model series: 500L Type of engine: Multijet Size of motor: 1.6 Brand of engine: 199B5.000 Body: Hatchback From date: 01-09-2012 To date: 01-05-2018 Fuel: Diesel Approved: Yes
    Fiat Model: 500 Model series: 500X Model type: 4x4 Type of engine: Multijet Size of motor: 2.0 Brand of engine: 55263087 Type description: 334 Body: Hatchback From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Fiat Model: 500 Model series: 500X Model type: 4x4 Type of engine: Multijet Size of motor: 2.0 Brand of engine: 55263088 Type description: 334 Body: Hatchback From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Fiat Model: 500 Model series: 500X Type of engine: Multijet Size of motor: 1.6 Brand of engine: 55260384 Type description: 334 Body: Hatchback From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Fiat Model: 500L Model series: 500L Type of engine: Multijet Size of motor: 1.6 Brand of engine: 955A3.000 Body: Hatchback From date: 01-09-2013 Fuel: Diesel Approved: Yes
    Fiat Model: 500X Model series: 500X Type of engine: Multijet Size of motor: 2.0 Brand of engine: 55263088 Type description: 334_ Body: Hatchback From date: 01-09-2018 Fuel: Diesel Approved: Yes
    Fiat Model: Tipo Model series: Tipo Type of engine: Diesel Size of motor: 1.6 Brand of engine: 55260384 Type description: 356_ Body: Estate From date: 01-09-2016 Fuel: Diesel Approved: Yes Manufacture type: Estate
    Fiat Model: Tipo Model series: Tipo Type of engine: Diesel Size of motor: 1.6 Brand of engine: 55260384 Type description: 356_ Body: Hatchback From date: 01-09-2016 Fuel: Diesel Approved: Yes
    Jeep Model: Renegade Model series: Renegade Model type: 4x4 Type of engine: CRD Size of motor: 2.0 Brand of engine: EBT Type description: BU From date: 01-07-2014 Fuel: Diesel Approved: Yes
    Jeep Model: Renegade Model series: Renegade Model type: 4X4 Type of engine: Multijet Size of motor: 2.0 Brand of engine: 55263088,55 Type description: BU, B1 Body: Box Body / Estate From date: 01-07-2014 Fuel: Diesel Approved: Yes
    Jeep Model: Renegade Model series: Renegade Model type: 4X4 Type of engine: Multijet Size of motor: 2.0 Brand of engine: 55263088,55263087,55283099,55284064 Type description: BU, B1 Body: Box Body / Estate From date: 01-07-2014 Fuel: Diesel Approved: Yes
    Jeep Model: Renegade Model series: Renegade Type of engine: CRD Size of motor: 1.6 Brand of engine: 55260384,EJJ Type description: BU, B1 Body: Closed Off-Road Vehicle From date: 01-11-2016 Fuel: Diesel Approved: Yes
    Jeep Model: Renegade Model series: Renegade Type of engine: CRD Size of motor: 1.6 Brand of engine: EJK Type description: BU From date: 01-07-2014 Fuel: Diesel Approved: Yes
    Jeep Model: Renegade Model series: Renegade Type of engine: Multijet Size of motor: 1.6 Brand of engine: 55280444,55 Type description: BU, B1 Body: Box Body / Estate From date: 01-07-2014 Fuel: Diesel Approved: Yes
