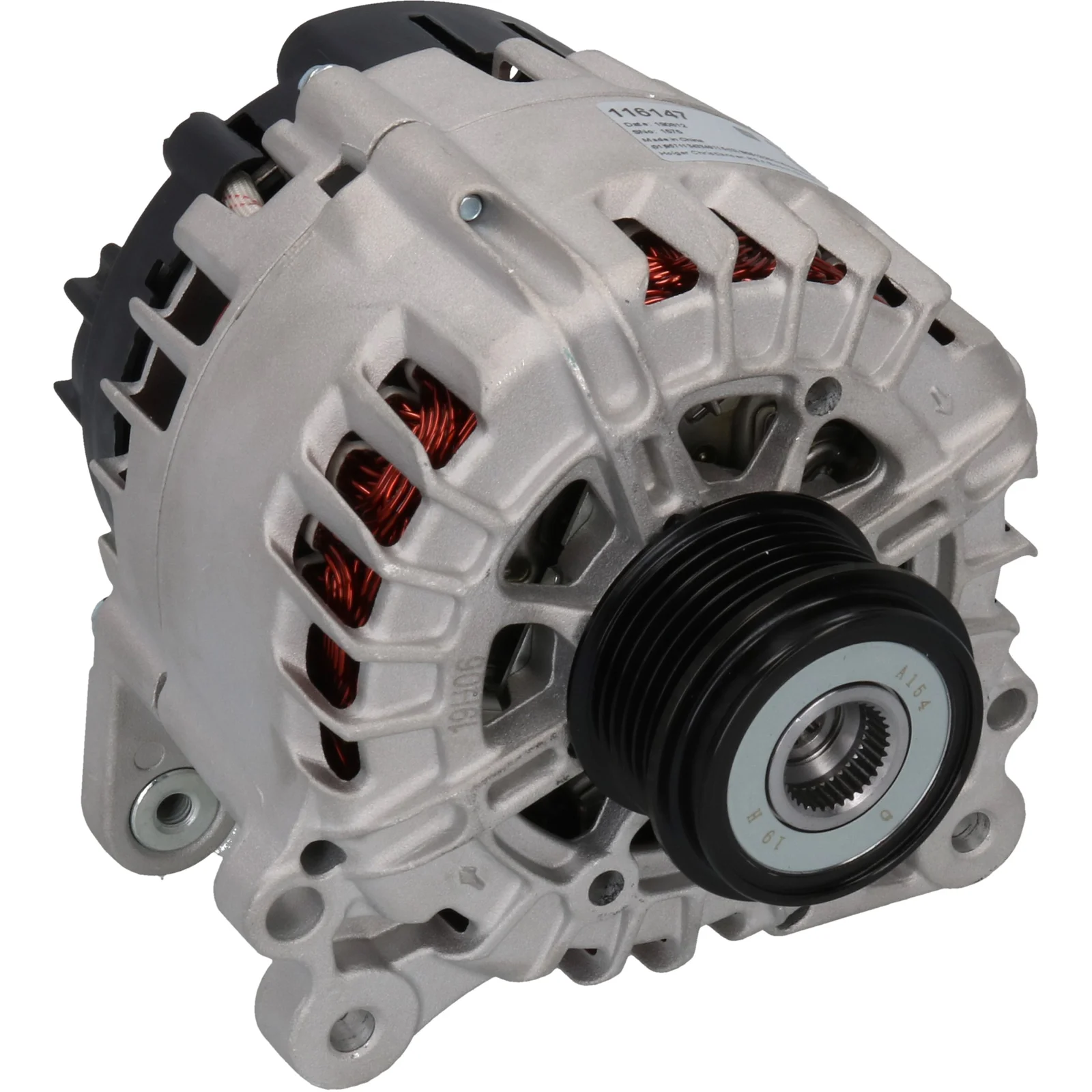

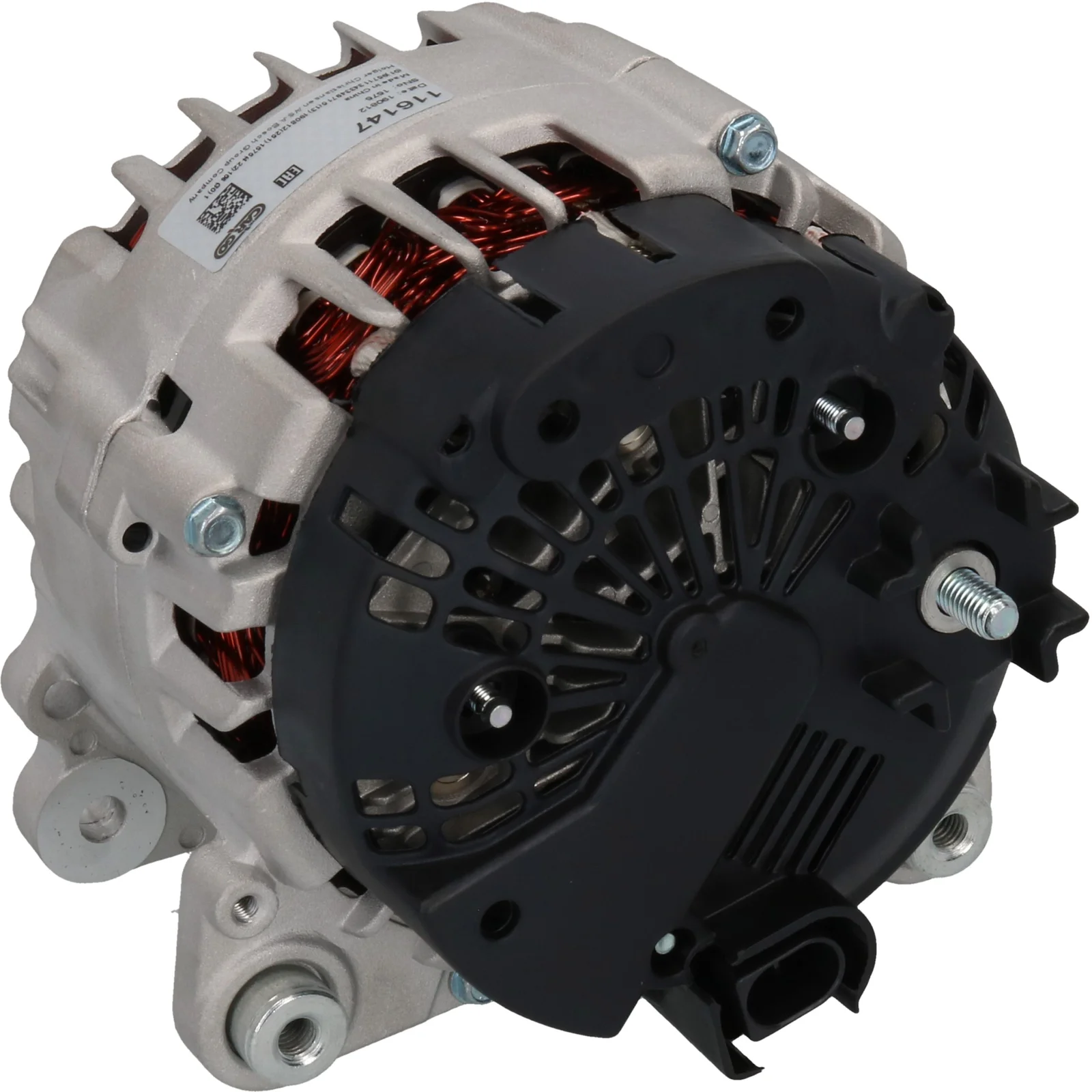

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116147

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 180, Rotasjon: CW, Monteringsbeslagsavstand: 60.80

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsnivå: 14
Amp: 180
Skiveavstand: 29.30
Bredde/holderarm: 13.70
Festebrakett avstand: 60.80
Brakettåpning: 8.50
Belt. just. brakkeposisjon: 15
Belt. just. brakettåpning 1: 8.50
Skivediameter: 56.00
Groper/skive: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 25
Rotasjon: CW
Stikkontaktnr.: PL181
Total lengde mm: 191.00
Terminaltype: COM
Kommunikasjon: LIN
Skive: SP/FW
Regulator type: IR
Anmerkninger: Denne dynamoen har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnetheten før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 60.80
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 15
Plug no. PL181
Bracket hole 8.50
Position/B+ in min. 25
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 29.30
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 191.00 mm
Width/holder arm 13.70
Amp 180

  • OEM
    F032116147, FG18S100, FG18T094, FG18T120, FGN18S100, 059903019D, 059903023K, 059903023KX, 059903023M, 059903023MX

  • Konkurrentreferens
    A3147, A3147(VALEO), A3468S, A3600S, CAL15399, CAL15485, CAL15514, CAL15543, DRA0675, DRA0794, LRA03358, 28-5970, 211.375.1802, 305.902.180, 305.912.180, 20939AN, 113447, 209195, 209195A, 439777, 439784, 439838, 440410, 440416, 440563, 553442RI, 553626RI, 553959RI, 9090608, 9090860, 12090474, 12090661

  • NormaliseratArtNr
    a3147, a3147valeo, a3468s, a3600s, cal15399, cal15485, cal15514, cal15543, dra0675, dra0794, f032116147, fg18s100, fg18t094, fg18t120, fgn18s100, lra03358, 20939an, 113447, 209195, 209195a, 285970, 439777, 439784, 439838, 440410, 440416, 440563, 553442ri, 553626ri, 553959ri, 9090608, 9090860, 12090474, 12090661, 059903019d, 059903023k, 059903023kx, 059903023m, 059903023mx, 305902180, 305912180, 2113751802

  • Passar modeller
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CASD Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGD Type description: 7P5 From date: 01-05-2011 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 7P5 From date: 01-05-2011 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CVWA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CASA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 TDI Size of motor: 3.0 Brand of engine: CATA Type description: 7P5 From date: 01-06-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CNRB Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Van Model type: 4Motion Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 7P5 Body: Box Body / Estate From date: 01-05-2011 To date: 01-12-2014 Fuel: Diesel Approved: Yes
