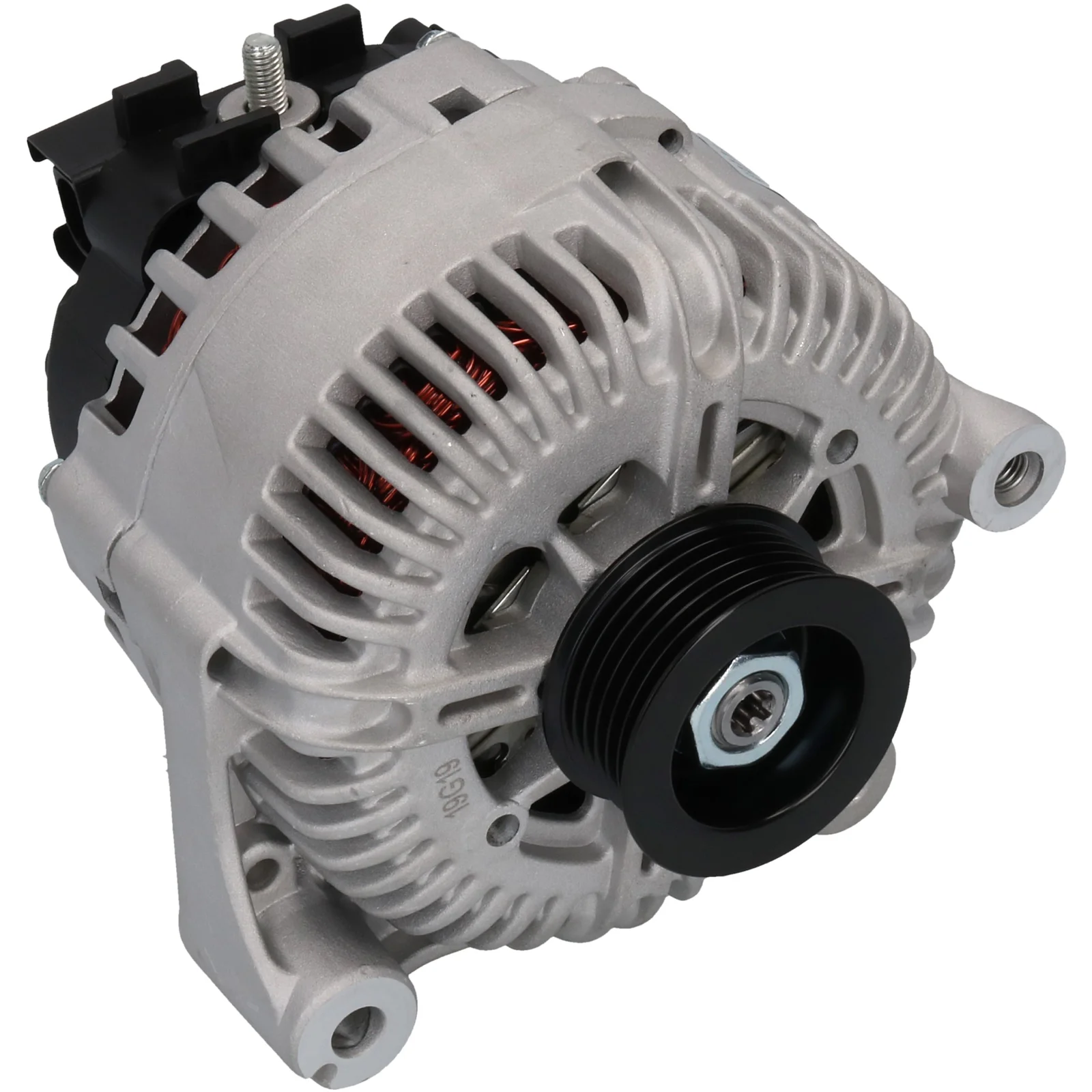

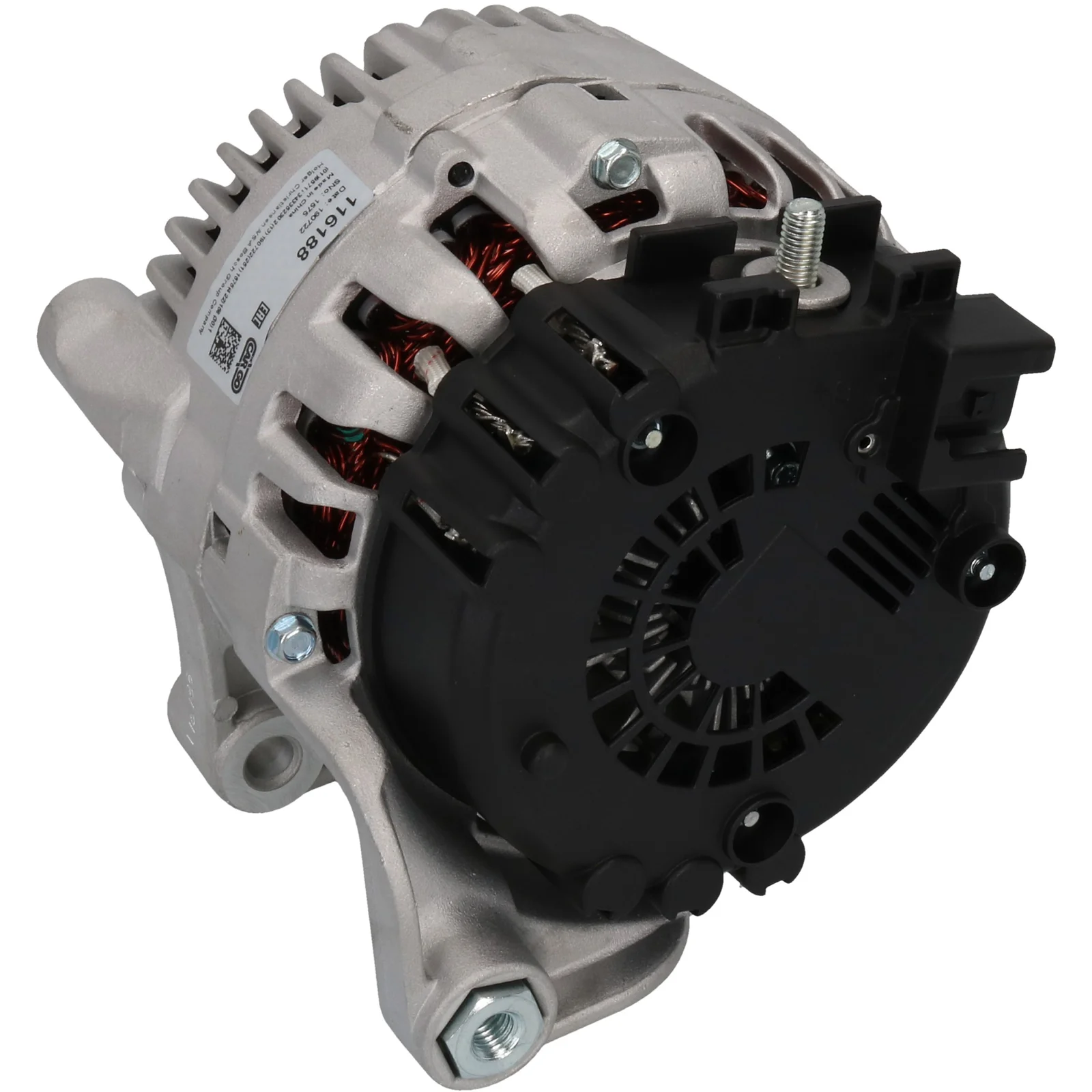

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116188

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 220, Rotasjon: medur, Festeanordning avstand: 75,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Amp: 220
Stribediameter: 56.50
Bredde/holderarm: 28.00
Monteringsbrakettavstand: 75.00
Brakettgjennomføring: 10.50
Belt. justering brakettgjennomføring pos.: 45
Belt. justering brakettgjennomføring 1: 10.50
Stribediameter: 57.00
Groover/skive: 6
Radius: 93.00
Radius 2: 93.00
B+: M8
Posisjon/B+ i min.: 55
Rotasjon: med urviseren
Plugg nr.: PL125
Total lengde mm: 180.00
Terminaltype: COM
Kommunikasjon: BSS
Skrive: SP
Regulator type: IR
Merknader: Denne Generator har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication BSS
Mount. bracket dist. 75.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 10.50
Position/B+ in min. 55
Pulley SP
Pulley dia. 57.00
Pulley dist. 56.50
Radius 93.00
Radius 2 93.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 180.00 mm
Width/holder arm 28.00
Amp 220

  • OEM
    F032116188, TG23C012, 1986A01860, 2543223, 12317603775, 12317801124, 12317804266

  • Konkurrentreferens
    A3597S, CAL15475, DRA0593, LRA03242, 28-5854, 215.189.2202, 215.543.220, 11451N, 209237, 209237A, 439606, 440109, 553411RI, 9090478, 12090395, 0986083460

  • NormaliseratArtNr
    a3597s, cal15475, dra0593, f032116188, lra03242, tg23c012, 1986a01860, 11451n, 209237, 209237a, 285854, 439606, 440109, 553411ri, 2543223, 9090478, 12090395, 215543220, 0986083460, 2151892202, 12317603775, 12317801124, 12317804266

  • Passar modeller
    BMW Model: X5 Model series: X5 Model type: Sdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D5) Type description: E70 From date: 01-10-2007 To date: 01-09-2008 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57N306D5 Type description: E70 From date: 01-10-2008 To date: 01-07-2013 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E70 From date: 01-10-2008 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57306D3 Type description: E70 From date: 01-12-2006 To date: 01-09-2008 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D3) Type description: E70 From date: 01-12-2006 To date: 01-09-2008 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30C Type description: E70 From date: 01-08-2011 To date: 01-06-2013 Fuel: Diesel Approved: Yes
    BMW Model: X6 Model series: X6 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D5) Type description: E71 Body: MPV From date: 01-01-2008 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    BMW Model: X6 Model series: X6 Model type: xDrive30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D3) Type description: E71, E72 From date: 01-04-2010 To date: 01-07-2014 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 14
    Amp: 220
    Stribediameter: 56.50
    Bredde/holderarm: 28.00
    Monteringsbrakettavstand: 75.00
    Brakettgjennomføring: 10.50
    Belt. justering brakettgjennomføring pos.: 45
    Belt. justering brakettgjennomføring 1: 10.50
    Stribediameter: 57.00
    Groover/skive: 6
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Posisjon/B+ i min.: 55
    Rotasjon: med urviseren
    Plugg nr.: PL125
    Total lengde mm: 180.00
    Terminaltype: COM
    Kommunikasjon: BSS
    Skrive: SP
    Regulator type: IR
    Merknader: Denne Generator har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication BSS
    Mount. bracket dist. 75.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 45
    Plug no. PL125
    Bracket hole 10.50
    Position/B+ in min. 55
    Pulley SP
    Pulley dia. 57.00
    Pulley dist. 56.50
    Radius 93.00
    Radius 2 93.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 180.00 mm
    Width/holder arm 28.00
    Amp 220
  • Kjøretøymatching

    • OEM
      F032116188, TG23C012, 1986A01860, 2543223, 12317603775, 12317801124, 12317804266

    • Konkurrentreferens
      A3597S, CAL15475, DRA0593, LRA03242, 28-5854, 215.189.2202, 215.543.220, 11451N, 209237, 209237A, 439606, 440109, 553411RI, 9090478, 12090395, 0986083460

    • NormaliseratArtNr
      a3597s, cal15475, dra0593, f032116188, lra03242, tg23c012, 1986a01860, 11451n, 209237, 209237a, 285854, 439606, 440109, 553411ri, 2543223, 9090478, 12090395, 215543220, 0986083460, 2151892202, 12317603775, 12317801124, 12317804266

    • Passar modeller
      BMW Model: X5 Model series: X5 Model type: Sdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D5) Type description: E70 From date: 01-10-2007 To date: 01-09-2008 Fuel: Diesel Approved: Yes
      BMW Model: X5 Model series: X5 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57N306D5 Type description: E70 From date: 01-10-2008 To date: 01-07-2013 Fuel: Diesel Approved: Yes
      BMW Model: X5 Model series: X5 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E70 From date: 01-10-2008 To date: 01-03-2010 Fuel: Diesel Approved: Yes
      BMW Model: X5 Model series: X5 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57306D3 Type description: E70 From date: 01-12-2006 To date: 01-09-2008 Fuel: Diesel Approved: Yes
      BMW Model: X5 Model series: X5 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D3) Type description: E70 From date: 01-12-2006 To date: 01-09-2008 Fuel: Diesel Approved: Yes
      BMW Model: X5 Model series: X5 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30C Type description: E70 From date: 01-08-2011 To date: 01-06-2013 Fuel: Diesel Approved: Yes
      BMW Model: X6 Model series: X6 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D5) Type description: E71 Body: MPV From date: 01-01-2008 To date: 01-03-2010 Fuel: Diesel Approved: Yes
      BMW Model: X6 Model series: X6 Model type: xDrive30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D3) Type description: E71, E72 From date: 01-04-2010 To date: 01-07-2014 Fuel: Diesel Approved: Yes
