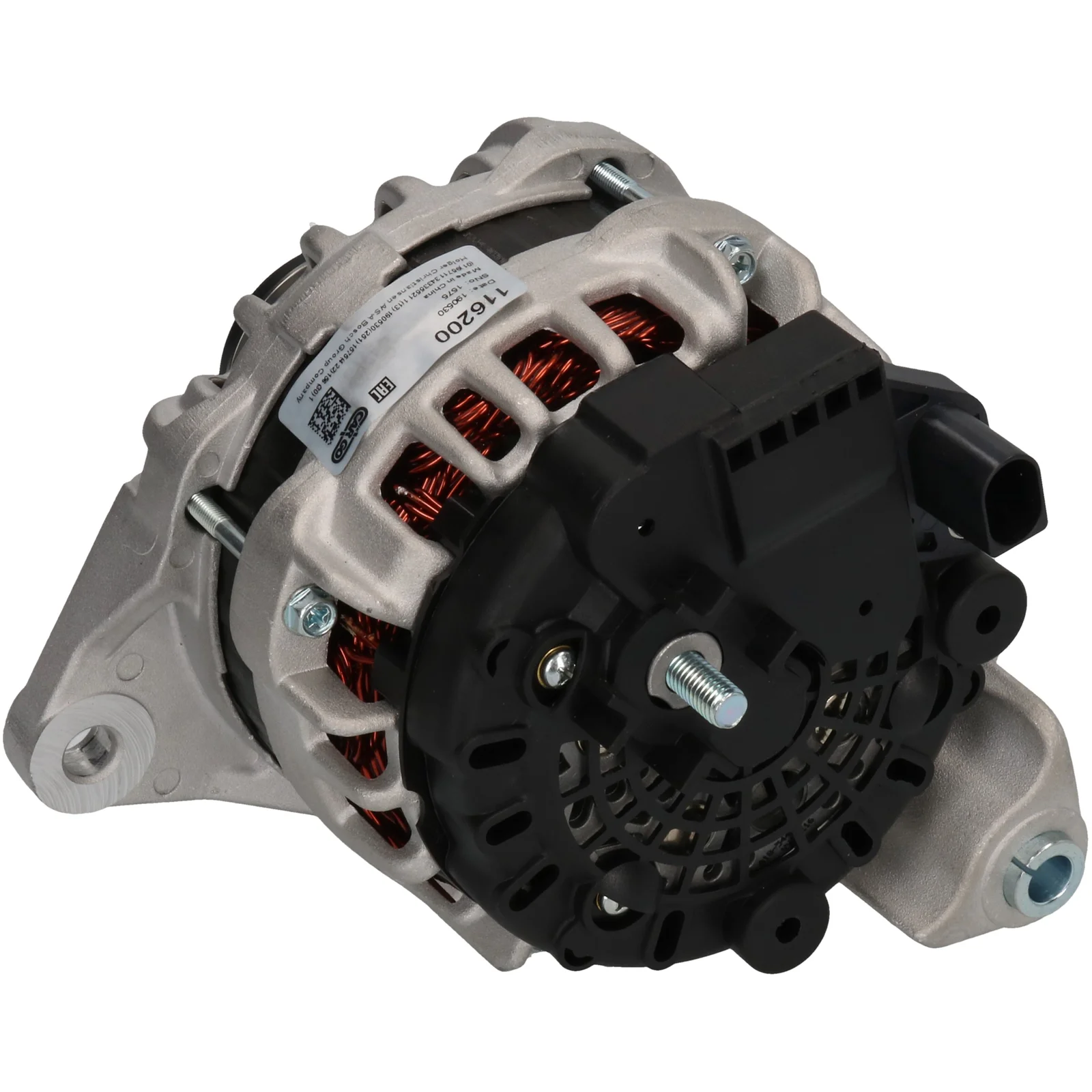

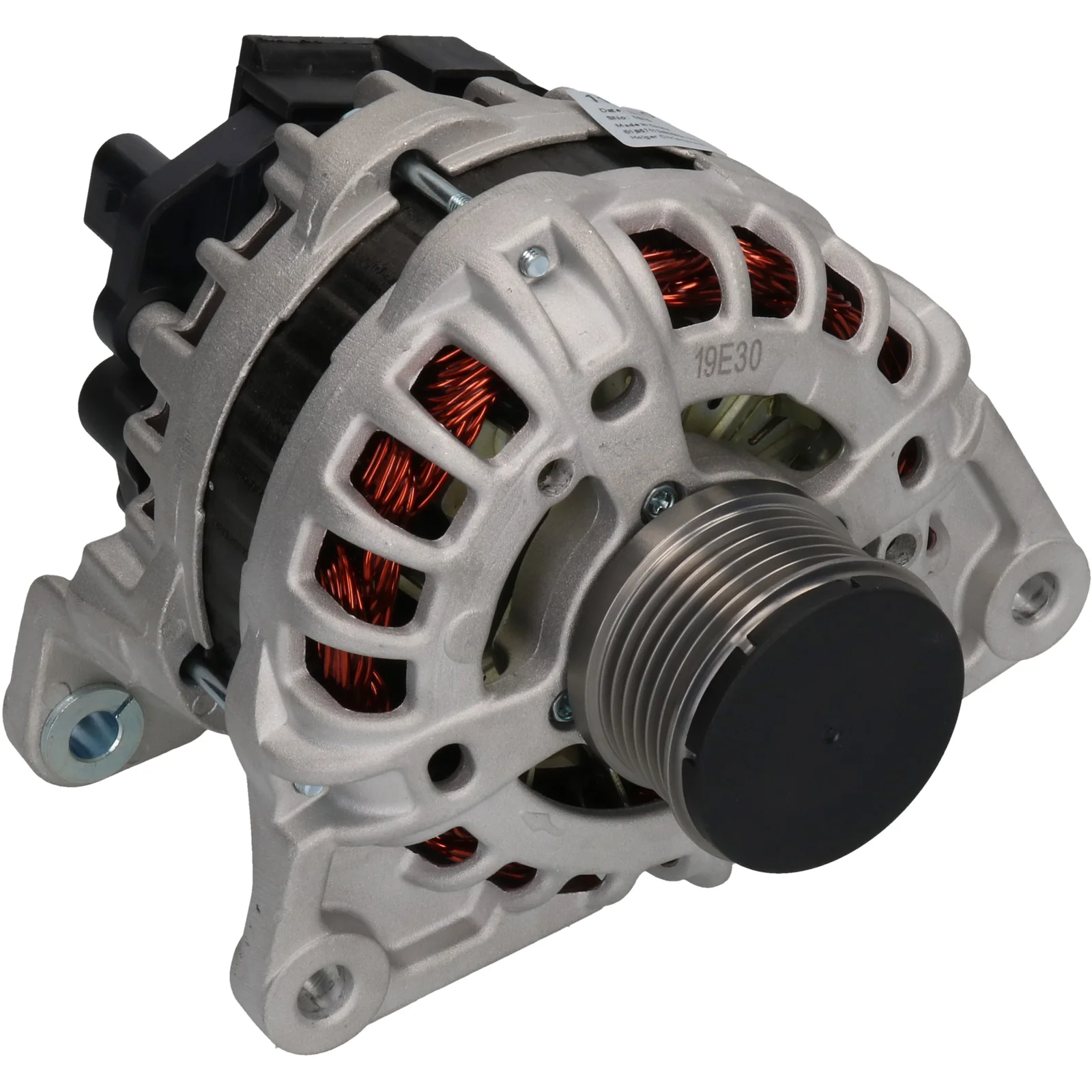

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116200

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 110, Rotasjon: CW, Montering. bøssing avstand: 80.20

Beskrivelse

Spenningsvinge: 14
Amp: 110
Drevskive dist.: 37.50
Bredde/feste arm: 14.00
Feste bracket dist.: 80.20
Bracket hull: 10.50
Belt. justering brackethull pos.: 10
Belt. justering bracket hull 1: 11.00
Drevskive dia.: 55.00
Groover/drevskive: 6
Radius: 94.00
Radius 2: 96.00
B+: M8
Posisjon/B+ i min.: 60
D+ størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL61
Total lengde mm: 180.50
Drevskive: SP/FW
Kjølevifte: IF
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 80.20
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 10
Plug no. PL61
Bracket hole 10.50
Position/B+ in min. 60
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 37.50
Radius 94.00
D+ Size Plug
Radius 2 96.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Total length 180.50 mm
Width/holder arm 14.00
Amp 110

  • OEM
    F000BL0706, F000BL07K9, F032116200, 1986A01086, 504385137

  • Konkurrentreferens
    A0569PR, A0569S, CAL10423, 28-6670, 20547N, 443390, 444273, 12090742, 0986085960

  • NormaliseratArtNr
    a0569pr, a0569s, cal10423, f000bl0706, f000bl07k9, f032116200, 1986a01086, 20547n, 286670, 443390, 444273, 12090742, 504385137, 0986085960

  • Passar modeller
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Multijet Size of motor: 3.0 Brand of engine: F1CE0481D Type description: 250_, 290_ Body: Bus From date: 01-07-2006 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Multijet Size of motor: 3.0 Brand of engine: F1CE0481D Type description: 250_, 290_ Body: Van From date: 01-07-2006 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Multijet Size of motor: 3.0 Brand of engine: F1CE3481M Type description: 250_, 290_ Body: Bus From date: 01-07-2006 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Multijet Size of motor: 3.0 Brand of engine: F1CE3481M Type description: 250_, 290_ Body: Van From date: 01-07-2006 Fuel: Diesel Approved: Yes
    Iveco Model: Daily IV Model series: 35S18W Size of motor: 3.0 Brand of engine: F1CE0481HC Body: Platform / Chassis From date: 01-06-2006 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    Iveco Model: Daily IV Model series: 55S18W Size of motor: 3.0 Brand of engine: F1CE0481HC Body: Platform / Chassis From date: 01-06-2006 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsvinge: 14
    Amp: 110
    Drevskive dist.: 37.50
    Bredde/feste arm: 14.00
    Feste bracket dist.: 80.20
    Bracket hull: 10.50
    Belt. justering brackethull pos.: 10
    Belt. justering bracket hull 1: 11.00
    Drevskive dia.: 55.00
    Groover/drevskive: 6
    Radius: 94.00
    Radius 2: 96.00
    B+: M8
    Posisjon/B+ i min.: 60
    D+ størrelse: Plugg
    Rotasjon: CW
    Plugg nr.: PL61
    Total lengde mm: 180.50
    Drevskive: SP/FW
    Kjølevifte: IF
    Regulator type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 80.20
    Belt. adj. bracket hole 1 11.00
    Belt. adj. brackethole pos. 10
    Plug no. PL61
    Bracket hole 10.50
    Position/B+ in min. 60
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 37.50
    Radius 94.00
    D+ Size Plug
    Radius 2 96.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Voltage 14
    Total length 180.50 mm
    Width/holder arm 14.00
    Amp 110
  • Kjøretøymatching

    • OEM
      F000BL0706, F000BL07K9, F032116200, 1986A01086, 504385137

    • Konkurrentreferens
      A0569PR, A0569S, CAL10423, 28-6670, 20547N, 443390, 444273, 12090742, 0986085960

    • NormaliseratArtNr
      a0569pr, a0569s, cal10423, f000bl0706, f000bl07k9, f032116200, 1986a01086, 20547n, 286670, 443390, 444273, 12090742, 504385137, 0986085960

    • Passar modeller
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Multijet Size of motor: 3.0 Brand of engine: F1CE0481D Type description: 250_, 290_ Body: Bus From date: 01-07-2006 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Multijet Size of motor: 3.0 Brand of engine: F1CE0481D Type description: 250_, 290_ Body: Van From date: 01-07-2006 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Multijet Size of motor: 3.0 Brand of engine: F1CE3481M Type description: 250_, 290_ Body: Bus From date: 01-07-2006 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Multijet Size of motor: 3.0 Brand of engine: F1CE3481M Type description: 250_, 290_ Body: Van From date: 01-07-2006 Fuel: Diesel Approved: Yes
      Iveco Model: Daily IV Model series: 35S18W Size of motor: 3.0 Brand of engine: F1CE0481HC Body: Platform / Chassis From date: 01-06-2006 To date: 01-08-2011 Fuel: Diesel Approved: Yes
      Iveco Model: Daily IV Model series: 55S18W Size of motor: 3.0 Brand of engine: F1CE0481HC Body: Platform / Chassis From date: 01-06-2006 To date: 01-08-2011 Fuel: Diesel Approved: Yes
      1 / 2
