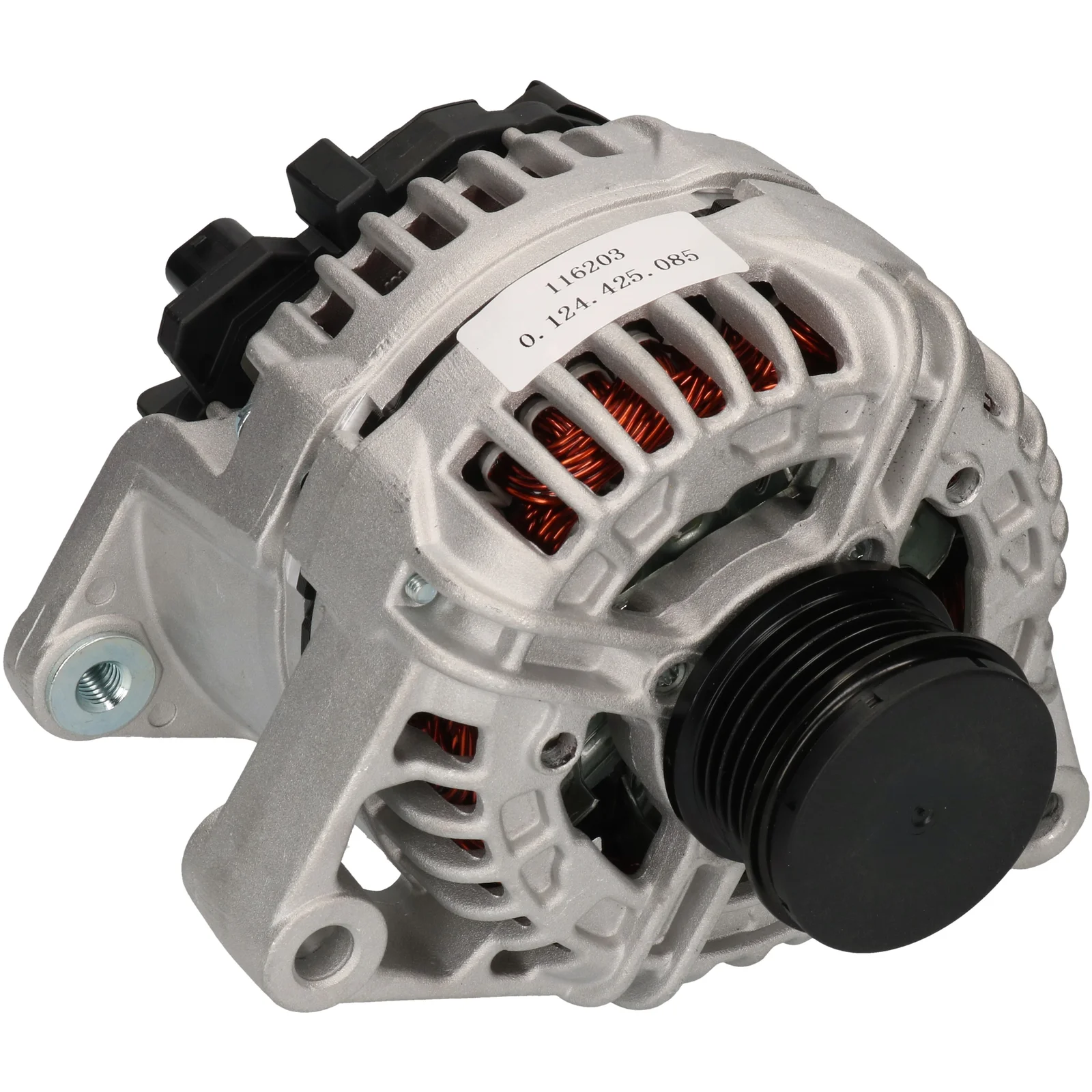

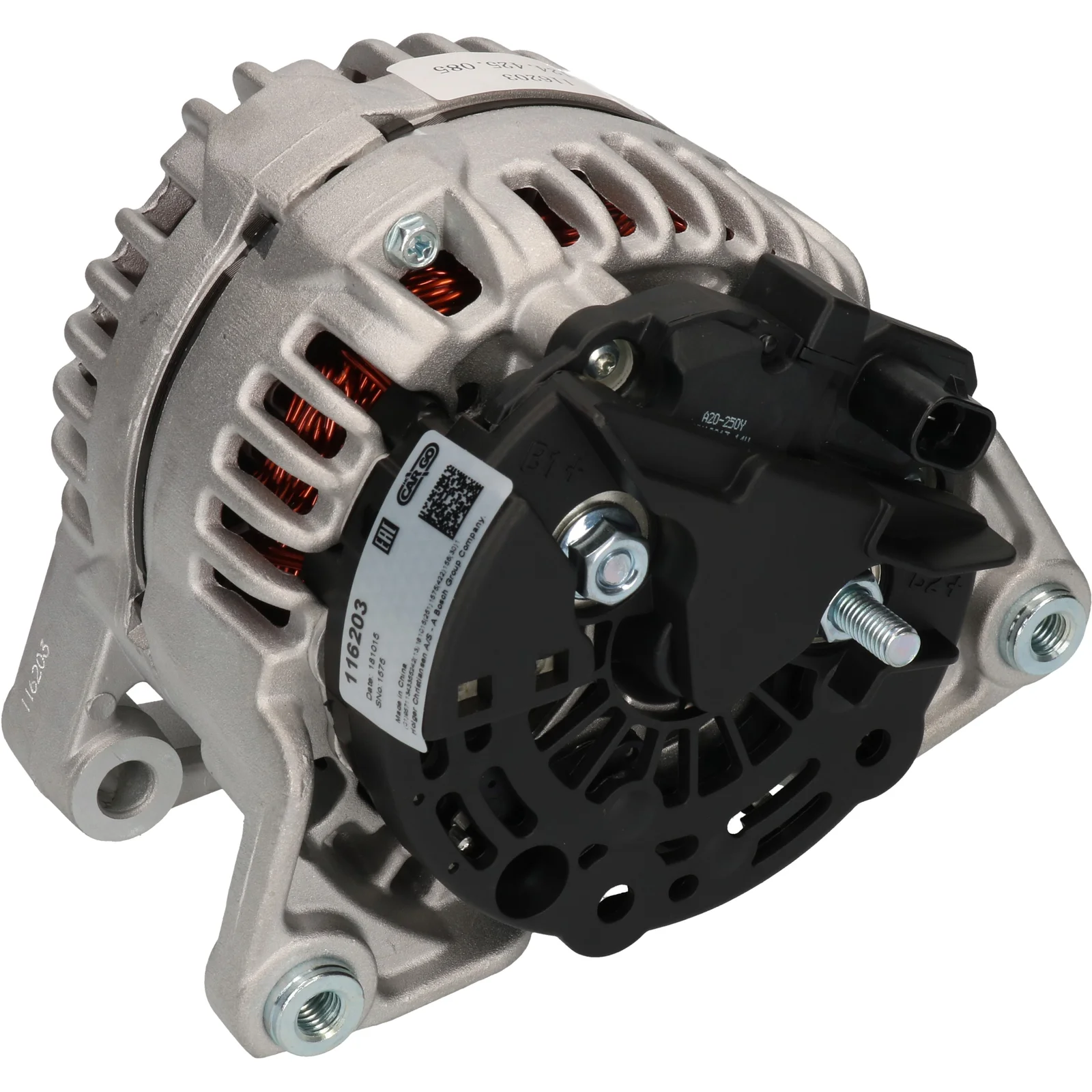

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116203

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 100, Rotasjon: CW, Monteringsbrakett avstand: 59.00

Beskrivelse

Spenning: 14
Ampere: 100
Drevskive: 55.00
Bredde/holderarm: 33.00
Monteringsbeslag avstand: 59.00
Beslagshull: 10.50
Belt. justeringsbeslag pos.: 50
Belt. justeringsbeslag hull 1: 10.50
Drevskive diameter: 53.50
Groper/drevskive: 5
B+: M8
Posisjon/B+ i min.: 8
D+ størrelse: Plugg
Rotasjon: med urviseren
Plugg nr.: PL75
Total lengde mm: 188.50
Terminaltype: L-DFM
Drevskive: SP/FW
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 59.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 50
Plug no. PL75
Bracket hole 10.50
Position/B+ in min. 8
Pulley SP/FW
Pulley dia. 53.50
Pulley dist. 55.00
D+ Size Plug
Regulator type IR
Rotation CW
Grooves/pulley 5
Terminal type L-DFM
Voltage 14
Total length 188.50 mm
Width/holder arm 33.00
Amp 100

  • OEM
    F032116203, 1986A00827, 1986A01108, 1202194, 1202324, 6204144, 13266809, 95515954, 0124425085

  • Konkurrentreferens
    A0465, DRA1039, 28-6721, 24122N, 210356, 210356A, 440642, 440834, 12090487, 0986082370

  • NormaliseratArtNr
    a0465, dra1039, f032116203, 1986a00827, 1986a01108, 24122n, 210356, 210356a, 286721, 440642, 440834, 1202194, 1202324, 6204144, 12090487, 13266809, 95515954, 0124425085, 0986082370

  • Passar modeller
    Opel Model: Corsa Model series: Corsa D Model type: L08 Size of motor: 1.4 Brand of engine: A14XER Type description: S07 Body: Box From date: 01-07-2012 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Corsa Model series: Corsa D Model type: S07 Size of motor: 1.4 Brand of engine: A14XEL Type description: L08.., L68.. Body: Hatchback From date: 01-09-2009 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Corsa Model series: Corsa D Size of motor: 1.4 Brand of engine: A14XER Type description: F08, F68 Body: Hatchback From date: 01-12-2009 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Meriva Model series: Meriva B Model type: Ecotec 75 Size of motor: 1.4 Brand of engine: A14XER Type description: S10 Body: Van From date: 01-01-2013 To date: 01-03-2017 Fuel: Petrol Approved: Yes
    Opel Model: Meriva Model series: Meriva B Model type: Ecotec Size of motor: 1.4 Brand of engine: A14NET Body: MPV From date: 01-06-2010 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Meriva Model series: Meriva B Model type: Ecotec Size of motor: 1.4 Brand of engine: A14XER Body: MPV From date: 01-06-2010 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Meriva Model series: Meriva B Model type: Ecotec Size of motor: 1.4 Brand of engine: B14NET Body: MPV From date: 01-06-2010 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Meriva Model series: Meriva B Model type: Ecotec Size of motor: 1.4 Brand of engine: B14XER Body: MPV From date: 01-06-2010 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Meriva Model series: Meriva B Size of motor: 1.4 Brand of engine: A14NEL Body: MPV From date: 01-06-2011 To date: 01-03-2017 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Meriva Model series: Meriva B Size of motor: 1.4 Brand of engine: B14NEL Body: MPV From date: 01-06-2011 To date: 01-03-2017 Fuel: Bi-Fuel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa Mk III Type of engine: 16V Size of motor: 1.4 Brand of engine: A14XER Type description: F08, F68 Body: Hatchback From date: 01-01-2010 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Meriva Model series: Meriva Mk II Model type: LPG Type of engine: BiFuel Size of motor: 1.4 Brand of engine: A14NEL Type description: B Body: MPV From date: 01-06-2011 Fuel: Bi-Fuel Approved: Yes
    Vauxhall Model: Meriva Model series: Meriva MK II Type of engine: 16V Size of motor: 1.4 Brand of engine: A14XER Body: MPV From date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Meriva Model series: Meriva MK II Type of engine: 16V Turbo Size of motor: 1.4 Brand of engine: A14NEL Body: MPV From date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Meriva Model series: Meriva MK II Type of engine: 16V Turbo Size of motor: 1.4 Brand of engine: A14NET Body: MPV From date: 01-06-2010 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivelse
    Spenning: 14
    Ampere: 100
    Drevskive: 55.00
    Bredde/holderarm: 33.00
    Monteringsbeslag avstand: 59.00
    Beslagshull: 10.50
    Belt. justeringsbeslag pos.: 50
    Belt. justeringsbeslag hull 1: 10.50
    Drevskive diameter: 53.50
    Groper/drevskive: 5
    B+: M8
    Posisjon/B+ i min.: 8
    D+ størrelse: Plugg
    Rotasjon: med urviseren
    Plugg nr.: PL75
    Total lengde mm: 188.50
    Terminaltype: L-DFM
    Drevskive: SP/FW
    Regulator type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 59.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 50
    Plug no. PL75
    Bracket hole 10.50
    Position/B+ in min. 8
    Pulley SP/FW
    Pulley dia. 53.50
    Pulley dist. 55.00
    D+ Size Plug
    Regulator type IR
    Rotation CW
    Grooves/pulley 5
    Terminal type L-DFM
    Voltage 14
    Total length 188.50 mm
    Width/holder arm 33.00
    Amp 100
  • Kjøretøymatching

    • OEM
      F032116203, 1986A00827, 1986A01108, 1202194, 1202324, 6204144, 13266809, 95515954, 0124425085

    • Konkurrentreferens
      A0465, DRA1039, 28-6721, 24122N, 210356, 210356A, 440642, 440834, 12090487, 0986082370

    • NormaliseratArtNr
      a0465, dra1039, f032116203, 1986a00827, 1986a01108, 24122n, 210356, 210356a, 286721, 440642, 440834, 1202194, 1202324, 6204144, 12090487, 13266809, 95515954, 0124425085, 0986082370

    • Passar modeller
      Opel Model: Corsa Model series: Corsa D Model type: L08 Size of motor: 1.4 Brand of engine: A14XER Type description: S07 Body: Box From date: 01-07-2012 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
      Opel Model: Corsa Model series: Corsa D Model type: S07 Size of motor: 1.4 Brand of engine: A14XEL Type description: L08.., L68.. Body: Hatchback From date: 01-09-2009 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
      Opel Model: Corsa Model series: Corsa D Size of motor: 1.4 Brand of engine: A14XER Type description: F08, F68 Body: Hatchback From date: 01-12-2009 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
      Opel Model: Meriva Model series: Meriva B Model type: Ecotec 75 Size of motor: 1.4 Brand of engine: A14XER Type description: S10 Body: Van From date: 01-01-2013 To date: 01-03-2017 Fuel: Petrol Approved: Yes
      Opel Model: Meriva Model series: Meriva B Model type: Ecotec Size of motor: 1.4 Brand of engine: A14NET Body: MPV From date: 01-06-2010 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Meriva Model series: Meriva B Model type: Ecotec Size of motor: 1.4 Brand of engine: A14XER Body: MPV From date: 01-06-2010 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Meriva Model series: Meriva B Model type: Ecotec Size of motor: 1.4 Brand of engine: B14NET Body: MPV From date: 01-06-2010 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Meriva Model series: Meriva B Model type: Ecotec Size of motor: 1.4 Brand of engine: B14XER Body: MPV From date: 01-06-2010 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Meriva Model series: Meriva B Size of motor: 1.4 Brand of engine: A14NEL Body: MPV From date: 01-06-2011 To date: 01-03-2017 Fuel: Bi-Fuel Approved: Yes
      Opel Model: Meriva Model series: Meriva B Size of motor: 1.4 Brand of engine: B14NEL Body: MPV From date: 01-06-2011 To date: 01-03-2017 Fuel: Bi-Fuel Approved: Yes
      Vauxhall Model: Corsa Model series: Corsa Mk III Type of engine: 16V Size of motor: 1.4 Brand of engine: A14XER Type description: F08, F68 Body: Hatchback From date: 01-01-2010 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Meriva Model series: Meriva Mk II Model type: LPG Type of engine: BiFuel Size of motor: 1.4 Brand of engine: A14NEL Type description: B Body: MPV From date: 01-06-2011 Fuel: Bi-Fuel Approved: Yes
      Vauxhall Model: Meriva Model series: Meriva MK II Type of engine: 16V Size of motor: 1.4 Brand of engine: A14XER Body: MPV From date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Meriva Model series: Meriva MK II Type of engine: 16V Turbo Size of motor: 1.4 Brand of engine: A14NEL Body: MPV From date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Meriva Model series: Meriva MK II Type of engine: 16V Turbo Size of motor: 1.4 Brand of engine: A14NET Body: MPV From date: 01-06-2010 Fuel: Gasoline Approved: Yes
      1 / 3
