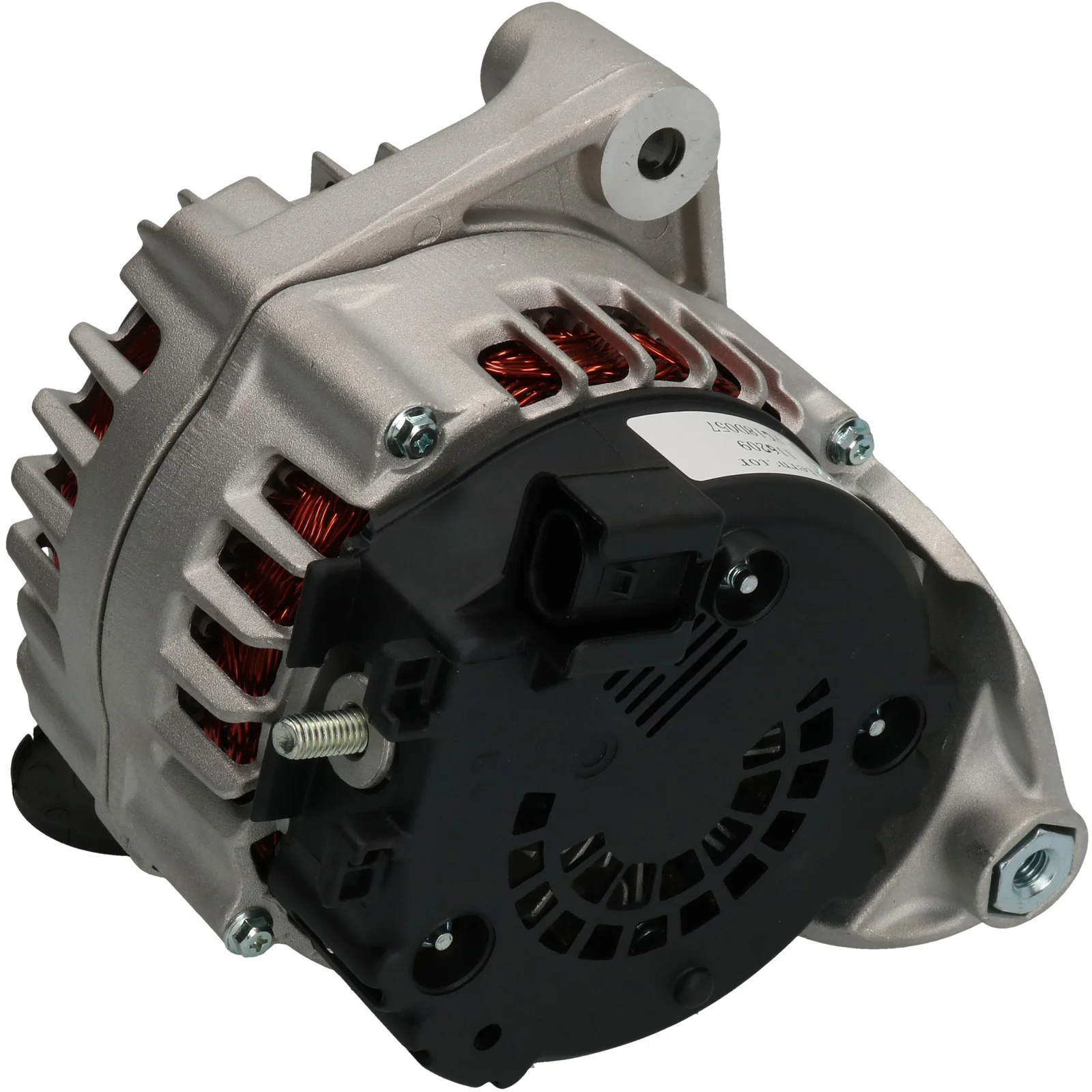

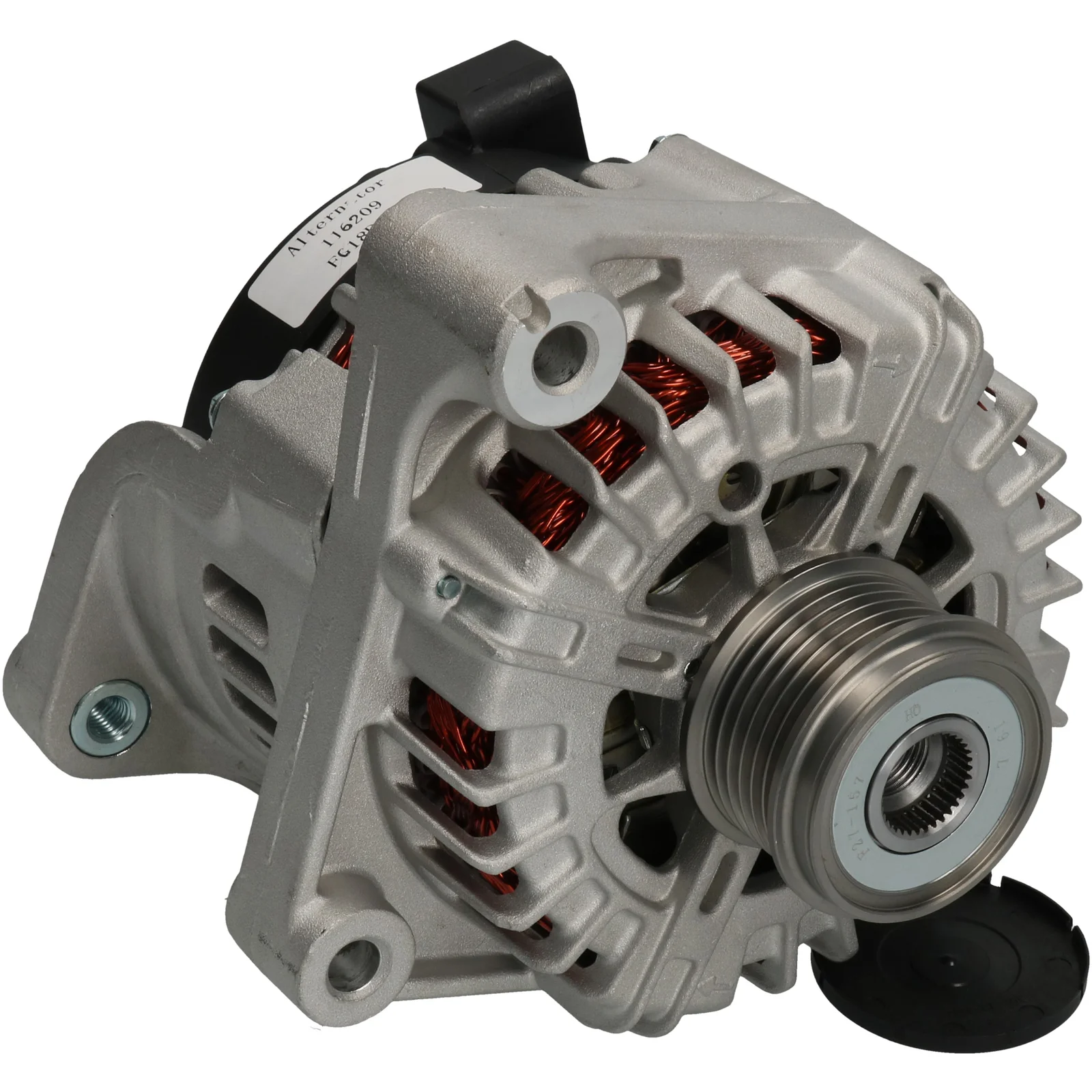

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116209

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 150, Rotasjon: CW, Festebrakett avstand: 75,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Amp: 150
Remskive avstand: 57,30
Bredde/holder arm: 28,00
Monteringsbrakett avstand: 75,00
Brakett hull: 10,50
Båndjust. brakett hullposisjon.: 46
Båndjust. brakett hull 1: 10,50
Båndjust. brakett hull 2: M10
Remskivens diameter: 54,00
Grooves/remskive: 6
Radius: 93,00
Radius 2: 93,00
B+: M8
Posisjon/B+ i min.: 1
Rotasjon: medur
Plugg nr.: PL125
Total lengde mm: 189,00
Terminaltype: COM
ID-kode: 52
Kommunikasjon: BSS
Remskive: SP/FW
Regulator type: IR
Anmerkninger: Denne Generator har en COM terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication BSS
Mount. bracket dist. 75.00
Belt. adj. bracket hole 1 10.50
Belt. adj. bracket hole 2 M10
Belt. adj. brackethole pos. 46
Plug no. PL125
Bracket hole 10.50
Position/B+ in min. 1
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 57.30
Radius 93.00
Radius 2 93.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
ID Code 52
Terminal type COM
Voltage 14
Total length 189.00 mm
Width/holder arm 28.00
Amp 150

  • OEM
    F032116209, FG18D057, FGN18D057, 2609201C, 8507623, 8509022, 12318507623, 12318509022

  • Konkurrentreferens
    DRA1374, 8EL012241-291, 8EL015630-761, 28-6718, 24143N, 209168, 209168A, 12090371

  • NormaliseratArtNr
    dra1374, f032116209, fg18d057, fgn18d057, 8el012241291, 8el015630761, 24143n, 209168, 209168a, 286718, 2609201c, 8507623, 8509022, 12090371, 12318507623, 12318509022

  • Passar modeller
    BMW Model: 3 Model series: 316 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E90 From date: 01-07-2009 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 316 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E91 Body: Estate From date: 01-09-2009 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20A Type description: E90 From date: 01-02-2007 To date: 01-10-2011 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20A Type description: E91 Body: Estate From date: 01-09-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E90 From date: 01-02-2007 To date: 01-10-2011 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E90 From date: 01-09-2007 To date: 01-10-2011 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E91 Body: Estate From date: 01-07-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E91 Body: Estate From date: 01-09-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E93 Body: Convertible From date: 01-03-2010 To date: 01-10-2013 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 320 Model type: Xdrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E90 From date: 01-03-2010 To date: 01-10-2011 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 320 Model type: xDrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E90 From date: 01-09-2008 To date: 01-10-2011 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 320 Model type: xDrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E91 Body: Estate From date: 01-03-2010 To date: 01-05-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 320 Model type: Xdrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E91 Body: Estate From date: 01-03-2010 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 320 Model type: xDrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E91 Body: Estate From date: 01-07-2009 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 (204D4) Type description: E90 From date: 01-12-2004 To date: 01-10-2011 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 (204D4) Type description: E91 Body: Estate From date: 01-06-2005 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47N204D5 Type description: E91 Body: Estate From date: 01-06-2005 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20A Type description: E91 Body: Estate From date: 01-06-2005 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E90 From date: 01-03-2010 To date: 01-10-2011 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E90 From date: 01-12-2004 To date: 01-10-2011 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E91 Body: Estate From date: 01-03-2010 To date: 01-05-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E91 Body: Estate From date: 01-06-2005 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E93 Body: Convertible From date: 01-01-2008 To date: 01-12-2013 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E93 Body: Convertible From date: 01-03-2010 To date: 01-10-2013 Fuel: Diesel Approved: Yes
    BMW Model: X1 Model series: X1 Model type: Xdrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E84 Body: Estate From date: 01-10-2009 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    BMW Model: X1 Model series: X1 Model type: xDrive18d Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E84 Body: Estate From date: 01-03-2009 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    1 / 6
  • Beskrivelse
    Spenning: 14
    Amp: 150
    Remskive avstand: 57,30
    Bredde/holder arm: 28,00
    Monteringsbrakett avstand: 75,00
    Brakett hull: 10,50
    Båndjust. brakett hullposisjon.: 46
    Båndjust. brakett hull 1: 10,50
    Båndjust. brakett hull 2: M10
    Remskivens diameter: 54,00
    Grooves/remskive: 6
    Radius: 93,00
    Radius 2: 93,00
    B+: M8
    Posisjon/B+ i min.: 1
    Rotasjon: medur
    Plugg nr.: PL125
    Total lengde mm: 189,00
    Terminaltype: COM
    ID-kode: 52
    Kommunikasjon: BSS
    Remskive: SP/FW
    Regulator type: IR
    Anmerkninger: Denne Generator har en COM terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication BSS
    Mount. bracket dist. 75.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. bracket hole 2 M10
    Belt. adj. brackethole pos. 46
    Plug no. PL125
    Bracket hole 10.50
    Position/B+ in min. 1
    Pulley SP/FW
    Pulley dia. 54.00
    Pulley dist. 57.30
    Radius 93.00
    Radius 2 93.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    ID Code 52
    Terminal type COM
    Voltage 14
    Total length 189.00 mm
    Width/holder arm 28.00
    Amp 150
  • Kjøretøymatching

    • OEM
      F032116209, FG18D057, FGN18D057, 2609201C, 8507623, 8509022, 12318507623, 12318509022

    • Konkurrentreferens
      DRA1374, 8EL012241-291, 8EL015630-761, 28-6718, 24143N, 209168, 209168A, 12090371

    • NormaliseratArtNr
      dra1374, f032116209, fg18d057, fgn18d057, 8el012241291, 8el015630761, 24143n, 209168, 209168a, 286718, 2609201c, 8507623, 8509022, 12090371, 12318507623, 12318509022

    • Passar modeller
      BMW Model: 3 Model series: 316 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E90 From date: 01-07-2009 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 316 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E91 Body: Estate From date: 01-09-2009 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20A Type description: E90 From date: 01-02-2007 To date: 01-10-2011 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20A Type description: E91 Body: Estate From date: 01-09-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E90 From date: 01-02-2007 To date: 01-10-2011 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E90 From date: 01-09-2007 To date: 01-10-2011 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E91 Body: Estate From date: 01-07-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E91 Body: Estate From date: 01-09-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E93 Body: Convertible From date: 01-03-2010 To date: 01-10-2013 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 320 Model type: Xdrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E90 From date: 01-03-2010 To date: 01-10-2011 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 320 Model type: xDrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E90 From date: 01-09-2008 To date: 01-10-2011 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 320 Model type: xDrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E91 Body: Estate From date: 01-03-2010 To date: 01-05-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 320 Model type: Xdrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E91 Body: Estate From date: 01-03-2010 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 320 Model type: xDrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E91 Body: Estate From date: 01-07-2009 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 (204D4) Type description: E90 From date: 01-12-2004 To date: 01-10-2011 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 (204D4) Type description: E91 Body: Estate From date: 01-06-2005 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47N204D5 Type description: E91 Body: Estate From date: 01-06-2005 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20A Type description: E91 Body: Estate From date: 01-06-2005 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E90 From date: 01-03-2010 To date: 01-10-2011 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E90 From date: 01-12-2004 To date: 01-10-2011 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E91 Body: Estate From date: 01-03-2010 To date: 01-05-2012 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E91 Body: Estate From date: 01-06-2005 To date: 01-06-2012 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E93 Body: Convertible From date: 01-01-2008 To date: 01-12-2013 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E93 Body: Convertible From date: 01-03-2010 To date: 01-10-2013 Fuel: Diesel Approved: Yes
      BMW Model: X1 Model series: X1 Model type: Xdrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E84 Body: Estate From date: 01-10-2009 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      BMW Model: X1 Model series: X1 Model type: xDrive18d Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: E84 Body: Estate From date: 01-03-2009 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      1 / 6
