HC-Cargo Dynamo

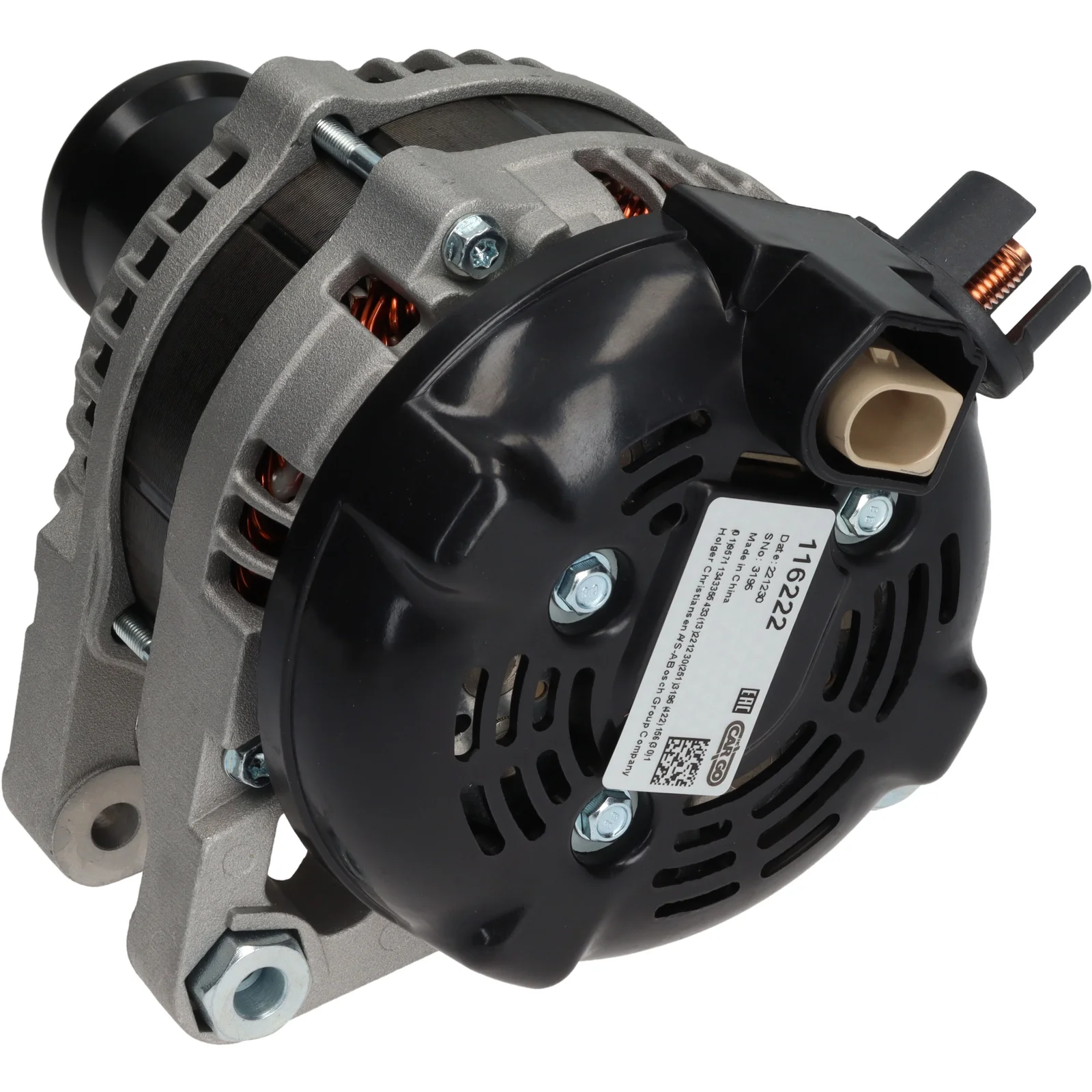

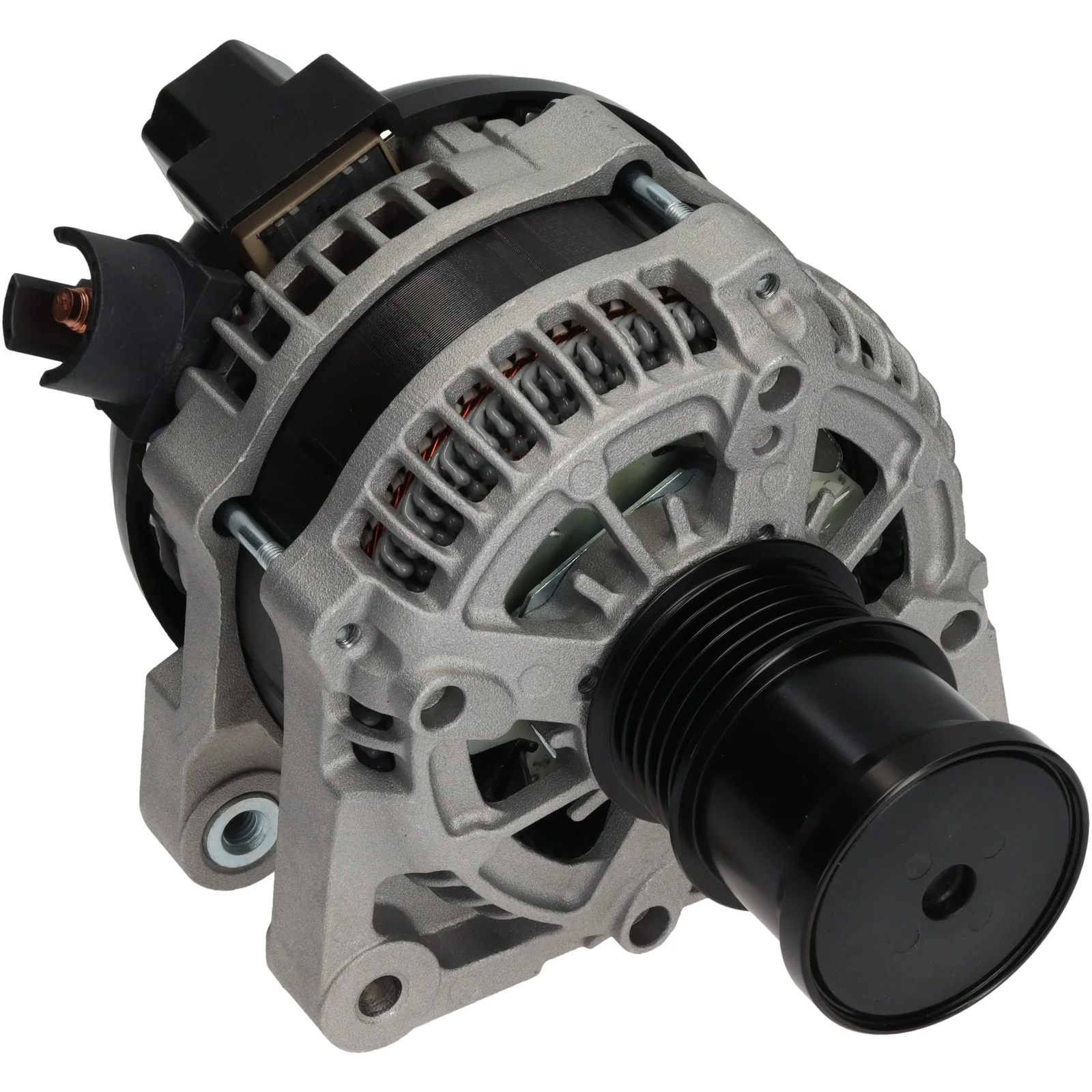

HC-Cargo Dynamo
Varenr.: F032116222

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 120, Rotasjon: CW, Festebrakett avstand: 31.00

Beskrivelse

Spenningsvolt | Spenningsvolt → Spenningsspenning: 14
Ampere | Ampere → Ampere: 120
Esker dist.: 41.50
Bredde/holder arm: 21.50
FESTE brackets dist.: 31.00
Bracket hull: 8.50
Belt. juster brakhull pos.: 46
Belt. juster bracket hull 1: 8.00
Esker dia.: 48.50
Grooves/eskefjær: 6
Radius: 87.00
Radius 2: 80.50
B+ Lengde mm: 14.50
B+: M8
Posisjon/B+ i min.: 5
Rotasjon: med urviseren
Plugg nr.: PL174
Total lengde mm: 204.00
Terminal type: COM
Kommunikasjon: LIN
Esker: SP/FW
Vifte: IF
Regulator type: IR
Merk: Denne generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 31.00
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 46
Plug no. PL174
Bracket hole 8.50
Position/B+ in min. 5
Pulley SP/FW
Pulley dia. 48.50
Pulley dist. 41.50
Radius 87.00
Radius 2 80.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 204.00 mm
Width/holder arm 21.50
Amp 120
B+ Length 14.50 mm

  • OEM
    CV6T10300GA, F032116222, 1986A01500, 104211-3330, 1781479

  • Konkurrentreferens
    A6435S, DAN1313, DRA1482, LRA03821, 28-6931, 20502, 210874, 210874A, 444213, 12090765, 0986084670

  • NormaliseratArtNr
    a6435s, cv6t10300ga, dan1313, dra1482, f032116222, lra03821, 1986a01500, 20502, 210874, 210874a, 286931, 444213, 1781479, 12090765, 0986084670, 1042113330

  • Passar modeller
    Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.0 Brand of engine: M1DA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.0 Brand of engine: M2DA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2DA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.0 Brand of engine: SFDA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFDA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: Grand C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: Grand C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2DA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: Grand C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFDA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJA Body: Hatchback From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJB Body: Hatchback From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJB Body: Van From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJC Body: Van From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJA Body: Van From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJD Body: Van From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Estate From date: 01-02-2012 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Hatchback From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DH Body: Estate From date: 01-10-2017 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DH Body: Hatchback From date: 01-10-2017 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DH From date: 01-10-2017 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Van From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Grand C-Max Model series: Grand C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFDA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Grand C-Max Model series: Grand C-Max Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Grand C-Max Model series: Grand C-Max Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2DA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Tourneo Model series: Tourneo Connect Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2GA Body: MPV From date: 01-11-2013 Fuel: Gasoline Approved: Yes
    Ford Model: Transit Model series: Transit Connect Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2GA Body: Van From date: 01-02-2013 Fuel: Gasoline Approved: Yes
