HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116235

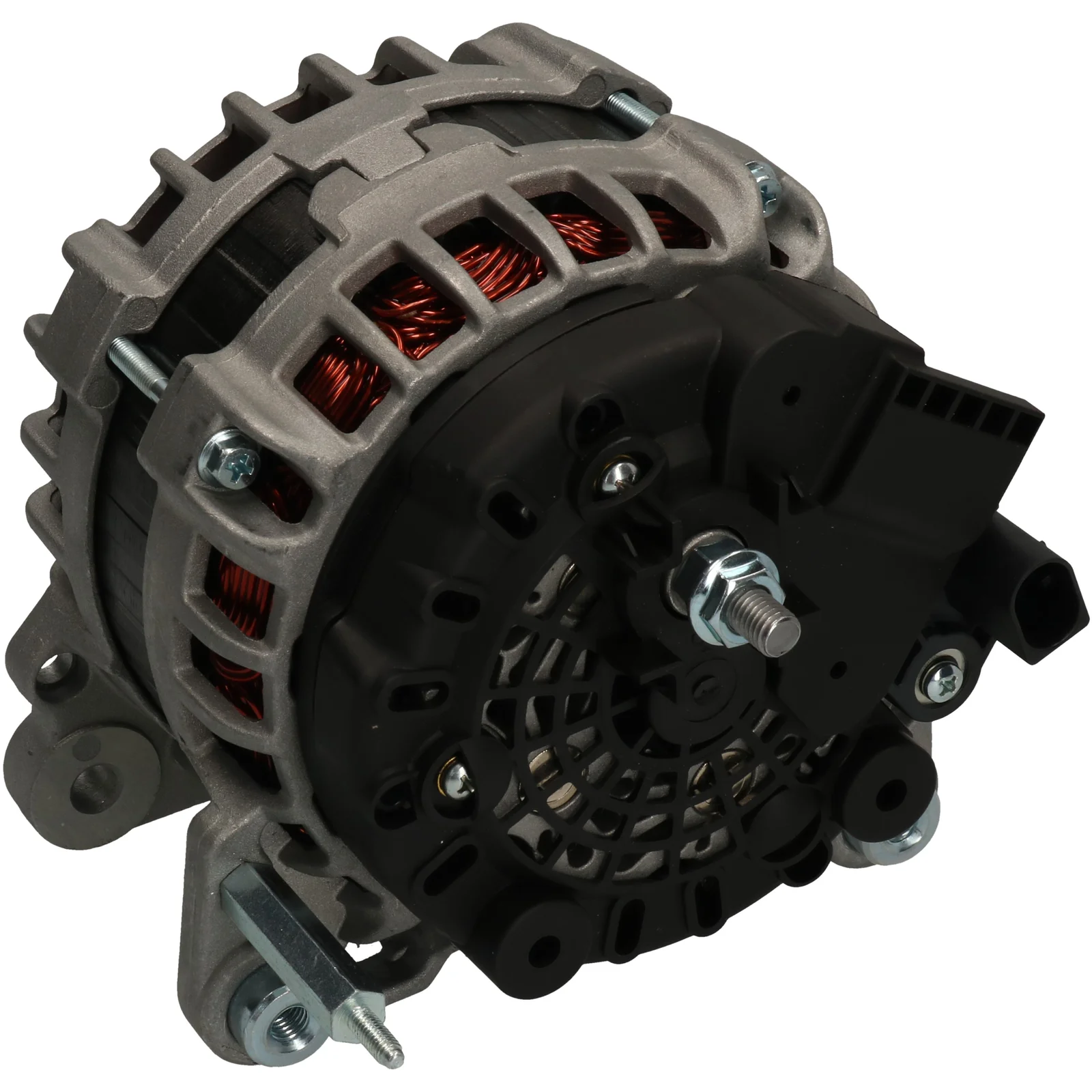

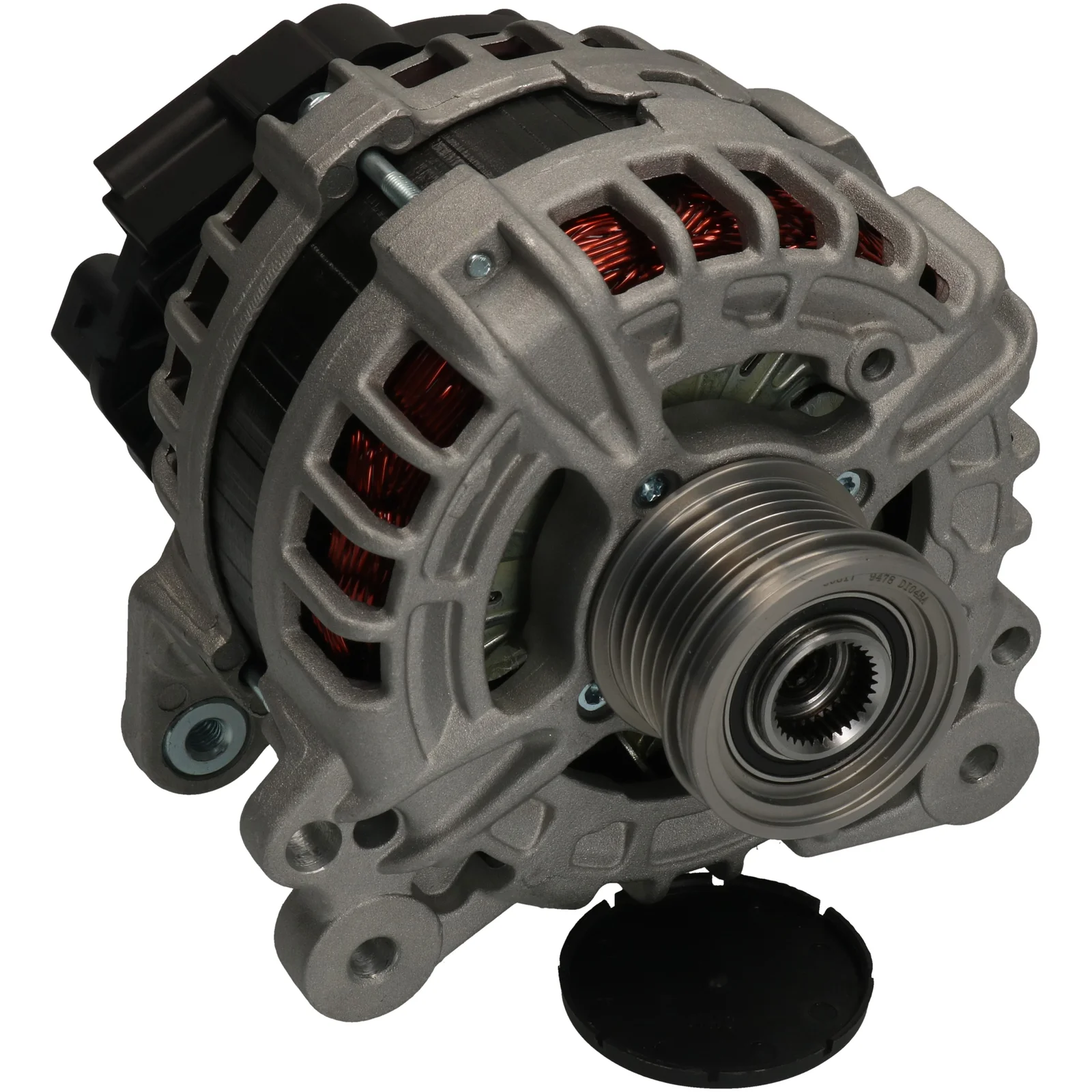

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 140, Rotasjon: CW, Monteringsklamme avstand: 61,70

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Amp: 140
Drev avstand: 29,50
Bredde/holderarm: 14,00
Festebrakett avstand: 61,70
Brakettåpning: 8,50
Båndjustering brakettåpning pos.: 45
Båndjustering brakettåpning 1: 8,50
Båndjustering brakettåpning 2: M8
Drevdiameter: 49,50
Groove/drev: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Posisjon/B+ i min.: 5
Rotasjon: medurs
Stikkontaktnummer: PL125
Total lengde mm: 191,00
Terminaltype: COM
Kommunikasjon: LIN
Drev: SP/FW
Regulator-type: innslagsrelé | innslagsrelé
Merknader: Denne Generator har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 61.70
Belt. adj. bracket hole 1 8.50
Belt. adj. bracket hole 2 M8
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 8.50
Position/B+ in min. 5
Pulley SP/FW
Pulley dia. 49.50
Pulley dist. 29.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 191.00 mm
Width/holder arm 14.00
Amp 140

  • OEM
    F000BL0805, F000BL0818, F000BL0830, F000BL08C8, F032116235, 04E903023B, 04E903023J, 04E903023JX

  • Konkurrentreferens
    CAL10553, 305.967.140, 20353N, 443304, 444217, 554022RI, 12090443, 0986083740

  • NormaliseratArtNr
    cal10553, f000bl0805, f000bl0818, f000bl0830, f000bl08c8, f032116235, 04e903023b, 04e903023j, 04e903023jx, 20353n, 443304, 444217, 554022ri, 12090443, 305967140, 0986083740

  • Passar modeller
    Seat Model: Leon Model series: Leon Type of engine: TGI Size of motor: 1.4 Brand of engine: CPWA Type description: 5F1 Body: Hatchback From date: 01-02-2013 Fuel: Gasoline Approved: Yes
    Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZB Type description: 5F1 From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZB Type description: 5F8 Body: Estate From date: 01-01-2013 Fuel: Gasoline Approved: Yes Manufacture type: Estate
    Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.2 Brand of engine: CYVA Type description: 5F1 From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.2 Brand of engine: CYVA Type description: 5F8 Body: Estate From date: 01-01-2013 Fuel: Gasoline Approved: Yes Manufacture type: Estate
    Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.4 Brand of engine: CHPA Type description: 5F1 From date: 01-09-2012 To date: 01-10-2016 Fuel: Gasoline Approved: Yes
    Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.4 Brand of engine: CMBA Type description: 5F1 From date: 01-09-2012 To date: 01-10-2016 Fuel: Gasoline Approved: Yes
    Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.4 Brand of engine: CPTA Type description: 5F1 From date: 01-09-2012 To date: 01-10-2016 Fuel: Gasoline Approved: Yes
    Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.4 Brand of engine: CXSA Type description: 5F1 From date: 01-09-2012 To date: 01-10-2016 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 14
    Amp: 140
    Drev avstand: 29,50
    Bredde/holderarm: 14,00
    Festebrakett avstand: 61,70
    Brakettåpning: 8,50
    Båndjustering brakettåpning pos.: 45
    Båndjustering brakettåpning 1: 8,50
    Båndjustering brakettåpning 2: M8
    Drevdiameter: 49,50
    Groove/drev: 6
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Posisjon/B+ i min.: 5
    Rotasjon: medurs
    Stikkontaktnummer: PL125
    Total lengde mm: 191,00
    Terminaltype: COM
    Kommunikasjon: LIN
    Drev: SP/FW
    Regulator-type: innslagsrelé | innslagsrelé
    Merknader: Denne Generator har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 61.70
    Belt. adj. bracket hole 1 8.50
    Belt. adj. bracket hole 2 M8
    Belt. adj. brackethole pos. 45
    Plug no. PL125
    Bracket hole 8.50
    Position/B+ in min. 5
    Pulley SP/FW
    Pulley dia. 49.50
    Pulley dist. 29.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 191.00 mm
    Width/holder arm 14.00
    Amp 140
  • Kjøretøymatching

    • OEM
      F000BL0805, F000BL0818, F000BL0830, F000BL08C8, F032116235, 04E903023B, 04E903023J, 04E903023JX

    • Konkurrentreferens
      CAL10553, 305.967.140, 20353N, 443304, 444217, 554022RI, 12090443, 0986083740

    • NormaliseratArtNr
      cal10553, f000bl0805, f000bl0818, f000bl0830, f000bl08c8, f032116235, 04e903023b, 04e903023j, 04e903023jx, 20353n, 443304, 444217, 554022ri, 12090443, 305967140, 0986083740

    • Passar modeller
      Seat Model: Leon Model series: Leon Type of engine: TGI Size of motor: 1.4 Brand of engine: CPWA Type description: 5F1 Body: Hatchback From date: 01-02-2013 Fuel: Gasoline Approved: Yes
      Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZB Type description: 5F1 From date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZB Type description: 5F8 Body: Estate From date: 01-01-2013 Fuel: Gasoline Approved: Yes Manufacture type: Estate
      Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.2 Brand of engine: CYVA Type description: 5F1 From date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.2 Brand of engine: CYVA Type description: 5F8 Body: Estate From date: 01-01-2013 Fuel: Gasoline Approved: Yes Manufacture type: Estate
      Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.4 Brand of engine: CHPA Type description: 5F1 From date: 01-09-2012 To date: 01-10-2016 Fuel: Gasoline Approved: Yes
      Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.4 Brand of engine: CMBA Type description: 5F1 From date: 01-09-2012 To date: 01-10-2016 Fuel: Gasoline Approved: Yes
      Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.4 Brand of engine: CPTA Type description: 5F1 From date: 01-09-2012 To date: 01-10-2016 Fuel: Gasoline Approved: Yes
      Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.4 Brand of engine: CXSA Type description: 5F1 From date: 01-09-2012 To date: 01-10-2016 Fuel: Gasoline Approved: Yes
      1 / 2
