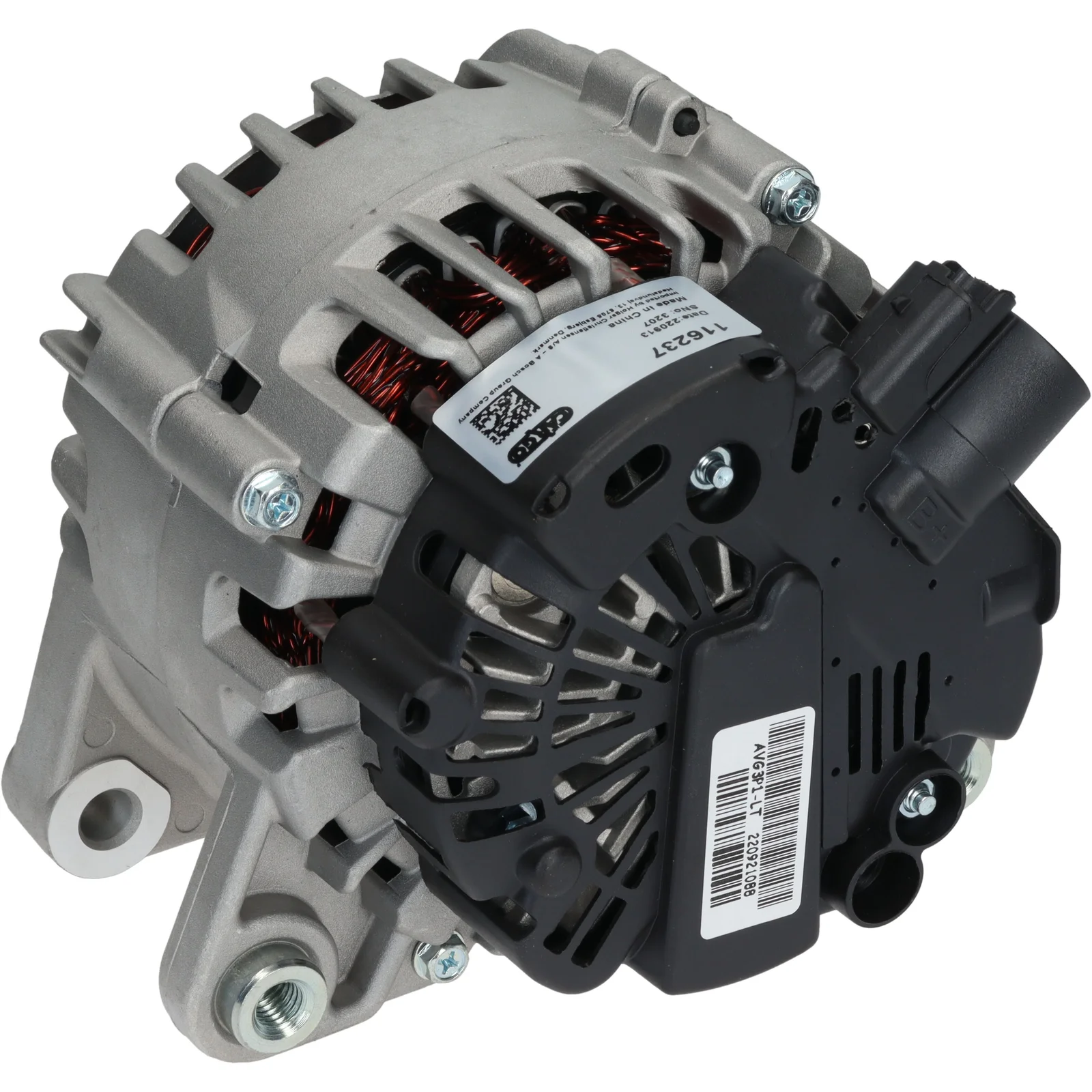

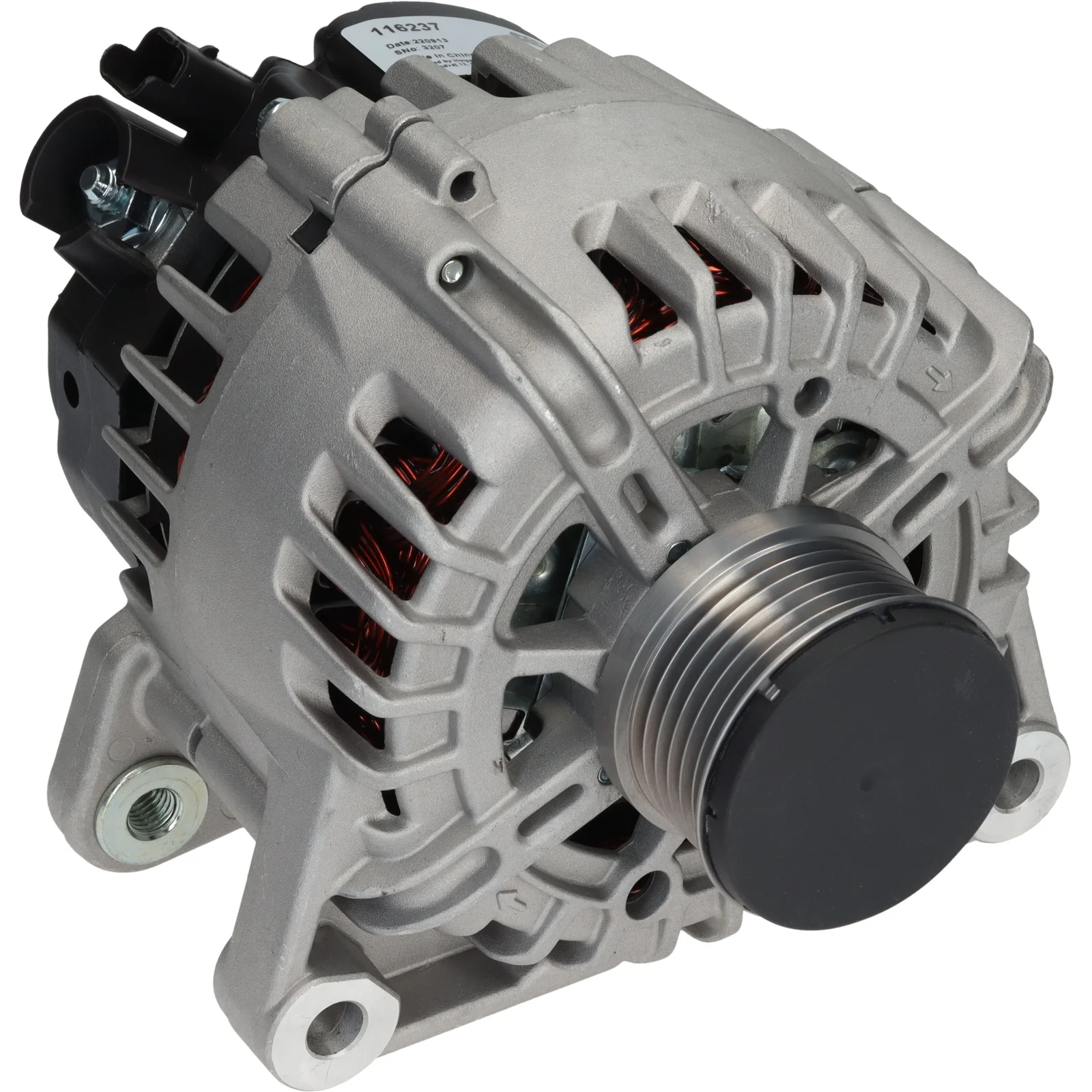

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116237

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 125, Rotasjon: med klokken, Monteringsfeste avstand: 49.00

Beskrivelse

HC-Cargo Dynamo 14V - 125A, 6gr

Spenning: 14
Amp.: 125
Pulley avstand.: 42.50
Bredde/bøssingarm: 21.00
Monteringsskinne avstand.: 49.00
Skinnedekke hull: 10.50
Båndjusteringsbøssing pos.: 47
Båndjusteringsbøssing hull 1: 10.50
Pulley diameter: 54.30
Groover/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 3
Rotasjon: Med uret
Kontakt no.: PL132
Total lengde mm: 178.00
Terminaltype: COM
ID-kode: 33
Kommunikasjon: LIN
Pulley: SP/FW
Vifte: IF
Regulator type: IR
Merknader: Denne Generatoren har en COM-terminal på regulatoren. Det anbefales at OEM-nummer brukes for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 49.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 47
Plug no. PL132
Bracket hole 10.50
Position/B+ in min. 3
Pulley SP/FW
Pulley dia. 54.30
Pulley dist. 42.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 33
Terminal type COM
Voltage 14
Total length 178.00 mm
Width/holder arm 21.00
Amp 125

  • OEM
    F032116237, TG12C106, TG12C228, TG12C261, 1986A00079, 27060-YV030, 116237, 2610711B, 2610711C, 2624851, 2624851A, 2713135A, 1608064580, 9670899580, 9810971880, 9818677980

  • Konkurrentreferens
    A3455S, A3472(VALEO), CAL15590, DRA1103, 8EL011713-601, 28-6839, 225.562.120, 225.580.120, 229.150.1202, 20653N, 20653N-OE, 200281, 200288, 209223, 209223A, 439758, 440350, 440819, 443017, 12090669, 0986083800, 0986085240

  • Bilmärken
    Citroen, DS (Citroen), Opel, Peugeot, Toyota

  • NormaliseratArtNr
    a3455s, a3472valeo, cal15590, dra1103, f032116237, tg12c106, tg12c228, tg12c261, 8el011713601, 1986a00079, 20653n, 20653noe, 27060yv030, 116237, 200281, 200288, 209223, 209223a, 286839, 439758, 440350, 440819, 443017, 2610711b, 2610711c, 2624851, 2624851a, 2713135a, 12090669, 225562120, 225580120, 0986083800, 0986085240, 1608064580, 2291501202, 9670899580, 9810971880, 9818677980

  • Passar modeller
    Citroen Model: Berlingo Model series: Berlingo Model type: Puretech 110 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: B9 Body: Box From date: 01-01-2018 Fuel: Petrol Approved: Yes
    Citroen Model: Berlingo Model series: Berlingo Model type: PureTech 110 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: B9 From date: 01-02-2016 Fuel: Gasoline Approved: Yes
    Citroen Model: Berlingo Model series: Berlingo Model type: VTi 115 Size of motor: 1.6 Brand of engine: NFP (EC5F) Type description: ER_, EC_ Body: MPV Fuel: Petrol Approved: Yes
    Citroen Model: C-Elysee Model series: C-Elysee Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2), HMZ (EB2F) From date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Citroen Model: C1 Model series: C1 Model type: 82 Size of motor: 1.2 Brand of engine: HMT (EB2D) Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Aircross Model type: PureTech 130 (2RHNYH) Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: 2R_, 2C_ Body: SUV From date: 01-07-2017 Fuel: Petrol Approved: Yes
    Citroen Model: C3 Model series: C3 Aircross Model type: Puretech 82 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: 2C_, 2R_ Body: Closed Off-Road Vehicle From date: 01-05-2019 Fuel: Petrol Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: 110 Type of engine: VTi Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Hatchback From date: 01-10-2014 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: 68 Type of engine: VTi Size of motor: 1.0 Brand of engine: ZMZ (EB0) Body: Hatchback From date: 01-08-2012 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-06-2012 To date: 01-09-2016 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: Picasso Type of engine: THP Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: MPV From date: 01-01-2015 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: Puretech 110 Size of motor: 1.2 Brand of engine: HNV (EB2DTM) Body: Hatchback From date: 01-06-2017 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: Puretech 110 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Hatchback From date: 01-06-2017 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: Puretech 110 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: SX_, SY_ Body: Box Body / Hatchback From date: 01-03-2019 Fuel: Petrol Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: THP 110 Size of motor: 1.2 Brand of engine: HNV (EB2DTM) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: THP 110 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: Vti 68 Size of motor: 1.2 Brand of engine: HMP (EB2FB) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: VTi 82 LPG Type of engine: LPG Size of motor: 1.2 Brand of engine: HMZ (EB2F) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Petrol/Electro Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: Vti 82 Size of motor: 1.2 Brand of engine: HMZ (EB2F) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Type description: SX_, SY_ Body: Hatchback Van From date: 01-07-2016 Fuel: Petrol Approved: Yes
    Citroen Model: C3 Model series: C3 Type of engine: VTI Size of motor: 1.6 Brand of engine: NFP (EC5) Type description: SX Body: Hatchback From date: 01-02-2017 Fuel: Gasoline Approved: Yes
    Citroen Model: C4 Model series: C4 Cactus Model type: 110 Type of engine: THP Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Hatchback From date: 01-09-2014 Fuel: Gasoline Approved: Yes
    Citroen Model: C4 Model series: C4 Cactus Model type: 82 Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-09-2014 Fuel: Gasoline Approved: Yes
    Citroen Model: C4 Model series: C4 Cactus Model type: Puretech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: 0B_, 0P_ Body: Box Body / Hatchback From date: 01-05-2019 Fuel: Petrol Approved: Yes
    Citroen Model: C4 Model series: C4 Cactus Model type: Puretech 82 Size of motor: 1.2 Brand of engine: HMZ (EB2) Type description: 0B_, 0P_ Body: Box Body / Hatchback From date: 01-05-2019 Fuel: Petrol Approved: Yes
    Citroen Model: C4 Model series: C4 Model type: 110 Type of engine: THP Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: B7 Body: Hatchback From date: 01-02-2015 Fuel: Gasoline Approved: Yes
    Citroen Model: C4 Model series: C4 Model type: 130 Type of engine: THP Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: B7 Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes
    Citroen Model: C4 Model series: C4 Model type: Picasso Type of engine: THP Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: MPV From date: 01-04-2014 Fuel: Gasoline Approved: Yes
    Citroen Model: C4 Model series: C4 Model type: THP 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: Hatchback From date: 01-11-2017 Fuel: Gasoline Approved: Yes
    Citroen Model: C4 Model series: C4 Spacetourer Model type: PureTech 110 Size of motor: 1.2 Brand of engine: HNX (EB2DTSD) Body: MPV From date: 01-04-2018 Fuel: Gasoline Approved: Yes
    Citroen Model: C4 Model series: C4 Spacetourer Model type: PureTech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: MPV From date: 01-04-2018 Fuel: Gasoline Approved: Yes
    Citroen Model: C4 Model series: C4 Spacetourer Model type: Puretech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: 3D_ Body: Box Body / Estate From date: 01-05-2019 Fuel: Petrol Approved: Yes Manufacture type: SPACETOURE
    Citroen Model: C4 Model series: Grand C4 Spacetourer Model type: PureTech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: MPV From date: 01-04-2018 Fuel: Gasoline Approved: Yes
    Citroen Model: DS Model series: DS3 Model type: 110 Type of engine: VTi Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Convertible From date: 01-10-2014 To date: 01-07-2015 Fuel: Gasoline Approved: Yes
    Citroen Model: DS Model series: DS3 Model type: 110 Type of engine: VTi Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Hatchback From date: 01-10-2014 To date: 01-03-2015 Fuel: Gasoline Approved: Yes
    Citroen Model: DS Model series: DS3 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Convertible From date: 01-01-2013 To date: 01-07-2015 Fuel: Gasoline Approved: Yes
    Citroen Model: DS Model series: DS3 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-01-2013 To date: 01-03-2015 Fuel: Gasoline Approved: Yes
    Citroen Model: DS Model series: DS4 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: Hatchback From date: 01-07-2014 To date: 01-07-2015 Fuel: Gasoline Approved: Yes
    Citroen Model: Grand C4 Spacetourer Model series: Grand C4 Spacetourer Model type: Puretech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: 3A_, 3E_ Body: Box Body / Estate From date: 01-05-2019 Fuel: Petrol Approved: Yes Manufacture type: SPACETOURE
    Citroen Series: Berlingo MULTISPACE Model: 1.2 PureTech 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 02.16-
    Citroen Series: Berlingo Skåp B9 Model: PureTech 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 01.18-
    Citroen Series: C - ELYSSE Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EBZ2/F) Year: 12.14-
    Citroen Series: C 3 III Model: 1.6 VTi Engine volume: 1.6 Engine type: NFP(EC5) Year: 02.17-
    Citroen Series: C 3 Model: 1.2 VTi Engine volume: 1.2 Engine type: HMZ (EB2/F) Year: 06.12-09.16
    Citroen Series: C 4 Cactus Model: 1.2 THP 110 Engine volume: 1.2 Engine type: Samtliga Year: 09.14-
    Citroen Series: C 4 Cactus Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 09.14-
    Citroen Series: C1 II (PA_, PS_) Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMT(EB2D),HMZ(EB2/F) Year: 04.14-04.18
    Citroen Series: C3 AIRCROSS II Model: 1.2 PURETECH 110 Engine volume: 1.2 Engine type: SAMTLIGA Year: 06.17-
    Citroen Series: C3 AIRCROSS II Model: 1.2 PureTech 130 Engine volume: 1.2 Engine type: Samtliga Year: 07.17-
    Citroen Series: C3 AIRCROSS II VAN Model: PURETECH 82 Engine volume: 1.2 Engine type: HNP<EB2ADT> Year: 05.19-
    Citroen Series: C3 II (SC_) Model: 1.0 VTi 68 Engine volume: 1.0 Engine type: ZMZ (EB0) Year: 08.12-09.16
    Citroen Series: C3 II Model: 1.2 THP 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 10.14-09.16
    Citroen Series: C3 III (SX) Model: 1.2 VTi 68 Engine volume: 1.2 Engine type: HMM(EB2FAD)/P(EB2FB) Year: 07.16-
    Citroen Series: C3 III (SX) Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 07.16-
    Citroen Series: C3 III (SX) Model: 1.2 VTi 82 LPG Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 07.16-
    Citroen Series: C3 III Model: 1.2 THP 110 Engine volume: 1.2 Engine type: Samtliga Year: 07.16-
    Citroen Series: C3 III Van Model: PureTech 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 03.19-
    Citroen Series: C3 III Van(SX_, SY_) Model: 1.2 VTi Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 07.16-
    Citroen Series: C3 PICASSO Model: 1.2 THP 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 01.15-12.15
    Citroen Series: C4 CACTUS Model: 1.2 PURETECH 130 Engine volume: 1.2 Engine type: SAMTLIGA Year: 11.17-
    Citroen Series: C4 CACTUS Van Model: PureTech 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 05.19-
    Citroen Series: C4 CACTUS Van Model: PureTech 82 Engine volume: 1.2 Engine type: HMZ (EB2) Year: 05.19-
    Citroen Series: C4 GRAND PICASSO II Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 04.14-
    Citroen Series: C4 II Model: 1.2 THP 110 Engine volume: 1.2 Engine type: SAMTLIGA Year: 02.15-12.17
    Citroen Series: C4 II Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 04.14-12.17
    Citroen Series: C4 SPACETOURER (3D_) Model: 1.2 PureTech 110 Engine volume: 1.2 Engine type: HNX (EB2DTSD) Year: 04.18-
    Citroen Series: C4 SPACETOURER (3D_) Model: 1.2 PureTech 130 Engine volume: 1.2 Engine type: Samtliga Year: 04.18-
    Citroen Series: C4 SPACETOURER VAN Model: PURETECH 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 05.19-
    Citroen Series: DS3 CABRIOLET Model: 1.2 THP 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 10.14-07.15
    Citroen Series: DS3 Cabriolet Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 01.13-07.15
    Citroen Series: DS3 Model: 1.2 THP 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 10.14-03.15
    Citroen Series: DS3 Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2/EB2F) Year: 01.13-03.15
    Citroen Series: DS4 Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 07.14-07.15
    Citroen Series: GRAND C4 SPACETOURER Model: 1.2 PureTech 130 Engine volume: 1.2 Engine type: SAMTLIGA Year: 04.18-
    Citroen Series: GRAND C4 SPACETOURER Model: PURETECH 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 05.19-
    DS (Citroen) Series: DS 3 (SA_) Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2)/HMZ (EB2F) Year: 04.15-07.19
    DS (Citroen) Series: DS 3 Cabriolet (SB_) Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 07.15-07.19
    DS (Citroen) Series: DS 3 CABRIOLET Model: 1.2 THP 110 Engine volume: 1.2 Engine type: SAMTLIGA Year: 07.15-07.19
    DS (Citroen) Series: DS 3 Cabriolet Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 09.15-07.19
    DS (Citroen) Series: DS 3 Model: 1.2 THP 110 / PURETECH 110 Engine volume: 1.2 Engine type: SAMTLIGA Year: 04.15-07.19
    DS (Citroen) Series: DS 3 Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 09.15-07.19
    DS (Citroen) Series: DS 4 / DS 4 CROSSBAC Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 07.15-12.18
    DS Model: DS 3 Model series: Ds 3 Convertible Model type: THP 110 Size of motor: 1.2 Brand of engine: HNP (EB2ADT), HNZ (EB2DT) Type description: SB_ Body: Convertible Fuel: Petrol Approved: Yes
    DS Model: DS 3 Model series: DS 3 Model type: THP 110 / PureTech 110 (S Size of motor: 1.2 Brand of engine: HNP (EB2ADT), HNZ (EB2DT) Type description: SA_ Body: Hatchback Fuel: Petrol Approved: Yes
    DS Model: DS 3 Model series: DS 3 Model type: THP 130 Type of engine: THP Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: Convertible From date: 01-09-2015 To date: 01-07-2019 Fuel: Gasoline Approved: Yes
    DS Model: DS 3 Model series: DS 3 Model type: THP 130 Type of engine: THP Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: Hatchback From date: 01-09-2015 To date: 01-07-2019 Fuel: Gasoline Approved: Yes
    DS Model: DS 3 Model series: DS 3 Model type: VTi 82 (SAHMZ6) Size of motor: 1.2 Brand of engine: HMZ (EB2), HMZ (EB2F) Type description: SA_ Body: Hatchback Fuel: Petrol Approved: Yes
    DS Model: DS 3 Model series: DS 3 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Convertible From date: 01-07-2015 To date: 01-07-2019 Fuel: Gasoline Approved: Yes
    DS Model: DS 4 Model series: DS 4 / DS 4 Crossback Model type: THP 130 (NXHNYM) Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: NX_ Body: Hatchback Fuel: Petrol Approved: Yes
    Opel Model: Grandland X Model series: Grandland X Size of motor: 1.2 Brand of engine: D12XHT (EB2ADTS) Body: Box Body / Estate From date: 01-04-2018 Fuel: Petrol Approved: Yes
    Opel Series: GRANDLAND X VAN Model: 1.2 (75) Engine volume: 1.2 Engine type: D 12 XHT (EB2ADTS) Year: 04.18-07.21
    Peugeot Model: 2008 Model series: 2008 Model type: 130 Type of engine: THP Size of motor: 1.2 Brand of engine: HNZ (EB2DTS) Body: Estate From date: 01-01-2015 Fuel: Gasoline Approved: Yes
    Peugeot Model: 2008 Model series: 2008 Model type: PureTech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS),HNS (EB2ADTS) Type description: CU_ Body: Box Body / Estate From date: 01-01-2018 Fuel: Petrol Approved: Yes
    Peugeot Model: 208 Model series: 208 Model type: Puretech 82 Type of engine: VTI Size of motor: 1.2 Brand of engine: HMZ (EB2F), HMZ (EB2), HMR (EB2FA) Type description: CR_ Body: Box From date: 01-06-2015 Fuel: Petrol Approved: Yes
    Peugeot Model: 208 Model series: 208 Size of motor: 1.2 Brand of engine: HMP (EB2FB) Body: Hatchback From date: 01-08-2016 Fuel: Gasoline Approved: Yes
    Peugeot Model: 208 Model series: 208 Type of engine: GPL Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Peugeot Model: 3008 Model series: 3008 Model type: PureTech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: MR_, MC_, MJ_ Body: Box Body / Estate From date: 01-05-2016 Fuel: Petrol Approved: Yes
    Peugeot Model: 3008 Model series: 3008 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) From date: 01-05-2016 Fuel: Gasoline Approved: Yes
    Peugeot Model: 301 Model series: 301 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) From date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Peugeot Model: 301 Model series: 301 Model type: LPG Type of engine: LPG Size of motor: 1.6 Brand of engine: NFP (EC5) From date: 01-07-2014 Fuel: Petrol/Electro Approved: Yes
    Peugeot Model: 308 Model series: 308 Model type: 72 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-09-2013 Fuel: Gasoline Approved: Yes
    Peugeot Model: 5008 Model series: 5008 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: MPV From date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Peugeot Model: Grand Raid Model series: Grand Raid Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Box From date: 01-02-2016 Fuel: Petrol Approved: Yes
    Peugeot Series: 2008 I Model: 1.2 THP 130 / PURETECH 130 Engine volume: 1.2 Engine type: SAMTLIGA Year: 01.15-11.19
    Peugeot Series: 2008 I Van Model: PureTech 130 Engine volume: 1.2 Engine type: samtliga Year: 01.18-11.19
    Peugeot Series: 208 I (CA_, CC_) Model: 1.2 GPL Engine volume: 1.2 Engine type: HMX(EB2) / HMZ(EB2F) Year: 06.15-12.19
    Peugeot Series: 208 I (CA_, CC_) Model: 1.2 VTi 68 / PureTech 68 Engine volume: 1.2 Engine type: HMM/HMP(EB2FB/2FAD) Year: 08.16-12.19
    Peugeot Series: 3008 Van Model: PureTech 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 05.16-
    Peugeot Series: 3008 II SUV Model: 1.2 THP/PureTech 130 Engine volume: 1.2 Engine type: Samtliga Year: 05.16-
    Peugeot Series: 301 Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 12.14-
    Peugeot Series: 301 Model: 1.6 LPG Engine volume: 1.6 Engine type: NFP (EC5) Year: 07.14-
    Peugeot Series: 308 II Model: 1.2 VTi 72 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 09.13-06.21
    Peugeot Series: 5008 II Model: 1.2 THP Engine volume: 1.2 Engine type: HNY/HNS(EB2DTS/ADTS) Year: 12.16-
    Peugeot Series: PARTNER Skåp/stor Model: 1.2 THP Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 02.16-
    Toyota Model: Aygo Model series: Aygo Size of motor: 1.2 Brand of engine: 1PP Type description: PAB4_, KGB4_ Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
    Toyota Series: Aygo Model: 1.2 Engine volume: 1.2 Engine type: 1PP Year: 05.14-
    1 / 24
  • Beskrivelse
    HC-Cargo Dynamo 14V - 125A, 6gr

    Spenning: 14
    Amp.: 125
    Pulley avstand.: 42.50
    Bredde/bøssingarm: 21.00
    Monteringsskinne avstand.: 49.00
    Skinnedekke hull: 10.50
    Båndjusteringsbøssing pos.: 47
    Båndjusteringsbøssing hull 1: 10.50
    Pulley diameter: 54.30
    Groover/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Posisjon/B+ i min.: 3
    Rotasjon: Med uret
    Kontakt no.: PL132
    Total lengde mm: 178.00
    Terminaltype: COM
    ID-kode: 33
    Kommunikasjon: LIN
    Pulley: SP/FW
    Vifte: IF
    Regulator type: IR
    Merknader: Denne Generatoren har en COM-terminal på regulatoren. Det anbefales at OEM-nummer brukes for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 49.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 47
    Plug no. PL132
    Bracket hole 10.50
    Position/B+ in min. 3
    Pulley SP/FW
    Pulley dia. 54.30
    Pulley dist. 42.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    ID Code 33
    Terminal type COM
    Voltage 14
    Total length 178.00 mm
    Width/holder arm 21.00
    Amp 125
  • Kjøretøymatching

    • OEM
      F032116237, TG12C106, TG12C228, TG12C261, 1986A00079, 27060-YV030, 116237, 2610711B, 2610711C, 2624851, 2624851A, 2713135A, 1608064580, 9670899580, 9810971880, 9818677980

    • Konkurrentreferens
      A3455S, A3472(VALEO), CAL15590, DRA1103, 8EL011713-601, 28-6839, 225.562.120, 225.580.120, 229.150.1202, 20653N, 20653N-OE, 200281, 200288, 209223, 209223A, 439758, 440350, 440819, 443017, 12090669, 0986083800, 0986085240

    • Bilmärken
      Citroen, DS (Citroen), Opel, Peugeot, Toyota

    • NormaliseratArtNr
      a3455s, a3472valeo, cal15590, dra1103, f032116237, tg12c106, tg12c228, tg12c261, 8el011713601, 1986a00079, 20653n, 20653noe, 27060yv030, 116237, 200281, 200288, 209223, 209223a, 286839, 439758, 440350, 440819, 443017, 2610711b, 2610711c, 2624851, 2624851a, 2713135a, 12090669, 225562120, 225580120, 0986083800, 0986085240, 1608064580, 2291501202, 9670899580, 9810971880, 9818677980

    • Passar modeller
      Citroen Model: Berlingo Model series: Berlingo Model type: Puretech 110 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: B9 Body: Box From date: 01-01-2018 Fuel: Petrol Approved: Yes
      Citroen Model: Berlingo Model series: Berlingo Model type: PureTech 110 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: B9 From date: 01-02-2016 Fuel: Gasoline Approved: Yes
      Citroen Model: Berlingo Model series: Berlingo Model type: VTi 115 Size of motor: 1.6 Brand of engine: NFP (EC5F) Type description: ER_, EC_ Body: MPV Fuel: Petrol Approved: Yes
      Citroen Model: C-Elysee Model series: C-Elysee Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2), HMZ (EB2F) From date: 01-12-2014 Fuel: Gasoline Approved: Yes
      Citroen Model: C1 Model series: C1 Model type: 82 Size of motor: 1.2 Brand of engine: HMT (EB2D) Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes
      Citroen Model: C3 Model series: C3 Aircross Model type: PureTech 130 (2RHNYH) Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: 2R_, 2C_ Body: SUV From date: 01-07-2017 Fuel: Petrol Approved: Yes
      Citroen Model: C3 Model series: C3 Aircross Model type: Puretech 82 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: 2C_, 2R_ Body: Closed Off-Road Vehicle From date: 01-05-2019 Fuel: Petrol Approved: Yes
      Citroen Model: C3 Model series: C3 Model type: 110 Type of engine: VTi Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Hatchback From date: 01-10-2014 Fuel: Gasoline Approved: Yes
      Citroen Model: C3 Model series: C3 Model type: 68 Type of engine: VTi Size of motor: 1.0 Brand of engine: ZMZ (EB0) Body: Hatchback From date: 01-08-2012 Fuel: Gasoline Approved: Yes
      Citroen Model: C3 Model series: C3 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-06-2012 To date: 01-09-2016 Fuel: Gasoline Approved: Yes
      Citroen Model: C3 Model series: C3 Model type: Picasso Type of engine: THP Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: MPV From date: 01-01-2015 Fuel: Gasoline Approved: Yes
      Citroen Model: C3 Model series: C3 Model type: Puretech 110 Size of motor: 1.2 Brand of engine: HNV (EB2DTM) Body: Hatchback From date: 01-06-2017 Fuel: Gasoline Approved: Yes
      Citroen Model: C3 Model series: C3 Model type: Puretech 110 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Hatchback From date: 01-06-2017 Fuel: Gasoline Approved: Yes
      Citroen Model: C3 Model series: C3 Model type: Puretech 110 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: SX_, SY_ Body: Box Body / Hatchback From date: 01-03-2019 Fuel: Petrol Approved: Yes
      Citroen Model: C3 Model series: C3 Model type: THP 110 Size of motor: 1.2 Brand of engine: HNV (EB2DTM) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes
      Citroen Model: C3 Model series: C3 Model type: THP 110 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes
      Citroen Model: C3 Model series: C3 Model type: Vti 68 Size of motor: 1.2 Brand of engine: HMP (EB2FB) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes
      Citroen Model: C3 Model series: C3 Model type: VTi 82 LPG Type of engine: LPG Size of motor: 1.2 Brand of engine: HMZ (EB2F) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Petrol/Electro Approved: Yes
      Citroen Model: C3 Model series: C3 Model type: Vti 82 Size of motor: 1.2 Brand of engine: HMZ (EB2F) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes
      Citroen Model: C3 Model series: C3 Model type: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Type description: SX_, SY_ Body: Hatchback Van From date: 01-07-2016 Fuel: Petrol Approved: Yes
      Citroen Model: C3 Model series: C3 Type of engine: VTI Size of motor: 1.6 Brand of engine: NFP (EC5) Type description: SX Body: Hatchback From date: 01-02-2017 Fuel: Gasoline Approved: Yes
      Citroen Model: C4 Model series: C4 Cactus Model type: 110 Type of engine: THP Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Hatchback From date: 01-09-2014 Fuel: Gasoline Approved: Yes
      Citroen Model: C4 Model series: C4 Cactus Model type: 82 Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-09-2014 Fuel: Gasoline Approved: Yes
      Citroen Model: C4 Model series: C4 Cactus Model type: Puretech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: 0B_, 0P_ Body: Box Body / Hatchback From date: 01-05-2019 Fuel: Petrol Approved: Yes
      Citroen Model: C4 Model series: C4 Cactus Model type: Puretech 82 Size of motor: 1.2 Brand of engine: HMZ (EB2) Type description: 0B_, 0P_ Body: Box Body / Hatchback From date: 01-05-2019 Fuel: Petrol Approved: Yes
      Citroen Model: C4 Model series: C4 Model type: 110 Type of engine: THP Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: B7 Body: Hatchback From date: 01-02-2015 Fuel: Gasoline Approved: Yes
      Citroen Model: C4 Model series: C4 Model type: 130 Type of engine: THP Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: B7 Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes
      Citroen Model: C4 Model series: C4 Model type: Picasso Type of engine: THP Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: MPV From date: 01-04-2014 Fuel: Gasoline Approved: Yes
      Citroen Model: C4 Model series: C4 Model type: THP 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: Hatchback From date: 01-11-2017 Fuel: Gasoline Approved: Yes
      Citroen Model: C4 Model series: C4 Spacetourer Model type: PureTech 110 Size of motor: 1.2 Brand of engine: HNX (EB2DTSD) Body: MPV From date: 01-04-2018 Fuel: Gasoline Approved: Yes
      Citroen Model: C4 Model series: C4 Spacetourer Model type: PureTech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: MPV From date: 01-04-2018 Fuel: Gasoline Approved: Yes
      Citroen Model: C4 Model series: C4 Spacetourer Model type: Puretech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: 3D_ Body: Box Body / Estate From date: 01-05-2019 Fuel: Petrol Approved: Yes Manufacture type: SPACETOURE
      Citroen Model: C4 Model series: Grand C4 Spacetourer Model type: PureTech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: MPV From date: 01-04-2018 Fuel: Gasoline Approved: Yes
      Citroen Model: DS Model series: DS3 Model type: 110 Type of engine: VTi Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Convertible From date: 01-10-2014 To date: 01-07-2015 Fuel: Gasoline Approved: Yes
      Citroen Model: DS Model series: DS3 Model type: 110 Type of engine: VTi Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Hatchback From date: 01-10-2014 To date: 01-03-2015 Fuel: Gasoline Approved: Yes
      Citroen Model: DS Model series: DS3 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Convertible From date: 01-01-2013 To date: 01-07-2015 Fuel: Gasoline Approved: Yes
      Citroen Model: DS Model series: DS3 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-01-2013 To date: 01-03-2015 Fuel: Gasoline Approved: Yes
      Citroen Model: DS Model series: DS4 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: Hatchback From date: 01-07-2014 To date: 01-07-2015 Fuel: Gasoline Approved: Yes
      Citroen Model: Grand C4 Spacetourer Model series: Grand C4 Spacetourer Model type: Puretech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: 3A_, 3E_ Body: Box Body / Estate From date: 01-05-2019 Fuel: Petrol Approved: Yes Manufacture type: SPACETOURE
      Citroen Series: Berlingo MULTISPACE Model: 1.2 PureTech 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 02.16-
      Citroen Series: Berlingo Skåp B9 Model: PureTech 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 01.18-
      Citroen Series: C - ELYSSE Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EBZ2/F) Year: 12.14-
      Citroen Series: C 3 III Model: 1.6 VTi Engine volume: 1.6 Engine type: NFP(EC5) Year: 02.17-
      Citroen Series: C 3 Model: 1.2 VTi Engine volume: 1.2 Engine type: HMZ (EB2/F) Year: 06.12-09.16
      Citroen Series: C 4 Cactus Model: 1.2 THP 110 Engine volume: 1.2 Engine type: Samtliga Year: 09.14-
      Citroen Series: C 4 Cactus Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 09.14-
      Citroen Series: C1 II (PA_, PS_) Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMT(EB2D),HMZ(EB2/F) Year: 04.14-04.18
      Citroen Series: C3 AIRCROSS II Model: 1.2 PURETECH 110 Engine volume: 1.2 Engine type: SAMTLIGA Year: 06.17-
      Citroen Series: C3 AIRCROSS II Model: 1.2 PureTech 130 Engine volume: 1.2 Engine type: Samtliga Year: 07.17-
      Citroen Series: C3 AIRCROSS II VAN Model: PURETECH 82 Engine volume: 1.2 Engine type: HNP<EB2ADT> Year: 05.19-
      Citroen Series: C3 II (SC_) Model: 1.0 VTi 68 Engine volume: 1.0 Engine type: ZMZ (EB0) Year: 08.12-09.16
      Citroen Series: C3 II Model: 1.2 THP 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 10.14-09.16
      Citroen Series: C3 III (SX) Model: 1.2 VTi 68 Engine volume: 1.2 Engine type: HMM(EB2FAD)/P(EB2FB) Year: 07.16-
      Citroen Series: C3 III (SX) Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 07.16-
      Citroen Series: C3 III (SX) Model: 1.2 VTi 82 LPG Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 07.16-
      Citroen Series: C3 III Model: 1.2 THP 110 Engine volume: 1.2 Engine type: Samtliga Year: 07.16-
      Citroen Series: C3 III Van Model: PureTech 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 03.19-
      Citroen Series: C3 III Van(SX_, SY_) Model: 1.2 VTi Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 07.16-
      Citroen Series: C3 PICASSO Model: 1.2 THP 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 01.15-12.15
      Citroen Series: C4 CACTUS Model: 1.2 PURETECH 130 Engine volume: 1.2 Engine type: SAMTLIGA Year: 11.17-
      Citroen Series: C4 CACTUS Van Model: PureTech 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 05.19-
      Citroen Series: C4 CACTUS Van Model: PureTech 82 Engine volume: 1.2 Engine type: HMZ (EB2) Year: 05.19-
      Citroen Series: C4 GRAND PICASSO II Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 04.14-
      Citroen Series: C4 II Model: 1.2 THP 110 Engine volume: 1.2 Engine type: SAMTLIGA Year: 02.15-12.17
      Citroen Series: C4 II Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 04.14-12.17
      Citroen Series: C4 SPACETOURER (3D_) Model: 1.2 PureTech 110 Engine volume: 1.2 Engine type: HNX (EB2DTSD) Year: 04.18-
      Citroen Series: C4 SPACETOURER (3D_) Model: 1.2 PureTech 130 Engine volume: 1.2 Engine type: Samtliga Year: 04.18-
      Citroen Series: C4 SPACETOURER VAN Model: PURETECH 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 05.19-
      Citroen Series: DS3 CABRIOLET Model: 1.2 THP 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 10.14-07.15
      Citroen Series: DS3 Cabriolet Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 01.13-07.15
      Citroen Series: DS3 Model: 1.2 THP 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 10.14-03.15
      Citroen Series: DS3 Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2/EB2F) Year: 01.13-03.15
      Citroen Series: DS4 Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 07.14-07.15
      Citroen Series: GRAND C4 SPACETOURER Model: 1.2 PureTech 130 Engine volume: 1.2 Engine type: SAMTLIGA Year: 04.18-
      Citroen Series: GRAND C4 SPACETOURER Model: PURETECH 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 05.19-
      DS (Citroen) Series: DS 3 (SA_) Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2)/HMZ (EB2F) Year: 04.15-07.19
      DS (Citroen) Series: DS 3 Cabriolet (SB_) Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 07.15-07.19
      DS (Citroen) Series: DS 3 CABRIOLET Model: 1.2 THP 110 Engine volume: 1.2 Engine type: SAMTLIGA Year: 07.15-07.19
      DS (Citroen) Series: DS 3 Cabriolet Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 09.15-07.19
      DS (Citroen) Series: DS 3 Model: 1.2 THP 110 / PURETECH 110 Engine volume: 1.2 Engine type: SAMTLIGA Year: 04.15-07.19
      DS (Citroen) Series: DS 3 Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 09.15-07.19
      DS (Citroen) Series: DS 4 / DS 4 CROSSBAC Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 07.15-12.18
      DS Model: DS 3 Model series: Ds 3 Convertible Model type: THP 110 Size of motor: 1.2 Brand of engine: HNP (EB2ADT), HNZ (EB2DT) Type description: SB_ Body: Convertible Fuel: Petrol Approved: Yes
      DS Model: DS 3 Model series: DS 3 Model type: THP 110 / PureTech 110 (S Size of motor: 1.2 Brand of engine: HNP (EB2ADT), HNZ (EB2DT) Type description: SA_ Body: Hatchback Fuel: Petrol Approved: Yes
      DS Model: DS 3 Model series: DS 3 Model type: THP 130 Type of engine: THP Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: Convertible From date: 01-09-2015 To date: 01-07-2019 Fuel: Gasoline Approved: Yes
      DS Model: DS 3 Model series: DS 3 Model type: THP 130 Type of engine: THP Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: Hatchback From date: 01-09-2015 To date: 01-07-2019 Fuel: Gasoline Approved: Yes
      DS Model: DS 3 Model series: DS 3 Model type: VTi 82 (SAHMZ6) Size of motor: 1.2 Brand of engine: HMZ (EB2), HMZ (EB2F) Type description: SA_ Body: Hatchback Fuel: Petrol Approved: Yes
      DS Model: DS 3 Model series: DS 3 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Convertible From date: 01-07-2015 To date: 01-07-2019 Fuel: Gasoline Approved: Yes
      DS Model: DS 4 Model series: DS 4 / DS 4 Crossback Model type: THP 130 (NXHNYM) Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: NX_ Body: Hatchback Fuel: Petrol Approved: Yes
      Opel Model: Grandland X Model series: Grandland X Size of motor: 1.2 Brand of engine: D12XHT (EB2ADTS) Body: Box Body / Estate From date: 01-04-2018 Fuel: Petrol Approved: Yes
      Opel Series: GRANDLAND X VAN Model: 1.2 (75) Engine volume: 1.2 Engine type: D 12 XHT (EB2ADTS) Year: 04.18-07.21
      Peugeot Model: 2008 Model series: 2008 Model type: 130 Type of engine: THP Size of motor: 1.2 Brand of engine: HNZ (EB2DTS) Body: Estate From date: 01-01-2015 Fuel: Gasoline Approved: Yes
      Peugeot Model: 2008 Model series: 2008 Model type: PureTech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS),HNS (EB2ADTS) Type description: CU_ Body: Box Body / Estate From date: 01-01-2018 Fuel: Petrol Approved: Yes
      Peugeot Model: 208 Model series: 208 Model type: Puretech 82 Type of engine: VTI Size of motor: 1.2 Brand of engine: HMZ (EB2F), HMZ (EB2), HMR (EB2FA) Type description: CR_ Body: Box From date: 01-06-2015 Fuel: Petrol Approved: Yes
      Peugeot Model: 208 Model series: 208 Size of motor: 1.2 Brand of engine: HMP (EB2FB) Body: Hatchback From date: 01-08-2016 Fuel: Gasoline Approved: Yes
      Peugeot Model: 208 Model series: 208 Type of engine: GPL Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Peugeot Model: 3008 Model series: 3008 Model type: PureTech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: MR_, MC_, MJ_ Body: Box Body / Estate From date: 01-05-2016 Fuel: Petrol Approved: Yes
      Peugeot Model: 3008 Model series: 3008 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) From date: 01-05-2016 Fuel: Gasoline Approved: Yes
      Peugeot Model: 301 Model series: 301 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) From date: 01-12-2014 Fuel: Gasoline Approved: Yes
      Peugeot Model: 301 Model series: 301 Model type: LPG Type of engine: LPG Size of motor: 1.6 Brand of engine: NFP (EC5) From date: 01-07-2014 Fuel: Petrol/Electro Approved: Yes
      Peugeot Model: 308 Model series: 308 Model type: 72 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-09-2013 Fuel: Gasoline Approved: Yes
      Peugeot Model: 5008 Model series: 5008 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: MPV From date: 01-12-2016 Fuel: Gasoline Approved: Yes
      Peugeot Model: Grand Raid Model series: Grand Raid Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Box From date: 01-02-2016 Fuel: Petrol Approved: Yes
      Peugeot Series: 2008 I Model: 1.2 THP 130 / PURETECH 130 Engine volume: 1.2 Engine type: SAMTLIGA Year: 01.15-11.19
      Peugeot Series: 2008 I Van Model: PureTech 130 Engine volume: 1.2 Engine type: samtliga Year: 01.18-11.19
      Peugeot Series: 208 I (CA_, CC_) Model: 1.2 GPL Engine volume: 1.2 Engine type: HMX(EB2) / HMZ(EB2F) Year: 06.15-12.19
      Peugeot Series: 208 I (CA_, CC_) Model: 1.2 VTi 68 / PureTech 68 Engine volume: 1.2 Engine type: HMM/HMP(EB2FB/2FAD) Year: 08.16-12.19
      Peugeot Series: 3008 Van Model: PureTech 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 05.16-
      Peugeot Series: 3008 II SUV Model: 1.2 THP/PureTech 130 Engine volume: 1.2 Engine type: Samtliga Year: 05.16-
      Peugeot Series: 301 Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 12.14-
      Peugeot Series: 301 Model: 1.6 LPG Engine volume: 1.6 Engine type: NFP (EC5) Year: 07.14-
      Peugeot Series: 308 II Model: 1.2 VTi 72 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 09.13-06.21
      Peugeot Series: 5008 II Model: 1.2 THP Engine volume: 1.2 Engine type: HNY/HNS(EB2DTS/ADTS) Year: 12.16-
      Peugeot Series: PARTNER Skåp/stor Model: 1.2 THP Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 02.16-
      Toyota Model: Aygo Model series: Aygo Size of motor: 1.2 Brand of engine: 1PP Type description: PAB4_, KGB4_ Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
      Toyota Series: Aygo Model: 1.2 Engine volume: 1.2 Engine type: 1PP Year: 05.14-
      1 / 24

Vi bruker informasjonskapsler for å gi deg den beste opplevelsen på nettstedet vårt. Du godtar bruken av informasjonskapsler ved å trykke OK og fortsette å bla gjennom nettstedet.
