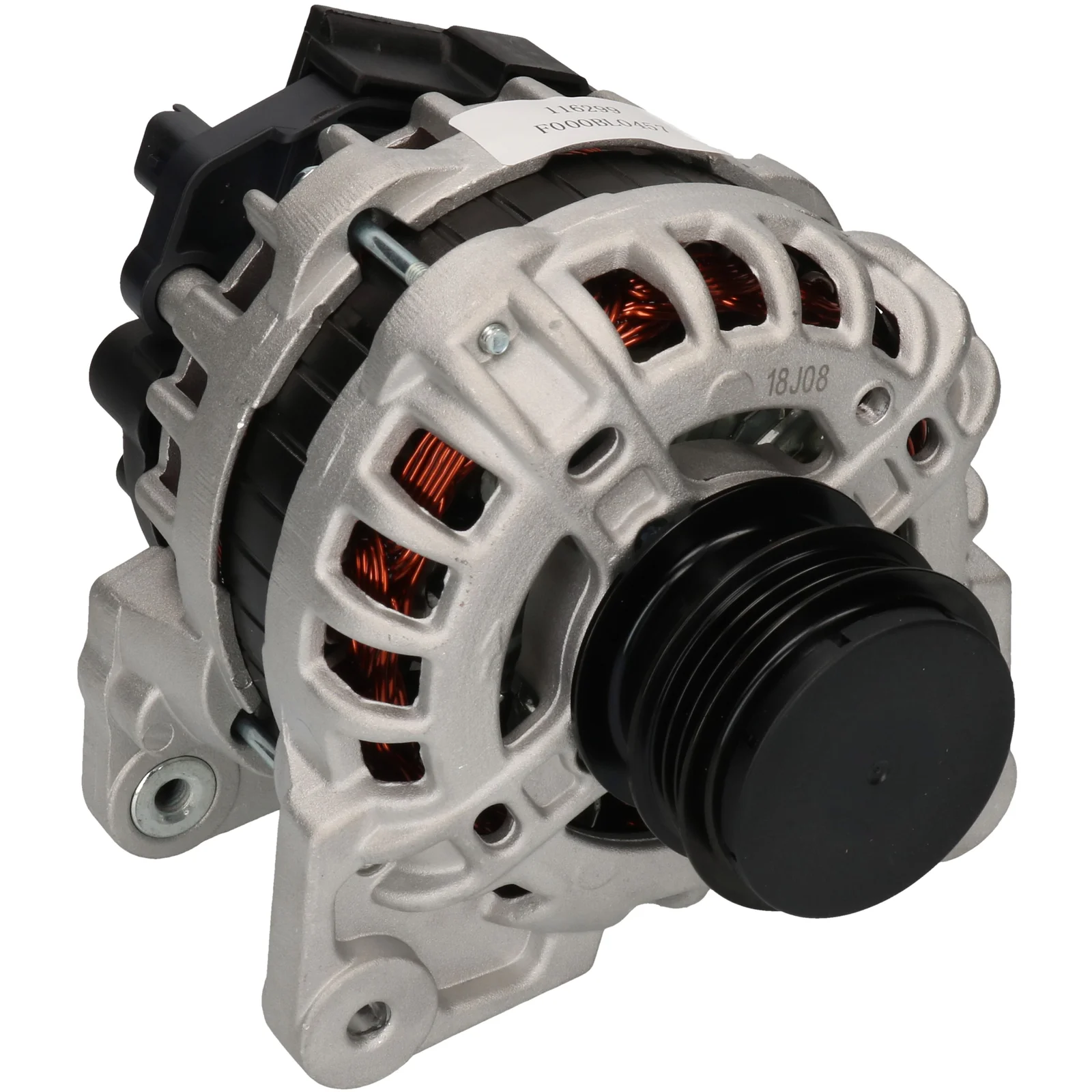

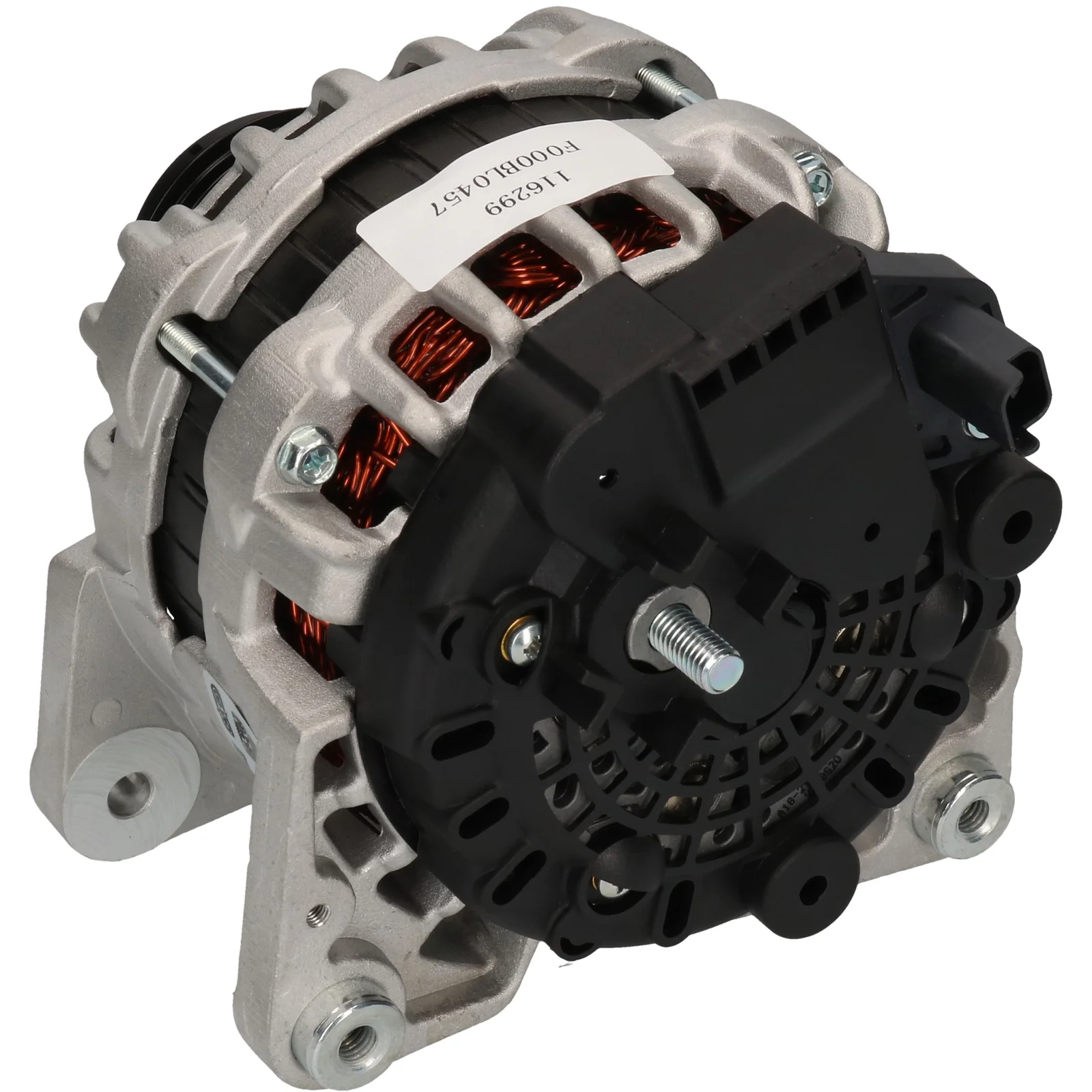

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116299

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 90, Rotasjon: CW, Monteringsfeste avstand: 61,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Amp: 90
Drev: 47.50
Bredde/holderarm: 14.00
Festebrakett avstand: 61.00
Brakett hull: 8.50
Belt. justering brakett hull pos.: 45
Belt. justering brakett hull 1: 8.50
Drev diameter: 58.00
Riller/drev: 3
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 45
D+ Størrelse: Plug
Rotasjon: Med uret
Plugg nr.: PL72
Total lengde mm: 171.00
Terminaltype: L-DFM
Drev: SP/FW
Vifte: IF
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL72
Bracket hole 8.50
Position/B+ in min. 45
Pulley SP/FW
Pulley dia. 58.00
Pulley dist. 47.50
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 3
Terminal type L-DFM
Voltage 14
Total length 171.00 mm
Width/holder arm 14.00
Amp 90

  • OEM
    F000BL0457, F000BL04BC, F032116299, 231008344R, 231008386, 231008386R

  • Konkurrentreferens
    A0597S, CAL10535, 28-7784, 575.952.090, 554490RI, 12090927, 32085050, 0986085050

  • NormaliseratArtNr
    a0597s, cal10535, f000bl0457, f000bl04bc, f032116299, 287784, 554490ri, 12090927, 32085050, 231008344r, 231008386, 231008386r, 575952090, 0986085050

  • Passar modeller
    Dacia Model: Logan Model series: Logan MCV Model type: LPG Type of engine: LPG Size of motor: 1.1 Brand of engine: D4F734 Body: Estate From date: 01-02-2013 Fuel: Petrol/Electro Approved: Yes Manufacture type: MCV
    Dacia Model: Logan Model series: Logan Model type: LPG Size of motor: 1.2 Brand of engine: D4F734 From date: 01-10-2012 Fuel: Bi-Fuel Approved: Yes
    Dacia Model: Logan Model series: Logan Model type: LPG Type of engine: LPG Size of motor: 1.1 Brand of engine: D4F734 From date: 01-02-2013 Fuel: Petrol/Electro Approved: Yes
    Dacia Model: Logan Model series: Logan Size of motor: 1.2 Brand of engine: D4F732 From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Dacia Model: Logan Model series: Logan Size of motor: 1.2 From date: 01-05-2015 Fuel: Gasoline Approved: Yes
    Renault Model: Thalia Model series: Thalia Type of engine: 16V Size of motor: 1.2 From date: 01-12-2013 Fuel: Gasoline Approved: Yes
