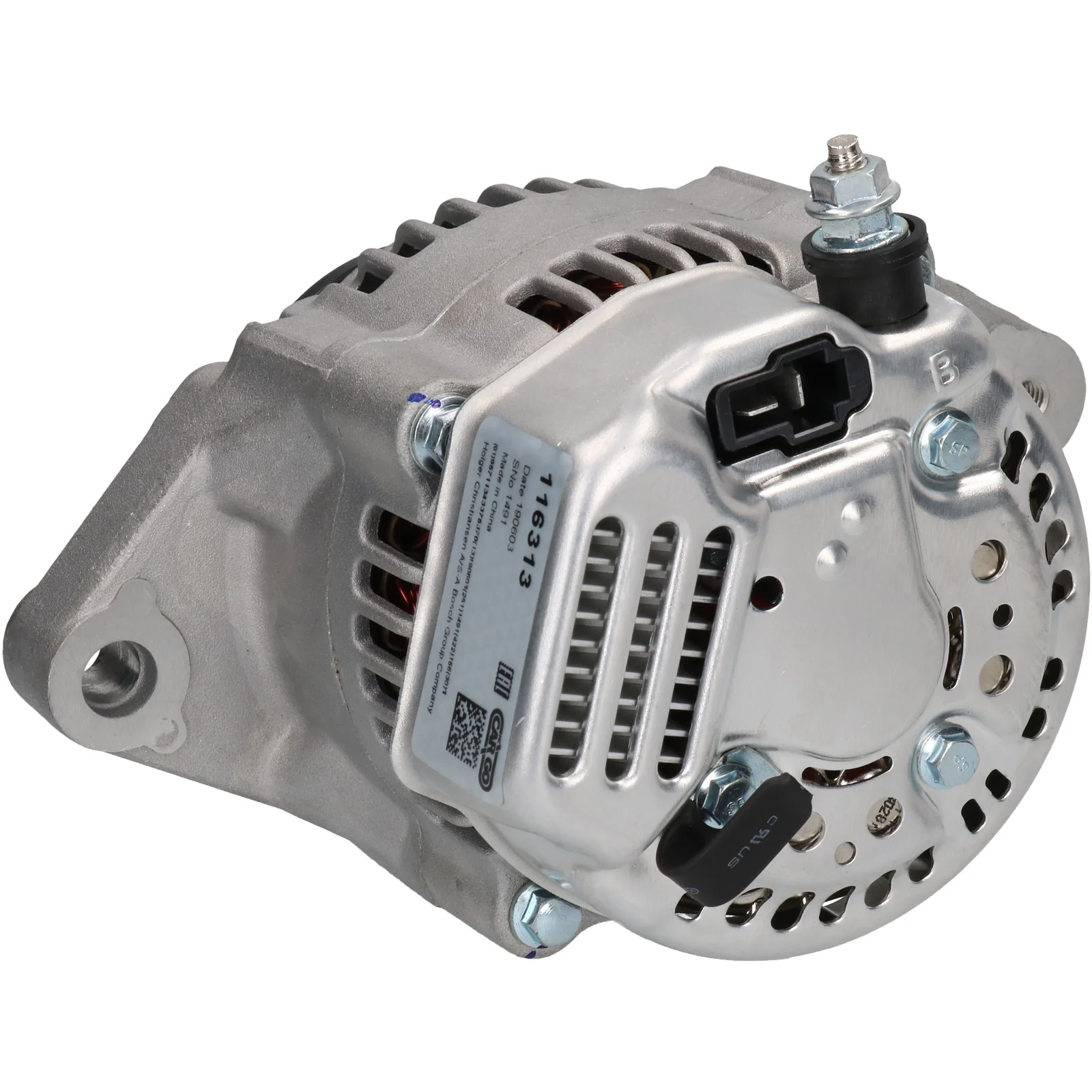

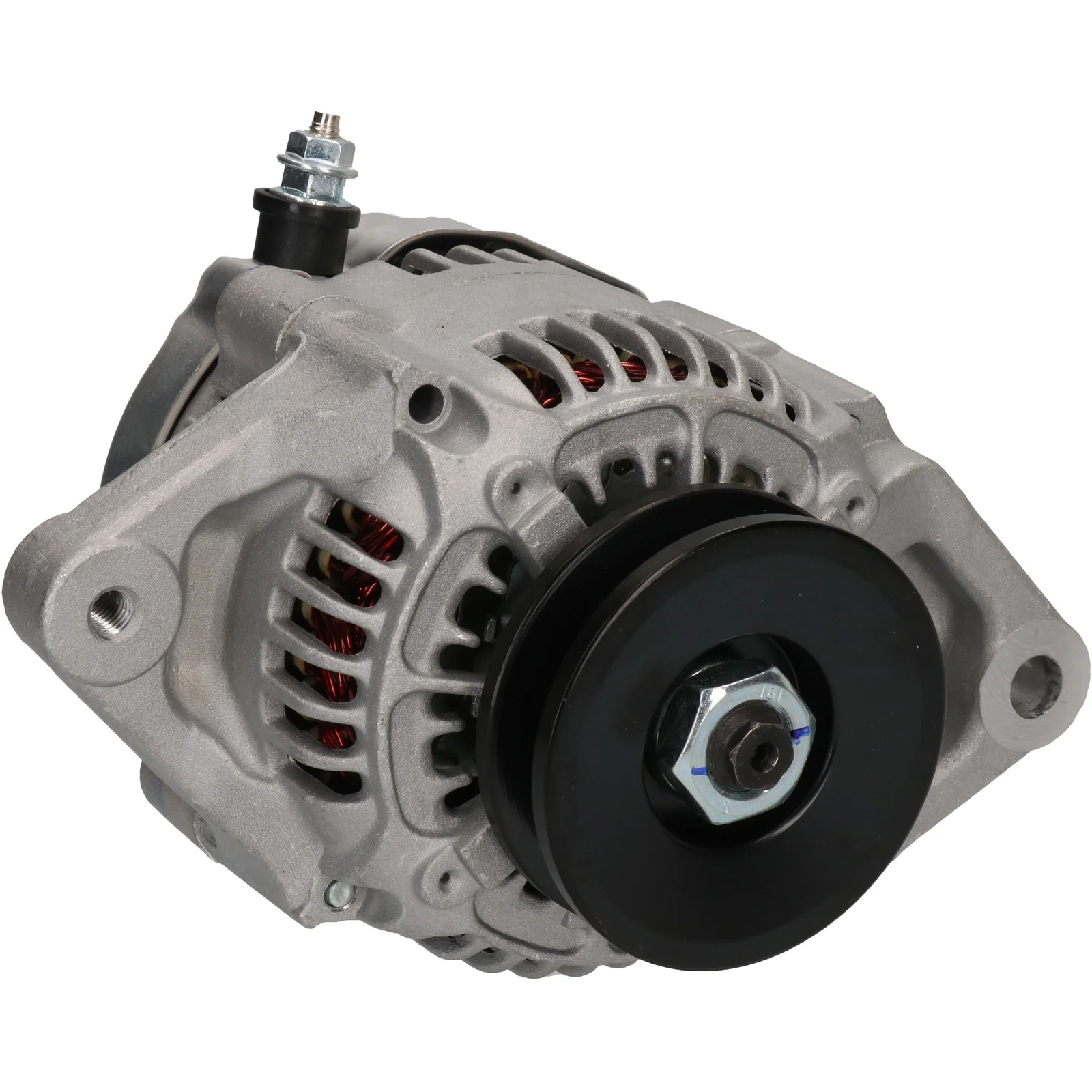

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116313

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 60, Rotasjon: CW, Remskiva dia.: 69,00

Beskrivelse

Spenningsf ofs: 14
Amp.: 60
Drevkugg. dist.: 43.00
Bredde/holderarm: 21.00
Gavl. hull: 10.20
Belt. just. gavl. hull pos.: 60
Belt. just. gavl. hull 1: M8
Drevkugg. diameter: 69.00
Groper/drevkugg.: 1
Radius: 77.50
Radius 2: 75.00
B+: M6
Posisjon/B+ i min.: 45
Rotasjon: med urviseren
Propp nr.: PL10
Total lengde mm: 150.00
Drevkugg.: P
Regulator type: IR

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL10
Bracket hole 10.20
Position/B+ in min. 45
Pulley P
Pulley dia. 69.00
Pulley dist. 43.00
Radius 77.50
Radius 2 75.00
Regulator type IR
Rotation CW
Grooves/pulley 1
Voltage 14
Total length 150.00 mm
Width/holder arm 21.00
Amp 60

  • OEM
    F032116313, 3A611-74012, 3A611-74013, 3a611-74014, 16615-64012, 16615-64013, 16615-64014, 021080-2510, 101211-2490, 101211-2851, 101211-2852, 101211-2853, 101211-8520, 101211-8521, 101211-8522, 101211-8523

  • Konkurrentreferens
    CAL40177, DAN2038, DRA0316, LRA03514, 28-6624, 583.112.602, 695.512.060, 995.507.060, 11903N

  • NormaliseratArtNr
    cal40177, dan2038, dra0316, f032116313, lra03514, 3a61174012, 3a61174013, 3a61174014, 11903n, 286624, 0210802510, 583112602, 695512060, 995507060, 1012112490, 1012112851, 1012112852, 1012112853, 1012118520, 1012118521, 1012118522, 1012118523, 1661564012, 1661564013, 1661564014

  • Passar modeller
    Kubota Model: KX057-4 Model series: KX057-4 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: KX57-6 Model series: KX57-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: L Model series: L5740, L5740HST Brand of engine: V2403-MT-E2 Body: Tractor From date: 01-01-2007 Approved: Yes
    Kubota Model: U40-6 Model series: U40-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: U48-4 Model series: U48-4 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: U55 Model series: U55 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: U55-6 Model series: U55-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsf ofs: 14
    Amp.: 60
    Drevkugg. dist.: 43.00
    Bredde/holderarm: 21.00
    Gavl. hull: 10.20
    Belt. just. gavl. hull pos.: 60
    Belt. just. gavl. hull 1: M8
    Drevkugg. diameter: 69.00
    Groper/drevkugg.: 1
    Radius: 77.50
    Radius 2: 75.00
    B+: M6
    Posisjon/B+ i min.: 45
    Rotasjon: med urviseren
    Propp nr.: PL10
    Total lengde mm: 150.00
    Drevkugg.: P
    Regulator type: IR

    Filer

  • Spesifikasjon
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL10
    Bracket hole 10.20
    Position/B+ in min. 45
    Pulley P
    Pulley dia. 69.00
    Pulley dist. 43.00
    Radius 77.50
    Radius 2 75.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 1
    Voltage 14
    Total length 150.00 mm
    Width/holder arm 21.00
    Amp 60
  • Kjøretøymatching

    • OEM
      F032116313, 3A611-74012, 3A611-74013, 3a611-74014, 16615-64012, 16615-64013, 16615-64014, 021080-2510, 101211-2490, 101211-2851, 101211-2852, 101211-2853, 101211-8520, 101211-8521, 101211-8522, 101211-8523

    • Konkurrentreferens
      CAL40177, DAN2038, DRA0316, LRA03514, 28-6624, 583.112.602, 695.512.060, 995.507.060, 11903N

    • NormaliseratArtNr
      cal40177, dan2038, dra0316, f032116313, lra03514, 3a61174012, 3a61174013, 3a61174014, 11903n, 286624, 0210802510, 583112602, 695512060, 995507060, 1012112490, 1012112851, 1012112852, 1012112853, 1012118520, 1012118521, 1012118522, 1012118523, 1661564012, 1661564013, 1661564014

    • Passar modeller
      Kubota Model: KX057-4 Model series: KX057-4 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
      Kubota Model: KX57-6 Model series: KX57-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
      Kubota Model: L Model series: L5740, L5740HST Brand of engine: V2403-MT-E2 Body: Tractor From date: 01-01-2007 Approved: Yes
      Kubota Model: U40-6 Model series: U40-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
      Kubota Model: U48-4 Model series: U48-4 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
      Kubota Model: U55 Model series: U55 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
      Kubota Model: U55-6 Model series: U55-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
