HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116389

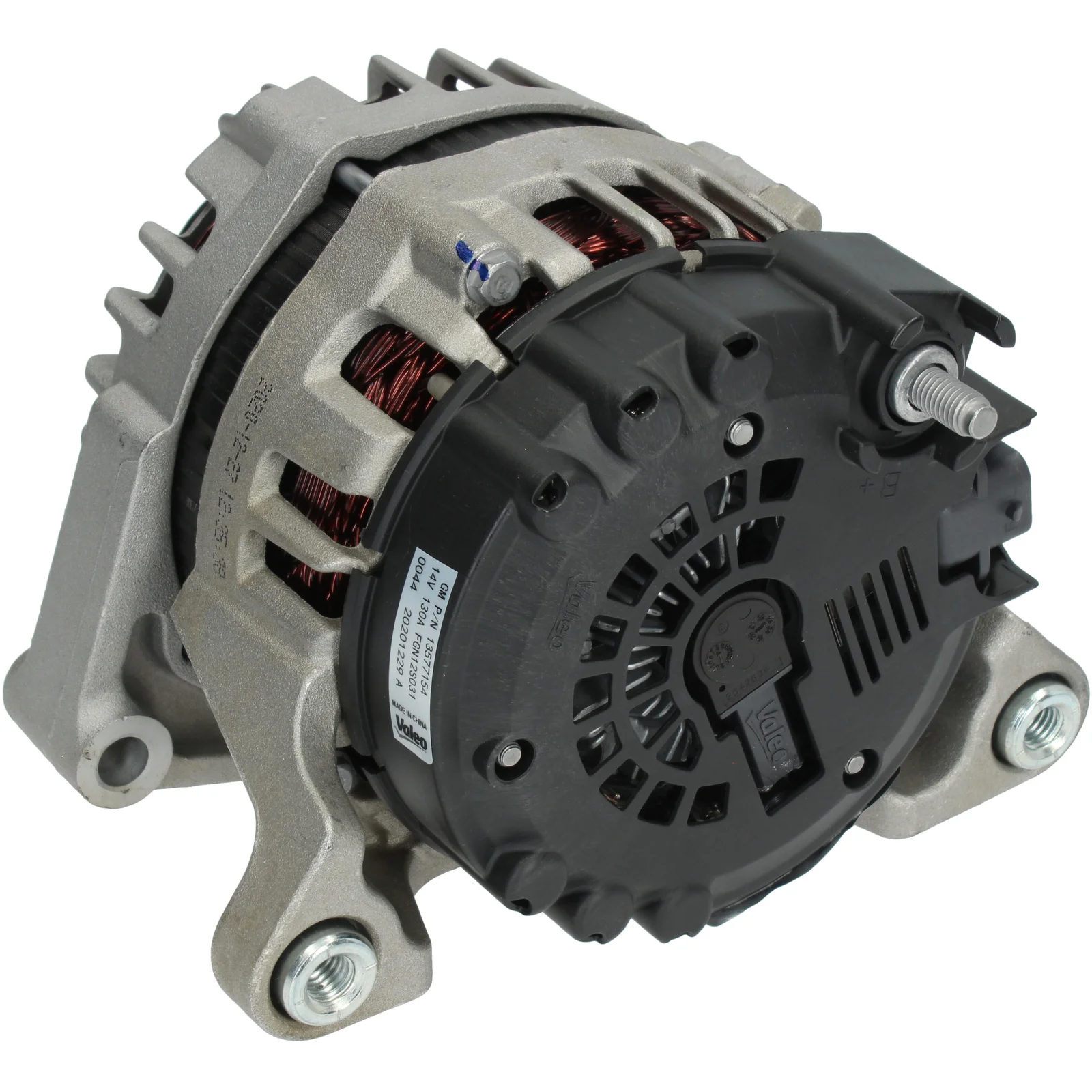

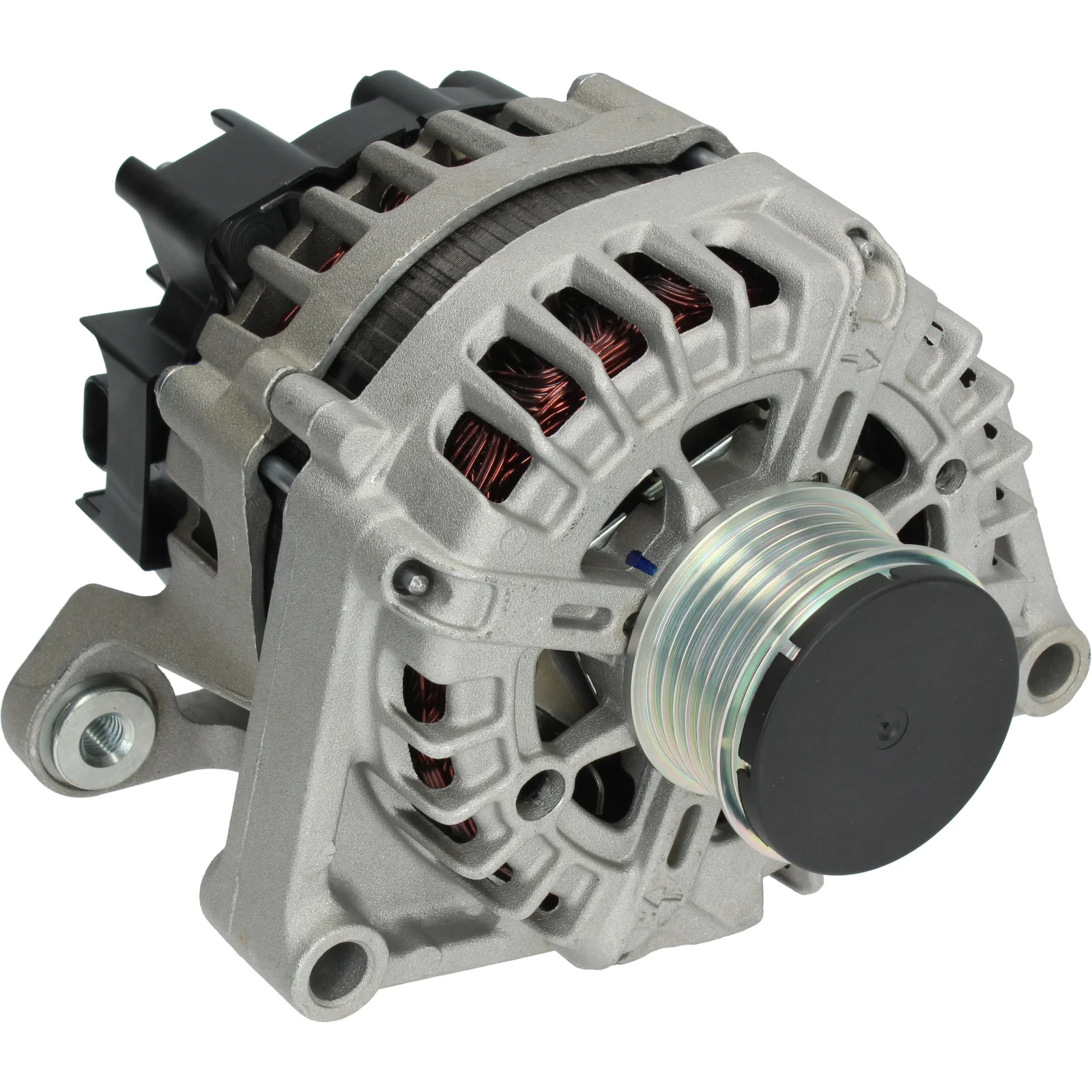

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 120, Rotasjon: CW, Monteringsbrakett avstand.: 60,50

Beskrivelse

Spenningsnivå: 14
Amp: 120
Drevkamp: 54,40
Bredd/holderarm: 33,40
Festebrakett avstand: 60,50
Brakettrom: 10,70
Båndjusteringsbrakettposisjon: 50
Båndjusteringsbrakettrom: 10,60
Drevskive diameter: 53,60
Groper/drevskive: 6
Radius: 92,00
Radius 2: 92,00
B+: M8
Posisjon/B+ i min.: 56
D+: Størrelse: Klemme
Rotasjon: Medurs
Klemme nr.: PL180
Total lengde mm: 187,00
Terminaltype: L-F
Kommunikasjon: PWM
Drevskive: SP/FW
Vifte: IF
Regulator type: IR
Anmerkninger: Denne generatoren har en PWM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnetheten før bestilling.

Filer

Spesifikasjon

B+ M8
Communication PWM
Mount. bracket dist. 60.50
Belt. adj. bracket hole 1 10.60
Belt. adj. brackethole pos. 50
Plug no. PL180
Bracket hole 10.70
Position/B+ in min. 56
Pulley SP/FW
Pulley dia. 53.60
Pulley dist. 54.40
Radius 92.00
D+ Size Plug
Radius 2 92.00
Regulator type IR
Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type L-F
Voltage 14
Total length 187.00 mm
Width/holder arm 33.40
Amp 120

  • OEM
    F032116389, TG12C072, 2605854A, 13500583

  • Konkurrentreferens
    LRA04423, 28-8532, 40729, 89216847

  • NormaliseratArtNr
    f032116389, lra04423, tg12c072, 40729, 288532, 2605854a, 13500583, 89216847

  • Passar modeller
    Opel Model: Astra Model series: Astra J Model type: ecoFlex Size of motor: 1.4 Brand of engine: A14XEL Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: Ecoflex Size of motor: 1.4 Brand of engine: A14XER Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Opel Model: Astra Model series: Astra J Model type: ecoFlex Size of motor: 1.4 Brand of engine: A14XER Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: GTC Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-10-2011 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: LPG Size of motor: 1.4 Brand of engine: A14NET From date: 01-07-2014 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: LPG Type of engine: BiFuel Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-01-2012 To date: 01-10-2015 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Astra Model series: Astra J Size of motor: 1.4 Brand of engine: A14NEL Body: Hatchback From date: 01-10-2011 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Size of motor: 1.4 Brand of engine: A14XER Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Size of motor: 1.4 Brand of engine: A14XER From date: 01-06-2012 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NEL Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NEL Body: Hatchback From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NET Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NET From date: 01-06-2012 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra Sports Tourer Model type: LPG Type of engine: BiFuel Size of motor: 1.4 Brand of engine: A14NET Type description: J Body: Estate From date: 01-12-2011 To date: 01-10-2015 Fuel: Bi-Fuel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK V Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NEL Body: Hatchback From date: 01-08-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Size of motor: 1.4 Brand of engine: A14NEL Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V Size of motor: 1.4 Brand of engine: A14NET Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V Size of motor: 1.4 Brand of engine: A14XER Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V VVT Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V VVT Size of motor: 1.4 Brand of engine: A14XEL Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V VVT Size of motor: 1.4 Brand of engine: A14XER Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
