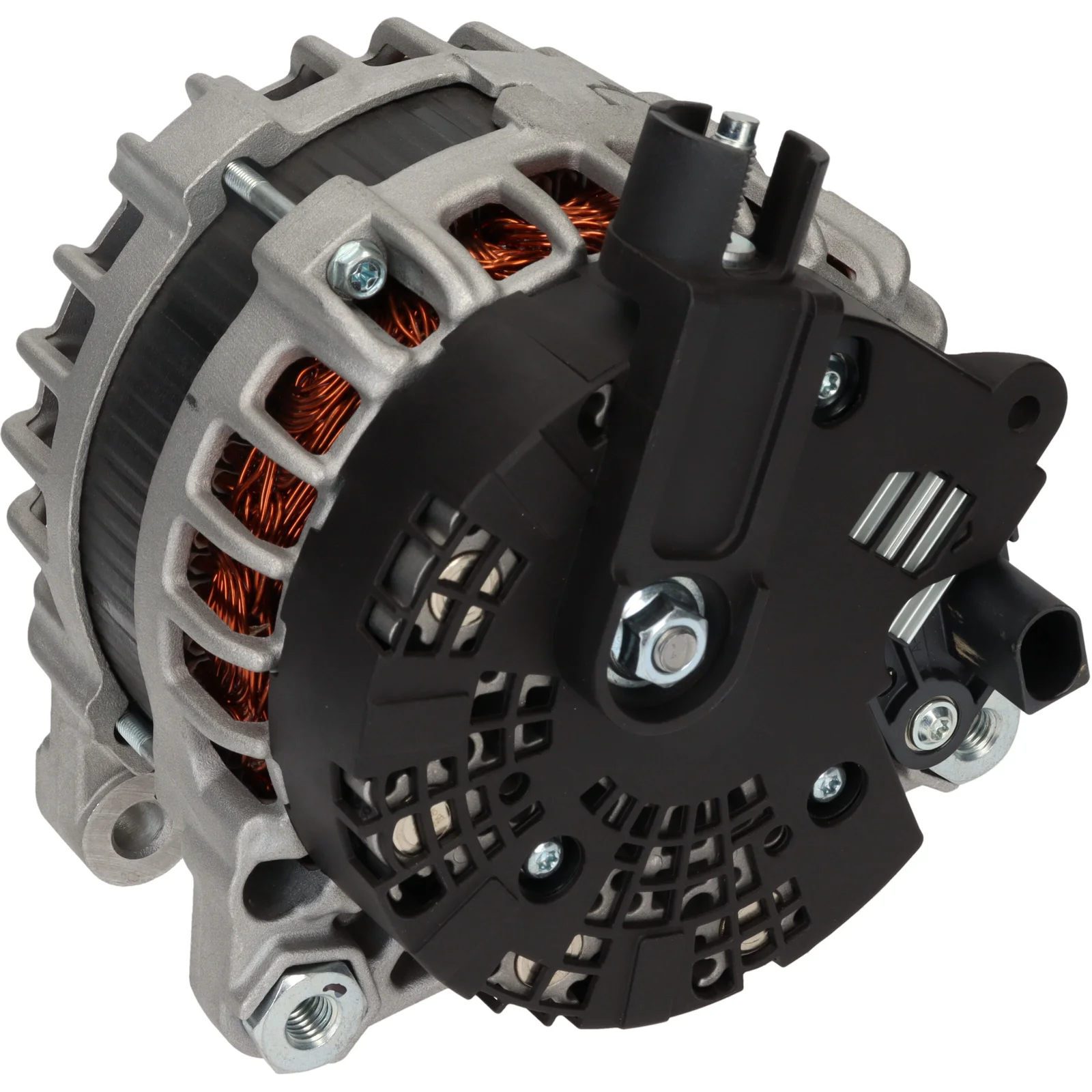

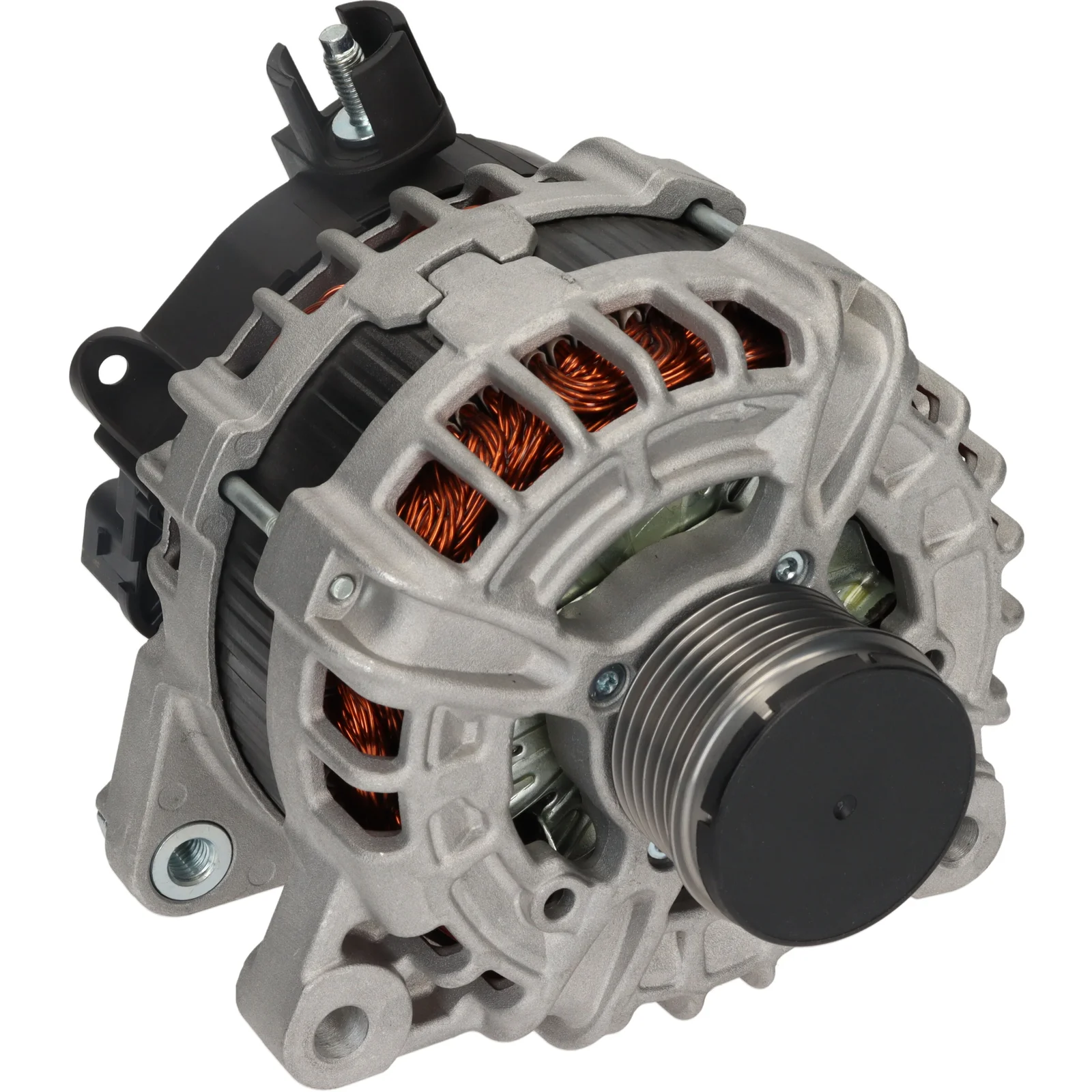

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116408

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 210, Roteringsretning: CW, Montasje. brakett avstand: 44,50

Beskrivelse

Spenning: 14
Amp: 210
Beltepute avstand: 42.80
Bredde/holderarm: 21.50
Festebrakett avstand: 44.50
Brakettåpning: 10.20
Belt. justering brakettåpning pos.: 47
Belt. justering brakettåpning 1: 10.60
Belteput diameter: 54.60
Grooves/beltepute: 6
Radius: 88.50
Radius 2: 91.50
B+: M8
Posisjon/B+ i min.: 53
Rotasjon: CW
Støpselets nummer: PL174
Total lengde mm: 183.00
Terminaltype: COM
ID-kode: 88
Kommunikasjon: LIN
Beltepute: SP/FW
Regulator type: IR
Merknader: Denne generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 44.50
Belt. adj. bracket hole 1 10.60
Belt. adj. brackethole pos. 47
Plug no. PL174
Bracket hole 10.20
Position/B+ in min. 53
Pulley SP/FW
Pulley dia. 54.60
Pulley dist. 42.80
Radius 88.50
Radius 2 91.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
ID Code 88
Terminal type COM
Voltage 14
Total length 183.00 mm
Width/holder arm 21.50
Amp 210

  • OEM
    EJ3210300AC, EJ3210300AD, F032116408, LR047576, LR047579, LR077394, 0125812013, 0125812014, 0125812061, 0125812062

  • Konkurrentreferens
    DRA1494, 28-7672, 20742N-OE, 444254, 12090706, 32009002

  • NormaliseratArtNr
    dra1494, ej3210300ac, ej3210300ad, f032116408, lr047576, lr047579, lr077394, 20742noe, 287672, 444254, 12090706, 32009002, 0125812013, 0125812014, 0125812061, 0125812062

  • Passar modeller
    Land Rover Model: Discovery Model series: Discovery Sport Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: LC From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: ED4 Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: SD4 Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: TD4 Type of engine: TD Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Evoque Model type: 4X4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: L538 Body: Box Body / Estate From date: 01-05-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Evoque Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: L538 Body: Box Body / Estate From date: 01-05-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 14
    Amp: 210
    Beltepute avstand: 42.80
    Bredde/holderarm: 21.50
    Festebrakett avstand: 44.50
    Brakettåpning: 10.20
    Belt. justering brakettåpning pos.: 47
    Belt. justering brakettåpning 1: 10.60
    Belteput diameter: 54.60
    Grooves/beltepute: 6
    Radius: 88.50
    Radius 2: 91.50
    B+: M8
    Posisjon/B+ i min.: 53
    Rotasjon: CW
    Støpselets nummer: PL174
    Total lengde mm: 183.00
    Terminaltype: COM
    ID-kode: 88
    Kommunikasjon: LIN
    Beltepute: SP/FW
    Regulator type: IR
    Merknader: Denne generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 44.50
    Belt. adj. bracket hole 1 10.60
    Belt. adj. brackethole pos. 47
    Plug no. PL174
    Bracket hole 10.20
    Position/B+ in min. 53
    Pulley SP/FW
    Pulley dia. 54.60
    Pulley dist. 42.80
    Radius 88.50
    Radius 2 91.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    ID Code 88
    Terminal type COM
    Voltage 14
    Total length 183.00 mm
    Width/holder arm 21.50
    Amp 210
  • Kjøretøymatching

    • OEM
      EJ3210300AC, EJ3210300AD, F032116408, LR047576, LR047579, LR077394, 0125812013, 0125812014, 0125812061, 0125812062

    • Konkurrentreferens
      DRA1494, 28-7672, 20742N-OE, 444254, 12090706, 32009002

    • NormaliseratArtNr
      dra1494, ej3210300ac, ej3210300ad, f032116408, lr047576, lr047579, lr077394, 20742noe, 287672, 444254, 12090706, 32009002, 0125812013, 0125812014, 0125812061, 0125812062

    • Passar modeller
      Land Rover Model: Discovery Model series: Discovery Sport Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: LC From date: 01-09-2014 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: ED4 Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: SD4 Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: TD4 Type of engine: TD Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Evoque Model type: 4X4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: L538 Body: Box Body / Estate From date: 01-05-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Evoque Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: L538 Body: Box Body / Estate From date: 01-05-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
