HC-Cargo Dynamo

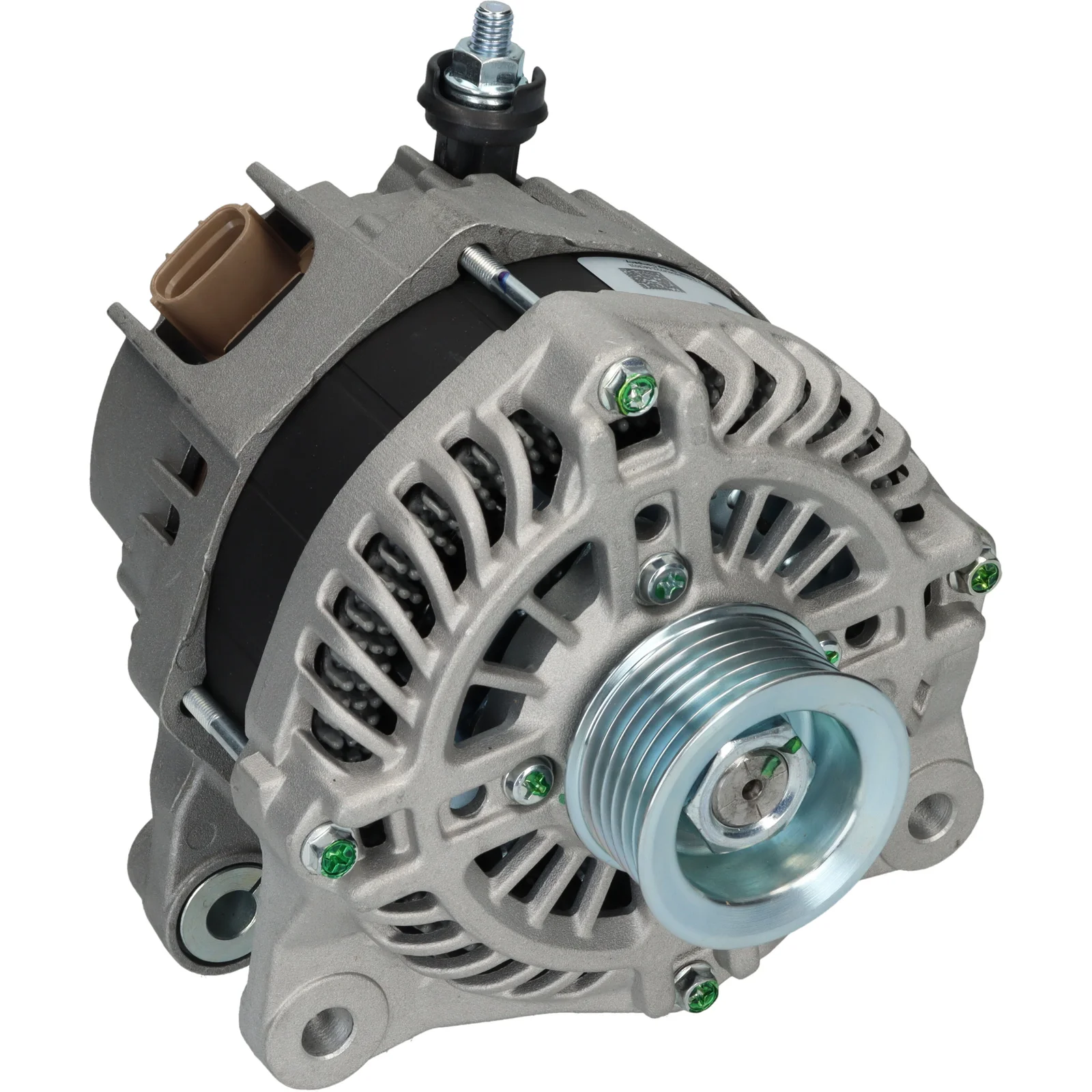

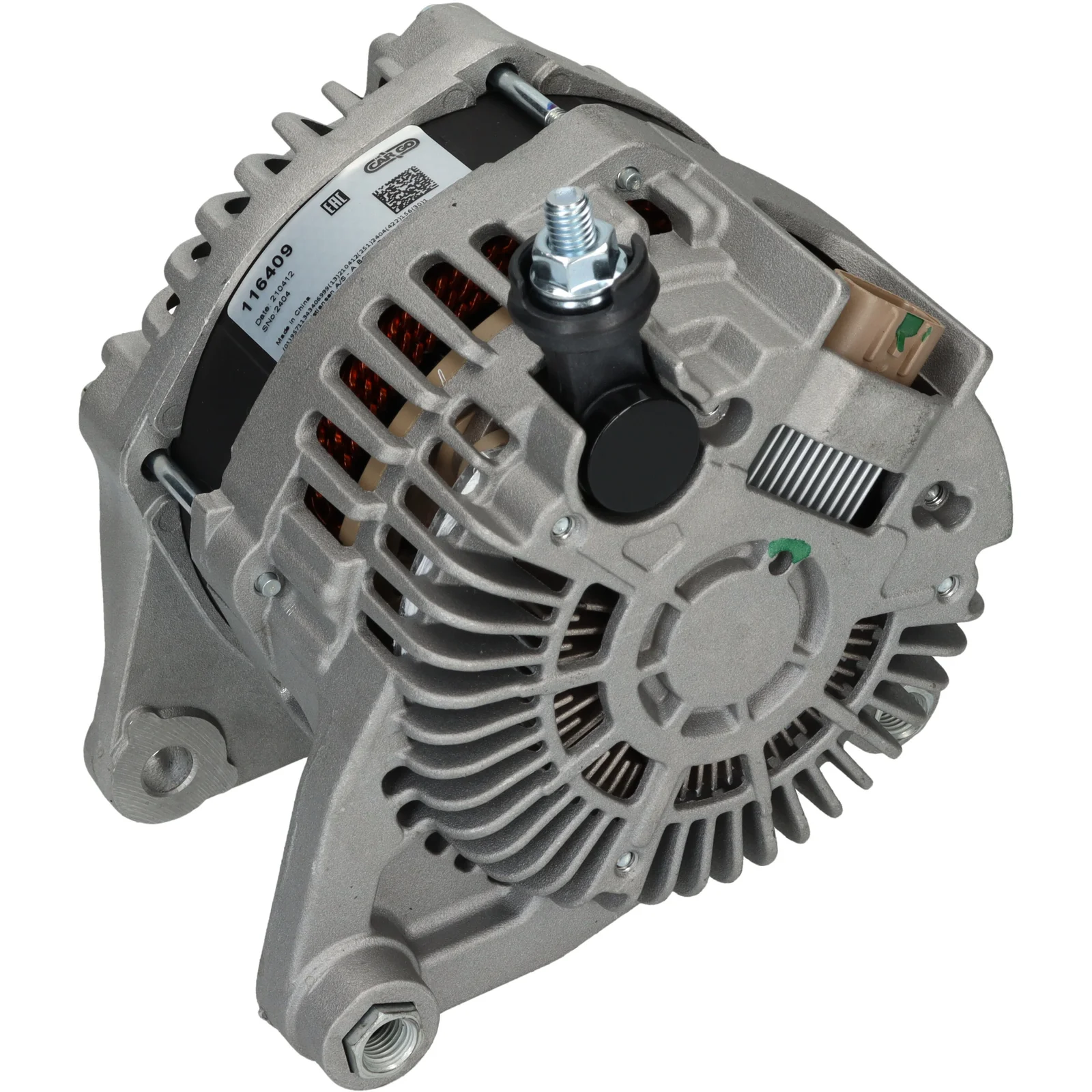

HC-Cargo Dynamo
Varenr.: F032116409

HC-Cargo Dynamo

Teknisk info:

Spenningskilde: 14, Ampere: 150, Monteringsfeste avstand.: 66,50, Remskive diameter.: 51,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Ampere: 150
Reimskivets dist.: 44,50
Bredde/holderarm: 13,00
Festebrakett avstand: 66,50
Brakettønn: 10,50
Båndjust. brakettønn pos.: 46
Båndjust. brakettønn 1: 10,50
Reimskivediameter: 51,00
Groover/reimskive: 6
Radius: 93,00
Radius 2: 86,00
B+: M8
Posisjon/B+ i min.: 48
D+ størrelse: Plugg
Plugg nr.: PL136
Total lengde mm: 160,00
Reimskive: SP

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 66.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 46
Plug no. PL136
Bracket hole 10.50
Position/B+ in min. 48
Pulley SP
Pulley dia. 51.00
Pulley dist. 44.50
Radius 93.00
D+ Size Plug
Radius 2 86.00
Grooves/pulley 6
Voltage 14
Total length 160.00 mm
Width/holder arm 13.00
Amp 150

  • OEM
    A002TX9091, A2TX9091, F032116409, P58G-18-300, P5AC-18-300, PSLE-18-300, PY1C-18-300

  • Konkurrentreferens
    A5389S, CAL35421, 28-7616, 12061186, 0986086370

  • NormaliseratArtNr
    a002tx9091, a2tx9091, a5389s, cal35421, f032116409, p58g18300, p5ac18300, psle18300, py1c18300, 287616, 12061186, 0986086370

  • Passar modeller
    Mazda Model: 2 Model series: 2 Size of motor: 1.5 Brand of engine: P5Y5 Type description: DL, DJ Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Mazda Model: 2 Model series: 2 Size of motor: 1.5 Brand of engine: P5Y7 Type description: DL, DJ Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Mazda Model: 2 Model series: 2 Size of motor: 1.5 Brand of engine: P5Y8 Type description: DL, DJ Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Mazda Model: 3 Model series: 3 Saloon Size of motor: 2.0 Brand of engine: PEY7 Type description: BM_, BN_ Body: Saloon From date: 01-11-2013 To date: 01-05-2016 Fuel: Petrol Approved: Yes
    Mazda Model: 3 Model series: 3 Saloon Size of motor: 2.0 Brand of engine: PEY7 Type description: BM_, BN_ Body: Saloon From date: 01-11-2013 To date: 01-05-2019 Fuel: Petrol Approved: Yes
    Mazda Model: 3 Model series: 3 Size of motor: 1.5 Brand of engine: P5Y1 Type description: BM Body: Box Body / Hatchback From date: 01-04-2015 To date: 01-05-2016 Fuel: Gasoline Approved: Yes
    Mazda Model: 3 Model series: 3 Size of motor: 1.5 Brand of engine: P5Y5 Type description: BM, BN Body: Hatchback From date: 01-10-2013 To date: 01-05-2019 Fuel: Petrol Approved: Yes
    Mazda Model: 3 Model series: 3 Size of motor: 2.0 Brand of engine: PEX2 Type description: BM Body: Box Body / Hatchback From date: 01-04-2015 To date: 01-05-2016 Fuel: Gasoline Approved: Yes
    Mazda Model: 3 Model series: 3 Size of motor: 2.0 Brand of engine: PEY5 Type description: BM_, BN_ Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
    Mazda Model: 3 Model series: 3 Size of motor: 2.0 Brand of engine: PEY5, PEY7 Type description: BM, BN Body: Hatchback Fuel: Petrol Approved: Yes
    Mazda Model: 3 Model series: 3 Size of motor: 2.0 Brand of engine: PEY7 Type description: BM Body: Box Body / Hatchback From date: 01-04-2015 To date: 01-05-2016 Fuel: Gasoline Approved: Yes
    Mazda Model: 3 Model series: 3 Size of motor: 2.0 Brand of engine: PEY7 Type description: BM, BN Body: Hatchback From date: 01-11-2013 To date: 01-05-2016 Fuel: Petrol Approved: Yes
    Mazda Model: 3 Model series: 3 Size of motor: 2.0 Brand of engine: PEY7 Type description: BM, BN Body: Hatchback From date: 01-11-2013 To date: 01-05-2019 Fuel: Petrol Approved: Yes
    Mazda Model: 3 Model series: 3 Size of motor: 2.5 Brand of engine: PYY1 Type description: BM, BN Body: Hatchback From date: 01-11-2013 To date: 01-05-2019 Fuel: Petrol Approved: Yes
    Mazda Model: 3 Model series: 3 Size of motor: 2.5 Brand of engine: PYY1 Type description: BM_, BN_ Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
    Mazda Model: 6 Model series: 6 Model type: (GJ5FP, GJ1031) Size of motor: 2.5 Brand of engine: PY-VPS, PYY1, PYY3 Type description: GJ, GL Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
    Mazda Model: 6 Model series: 6 Model type: (GJ5FW, GJ1031) Size of motor: 2.5 Brand of engine: PY-VPS, PYY1, PYY3 Type description: GJ, GL Body: Estate Fuel: Petrol Approved: Yes Manufacture type: Estate
    Mazda Model: 6 Model series: 6 Model type: (GJ5FW, GL1032, GL1033) Size of motor: 2.5 Brand of engine: PY-VPR, PYZC, PY-RPR Type description: GJ, GL Body: Estate Fuel: Petrol Approved: Yes Manufacture type: Estate
    Mazda Model: 6 Model series: 6 Saloon Size of motor: 2.0 Brand of engine: PEY7 Type description: GJ, GL Body: Saloon From date: 01-12-2012 Fuel: Petrol Approved: Yes
    Mazda Model: 6 Model series: 6 Saloon Size of motor: 2.5 Brand of engine: PYZC Type description: GJ, GL Body: Saloon From date: 01-03-2018 Fuel: Petrol Approved: Yes
    Mazda Model: 6 Model series: 6 Size of motor: 2.0 Brand of engine: PEY5, PEY7 Type description: GJ, GL Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
    Mazda Model: 6 Model series: 6 Size of motor: 2.0 Brand of engine: PEY7 Type description: GJ Body: Box Body / Estate From date: 01-04-2015 To date: 01-05-2016 Fuel: Gasoline Approved: Yes
    Mazda Model: 6 Model series: 6 Size of motor: 2.5 Brand of engine: PYY1 Type description: GJ Body: Box Body / Estate From date: 01-04-2015 To date: 01-05-2016 Fuel: Gasoline Approved: Yes
    Mazda Model: Atenza Model series: Atenza Size of motor: 2.5 Brand of engine: PYZ8,PYZC Type description: GJ, GL Body: Estate From date: 01-03-2018 Fuel: Gasoline Approved: Yes Manufacture type: Estate
    Mazda Model: Atenza Model series: Atenza Size of motor: 2.5 Brand of engine: PYZ8,PYZC Type description: GJ, GL From date: 01-03-2018 Fuel: Gasoline Approved: Yes
    Mazda Model: CX Model series: CX-3 Model type: AWD Size of motor: 2.0 Brand of engine: PEX3, PEXB, PEXT Type description: DK From date: 01-05-2015 Fuel: Gasoline Approved: Yes
    Mazda Model: CX Model series: CX-3 Size of motor: 2.0 Brand of engine: PEX3, PEXB Type description: DK From date: 01-05-2015 Fuel: Gasoline Approved: Yes
    Mazda Model: CX Model series: CX-3 Size of motor: 2.0 Brand of engine: PEXB Type description: DK From date: 01-02-2018 Fuel: Gasoline Approved: Yes
    Mazda Model: CX-3 Model series: CX-3 Model type: SKYACTIV-G AWD Size of motor: 2.0 Brand of engine: PE-VPS Type description: DK Body: SUV From date: 01-07-2015 Fuel: Petrol Approved: Yes
    Mazda Model: CX-5 Model series: CX-5 Model type: AWD (KF4WL) Size of motor: 2.5 Brand of engine: PY-VPS, PY-Y8, PY-ZA Type description: KF Body: SUV Fuel: Petrol Approved: Yes
    Mazda Model: CX-5 Model series: CX-5 Model type: SKYACTIV-D AWD Size of motor: 2.5 Brand of engine: PYY1 Type description: KE_ Body: Box Body / Estate From date: 01-04-2015 To date: 01-02-2017 Fuel: Petrol Approved: Yes
    Mazda Model: MX Model series: MX-5 Size of motor: 1.5 Brand of engine: P5Z1 Type description: ND Body: Targa From date: 01-08-2017 Fuel: Gasoline Approved: Yes
    Mazda Model: MX Model series: MX-5 Size of motor: 2.0 Brand of engine: PEX4, PEX6 Type description: ND Body: Convertible From date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Mazda Model: MX-5 Model series: MX-5 Model type: ND6E Size of motor: 2.0 Brand of engine: PEXF,PE-VPR Type description: ND Body: Convertible From date: 01-05-2018 Fuel: Gasoline Approved: Yes
    Mazda Model: MX-5 RF Model series: MX-5 RF (ND) Size of motor: 2.0 Brand of engine: PEX6 Type description: ND Body: Targa From date: 01-12-2016 Fuel: Gasoline Approved: Yes
    1 / 7
  • Beskrivelse
    Spenning: 14
    Ampere: 150
    Reimskivets dist.: 44,50
    Bredde/holderarm: 13,00
    Festebrakett avstand: 66,50
    Brakettønn: 10,50
    Båndjust. brakettønn pos.: 46
    Båndjust. brakettønn 1: 10,50
    Reimskivediameter: 51,00
    Groover/reimskive: 6
    Radius: 93,00
    Radius 2: 86,00
    B+: M8
    Posisjon/B+ i min.: 48
    D+ størrelse: Plugg
    Plugg nr.: PL136
    Total lengde mm: 160,00
    Reimskive: SP

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 66.50
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 46
    Plug no. PL136
    Bracket hole 10.50
    Position/B+ in min. 48
    Pulley SP
    Pulley dia. 51.00
    Pulley dist. 44.50
    Radius 93.00
    D+ Size Plug
    Radius 2 86.00
    Grooves/pulley 6
    Voltage 14
    Total length 160.00 mm
    Width/holder arm 13.00
    Amp 150
  • Kjøretøymatching

    • OEM
      A002TX9091, A2TX9091, F032116409, P58G-18-300, P5AC-18-300, PSLE-18-300, PY1C-18-300

    • Konkurrentreferens
      A5389S, CAL35421, 28-7616, 12061186, 0986086370

    • NormaliseratArtNr
      a002tx9091, a2tx9091, a5389s, cal35421, f032116409, p58g18300, p5ac18300, psle18300, py1c18300, 287616, 12061186, 0986086370

    • Passar modeller
      Mazda Model: 2 Model series: 2 Size of motor: 1.5 Brand of engine: P5Y5 Type description: DL, DJ Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
      Mazda Model: 2 Model series: 2 Size of motor: 1.5 Brand of engine: P5Y7 Type description: DL, DJ Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
      Mazda Model: 2 Model series: 2 Size of motor: 1.5 Brand of engine: P5Y8 Type description: DL, DJ Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
      Mazda Model: 3 Model series: 3 Saloon Size of motor: 2.0 Brand of engine: PEY7 Type description: BM_, BN_ Body: Saloon From date: 01-11-2013 To date: 01-05-2016 Fuel: Petrol Approved: Yes
      Mazda Model: 3 Model series: 3 Saloon Size of motor: 2.0 Brand of engine: PEY7 Type description: BM_, BN_ Body: Saloon From date: 01-11-2013 To date: 01-05-2019 Fuel: Petrol Approved: Yes
      Mazda Model: 3 Model series: 3 Size of motor: 1.5 Brand of engine: P5Y1 Type description: BM Body: Box Body / Hatchback From date: 01-04-2015 To date: 01-05-2016 Fuel: Gasoline Approved: Yes
      Mazda Model: 3 Model series: 3 Size of motor: 1.5 Brand of engine: P5Y5 Type description: BM, BN Body: Hatchback From date: 01-10-2013 To date: 01-05-2019 Fuel: Petrol Approved: Yes
      Mazda Model: 3 Model series: 3 Size of motor: 2.0 Brand of engine: PEX2 Type description: BM Body: Box Body / Hatchback From date: 01-04-2015 To date: 01-05-2016 Fuel: Gasoline Approved: Yes
      Mazda Model: 3 Model series: 3 Size of motor: 2.0 Brand of engine: PEY5 Type description: BM_, BN_ Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
      Mazda Model: 3 Model series: 3 Size of motor: 2.0 Brand of engine: PEY5, PEY7 Type description: BM, BN Body: Hatchback Fuel: Petrol Approved: Yes
      Mazda Model: 3 Model series: 3 Size of motor: 2.0 Brand of engine: PEY7 Type description: BM Body: Box Body / Hatchback From date: 01-04-2015 To date: 01-05-2016 Fuel: Gasoline Approved: Yes
      Mazda Model: 3 Model series: 3 Size of motor: 2.0 Brand of engine: PEY7 Type description: BM, BN Body: Hatchback From date: 01-11-2013 To date: 01-05-2016 Fuel: Petrol Approved: Yes
      Mazda Model: 3 Model series: 3 Size of motor: 2.0 Brand of engine: PEY7 Type description: BM, BN Body: Hatchback From date: 01-11-2013 To date: 01-05-2019 Fuel: Petrol Approved: Yes
      Mazda Model: 3 Model series: 3 Size of motor: 2.5 Brand of engine: PYY1 Type description: BM, BN Body: Hatchback From date: 01-11-2013 To date: 01-05-2019 Fuel: Petrol Approved: Yes
      Mazda Model: 3 Model series: 3 Size of motor: 2.5 Brand of engine: PYY1 Type description: BM_, BN_ Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
      Mazda Model: 6 Model series: 6 Model type: (GJ5FP, GJ1031) Size of motor: 2.5 Brand of engine: PY-VPS, PYY1, PYY3 Type description: GJ, GL Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
      Mazda Model: 6 Model series: 6 Model type: (GJ5FW, GJ1031) Size of motor: 2.5 Brand of engine: PY-VPS, PYY1, PYY3 Type description: GJ, GL Body: Estate Fuel: Petrol Approved: Yes Manufacture type: Estate
      Mazda Model: 6 Model series: 6 Model type: (GJ5FW, GL1032, GL1033) Size of motor: 2.5 Brand of engine: PY-VPR, PYZC, PY-RPR Type description: GJ, GL Body: Estate Fuel: Petrol Approved: Yes Manufacture type: Estate
      Mazda Model: 6 Model series: 6 Saloon Size of motor: 2.0 Brand of engine: PEY7 Type description: GJ, GL Body: Saloon From date: 01-12-2012 Fuel: Petrol Approved: Yes
      Mazda Model: 6 Model series: 6 Saloon Size of motor: 2.5 Brand of engine: PYZC Type description: GJ, GL Body: Saloon From date: 01-03-2018 Fuel: Petrol Approved: Yes
      Mazda Model: 6 Model series: 6 Size of motor: 2.0 Brand of engine: PEY5, PEY7 Type description: GJ, GL Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
      Mazda Model: 6 Model series: 6 Size of motor: 2.0 Brand of engine: PEY7 Type description: GJ Body: Box Body / Estate From date: 01-04-2015 To date: 01-05-2016 Fuel: Gasoline Approved: Yes
      Mazda Model: 6 Model series: 6 Size of motor: 2.5 Brand of engine: PYY1 Type description: GJ Body: Box Body / Estate From date: 01-04-2015 To date: 01-05-2016 Fuel: Gasoline Approved: Yes
      Mazda Model: Atenza Model series: Atenza Size of motor: 2.5 Brand of engine: PYZ8,PYZC Type description: GJ, GL Body: Estate From date: 01-03-2018 Fuel: Gasoline Approved: Yes Manufacture type: Estate
      Mazda Model: Atenza Model series: Atenza Size of motor: 2.5 Brand of engine: PYZ8,PYZC Type description: GJ, GL From date: 01-03-2018 Fuel: Gasoline Approved: Yes
      Mazda Model: CX Model series: CX-3 Model type: AWD Size of motor: 2.0 Brand of engine: PEX3, PEXB, PEXT Type description: DK From date: 01-05-2015 Fuel: Gasoline Approved: Yes
      Mazda Model: CX Model series: CX-3 Size of motor: 2.0 Brand of engine: PEX3, PEXB Type description: DK From date: 01-05-2015 Fuel: Gasoline Approved: Yes
      Mazda Model: CX Model series: CX-3 Size of motor: 2.0 Brand of engine: PEXB Type description: DK From date: 01-02-2018 Fuel: Gasoline Approved: Yes
      Mazda Model: CX-3 Model series: CX-3 Model type: SKYACTIV-G AWD Size of motor: 2.0 Brand of engine: PE-VPS Type description: DK Body: SUV From date: 01-07-2015 Fuel: Petrol Approved: Yes
      Mazda Model: CX-5 Model series: CX-5 Model type: AWD (KF4WL) Size of motor: 2.5 Brand of engine: PY-VPS, PY-Y8, PY-ZA Type description: KF Body: SUV Fuel: Petrol Approved: Yes
      Mazda Model: CX-5 Model series: CX-5 Model type: SKYACTIV-D AWD Size of motor: 2.5 Brand of engine: PYY1 Type description: KE_ Body: Box Body / Estate From date: 01-04-2015 To date: 01-02-2017 Fuel: Petrol Approved: Yes
      Mazda Model: MX Model series: MX-5 Size of motor: 1.5 Brand of engine: P5Z1 Type description: ND Body: Targa From date: 01-08-2017 Fuel: Gasoline Approved: Yes
      Mazda Model: MX Model series: MX-5 Size of motor: 2.0 Brand of engine: PEX4, PEX6 Type description: ND Body: Convertible From date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Mazda Model: MX-5 Model series: MX-5 Model type: ND6E Size of motor: 2.0 Brand of engine: PEXF,PE-VPR Type description: ND Body: Convertible From date: 01-05-2018 Fuel: Gasoline Approved: Yes
      Mazda Model: MX-5 RF Model series: MX-5 RF (ND) Size of motor: 2.0 Brand of engine: PEX6 Type description: ND Body: Targa From date: 01-12-2016 Fuel: Gasoline Approved: Yes
      1 / 7
