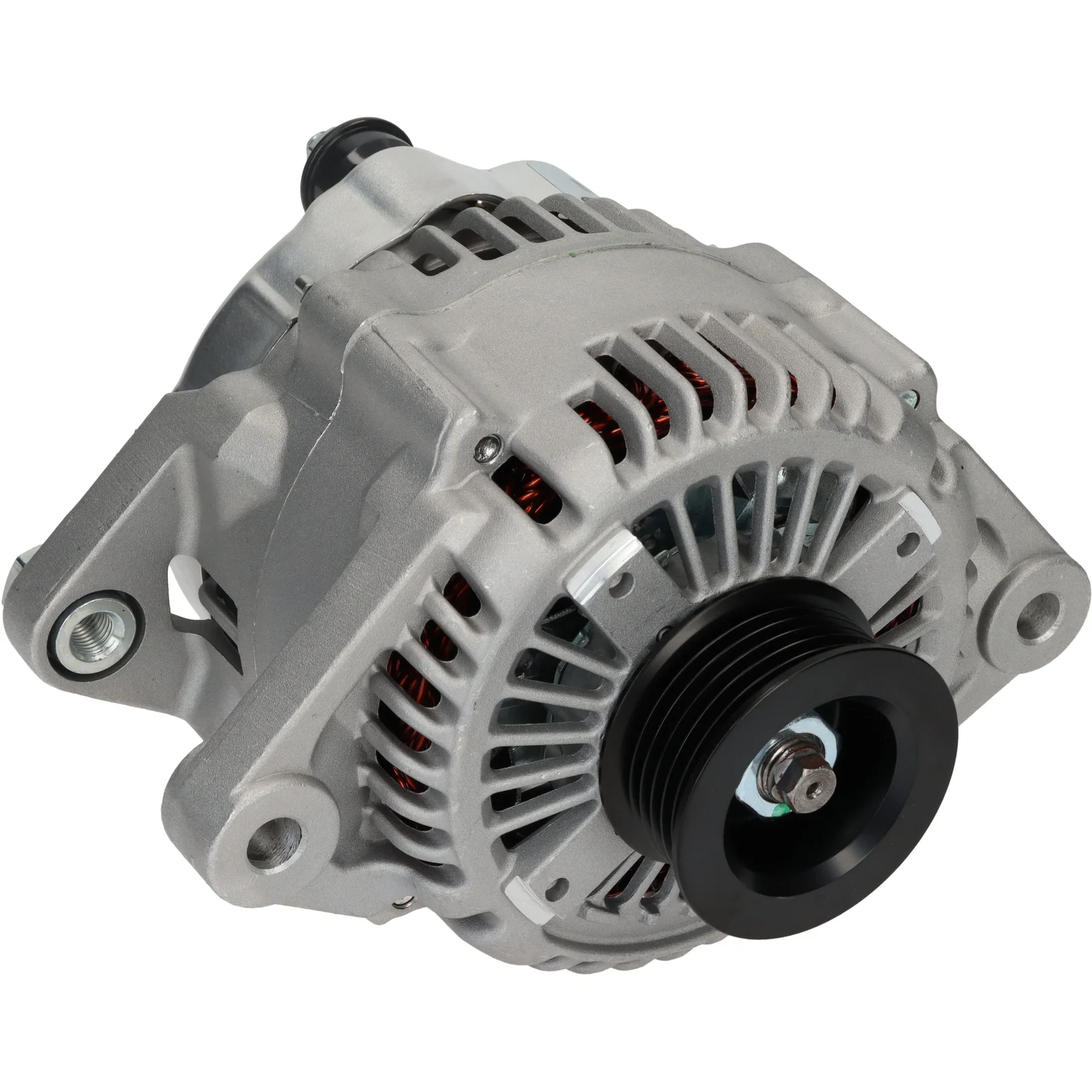

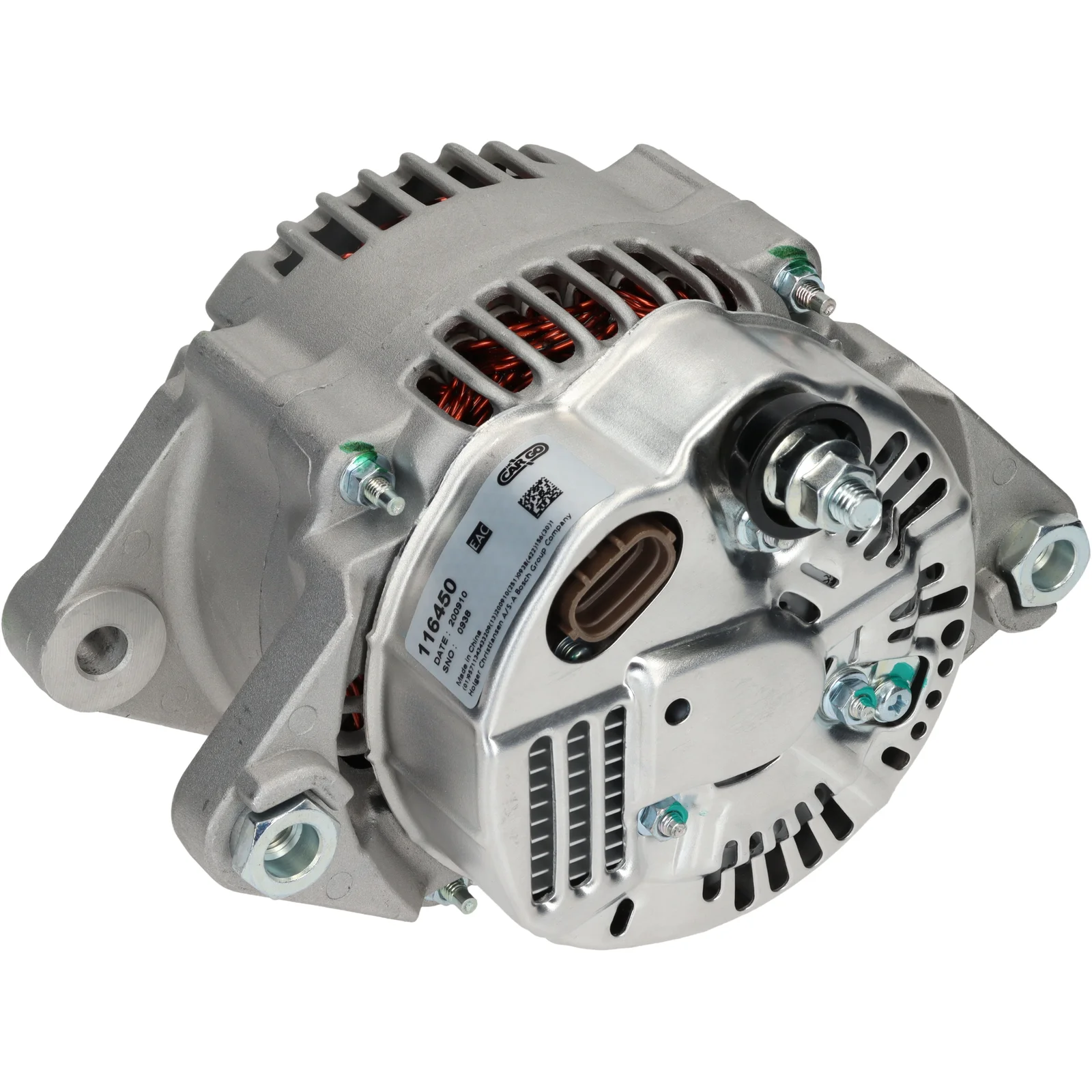

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116450

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Strøm: 130, Revolusjon: CW, Monteringsbrakett avstand: 56.00

Beskrivelse

Målingsspenning: 14
Ampere: 130
Remskive dist.: 42.00
Bredde/holderarm: 20.00
Monteringsbøssing avstand.: 56.00
Bøssingshull: 10.50
Bånd. justeringsbøssingshull pos.: 57
Bånd. justeringsbøssingshull 1: 10.50
Bånd. justeringsbøssingshull 2: M10-1.25
Remskive dia.: 57.00
Riller/remskive: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 46
D+ Størrelse: Plugg
Rotasjon: Klokke til venstre
Pluggnr.: PL133
Total lengde mm: 189.00
Terminaltype: FR-L
Remskive: SP
Vifte: IF
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 10.50
Belt. adj. bracket hole 2 M10-1.25
Belt. adj. brackethole pos. 57
Plug no. PL133
Bracket hole 10.50
Position/B+ in min. 46
Pulley SP
Pulley dia. 57.00
Pulley dist. 42.00
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type FR-L
Voltage 14
Total length 189.00 mm
Width/holder arm 20.00
Amp 130

  • OEM
    F032116450, 02131-9271, 37300-3e100

  • Konkurrentreferens
    A9356S, CAL32153, DRA1083, 28-6998, 155.592.130, 224.321.1302, 11190N, 12061007

  • NormaliseratArtNr
    a9356s, cal32153, dra1083, f032116450, 11190n, 286998, 373003e100, 12061007, 021319271, 155592130, 2243211302

  • Passar modeller
    Hyundai Model: Santa F Model series: Santa F Model type: 4WD GLS Type of engine: V6 Size of motor: 2.7 Brand of engine: G6EA Body: SUV From date: 01-03-2006 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Model type: 4x4 Size of motor: 2.7 Brand of engine: G6BA Type description: CM Body: SUV From date: 01-03-2006 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Model type: GLS Type of engine: V6 Size of motor: 2.7 Brand of engine: G6EA Body: SUV From date: 01-03-2006 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Size of motor: 2.7 Brand of engine: G6BA Type description: CM Body: SUV From date: 01-03-2006 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Size of motor: 2.7 Brand of engine: G6EA Type description: CM Body: Box Body / Estate From date: 01-01-2007 To date: 01-12-2008 Fuel: Petrol Approved: Yes
    Hyundai Model: Santa F? Model series: Santa F? Model type: GLS Size of motor: 2.7 Brand of engine: G6EA Type description: CM Body: SUV Van Fuel: Petrol Approved: Yes
    Kia Model: Carnival Model series: Carnival Type of engine: V6 Size of motor: 2.7 Brand of engine: G6EA Type description: UVP_ Body: MPV From date: 01-06-2006 Fuel: Gasoline Approved: Yes
    Kia Model: Magentis Model series: Magentis Size of motor: 2.7 Brand of engine: G6EA From date: 01-11-2005 Fuel: Gasoline Approved: Yes
    Kia Model: Magentis Model series: Magentis Type of engine: V6 Size of motor: 2.7 Brand of engine: G6EA Type description: MG From date: 01-07-2009 Fuel: Gasoline Approved: Yes
