HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116452

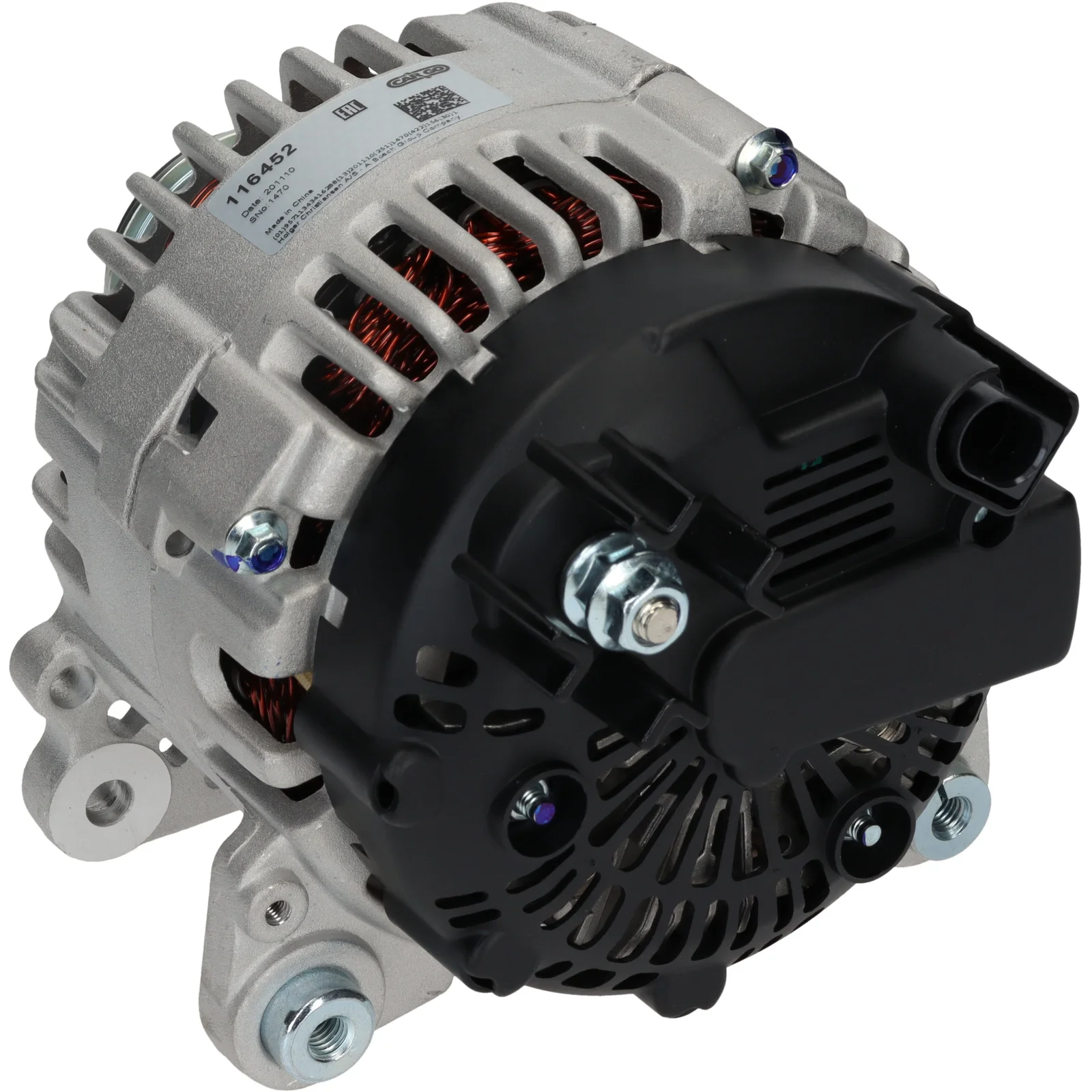

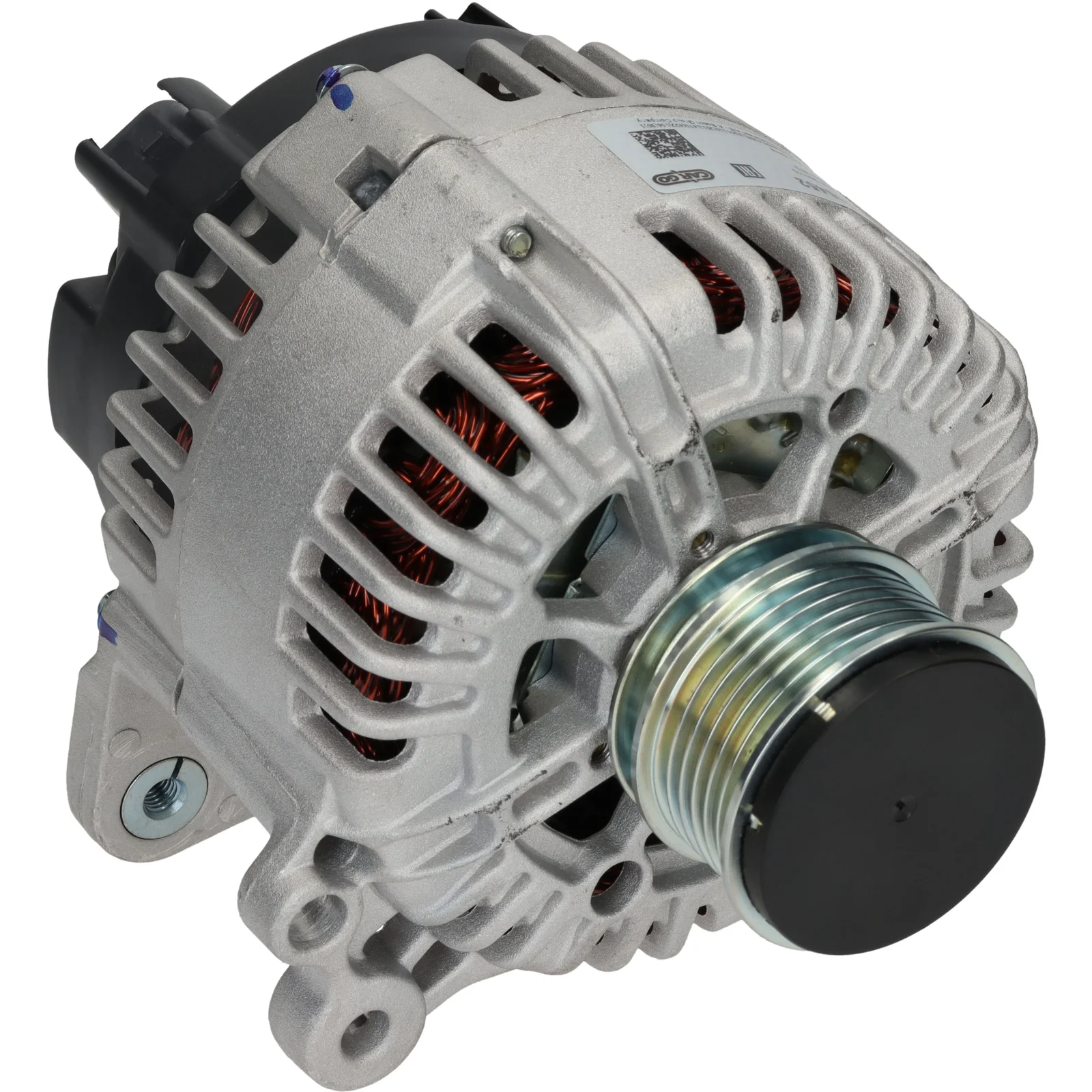

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 140, Rotasjon: CW, Festebrakett avstand: 61.00

Beskrivelse

Spenning: 14
Ampere: 140
Bøssing avDriv : 40.00
Bredde/holderarm: 13.70
Festeramme avstand: 61.00
Festerhull: 8.50
Båndjust. Brakethull pos.: 45
Båndjust. brakethull 1: 8.50
Båndjust. brakethull 2: M8
Driv diameter: 56.00
Gunner/Driv: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 46
Rotasjon: CW
Stikkontaktnummer: PL181
Total lengde mm: 189.00
Klemme type: COM
Kommunikasjon: LIN
Driv: SP/FW
Vifte: IF
Regulator type: IR
Merknader: Denne generatoren har en COM-klemme på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. bracket hole 2 M8
Belt. adj. brackethole pos. 45
Plug no. PL181
Bracket hole 8.50
Position/B+ in min. 46
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 40.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 189.00 mm
Width/holder arm 13.70
Amp 140

  • OEM
    A3273, A3273(VALEO), A3273PR, F032116452, TG14C031, 03L903023, 03L903023A, 03L903023AX, 03L903023X, 03L903024, 03L903024M, 03L903024MX, 03L903024X, 03L906023, 3L903023, 3L903023A, 3L903023AX, 3L903023X, 3L903024M, 04B903023B, 04B903023BX, 04B903023D, 04B903023DX, 04B903024, 04B903024X, 8EL012241-261, 28-5954, 305.988.140, 200232, 439724, 2608901A, 2608901C

  • Konkurrentreferens
    A3273, A3273(VALEO), A3273PR, 8EL012241-261, 28-5954, 305.988.140, 200232, 439724

  • Bilmärken
    AUDI, SEAT, SKODA, VW

  • NormaliseratArtNr
    a3273, a3273pr, a3273valeo, f032116452, tg14c031, 03l903023, 03l903023a, 03l903023ax, 03l903023x, 03l903024, 03l903024m, 03l903024mx, 03l903024x, 03l906023, 3l903023, 3l903023a, 3l903023ax, 3l903023x, 3l903024m, 04b903023b, 04b903023bx, 04b903023d, 04b903023dx, 04b903024, 04b903024x, 8el012241261, 200232, 285954, 439724, 2608901a, 2608901c, 305988140

  • Passar modeller
    AUDI A1 (8X1, 8XK) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 11.14-10.18
    AUDI A1 (8X1, 8XK) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 03.11-04.15
    AUDI A1 (8X1, 8XK) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 05.10-04.15
    AUDI A1 (8X1, 8XK) 2.0 TDI Engine volume: 2.0 Engine type: CFHD Year: 09.11-04.15
    AUDI A1 (8X1, 8XK) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CDLH Year: 03.12-11.12
    AUDI A1 Sportback (8XA, 8XF) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 11.14-10.18
    AUDI A1 Sportback (8XA, 8XF) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 11.11-04.15
    AUDI A1 Sportback (8XA, 8XF) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 11.11-04.15
    AUDI A1 Sportback (8XA, 8XF) 2.0 TDI Engine volume: 2.0 Engine type: CFHD Year: 09.11-04.15
    AUDI A3 (8P1) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 05.09-08.12
    AUDI A3 (8P1) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 05.09-08.12
    AUDI A3 (8P1) 2.0 TDI 16V Engine volume: 2.0 Engine type: BKD, CLJA, CFFB, CBAB Year: 05.03-08.12
    AUDI A3 (8P1) 2.0 TDI 16V quattro Engine volume: 2.0 Engine type: BKD, CFFB, CBAB Year: 08.04-08.12
    AUDI A3 (8P1) 2.0 TDI Engine volume: 2.0 Engine type: CFFA, AZV, CBAA Year: 05.03-08.12
    AUDI A3 (8P1) 2.0 TDI Engine volume: 2.0 Engine type: CFGB, CBBB, BMN Year: 03.06-08.12
    AUDI A3 (8P1) 2.0 TDI quattro Engine volume: 2.0 Engine type: CFGB, CBBB, BMN Year: 03.06-08.12
    AUDI A3 Cabriolet (8P7) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 05.09-05.13
    AUDI A3 Cabriolet (8P7) 2.0 TDI Engine volume: 2.0 Engine type: CFFA, CBAA Year: 04.08-05.13
    AUDI A3 Cabriolet (8P7) 2.0 TDI Engine volume: 2.0 Engine type: CFFB, CBAB Year: 04.08-05.13
    AUDI A3 Sportback (8PA) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 05.09-03.13
    AUDI A3 Sportback (8PA) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 05.09-03.13
    AUDI A3 Sportback (8PA) 2.0 TDI 16V Engine volume: 2.0 Engine type: BKD, CLJA, CFFB, CBAB Year: 09.04-03.13
    AUDI A3 Sportback (8PA) 2.0 TDI 16V quattro Engine volume: 2.0 Engine type: BKD, CFFB, CBAB Year: 11.05-03.13
    AUDI A3 Sportback (8PA) 2.0 TDI Engine volume: 2.0 Engine type: CFFA, AZV, CBAA Year: 09.04-03.13
    AUDI A3 Sportback (8PA) 2.0 TDI Engine volume: 2.0 Engine type: CFGB, CBBB, BMN Year: 03.06-03.13
    AUDI A3 Sportback (8PA) 2.0 TDI quattro Engine volume: 2.0 Engine type: CFGB, CBBB, BMN Year: 03.06-03.13
    AUDI A4 Allroad B8 (8KH) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CDNC, CPMA Year: 04.09-05.16
    AUDI Q3 (8UB, 8UG) 2.0 TDI Engine volume: 2.0 Engine type: CFFA, CUVB, DFTB Year: 09.11-10.18
    AUDI Q3 (8UB, 8UG) 2.0 TDI Engine volume: 2.0 Engine type: CFGC Year: 06.11-04.15
    AUDI Q3 (8UB, 8UG) 2.0 TDI Engine volume: 2.0 Engine type: CLJA, CFFB Year: 09.11-10.18
    AUDI Q3 (8UB, 8UG) 2.0 TDI quattro Engine volume: 2.0 Engine type: CFFB Year: 01.12-10.18
    AUDI Q3 (8UB, 8UG) 2.0 TDI quattro Engine volume: 2.0 Engine type: CFGD Year: 06.11-04.15
    AUDI Q3 (8UB, 8UG) 2.0 TDI quattro Engine volume: 2.0 Engine type: CLLB, CFGC Year: 06.11-10.18
    AUDI TT (8J3) 2.0 TDI quattro Engine volume: 2.0 Engine type: CFGB, CBBB Year: 06.08-06.14
    AUDI TT (8J3) 2.0 TFSI Engine volume: 2.0 Engine type: CESA Year: 05.10-06.14
    AUDI TT (8J3) 2.0 TTS quattro Engine volume: 2.0 Engine type: CDLB Year: 05.08-06.14
    AUDI TT (8J3) 2.0 TTS quattro Engine volume: 2.0 Engine type: CDMA, CDLA Year: 05.08-06.14
    AUDI TT (FV3, FVP) 2.0 TFSI Engine volume: 2.0 Engine type: CHHC Year: 07.14-
    AUDI TT (FV3, FVP) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CHHC Year: 07.14-
    AUDI TT (FV3, FVP) 2.0 TTS TFSI quattro Engine volume: 2.0 Engine type: CJXF Year: 02.15-
    AUDI TT Roadster (8J9) 2.0 TDI quattro Engine volume: 2.0 Engine type: CFGB, CBBB Year: 06.08-06.14
    AUDI TT Roadster (8J9) 2.0 TFSI Engine volume: 2.0 Engine type: CESA Year: 05.10-06.14
    AUDI TT Roadster (8J9) 2.0 TTS quattro Engine volume: 2.0 Engine type: CDLB Year: 05.08-06.14
    AUDI TT Roadster (8J9) 2.0 TTS quattro Engine volume: 2.0 Engine type: CDMA, CDLA Year: 05.08-06.14
    AUDI TT Roadster (FV9, FVR) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CHHC Year: 11.14-
    SEAT ALHAMBRA (710, 711) 2.0 TDI 4Drive Engine volume: 2.0 Engine type: CFFB Year: 05.11-04.15
    SEAT ALHAMBRA (710, 711) 2.0 TDI Engine volume: 2.0 Engine type: CFFA Year: 06.10-05.11
    SEAT ALHAMBRA (710, 711) 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 06.10-04.15
    SEAT ALHAMBRA (710, 711) 2.0 TDI Engine volume: 2.0 Engine type: CFGB Year: 06.10-02.13
    SEAT ALHAMBRA (710, 711) 2.0 TDI Engine volume: 2.0 Engine type: CFGC, DLUB Year: 11.12-12.22
    SEAT ALHAMBRA (710, 711) 2.0 TDI Engine volume: 2.0 Engine type: DLTC, CUVA, CFFE, DFLD Year: 05.11-12.22
    SEAT ALTEA (5P1) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 11.10-07.15
    SEAT ALTEA (5P1) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 10.09-07.15
    SEAT ALTEA XL (5P5, 5P8) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 11.10-07.15
    SEAT ALTEA XL (5P5, 5P8) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 10.09-07.15
    SEAT IBIZA IV (6J5, 6P1) 1.4 TDI Engine volume: 1.4 Engine type: CUSA Year: 05.15-06.17
    SEAT IBIZA IV (6J5, 6P1) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 05.15-06.17
    SEAT IBIZA IV (6J5, 6P1) 1.4 TDI Engine volume: 1.4 Engine type: CYZA, CUTA Year: 05.15-06.17
    SEAT IBIZA IV (6J5, 6P1) 2.0 TDI Engine volume: 2.0 Engine type: CFHD Year: 01.10-05.15
    SEAT IBIZA IV SC (6J1, 6P5) 1.4 TDI Engine volume: 1.4 Engine type: CUSA Year: 05.15-12.16
    SEAT IBIZA IV SC (6J1, 6P5) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 05.15-12.16
    SEAT IBIZA IV SC (6J1, 6P5) 1.4 TDI Engine volume: 1.4 Engine type: CYZA, CUTA Year: 05.15-12.16
    SEAT IBIZA IV SC (6J1, 6P5) 2.0 TDI Engine volume: 2.0 Engine type: CFHD Year: 01.10-05.15
    SEAT IBIZA IV ST (6J8, 6P8) 1.4 TDI Engine volume: 1.4 Engine type: CUSA Year: 05.15-07.16
    SEAT IBIZA IV ST (6J8, 6P8) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 05.15-07.16
    SEAT IBIZA IV ST (6J8, 6P8) 1.4 TDI Engine volume: 1.4 Engine type: CYZA, CUTA Year: 05.15-07.16
    SEAT LEON (1P1) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 11.10-12.12
    SEAT LEON (1P1) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 02.10-12.12
    SEAT TOLEDO IV (KG3) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 05.15-04.19
    SEAT TOLEDO IV (KG3) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 06.13-06.15
    SEAT TOLEDO IV (KG3) 1.6 TDI Engine volume: 1.6 Engine type: CLNA, CAYC Year: 07.12-06.15
    SKODA FABIA II (542) 1.6 TDI Engine volume: 1.6 Engine type: CAYA Year: 04.10-12.14
    SKODA FABIA II (542) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 03.10-12.14
    SKODA FABIA II (542) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 03.10-12.14
    SKODA FABIA II Combi (545) 1.6 TDI Engine volume: 1.6 Engine type: CAYA Year: 04.10-12.14
    SKODA FABIA II Combi (545) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 03.10-12.14
    SKODA FABIA II Combi (545) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 03.10-12.14
    SKODA FABIA III (NJ3) 1.4 TDI Engine volume: 1.4 Engine type: CUSA Year: 05.15-06.21
    SKODA FABIA III (NJ3) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 08.14-06.21
    SKODA FABIA III (NJ3) 1.4 TDI Engine volume: 1.4 Engine type: CUTA Year: 08.14-06.21
    SKODA FABIA III Kombi (NJ5) 1.4 TDI Engine volume: 1.4 Engine type: CUSA Year: 05.15-12.22
    SKODA FABIA III Kombi (NJ5) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 10.14-12.22
    SKODA FABIA III Kombi (NJ5) 1.4 TDI Engine volume: 1.4 Engine type: CUTA Year: 10.14-12.22
    SKODA FABIA III Praktik (NJ5) 1.4 TDI Engine volume: 1.4 Engine type: CUSA Year: 05.15-12.22
    SKODA FABIA III Praktik (NJ5) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 10.14-12.22
    SKODA FABIA III Praktik (NJ5) 1.4 TDI Engine volume: 1.4 Engine type: CUTA Year: 10.14-12.22
    SKODA OCTAVIA II (1Z3) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 06.09-04.13
    SKODA OCTAVIA II Combi (1Z5) 1.6 TDI 4x4 Engine volume: 1.6 Engine type: CAYC Year: 06.09-02.13
    SKODA OCTAVIA II Combi (1Z5) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 06.09-04.13
    SKODA RAPID (NH3, NK3, NK6) 1.0 TSI Engine volume: 1.0 Engine type: CHZB, DKLD Year: 06.17-12.19
    SKODA RAPID (NH3, NK3, NK6) 1.0 TSI Engine volume: 1.0 Engine type: DKRC, CHZC Year: 06.17-12.19
    SKODA RAPID (NH3, NK3, NK6) 1.2 TSI Engine volume: 1.2 Engine type: CBZA Year: 07.12-05.15
    SKODA RAPID (NH3, NK3, NK6) 1.2 TSI Engine volume: 1.2 Engine type: CBZB Year: 07.12-05.15
    SKODA RAPID (NH3, NK3, NK6) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 05.15-12.19
    SKODA RAPID (NH3, NK3, NK6) 1.4 TSI Engine volume: 1.4 Engine type: CAXA Year: 07.12-06.15
    SKODA RAPID (NH3, NK3, NK6) 1.4 TSI Engine volume: 1.4 Engine type: CZCA Year: 05.15-03.22
    SKODA RAPID (NH3, NK3, NK6) 1.6 SRE Engine volume: 1.6 Engine type: CWVB Year: 06.15-03.22
    SKODA RAPID (NH3, NK3, NK6) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 08.13-05.15
    SKODA RAPID (NH3, NK3, NK6) 1.6 TDI Engine volume: 1.6 Engine type: CLNA, CAYC Year: 07.12-12.19
    SKODA RAPID (NH3, NK3, NK6) 1.6 TDI Engine volume: 1.6 Engine type: CXMA Year: 05.15-12.19
    SKODA RAPID Spaceback (NH1) 1.0 TSI Engine volume: 1.0 Engine type: CHZB, DKLD Year: 06.17-12.19
    SKODA RAPID Spaceback (NH1) 1.0 TSI Engine volume: 1.0 Engine type: DKRC, CHZC Year: 06.17-12.19
    SKODA RAPID Spaceback (NH1) 1.2 TSI Engine volume: 1.2 Engine type: CBZA Year: 07.12-05.15
    SKODA RAPID Spaceback (NH1) 1.2 TSI Engine volume: 1.2 Engine type: CBZB Year: 07.12-05.15
    SKODA RAPID Spaceback (NH1) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 05.15-12.19
    SKODA RAPID Spaceback (NH1) 1.4 TSI Engine volume: 1.4 Engine type: CAXA Year: 07.12-06.15
    SKODA RAPID Spaceback (NH1) 1.4 TSI Engine volume: 1.4 Engine type: CZCA Year: 05.15-12.19
    SKODA RAPID Spaceback (NH1) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 08.13-05.15
    SKODA RAPID Spaceback (NH1) 1.6 TDI Engine volume: 1.6 Engine type: CLNA, CAYC Year: 07.12-12.19
    SKODA RAPID Spaceback (NH1) 1.6 TDI Engine volume: 1.6 Engine type: CXMA Year: 05.15-12.19
    SKODA ROOMSTER (5J7) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 03.10-05.15
    SKODA ROOMSTER (5J7) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 03.10-05.15
    SKODA ROOMSTER Praktik (5J) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 03.10-05.15
    SKODA SUPERB II (3T4) 1.4 TSI Engine volume: 1.4 Engine type: CAXC Year: 07.08-05.15
    SKODA SUPERB II (3T4) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 09.10-05.15
    SKODA SUPERB II (3T4) 2.0 TDI 16V 4x4 Engine volume: 2.0 Engine type: CFFB Year: 11.10-05.15
    SKODA SUPERB II (3T4) 2.0 TDI 16V Engine volume: 2.0 Engine type: CFFB, CLJA, BKD Year: 01.09-05.15
    SKODA SUPERB II (3T4) 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CBBB, CFGB Year: 09.08-05.15
    SKODA SUPERB II (3T4) 2.0 TDI Engine volume: 2.0 Engine type: CBBB, CFGB Year: 07.08-05.15
    SKODA SUPERB II Kombi (3T5) 1.4 TSI Engine volume: 1.4 Engine type: CAXC Year: 10.09-05.15
    SKODA SUPERB II Kombi (3T5) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 09.10-05.15
    SKODA SUPERB II Kombi (3T5) 2.0 TDI 16V 4x4 Engine volume: 2.0 Engine type: CFFB Year: 11.10-05.15
    SKODA SUPERB II Kombi (3T5) 2.0 TDI 16V Engine volume: 2.0 Engine type: CFFB, CLJA, BKD Year: 10.09-05.15
    SKODA SUPERB II Kombi (3T5) 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CBBB, CFGB Year: 10.09-05.15
    SKODA SUPERB II Kombi (3T5) 2.0 TDI Engine volume: 2.0 Engine type: CBBB, CFGB Year: 10.09-05.15
    SKODA YETI (5L) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 11.10-05.15
    SKODA YETI (5L) 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CBDB, CFHC, CLCB Year: 05.09-12.17
    SKODA YETI (5L) 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CFJA, CEGA Year: 11.09-05.15
    SKODA YETI (5L) 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CUUA, CFHF, DFSA Year: 11.09-12.17
    SKODA YETI (5L) 2.0 TDI Engine volume: 2.0 Engine type: CFHA, CUUA, DFSA, CLCA Year: 11.09-12.17
    SKODA YETI (5L) 2.0 TDI Engine volume: 2.0 Engine type: CFHC, CLCB Year: 11.11-12.17
    VW BEETLE (5C1, 5C2) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 10.11-07.16
    VW BEETLE Cabriolet (5C7, 5C8) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 12.11-07.16
    VW CADDY ALLTRACK IV Minibus, minivan (SAB) 1.6 TDI Engine volume: 1.6 Engine type: CAYD Year: 05.15-09.20
    VW CADDY ALLTRACK IV Minibus, minivan (SAB) 1.6 TDI Engine volume: 1.6 Engine type: CAYE Year: 05.15-11.17
    VW CADDY ALLTRACK IV Minibus, minivan (SAB) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFHC Year: 05.15-09.20
    VW CADDY ALLTRACK IV Minibus, minivan (SAB) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CLCA, CFHF Year: 05.15-09.20
    VW CADDY ALLTRACK IV Minibus, minivan (SAB) 2.0 TDI Engine volume: 2.0 Engine type: CLCB, CFHC Year: 05.15-09.20
    VW CADDY ALLTRACK IV Skåp/stor limousine (SAA) 1.6 TDI Engine volume: 1.6 Engine type: CAYD Year: 05.15-09.20
    VW CADDY ALLTRACK IV Skåp/stor limousine (SAA) 1.6 TDI Engine volume: 1.6 Engine type: CAYE Year: 05.15-11.17
    VW CADDY ALLTRACK IV Skåp/stor limousine (SAA) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFHC Year: 05.15-09.20
    VW CADDY ALLTRACK IV Skåp/stor limousine (SAA) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFHF Year: 05.15-09.20
    VW CADDY ALLTRACK IV Skåp/stor limousine (SAA) 2.0 TDI Engine volume: 2.0 Engine type: CLCB, CFHC Year: 05.15-09.20
    VW CADDY III Minibus, minivan (2KB, 2KJ, 2CB, 2CJ) 1.6 TDI Engine volume: 1.6 Engine type: CAYD Year: 08.10-05.15
    VW CADDY III Minibus, minivan (2KB, 2KJ, 2CB, 2CJ) 1.6 TDI Engine volume: 1.6 Engine type: CAYE Year: 08.10-05.15
    VW CADDY III Minibus, minivan (2KB, 2KJ, 2CB, 2CJ) 2.0 TDI 16V 4motion Engine volume: 2.0 Engine type: CFHC Year: 11.10-05.15
    VW CADDY III Minibus, minivan (2KB, 2KJ, 2CB, 2CJ) 2.0 TDI 16V Engine volume: 2.0 Engine type: CLCB, CFHC Year: 11.10-05.15
    VW CADDY III Minibus, minivan (2KB, 2KJ, 2CB, 2CJ) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFHF Year: 08.10-05.15
    VW CADDY III Minibus, minivan (2KB, 2KJ, 2CB, 2CJ) 2.0 TDI Engine volume: 2.0 Engine type: CFJA Year: 05.12-05.15
    VW CADDY III Minibus, minivan (2KB, 2KJ, 2CB, 2CJ) 2.0 TDI Engine volume: 2.0 Engine type: CLCA Year: 08.10-05.15
    VW CADDY III Skåp/stor limousine (2KA, 2KH, 2CA, 2CH) 1.6 TDI Engine volume: 1.6 Engine type: CAYD Year: 08.10-05.15
    VW CADDY III Skåp/stor limousine (2KA, 2KH, 2CA, 2CH) 1.6 TDI Engine volume: 1.6 Engine type: CAYE Year: 08.10-05.15
    VW CADDY III Skåp/stor limousine (2KA, 2KH, 2CA, 2CH) 2.0 TDI 16V 4motion Engine volume: 2.0 Engine type: CFHC Year: 11.10-05.15
    VW CADDY III Skåp/stor limousine (2KA, 2KH, 2CA, 2CH) 2.0 TDI 16V Engine volume: 2.0 Engine type: CLCB, CFHC Year: 11.10-05.15
    VW CADDY III Skåp/stor limousine (2KA, 2KH, 2CA, 2CH) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFHE Year: 12.10-05.15
    VW CADDY III Skåp/stor limousine (2KA, 2KH, 2CA, 2CH) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFHF Year: 08.10-05.15
    VW CADDY III Skåp/stor limousine (2KA, 2KH, 2CA, 2CH) 2.0 TDI Engine volume: 2.0 Engine type: CFHE Year: 11.10-05.15
    VW CADDY III Skåp/stor limousine (2KA, 2KH, 2CA, 2CH) 2.0 TDI Engine volume: 2.0 Engine type: CFJA Year: 05.12-05.15
    VW CADDY III Skåp/stor limousine (2KA, 2KH, 2CA, 2CH) 2.0 TDI Engine volume: 2.0 Engine type: CLCA Year: 08.10-05.15
    VW CADDY IV Minibus, minivan (SAB, SAJ) 1.6 TDI Engine volume: 1.6 Engine type: CAYD Year: 05.15-09.20
    VW CADDY IV Minibus, minivan (SAB, SAJ) 1.6 TDI Engine volume: 1.6 Engine type: CAYE Year: 05.15-11.17
    VW CADDY IV Minibus, minivan (SAB, SAJ) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFHC Year: 05.15-09.20
    VW CADDY IV Minibus, minivan (SAB, SAJ) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CLCA, CFHF Year: 05.15-09.20
    VW CADDY IV Minibus, minivan (SAB, SAJ) 2.0 TDI Engine volume: 2.0 Engine type: CLCB, CFHC Year: 05.15-09.20
    VW CADDY IV Skåp/stor limousine (SAA, SAH) 1.6 TDI Engine volume: 1.6 Engine type: CAYD Year: 05.15-09.20
    VW CADDY IV Skåp/stor limousine (SAA, SAH) 1.6 TDI Engine volume: 1.6 Engine type: CAYE Year: 05.15-11.17
    VW CADDY IV Skåp/stor limousine (SAA, SAH) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFHC Year: 05.15-09.20
    VW CADDY IV Skåp/stor limousine (SAA, SAH) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CLCA, CFHF Year: 05.15-09.20
    VW CADDY IV Skåp/stor limousine (SAA, SAH) 2.0 TDI Engine volume: 2.0 Engine type: CLCB, CFHC Year: 05.15-09.20
    VW CC B7 (358) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFB Year: 11.11-12.16
    VW CC B7 (358) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGB Year: 11.11-01.13
    VW CC B7 (358) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGC Year: 12.12-12.16
    VW CC B7 (358) 2.0 TDI Engine volume: 2.0 Engine type: CFFA Year: 11.11-12.16
    VW CC B7 (358) 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 11.11-12.16
    VW CC B7 (358) 2.0 TDI Engine volume: 2.0 Engine type: CFGC Year: 12.12-12.16
    VW CC B7 (358) 2.0 TDI Engine volume: 2.0 Engine type: CLLA, CFGB Year: 11.11-12.16
    VW EOS (1F7, 1F8) 2.0 TDI 16V Engine volume: 2.0 Engine type: CFFB, CBAB Year: 05.08-08.15
    VW EOS (1F7, 1F8) 2.0 TDI Engine volume: 2.0 Engine type: CFFA Year: 11.10-08.15
    VW GOLF PLUS V (5M1, 521) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 02.09-12.13
    VW GOLF PLUS V (5M1, 521) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 03.09-12.13
    VW GOLF PLUS Van (521) 1.6 TDi Engine volume: 1.6 Engine type: CAYB Year: 02.09-08.14
    VW GOLF PLUS Van (521) 1.6 TDi Engine volume: 1.6 Engine type: CAYC Year: 02.09-08.14
    VW GOLF VAN VI Variant (AJ5) 1.6 TDi Engine volume: 1.6 Engine type: CAYB Year: 12.09-10.12
    VW GOLF VAN VI Variant (AJ5) 1.6 TDi Engine volume: 1.6 Engine type: CAYC Year: 07.09-05.14
    VW GOLF VI (5K1) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 02.09-11.12
    VW GOLF VI (5K1) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 02.09-11.12
    VW GOLF VI (5K1) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFB, CBAB Year: 05.09-11.12
    VW GOLF VI (5K1) 2.0 TDI Engine volume: 2.0 Engine type: CBBB, CFGB Year: 04.09-11.12
    VW GOLF VI (5K1) 2.0 TDI Engine volume: 2.0 Engine type: CFFA, CBAA Year: 10.08-11.12
    VW GOLF VI (5K1) 2.0 TDI Engine volume: 2.0 Engine type: CFFB, CJAA, CBAB Year: 10.08-05.13
    VW GOLF VI (5K1) 2.0 TDI Engine volume: 2.0 Engine type: CLCA, CBDC Year: 10.08-11.12
    VW GOLF VI Cabriolet (517) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 03.11-05.16
    VW GOLF VI Cabriolet (517) 2.0 TDI Engine volume: 2.0 Engine type: CFHC Year: 11.11-05.16
    VW GOLF VI Van (5K1) 1.6 TDi Engine volume: 1.6 Engine type: CAYB Year: 02.09-11.12
    VW GOLF VI Van (5K1) 1.6 TDi Engine volume: 1.6 Engine type: CAYC Year: 05.09-11.12
    VW GOLF VI Van (5K1) 2.0 TDi Engine volume: 2.0 Engine type: CFFB, CJAA Year: 09.09-11.12
    VW GOLF VI Van (5K1) 2.0 TDi Engine volume: 2.0 Engine type: CFGB Year: 05.10-11.12
    VW GOLF VI Variant (AJ5) 1.2 TSI Engine volume: 1.2 Engine type: CBZA Year: 07.10-07.13
    VW GOLF VI Variant (AJ5) 1.6 MultiFuel Engine volume: 1.6 Engine type: CMXA, CCSA Year: 07.10-07.13
    VW GOLF VI Variant (AJ5) 1.6 TDI 4motion Engine volume: 1.6 Engine type: CAYC Year: 07.09-07.13
    VW GOLF VI Variant (AJ5) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 12.09-07.13
    VW GOLF VI Variant (AJ5) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 07.09-07.13
    VW JETTA III (1K2) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 06.09-10.10
    VW JETTA IV (162, 163, AV3, AV2) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 04.10-07.15
    VW PASSAT ALLTRACK B7 Variant (365) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFB Year: 01.12-12.14
    VW PASSAT ALLTRACK B7 Variant (365) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGB Year: 01.12-12.14
    VW PASSAT ALLTRACK B7 Variant (365) 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 01.12-12.14
    VW PASSAT B7 (362) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFB Year: 08.10-12.14
    VW PASSAT B7 (362) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGB Year: 08.10-01.13
    VW PASSAT B7 (362) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGC Year: 01.13-12.14
    VW PASSAT B7 (362) 2.0 TDI Engine volume: 2.0 Engine type: CFFA Year: 08.10-12.14
    VW PASSAT B7 (362) 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 08.10-12.14
    VW PASSAT B7 (362) 2.0 TDI Engine volume: 2.0 Engine type: CFGC Year: 12.12-12.14
    VW PASSAT B7 (362) 2.0 TDI Engine volume: 2.0 Engine type: CLLA, CFGB Year: 08.10-12.14
    VW PASSAT B7 Variant (365) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFB Year: 08.10-12.14
    VW PASSAT B7 Variant (365) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGB Year: 08.10-01.13
    VW PASSAT B7 Variant (365) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGC Year: 01.13-12.14
    VW PASSAT B7 Variant (365) 2.0 TDI Engine volume: 2.0 Engine type: CFFA Year: 08.10-12.14
    VW PASSAT B7 Variant (365) 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 08.10-12.14
    VW PASSAT B7 Variant (365) 2.0 TDI Engine volume: 2.0 Engine type: CFGC Year: 12.12-12.14
    VW PASSAT B7 Variant (365) 2.0 TDI Engine volume: 2.0 Engine type: CLLA, CFGB Year: 08.10-12.14
    VW POLO V (6R1, 6C1) 1.2 TSI Engine volume: 1.2 Engine type: CBZB Year: 11.09-05.22
    VW POLO V (6R1, 6C1) 1.4 TDI Engine volume: 1.4 Engine type: CUSA, CYZB Year: 03.14-10.17
    VW POLO V (6R1, 6C1) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 02.14-10.17
    VW POLO V (6R1, 6C1) 1.4 TDI Engine volume: 1.4 Engine type: CUTA, CYZA Year: 05.14-10.17
    VW POLO V (6R1, 6C1) 1.6 TDI Engine volume: 1.6 Engine type: CAYA Year: 06.09-05.14
    VW POLO V (6R1, 6C1) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 06.09-05.14
    VW POLO V (6R1, 6C1) 1.6 TDI Engine volume: 1.6 Engine type: CLNA, CAYC Year: 06.09-08.15
    VW POLO V Skåp/halvkombi (6R1, 6C1) 1.4 TDI Engine volume: 1.4 Engine type: CUSA, CYZB Year: 03.14-10.17
    VW POLO V Skåp/halvkombi (6R1, 6C1) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 02.14-10.17
    VW POLO V Skåp/halvkombi (6R1, 6C1) 1.4 TDI Engine volume: 1.4 Engine type: CUTA Year: 03.14-10.17
    VW POLO V Skåp/halvkombi (6R1, 6C1) 1.6 TDi Engine volume: 1.6 Engine type: CAYA Year: 06.09-05.14
    VW POLO V Skåp/halvkombi (6R1, 6C1) 1.6 TDi Engine volume: 1.6 Engine type: CAYB Year: 06.09-05.14
    VW POLO V Skåp/halvkombi (6R1, 6C1) 1.6 TDi Engine volume: 1.6 Engine type: CAYC Year: 06.09-05.14
    VW SCIROCCO III (137, 138) 2.0 TDI Engine volume: 2.0 Engine type: CBBB, CFGB Year: 05.09-11.17
    VW SCIROCCO III (137, 138) 2.0 TDI Engine volume: 2.0 Engine type: CFGC Year: 01.13-11.17
    VW SCIROCCO III (137, 138) 2.0 TDI Engine volume: 2.0 Engine type: CFHB Year: 11.10-11.17
    VW SCIROCCO III (137, 138) 2.0 TDI Engine volume: 2.0 Engine type: CFHC, CBDB Year: 08.08-11.17
    VW SCIROCCO Van (137) 2.0 TDi Engine volume: 2.0 Engine type: CBBB, CFGB Year: 05.09-05.14
    VW SCIROCCO Van (137) 2.0 TDi Engine volume: 2.0 Engine type: CFHC, CBDB Year: 08.08-05.14
    VW SHARAN (7N1, 7N2) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFB Year: 05.11-11.15
    VW SHARAN (7N1, 7N2) 2.0 TDI Engine volume: 2.0 Engine type: CFFA Year: 05.10-11.15
    VW SHARAN (7N1, 7N2) 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 05.10-11.15
    VW SHARAN (7N1, 7N2) 2.0 TDI Engine volume: 2.0 Engine type: CFGB Year: 05.10-01.13
    VW SHARAN (7N1, 7N2) 2.0 TDI Engine volume: 2.0 Engine type: DLTC, CFFE, CUVA, DFLD Year: 05.11-07.19
    VW SHARAN (7N1, 7N2) 2.0 TDI Engine volume: 2.0 Engine type: DLUB, CFGC Year: 01.13-06.22
    VW SHARAN Skåp/stor limousine (7N1, 7N2) 2.0 TDI Engine volume: 2.0 Engine type: CFFA Year: 05.10-05.11
    VW SHARAN Skåp/stor limousine (7N1, 7N2) 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 05.10-11.15
    VW SHARAN Skåp/stor limousine (7N1, 7N2) 2.0 TDI Engine volume: 2.0 Engine type: CFFE Year: 05.11-11.15
    VW SHARAN Skåp/stor limousine (7N1, 7N2) 2.0 TDI Engine volume: 2.0 Engine type: CFGB Year: 08.10-01.13
    VW TIGUAN (5N_) 1.4 TSI 4motion Engine volume: 1.4 Engine type: CAVA, CTHA, BWK Year: 09.07-07.18
    VW TIGUAN (5N_) 1.4 TSI Engine volume: 1.4 Engine type: CAVA, CTHA, BWK Year: 05.08-07.18
    VW TIGUAN (5N_) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CBBA Year: 02.08-08.09
    VW TIGUAN (5N_) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CBBB, CFGB Year: 09.07-07.18
    VW TIGUAN (5N_) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFA, CBAA Year: 11.07-07.18
    VW TIGUAN (5N_) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGC Year: 11.12-07.18
    VW TIGUAN (5N_) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CLJA, CFFB, CBAB Year: 09.07-07.18
    VW TIGUAN (5N_) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUWA Year: 05.15-07.18
    VW TIGUAN (5N_) 2.0 TDI Engine volume: 2.0 Engine type: CFFB, CBAB Year: 03.08-07.18
    VW TIGUAN (5N_) 2.0 TDI Engine volume: 2.0 Engine type: CFFD, CUVE Year: 05.10-07.18
    VW TIGUAN VAN (5N_) 2.0 TDI (5N1) Engine volume: 2.0 Engine type: CFFD Year: 05.10-07.11
    VW TIGUAN VAN (5N_) 2.0 TDI (5N1, 5N2) Engine volume: 2.0 Engine type: CFFB Year: 11.09-07.18
    VW TIGUAN VAN (5N_) 2.0 TDI 4motion (5N1, 5N2) Engine volume: 2.0 Engine type: CFGB Year: 05.10-05.13
    VW TIGUAN VAN (5N_) 2.0 TDI 4motion (5N1, 5N2) Engine volume: 2.0 Engine type: CLJA, CFFB, CBAB Year: 11.07-07.18
    VW TIGUAN VAN (5N_) 2.0 TDI 4motion (5N2) Engine volume: 2.0 Engine type: CFGC Year: 11.12-07.18
    VW TOURAN (1T1, 1T2) 2.0 TDI Engine volume: 2.0 Engine type: CFJA, BMN Year: 12.05-05.10
    VW TOURAN (1T3) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 05.10-05.15
    VW TOURAN (1T3) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 05.10-05.15
    VW TOURAN (1T3) 2.0 TDI Engine volume: 2.0 Engine type: CFHC Year: 05.10-05.15
    VW TOURAN (1T3) 2.0 TDI Engine volume: 2.0 Engine type: CFJA Year: 05.10-01.13
    VW TOURAN (1T3) 2.0 TDI Engine volume: 2.0 Engine type: CFJB Year: 01.13-05.15
    VW TOURAN (1T3) 2.0 TDI Engine volume: 2.0 Engine type: CLCA, CFHF Year: 11.10-05.15
    VW TOURAN Skåp/stor limousine (1T3) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 05.10-05.15
    VW TOURAN Skåp/stor limousine (1T3) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 05.10-05.15
    VW TOURAN Skåp/stor limousine (1T3) 2.0 TDI Engine volume: 2.0 Engine type: CFHC Year: 05.10-05.15
    VW TOURAN Skåp/stor limousine (1T3) 2.0 TDi Engine volume: 2.0 Engine type: CFJA Year: 05.10-01.13
    1 / 56
  • Beskrivelse
    Spenning: 14
    Ampere: 140
    Bøssing avDriv : 40.00
    Bredde/holderarm: 13.70
    Festeramme avstand: 61.00
    Festerhull: 8.50
    Båndjust. Brakethull pos.: 45
    Båndjust. brakethull 1: 8.50
    Båndjust. brakethull 2: M8
    Driv diameter: 56.00
    Gunner/Driv: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Posisjon/B+ i min.: 46
    Rotasjon: CW
    Stikkontaktnummer: PL181
    Total lengde mm: 189.00
    Klemme type: COM
    Kommunikasjon: LIN
    Driv: SP/FW
    Vifte: IF
    Regulator type: IR
    Merknader: Denne generatoren har en COM-klemme på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 61.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. bracket hole 2 M8
    Belt. adj. brackethole pos. 45
    Plug no. PL181
    Bracket hole 8.50
    Position/B+ in min. 46
    Pulley SP/FW
    Pulley dia. 56.00
    Pulley dist. 40.00
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 189.00 mm
    Width/holder arm 13.70
    Amp 140
  • Kjøretøymatching

    • OEM
      A3273, A3273(VALEO), A3273PR, F032116452, TG14C031, 03L903023, 03L903023A, 03L903023AX, 03L903023X, 03L903024, 03L903024M, 03L903024MX, 03L903024X, 03L906023, 3L903023, 3L903023A, 3L903023AX, 3L903023X, 3L903024M, 04B903023B, 04B903023BX, 04B903023D, 04B903023DX, 04B903024, 04B903024X, 8EL012241-261, 28-5954, 305.988.140, 200232, 439724, 2608901A, 2608901C

    • Konkurrentreferens
      A3273, A3273(VALEO), A3273PR, 8EL012241-261, 28-5954, 305.988.140, 200232, 439724

    • Bilmärken
      AUDI, SEAT, SKODA, VW

    • NormaliseratArtNr
      a3273, a3273pr, a3273valeo, f032116452, tg14c031, 03l903023, 03l903023a, 03l903023ax, 03l903023x, 03l903024, 03l903024m, 03l903024mx, 03l903024x, 03l906023, 3l903023, 3l903023a, 3l903023ax, 3l903023x, 3l903024m, 04b903023b, 04b903023bx, 04b903023d, 04b903023dx, 04b903024, 04b903024x, 8el012241261, 200232, 285954, 439724, 2608901a, 2608901c, 305988140

    • Passar modeller
      AUDI A1 (8X1, 8XK) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 11.14-10.18
      AUDI A1 (8X1, 8XK) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 03.11-04.15
      AUDI A1 (8X1, 8XK) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 05.10-04.15
      AUDI A1 (8X1, 8XK) 2.0 TDI Engine volume: 2.0 Engine type: CFHD Year: 09.11-04.15
      AUDI A1 (8X1, 8XK) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CDLH Year: 03.12-11.12
      AUDI A1 Sportback (8XA, 8XF) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 11.14-10.18
      AUDI A1 Sportback (8XA, 8XF) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 11.11-04.15
      AUDI A1 Sportback (8XA, 8XF) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 11.11-04.15
      AUDI A1 Sportback (8XA, 8XF) 2.0 TDI Engine volume: 2.0 Engine type: CFHD Year: 09.11-04.15
      AUDI A3 (8P1) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 05.09-08.12
      AUDI A3 (8P1) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 05.09-08.12
      AUDI A3 (8P1) 2.0 TDI 16V Engine volume: 2.0 Engine type: BKD, CLJA, CFFB, CBAB Year: 05.03-08.12
      AUDI A3 (8P1) 2.0 TDI 16V quattro Engine volume: 2.0 Engine type: BKD, CFFB, CBAB Year: 08.04-08.12
      AUDI A3 (8P1) 2.0 TDI Engine volume: 2.0 Engine type: CFFA, AZV, CBAA Year: 05.03-08.12
      AUDI A3 (8P1) 2.0 TDI Engine volume: 2.0 Engine type: CFGB, CBBB, BMN Year: 03.06-08.12
      AUDI A3 (8P1) 2.0 TDI quattro Engine volume: 2.0 Engine type: CFGB, CBBB, BMN Year: 03.06-08.12
      AUDI A3 Cabriolet (8P7) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 05.09-05.13
      AUDI A3 Cabriolet (8P7) 2.0 TDI Engine volume: 2.0 Engine type: CFFA, CBAA Year: 04.08-05.13
      AUDI A3 Cabriolet (8P7) 2.0 TDI Engine volume: 2.0 Engine type: CFFB, CBAB Year: 04.08-05.13
      AUDI A3 Sportback (8PA) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 05.09-03.13
      AUDI A3 Sportback (8PA) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 05.09-03.13
      AUDI A3 Sportback (8PA) 2.0 TDI 16V Engine volume: 2.0 Engine type: BKD, CLJA, CFFB, CBAB Year: 09.04-03.13
      AUDI A3 Sportback (8PA) 2.0 TDI 16V quattro Engine volume: 2.0 Engine type: BKD, CFFB, CBAB Year: 11.05-03.13
      AUDI A3 Sportback (8PA) 2.0 TDI Engine volume: 2.0 Engine type: CFFA, AZV, CBAA Year: 09.04-03.13
      AUDI A3 Sportback (8PA) 2.0 TDI Engine volume: 2.0 Engine type: CFGB, CBBB, BMN Year: 03.06-03.13
      AUDI A3 Sportback (8PA) 2.0 TDI quattro Engine volume: 2.0 Engine type: CFGB, CBBB, BMN Year: 03.06-03.13
      AUDI A4 Allroad B8 (8KH) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CDNC, CPMA Year: 04.09-05.16
      AUDI Q3 (8UB, 8UG) 2.0 TDI Engine volume: 2.0 Engine type: CFFA, CUVB, DFTB Year: 09.11-10.18
      AUDI Q3 (8UB, 8UG) 2.0 TDI Engine volume: 2.0 Engine type: CFGC Year: 06.11-04.15
      AUDI Q3 (8UB, 8UG) 2.0 TDI Engine volume: 2.0 Engine type: CLJA, CFFB Year: 09.11-10.18
      AUDI Q3 (8UB, 8UG) 2.0 TDI quattro Engine volume: 2.0 Engine type: CFFB Year: 01.12-10.18
      AUDI Q3 (8UB, 8UG) 2.0 TDI quattro Engine volume: 2.0 Engine type: CFGD Year: 06.11-04.15
      AUDI Q3 (8UB, 8UG) 2.0 TDI quattro Engine volume: 2.0 Engine type: CLLB, CFGC Year: 06.11-10.18
      AUDI TT (8J3) 2.0 TDI quattro Engine volume: 2.0 Engine type: CFGB, CBBB Year: 06.08-06.14
      AUDI TT (8J3) 2.0 TFSI Engine volume: 2.0 Engine type: CESA Year: 05.10-06.14
      AUDI TT (8J3) 2.0 TTS quattro Engine volume: 2.0 Engine type: CDLB Year: 05.08-06.14
      AUDI TT (8J3) 2.0 TTS quattro Engine volume: 2.0 Engine type: CDMA, CDLA Year: 05.08-06.14
      AUDI TT (FV3, FVP) 2.0 TFSI Engine volume: 2.0 Engine type: CHHC Year: 07.14-
      AUDI TT (FV3, FVP) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CHHC Year: 07.14-
      AUDI TT (FV3, FVP) 2.0 TTS TFSI quattro Engine volume: 2.0 Engine type: CJXF Year: 02.15-
      AUDI TT Roadster (8J9) 2.0 TDI quattro Engine volume: 2.0 Engine type: CFGB, CBBB Year: 06.08-06.14
      AUDI TT Roadster (8J9) 2.0 TFSI Engine volume: 2.0 Engine type: CESA Year: 05.10-06.14
      AUDI TT Roadster (8J9) 2.0 TTS quattro Engine volume: 2.0 Engine type: CDLB Year: 05.08-06.14
      AUDI TT Roadster (8J9) 2.0 TTS quattro Engine volume: 2.0 Engine type: CDMA, CDLA Year: 05.08-06.14
      AUDI TT Roadster (FV9, FVR) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CHHC Year: 11.14-
      SEAT ALHAMBRA (710, 711) 2.0 TDI 4Drive Engine volume: 2.0 Engine type: CFFB Year: 05.11-04.15
      SEAT ALHAMBRA (710, 711) 2.0 TDI Engine volume: 2.0 Engine type: CFFA Year: 06.10-05.11
      SEAT ALHAMBRA (710, 711) 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 06.10-04.15
      SEAT ALHAMBRA (710, 711) 2.0 TDI Engine volume: 2.0 Engine type: CFGB Year: 06.10-02.13
      SEAT ALHAMBRA (710, 711) 2.0 TDI Engine volume: 2.0 Engine type: CFGC, DLUB Year: 11.12-12.22
      SEAT ALHAMBRA (710, 711) 2.0 TDI Engine volume: 2.0 Engine type: DLTC, CUVA, CFFE, DFLD Year: 05.11-12.22
      SEAT ALTEA (5P1) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 11.10-07.15
      SEAT ALTEA (5P1) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 10.09-07.15
      SEAT ALTEA XL (5P5, 5P8) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 11.10-07.15
      SEAT ALTEA XL (5P5, 5P8) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 10.09-07.15
      SEAT IBIZA IV (6J5, 6P1) 1.4 TDI Engine volume: 1.4 Engine type: CUSA Year: 05.15-06.17
      SEAT IBIZA IV (6J5, 6P1) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 05.15-06.17
      SEAT IBIZA IV (6J5, 6P1) 1.4 TDI Engine volume: 1.4 Engine type: CYZA, CUTA Year: 05.15-06.17
      SEAT IBIZA IV (6J5, 6P1) 2.0 TDI Engine volume: 2.0 Engine type: CFHD Year: 01.10-05.15
      SEAT IBIZA IV SC (6J1, 6P5) 1.4 TDI Engine volume: 1.4 Engine type: CUSA Year: 05.15-12.16
      SEAT IBIZA IV SC (6J1, 6P5) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 05.15-12.16
      SEAT IBIZA IV SC (6J1, 6P5) 1.4 TDI Engine volume: 1.4 Engine type: CYZA, CUTA Year: 05.15-12.16
      SEAT IBIZA IV SC (6J1, 6P5) 2.0 TDI Engine volume: 2.0 Engine type: CFHD Year: 01.10-05.15
      SEAT IBIZA IV ST (6J8, 6P8) 1.4 TDI Engine volume: 1.4 Engine type: CUSA Year: 05.15-07.16
      SEAT IBIZA IV ST (6J8, 6P8) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 05.15-07.16
      SEAT IBIZA IV ST (6J8, 6P8) 1.4 TDI Engine volume: 1.4 Engine type: CYZA, CUTA Year: 05.15-07.16
      SEAT LEON (1P1) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 11.10-12.12
      SEAT LEON (1P1) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 02.10-12.12
      SEAT TOLEDO IV (KG3) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 05.15-04.19
      SEAT TOLEDO IV (KG3) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 06.13-06.15
      SEAT TOLEDO IV (KG3) 1.6 TDI Engine volume: 1.6 Engine type: CLNA, CAYC Year: 07.12-06.15
      SKODA FABIA II (542) 1.6 TDI Engine volume: 1.6 Engine type: CAYA Year: 04.10-12.14
      SKODA FABIA II (542) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 03.10-12.14
      SKODA FABIA II (542) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 03.10-12.14
      SKODA FABIA II Combi (545) 1.6 TDI Engine volume: 1.6 Engine type: CAYA Year: 04.10-12.14
      SKODA FABIA II Combi (545) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 03.10-12.14
      SKODA FABIA II Combi (545) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 03.10-12.14
      SKODA FABIA III (NJ3) 1.4 TDI Engine volume: 1.4 Engine type: CUSA Year: 05.15-06.21
      SKODA FABIA III (NJ3) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 08.14-06.21
      SKODA FABIA III (NJ3) 1.4 TDI Engine volume: 1.4 Engine type: CUTA Year: 08.14-06.21
      SKODA FABIA III Kombi (NJ5) 1.4 TDI Engine volume: 1.4 Engine type: CUSA Year: 05.15-12.22
      SKODA FABIA III Kombi (NJ5) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 10.14-12.22
      SKODA FABIA III Kombi (NJ5) 1.4 TDI Engine volume: 1.4 Engine type: CUTA Year: 10.14-12.22
      SKODA FABIA III Praktik (NJ5) 1.4 TDI Engine volume: 1.4 Engine type: CUSA Year: 05.15-12.22
      SKODA FABIA III Praktik (NJ5) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 10.14-12.22
      SKODA FABIA III Praktik (NJ5) 1.4 TDI Engine volume: 1.4 Engine type: CUTA Year: 10.14-12.22
      SKODA OCTAVIA II (1Z3) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 06.09-04.13
      SKODA OCTAVIA II Combi (1Z5) 1.6 TDI 4x4 Engine volume: 1.6 Engine type: CAYC Year: 06.09-02.13
      SKODA OCTAVIA II Combi (1Z5) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 06.09-04.13
      SKODA RAPID (NH3, NK3, NK6) 1.0 TSI Engine volume: 1.0 Engine type: CHZB, DKLD Year: 06.17-12.19
      SKODA RAPID (NH3, NK3, NK6) 1.0 TSI Engine volume: 1.0 Engine type: DKRC, CHZC Year: 06.17-12.19
      SKODA RAPID (NH3, NK3, NK6) 1.2 TSI Engine volume: 1.2 Engine type: CBZA Year: 07.12-05.15
      SKODA RAPID (NH3, NK3, NK6) 1.2 TSI Engine volume: 1.2 Engine type: CBZB Year: 07.12-05.15
      SKODA RAPID (NH3, NK3, NK6) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 05.15-12.19
      SKODA RAPID (NH3, NK3, NK6) 1.4 TSI Engine volume: 1.4 Engine type: CAXA Year: 07.12-06.15
      SKODA RAPID (NH3, NK3, NK6) 1.4 TSI Engine volume: 1.4 Engine type: CZCA Year: 05.15-03.22
      SKODA RAPID (NH3, NK3, NK6) 1.6 SRE Engine volume: 1.6 Engine type: CWVB Year: 06.15-03.22
      SKODA RAPID (NH3, NK3, NK6) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 08.13-05.15
      SKODA RAPID (NH3, NK3, NK6) 1.6 TDI Engine volume: 1.6 Engine type: CLNA, CAYC Year: 07.12-12.19
      SKODA RAPID (NH3, NK3, NK6) 1.6 TDI Engine volume: 1.6 Engine type: CXMA Year: 05.15-12.19
      SKODA RAPID Spaceback (NH1) 1.0 TSI Engine volume: 1.0 Engine type: CHZB, DKLD Year: 06.17-12.19
      SKODA RAPID Spaceback (NH1) 1.0 TSI Engine volume: 1.0 Engine type: DKRC, CHZC Year: 06.17-12.19
      SKODA RAPID Spaceback (NH1) 1.2 TSI Engine volume: 1.2 Engine type: CBZA Year: 07.12-05.15
      SKODA RAPID Spaceback (NH1) 1.2 TSI Engine volume: 1.2 Engine type: CBZB Year: 07.12-05.15
      SKODA RAPID Spaceback (NH1) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 05.15-12.19
      SKODA RAPID Spaceback (NH1) 1.4 TSI Engine volume: 1.4 Engine type: CAXA Year: 07.12-06.15
      SKODA RAPID Spaceback (NH1) 1.4 TSI Engine volume: 1.4 Engine type: CZCA Year: 05.15-12.19
      SKODA RAPID Spaceback (NH1) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 08.13-05.15
      SKODA RAPID Spaceback (NH1) 1.6 TDI Engine volume: 1.6 Engine type: CLNA, CAYC Year: 07.12-12.19
      SKODA RAPID Spaceback (NH1) 1.6 TDI Engine volume: 1.6 Engine type: CXMA Year: 05.15-12.19
      SKODA ROOMSTER (5J7) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 03.10-05.15
      SKODA ROOMSTER (5J7) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 03.10-05.15
      SKODA ROOMSTER Praktik (5J) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 03.10-05.15
      SKODA SUPERB II (3T4) 1.4 TSI Engine volume: 1.4 Engine type: CAXC Year: 07.08-05.15
      SKODA SUPERB II (3T4) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 09.10-05.15
      SKODA SUPERB II (3T4) 2.0 TDI 16V 4x4 Engine volume: 2.0 Engine type: CFFB Year: 11.10-05.15
      SKODA SUPERB II (3T4) 2.0 TDI 16V Engine volume: 2.0 Engine type: CFFB, CLJA, BKD Year: 01.09-05.15
      SKODA SUPERB II (3T4) 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CBBB, CFGB Year: 09.08-05.15
      SKODA SUPERB II (3T4) 2.0 TDI Engine volume: 2.0 Engine type: CBBB, CFGB Year: 07.08-05.15
      SKODA SUPERB II Kombi (3T5) 1.4 TSI Engine volume: 1.4 Engine type: CAXC Year: 10.09-05.15
      SKODA SUPERB II Kombi (3T5) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 09.10-05.15
      SKODA SUPERB II Kombi (3T5) 2.0 TDI 16V 4x4 Engine volume: 2.0 Engine type: CFFB Year: 11.10-05.15
      SKODA SUPERB II Kombi (3T5) 2.0 TDI 16V Engine volume: 2.0 Engine type: CFFB, CLJA, BKD Year: 10.09-05.15
      SKODA SUPERB II Kombi (3T5) 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CBBB, CFGB Year: 10.09-05.15
      SKODA SUPERB II Kombi (3T5) 2.0 TDI Engine volume: 2.0 Engine type: CBBB, CFGB Year: 10.09-05.15
      SKODA YETI (5L) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 11.10-05.15
      SKODA YETI (5L) 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CBDB, CFHC, CLCB Year: 05.09-12.17
      SKODA YETI (5L) 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CFJA, CEGA Year: 11.09-05.15
      SKODA YETI (5L) 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CUUA, CFHF, DFSA Year: 11.09-12.17
      SKODA YETI (5L) 2.0 TDI Engine volume: 2.0 Engine type: CFHA, CUUA, DFSA, CLCA Year: 11.09-12.17
      SKODA YETI (5L) 2.0 TDI Engine volume: 2.0 Engine type: CFHC, CLCB Year: 11.11-12.17
      VW BEETLE (5C1, 5C2) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 10.11-07.16
      VW BEETLE Cabriolet (5C7, 5C8) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 12.11-07.16
      VW CADDY ALLTRACK IV Minibus, minivan (SAB) 1.6 TDI Engine volume: 1.6 Engine type: CAYD Year: 05.15-09.20
      VW CADDY ALLTRACK IV Minibus, minivan (SAB) 1.6 TDI Engine volume: 1.6 Engine type: CAYE Year: 05.15-11.17
      VW CADDY ALLTRACK IV Minibus, minivan (SAB) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFHC Year: 05.15-09.20
      VW CADDY ALLTRACK IV Minibus, minivan (SAB) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CLCA, CFHF Year: 05.15-09.20
      VW CADDY ALLTRACK IV Minibus, minivan (SAB) 2.0 TDI Engine volume: 2.0 Engine type: CLCB, CFHC Year: 05.15-09.20
      VW CADDY ALLTRACK IV Skåp/stor limousine (SAA) 1.6 TDI Engine volume: 1.6 Engine type: CAYD Year: 05.15-09.20
      VW CADDY ALLTRACK IV Skåp/stor limousine (SAA) 1.6 TDI Engine volume: 1.6 Engine type: CAYE Year: 05.15-11.17
      VW CADDY ALLTRACK IV Skåp/stor limousine (SAA) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFHC Year: 05.15-09.20
      VW CADDY ALLTRACK IV Skåp/stor limousine (SAA) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFHF Year: 05.15-09.20
      VW CADDY ALLTRACK IV Skåp/stor limousine (SAA) 2.0 TDI Engine volume: 2.0 Engine type: CLCB, CFHC Year: 05.15-09.20
      VW CADDY III Minibus, minivan (2KB, 2KJ, 2CB, 2CJ) 1.6 TDI Engine volume: 1.6 Engine type: CAYD Year: 08.10-05.15
      VW CADDY III Minibus, minivan (2KB, 2KJ, 2CB, 2CJ) 1.6 TDI Engine volume: 1.6 Engine type: CAYE Year: 08.10-05.15
      VW CADDY III Minibus, minivan (2KB, 2KJ, 2CB, 2CJ) 2.0 TDI 16V 4motion Engine volume: 2.0 Engine type: CFHC Year: 11.10-05.15
      VW CADDY III Minibus, minivan (2KB, 2KJ, 2CB, 2CJ) 2.0 TDI 16V Engine volume: 2.0 Engine type: CLCB, CFHC Year: 11.10-05.15
      VW CADDY III Minibus, minivan (2KB, 2KJ, 2CB, 2CJ) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFHF Year: 08.10-05.15
      VW CADDY III Minibus, minivan (2KB, 2KJ, 2CB, 2CJ) 2.0 TDI Engine volume: 2.0 Engine type: CFJA Year: 05.12-05.15
      VW CADDY III Minibus, minivan (2KB, 2KJ, 2CB, 2CJ) 2.0 TDI Engine volume: 2.0 Engine type: CLCA Year: 08.10-05.15
      VW CADDY III Skåp/stor limousine (2KA, 2KH, 2CA, 2CH) 1.6 TDI Engine volume: 1.6 Engine type: CAYD Year: 08.10-05.15
      VW CADDY III Skåp/stor limousine (2KA, 2KH, 2CA, 2CH) 1.6 TDI Engine volume: 1.6 Engine type: CAYE Year: 08.10-05.15
      VW CADDY III Skåp/stor limousine (2KA, 2KH, 2CA, 2CH) 2.0 TDI 16V 4motion Engine volume: 2.0 Engine type: CFHC Year: 11.10-05.15
      VW CADDY III Skåp/stor limousine (2KA, 2KH, 2CA, 2CH) 2.0 TDI 16V Engine volume: 2.0 Engine type: CLCB, CFHC Year: 11.10-05.15
      VW CADDY III Skåp/stor limousine (2KA, 2KH, 2CA, 2CH) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFHE Year: 12.10-05.15
      VW CADDY III Skåp/stor limousine (2KA, 2KH, 2CA, 2CH) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFHF Year: 08.10-05.15
      VW CADDY III Skåp/stor limousine (2KA, 2KH, 2CA, 2CH) 2.0 TDI Engine volume: 2.0 Engine type: CFHE Year: 11.10-05.15
      VW CADDY III Skåp/stor limousine (2KA, 2KH, 2CA, 2CH) 2.0 TDI Engine volume: 2.0 Engine type: CFJA Year: 05.12-05.15
      VW CADDY III Skåp/stor limousine (2KA, 2KH, 2CA, 2CH) 2.0 TDI Engine volume: 2.0 Engine type: CLCA Year: 08.10-05.15
      VW CADDY IV Minibus, minivan (SAB, SAJ) 1.6 TDI Engine volume: 1.6 Engine type: CAYD Year: 05.15-09.20
      VW CADDY IV Minibus, minivan (SAB, SAJ) 1.6 TDI Engine volume: 1.6 Engine type: CAYE Year: 05.15-11.17
      VW CADDY IV Minibus, minivan (SAB, SAJ) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFHC Year: 05.15-09.20
      VW CADDY IV Minibus, minivan (SAB, SAJ) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CLCA, CFHF Year: 05.15-09.20
      VW CADDY IV Minibus, minivan (SAB, SAJ) 2.0 TDI Engine volume: 2.0 Engine type: CLCB, CFHC Year: 05.15-09.20
      VW CADDY IV Skåp/stor limousine (SAA, SAH) 1.6 TDI Engine volume: 1.6 Engine type: CAYD Year: 05.15-09.20
      VW CADDY IV Skåp/stor limousine (SAA, SAH) 1.6 TDI Engine volume: 1.6 Engine type: CAYE Year: 05.15-11.17
      VW CADDY IV Skåp/stor limousine (SAA, SAH) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFHC Year: 05.15-09.20
      VW CADDY IV Skåp/stor limousine (SAA, SAH) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CLCA, CFHF Year: 05.15-09.20
      VW CADDY IV Skåp/stor limousine (SAA, SAH) 2.0 TDI Engine volume: 2.0 Engine type: CLCB, CFHC Year: 05.15-09.20
      VW CC B7 (358) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFB Year: 11.11-12.16
      VW CC B7 (358) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGB Year: 11.11-01.13
      VW CC B7 (358) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGC Year: 12.12-12.16
      VW CC B7 (358) 2.0 TDI Engine volume: 2.0 Engine type: CFFA Year: 11.11-12.16
      VW CC B7 (358) 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 11.11-12.16
      VW CC B7 (358) 2.0 TDI Engine volume: 2.0 Engine type: CFGC Year: 12.12-12.16
      VW CC B7 (358) 2.0 TDI Engine volume: 2.0 Engine type: CLLA, CFGB Year: 11.11-12.16
      VW EOS (1F7, 1F8) 2.0 TDI 16V Engine volume: 2.0 Engine type: CFFB, CBAB Year: 05.08-08.15
      VW EOS (1F7, 1F8) 2.0 TDI Engine volume: 2.0 Engine type: CFFA Year: 11.10-08.15
      VW GOLF PLUS V (5M1, 521) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 02.09-12.13
      VW GOLF PLUS V (5M1, 521) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 03.09-12.13
      VW GOLF PLUS Van (521) 1.6 TDi Engine volume: 1.6 Engine type: CAYB Year: 02.09-08.14
      VW GOLF PLUS Van (521) 1.6 TDi Engine volume: 1.6 Engine type: CAYC Year: 02.09-08.14
      VW GOLF VAN VI Variant (AJ5) 1.6 TDi Engine volume: 1.6 Engine type: CAYB Year: 12.09-10.12
      VW GOLF VAN VI Variant (AJ5) 1.6 TDi Engine volume: 1.6 Engine type: CAYC Year: 07.09-05.14
      VW GOLF VI (5K1) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 02.09-11.12
      VW GOLF VI (5K1) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 02.09-11.12
      VW GOLF VI (5K1) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFB, CBAB Year: 05.09-11.12
      VW GOLF VI (5K1) 2.0 TDI Engine volume: 2.0 Engine type: CBBB, CFGB Year: 04.09-11.12
      VW GOLF VI (5K1) 2.0 TDI Engine volume: 2.0 Engine type: CFFA, CBAA Year: 10.08-11.12
      VW GOLF VI (5K1) 2.0 TDI Engine volume: 2.0 Engine type: CFFB, CJAA, CBAB Year: 10.08-05.13
      VW GOLF VI (5K1) 2.0 TDI Engine volume: 2.0 Engine type: CLCA, CBDC Year: 10.08-11.12
      VW GOLF VI Cabriolet (517) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 03.11-05.16
      VW GOLF VI Cabriolet (517) 2.0 TDI Engine volume: 2.0 Engine type: CFHC Year: 11.11-05.16
      VW GOLF VI Van (5K1) 1.6 TDi Engine volume: 1.6 Engine type: CAYB Year: 02.09-11.12
      VW GOLF VI Van (5K1) 1.6 TDi Engine volume: 1.6 Engine type: CAYC Year: 05.09-11.12
      VW GOLF VI Van (5K1) 2.0 TDi Engine volume: 2.0 Engine type: CFFB, CJAA Year: 09.09-11.12
      VW GOLF VI Van (5K1) 2.0 TDi Engine volume: 2.0 Engine type: CFGB Year: 05.10-11.12
      VW GOLF VI Variant (AJ5) 1.2 TSI Engine volume: 1.2 Engine type: CBZA Year: 07.10-07.13
      VW GOLF VI Variant (AJ5) 1.6 MultiFuel Engine volume: 1.6 Engine type: CMXA, CCSA Year: 07.10-07.13
      VW GOLF VI Variant (AJ5) 1.6 TDI 4motion Engine volume: 1.6 Engine type: CAYC Year: 07.09-07.13
      VW GOLF VI Variant (AJ5) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 12.09-07.13
      VW GOLF VI Variant (AJ5) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 07.09-07.13
      VW JETTA III (1K2) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 06.09-10.10
      VW JETTA IV (162, 163, AV3, AV2) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 04.10-07.15
      VW PASSAT ALLTRACK B7 Variant (365) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFB Year: 01.12-12.14
      VW PASSAT ALLTRACK B7 Variant (365) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGB Year: 01.12-12.14
      VW PASSAT ALLTRACK B7 Variant (365) 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 01.12-12.14
      VW PASSAT B7 (362) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFB Year: 08.10-12.14
      VW PASSAT B7 (362) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGB Year: 08.10-01.13
      VW PASSAT B7 (362) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGC Year: 01.13-12.14
      VW PASSAT B7 (362) 2.0 TDI Engine volume: 2.0 Engine type: CFFA Year: 08.10-12.14
      VW PASSAT B7 (362) 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 08.10-12.14
      VW PASSAT B7 (362) 2.0 TDI Engine volume: 2.0 Engine type: CFGC Year: 12.12-12.14
      VW PASSAT B7 (362) 2.0 TDI Engine volume: 2.0 Engine type: CLLA, CFGB Year: 08.10-12.14
      VW PASSAT B7 Variant (365) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFB Year: 08.10-12.14
      VW PASSAT B7 Variant (365) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGB Year: 08.10-01.13
      VW PASSAT B7 Variant (365) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGC Year: 01.13-12.14
      VW PASSAT B7 Variant (365) 2.0 TDI Engine volume: 2.0 Engine type: CFFA Year: 08.10-12.14
      VW PASSAT B7 Variant (365) 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 08.10-12.14
      VW PASSAT B7 Variant (365) 2.0 TDI Engine volume: 2.0 Engine type: CFGC Year: 12.12-12.14
      VW PASSAT B7 Variant (365) 2.0 TDI Engine volume: 2.0 Engine type: CLLA, CFGB Year: 08.10-12.14
      VW POLO V (6R1, 6C1) 1.2 TSI Engine volume: 1.2 Engine type: CBZB Year: 11.09-05.22
      VW POLO V (6R1, 6C1) 1.4 TDI Engine volume: 1.4 Engine type: CUSA, CYZB Year: 03.14-10.17
      VW POLO V (6R1, 6C1) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 02.14-10.17
      VW POLO V (6R1, 6C1) 1.4 TDI Engine volume: 1.4 Engine type: CUTA, CYZA Year: 05.14-10.17
      VW POLO V (6R1, 6C1) 1.6 TDI Engine volume: 1.6 Engine type: CAYA Year: 06.09-05.14
      VW POLO V (6R1, 6C1) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 06.09-05.14
      VW POLO V (6R1, 6C1) 1.6 TDI Engine volume: 1.6 Engine type: CLNA, CAYC Year: 06.09-08.15
      VW POLO V Skåp/halvkombi (6R1, 6C1) 1.4 TDI Engine volume: 1.4 Engine type: CUSA, CYZB Year: 03.14-10.17
      VW POLO V Skåp/halvkombi (6R1, 6C1) 1.4 TDI Engine volume: 1.4 Engine type: CUSB Year: 02.14-10.17
      VW POLO V Skåp/halvkombi (6R1, 6C1) 1.4 TDI Engine volume: 1.4 Engine type: CUTA Year: 03.14-10.17
      VW POLO V Skåp/halvkombi (6R1, 6C1) 1.6 TDi Engine volume: 1.6 Engine type: CAYA Year: 06.09-05.14
      VW POLO V Skåp/halvkombi (6R1, 6C1) 1.6 TDi Engine volume: 1.6 Engine type: CAYB Year: 06.09-05.14
      VW POLO V Skåp/halvkombi (6R1, 6C1) 1.6 TDi Engine volume: 1.6 Engine type: CAYC Year: 06.09-05.14
      VW SCIROCCO III (137, 138) 2.0 TDI Engine volume: 2.0 Engine type: CBBB, CFGB Year: 05.09-11.17
      VW SCIROCCO III (137, 138) 2.0 TDI Engine volume: 2.0 Engine type: CFGC Year: 01.13-11.17
      VW SCIROCCO III (137, 138) 2.0 TDI Engine volume: 2.0 Engine type: CFHB Year: 11.10-11.17
      VW SCIROCCO III (137, 138) 2.0 TDI Engine volume: 2.0 Engine type: CFHC, CBDB Year: 08.08-11.17
      VW SCIROCCO Van (137) 2.0 TDi Engine volume: 2.0 Engine type: CBBB, CFGB Year: 05.09-05.14
      VW SCIROCCO Van (137) 2.0 TDi Engine volume: 2.0 Engine type: CFHC, CBDB Year: 08.08-05.14
      VW SHARAN (7N1, 7N2) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFB Year: 05.11-11.15
      VW SHARAN (7N1, 7N2) 2.0 TDI Engine volume: 2.0 Engine type: CFFA Year: 05.10-11.15
      VW SHARAN (7N1, 7N2) 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 05.10-11.15
      VW SHARAN (7N1, 7N2) 2.0 TDI Engine volume: 2.0 Engine type: CFGB Year: 05.10-01.13
      VW SHARAN (7N1, 7N2) 2.0 TDI Engine volume: 2.0 Engine type: DLTC, CFFE, CUVA, DFLD Year: 05.11-07.19
      VW SHARAN (7N1, 7N2) 2.0 TDI Engine volume: 2.0 Engine type: DLUB, CFGC Year: 01.13-06.22
      VW SHARAN Skåp/stor limousine (7N1, 7N2) 2.0 TDI Engine volume: 2.0 Engine type: CFFA Year: 05.10-05.11
      VW SHARAN Skåp/stor limousine (7N1, 7N2) 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 05.10-11.15
      VW SHARAN Skåp/stor limousine (7N1, 7N2) 2.0 TDI Engine volume: 2.0 Engine type: CFFE Year: 05.11-11.15
      VW SHARAN Skåp/stor limousine (7N1, 7N2) 2.0 TDI Engine volume: 2.0 Engine type: CFGB Year: 08.10-01.13
      VW TIGUAN (5N_) 1.4 TSI 4motion Engine volume: 1.4 Engine type: CAVA, CTHA, BWK Year: 09.07-07.18
      VW TIGUAN (5N_) 1.4 TSI Engine volume: 1.4 Engine type: CAVA, CTHA, BWK Year: 05.08-07.18
      VW TIGUAN (5N_) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CBBA Year: 02.08-08.09
      VW TIGUAN (5N_) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CBBB, CFGB Year: 09.07-07.18
      VW TIGUAN (5N_) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFA, CBAA Year: 11.07-07.18
      VW TIGUAN (5N_) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGC Year: 11.12-07.18
      VW TIGUAN (5N_) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CLJA, CFFB, CBAB Year: 09.07-07.18
      VW TIGUAN (5N_) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CUWA Year: 05.15-07.18
      VW TIGUAN (5N_) 2.0 TDI Engine volume: 2.0 Engine type: CFFB, CBAB Year: 03.08-07.18
      VW TIGUAN (5N_) 2.0 TDI Engine volume: 2.0 Engine type: CFFD, CUVE Year: 05.10-07.18
      VW TIGUAN VAN (5N_) 2.0 TDI (5N1) Engine volume: 2.0 Engine type: CFFD Year: 05.10-07.11
      VW TIGUAN VAN (5N_) 2.0 TDI (5N1, 5N2) Engine volume: 2.0 Engine type: CFFB Year: 11.09-07.18
      VW TIGUAN VAN (5N_) 2.0 TDI 4motion (5N1, 5N2) Engine volume: 2.0 Engine type: CFGB Year: 05.10-05.13
      VW TIGUAN VAN (5N_) 2.0 TDI 4motion (5N1, 5N2) Engine volume: 2.0 Engine type: CLJA, CFFB, CBAB Year: 11.07-07.18
      VW TIGUAN VAN (5N_) 2.0 TDI 4motion (5N2) Engine volume: 2.0 Engine type: CFGC Year: 11.12-07.18
      VW TOURAN (1T1, 1T2) 2.0 TDI Engine volume: 2.0 Engine type: CFJA, BMN Year: 12.05-05.10
      VW TOURAN (1T3) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 05.10-05.15
      VW TOURAN (1T3) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 05.10-05.15
      VW TOURAN (1T3) 2.0 TDI Engine volume: 2.0 Engine type: CFHC Year: 05.10-05.15
      VW TOURAN (1T3) 2.0 TDI Engine volume: 2.0 Engine type: CFJA Year: 05.10-01.13
      VW TOURAN (1T3) 2.0 TDI Engine volume: 2.0 Engine type: CFJB Year: 01.13-05.15
      VW TOURAN (1T3) 2.0 TDI Engine volume: 2.0 Engine type: CLCA, CFHF Year: 11.10-05.15
      VW TOURAN Skåp/stor limousine (1T3) 1.6 TDI Engine volume: 1.6 Engine type: CAYB Year: 05.10-05.15
      VW TOURAN Skåp/stor limousine (1T3) 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 05.10-05.15
      VW TOURAN Skåp/stor limousine (1T3) 2.0 TDI Engine volume: 2.0 Engine type: CFHC Year: 05.10-05.15
      VW TOURAN Skåp/stor limousine (1T3) 2.0 TDi Engine volume: 2.0 Engine type: CFJA Year: 05.10-01.13
      1 / 56

Vi bruker informasjonskapsler for å gi deg den beste opplevelsen på nettstedet vårt. Du godtar bruken av informasjonskapsler ved å trykke OK og fortsette å bla gjennom nettstedet.
