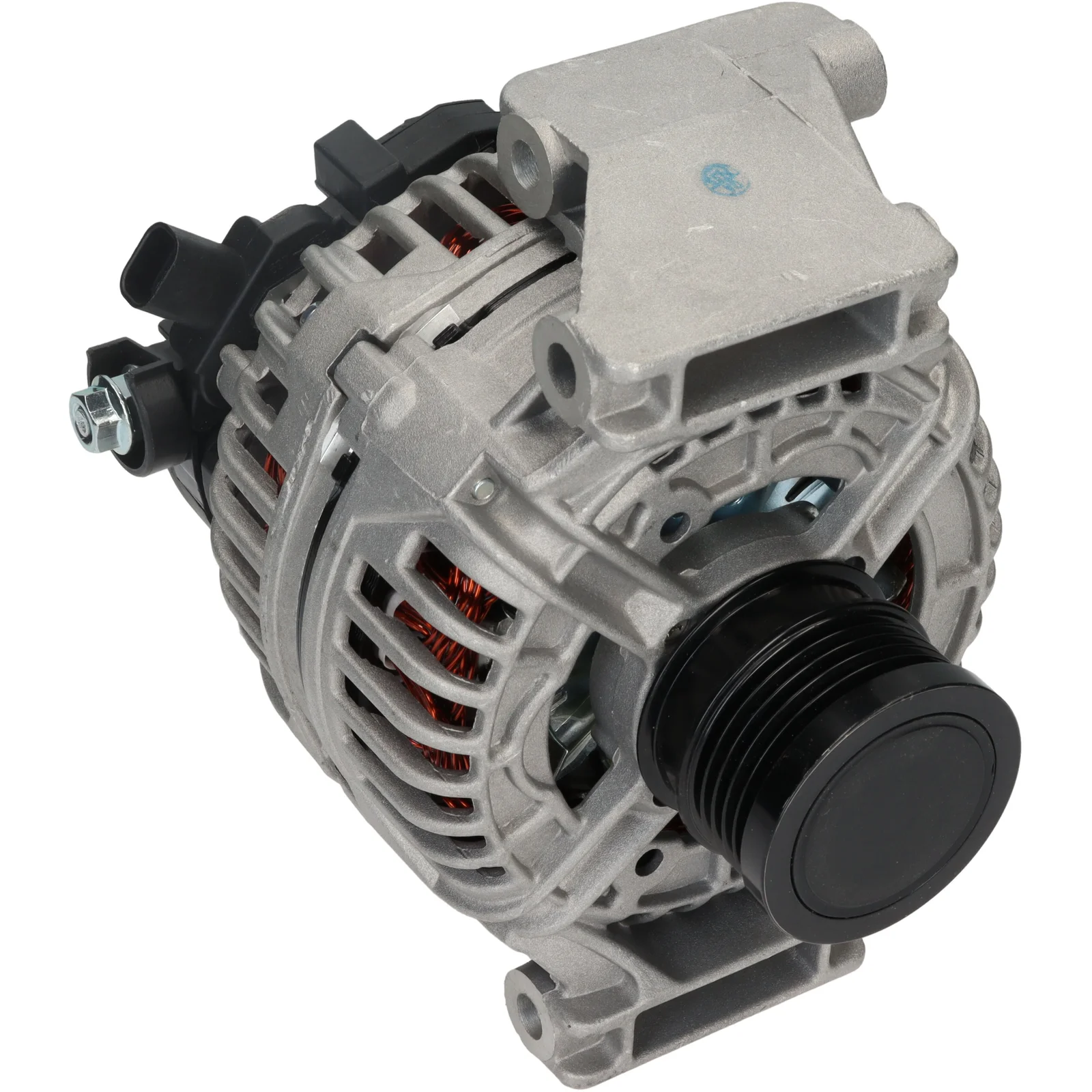

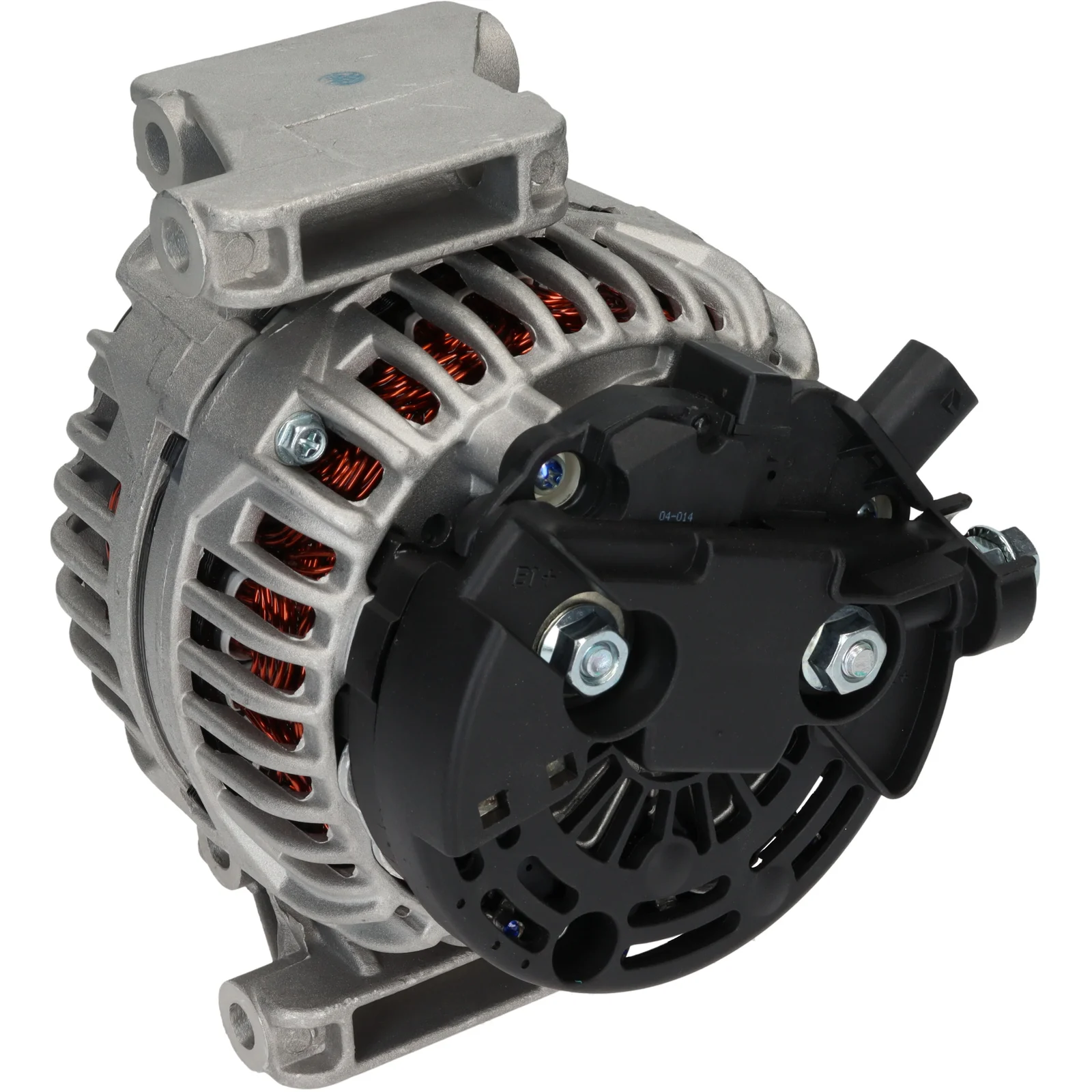

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116468

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 100, Rotasjon: med klokken, Festebrakett avstand.: 56,00

Beskrivelse

Spenningsp. | Spen. → Spenning: 14
Ampere | Amp → Ampere: 100
Bøssing dist. | Bøssing → Kjøren av drivlinje: 32.00
Bredde/holderarm → Bredde/holderarm: 79.00
Monteringsbrakett dist. → Monteringsbrakettdistans → Monteringsbrakettavstand: 56.00
Brakettshull → Brakettshull: 9.00
Belt. adjusting bracket hole 1 → Beltejusteringsbrakett hull 1 → Beltejusteringsbrakett hull 1: 9.00
Belt. adjusting bracket hole 2 → Beltejusteringsbrakett hull 2 → Beltejusteringsbrakett hull 2: 9.00
Pulley dia. → Bøssing di. → Bøssing di.: 56.80
Grooves/pulley → Riller/bøssing → Riller/bøssing: 5
Radius → Radius: 83.00
Radius 2 → Radius 2: 83.00
B+ | B+ → B+: M8
Position/B+ in min. → Posisjon/B+ i min.: 13
D+ Size → D+ Størrelse: Plugg
Rotation → Rotasjon: CW
Plug no. → Plugg nr.: PL75
Total length mm → Total lengde mm: 191.00
Terminal type → Terminaltype: L-DFM
Lamp type → Lampe type: Aktiv
Pulley → Bøssing: SP/FW
Fan → Vifte: IF
Regulator type → Regul. type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.00
Belt. adj. bracket hole 2 9.00
Plug no. PL75
Bracket hole 9.00
Position/B+ in min. 13
Pulley SP/FW
Pulley dia. 56.80
Pulley dist. 32.00
Radius 83.00
D+ Size Plug
Radius 2 83.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 5
Lamp type Active
Terminal type L-DFM
Voltage 14
Total length 191.00 mm
Width/holder arm 79.00
Amp 100

  • OEM
    F032116468, 1858ir, 24455913, 93172075, 0124415026

  • Konkurrentreferens
    A0640PR, A0640S, CAL10299, DRB4011, 28-4715, 135.541.100, 209078, 209078A, 301858RI, 12090482

  • NormaliseratArtNr
    a0640pr, a0640s, cal10299, drb4011, f032116468, 1858ir, 209078, 209078a, 284715, 301858ri, 12090482, 24455913, 93172075, 0124415026, 135541100

  • Passar modeller
    Chevrolet Model: Astra Model series: Astra Size of motor: 2.2 Brand of engine: Z22SE Body: Hatchback From date: 01-08-2000 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Vectra Model series: Vectra Size of motor: 2.2 Brand of engine: Z22SE From date: 01-04-2002 To date: 01-04-2004 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Vectra Model series: Vectra Size of motor: 2.2 Brand of engine: Z22YH From date: 01-01-2005 To date: 01-07-2006 Fuel: Gasoline Approved: Yes
    Holden Model: Astra Model series: Astra Size of motor: 1.8 Brand of engine: Z22E Type description: AH Body: Convertible From date: 01-06-2002 To date: 01-12-2006 Fuel: Gasoline Approved: Yes
    Holden Model: Astra Model series: Astra Size of motor: 2.2 Brand of engine: Z22SE Type description: TS Body: Hatchback From date: 01-09-2000 To date: 01-07-2004 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra G Type of engine: i 16V Size of motor: 2.2 Brand of engine: Z22SE Body: Convertible From date: 01-03-2001 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra G Type of engine: i 16V Size of motor: 2.2 Brand of engine: Z22SE Body: Coupe From date: 01-09-2000 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra G Type of engine: i 16V Size of motor: 2.2 Brand of engine: Z22SE Body: Estate From date: 01-03-2001 To date: 01-07-2004 Fuel: Gasoline Approved: Yes Manufacture type: Caravan
    Opel Model: Astra Model series: Astra G Type of engine: i 16V Size of motor: 2.2 Brand of engine: Z22SE Body: Hatchback From date: 01-06-2000 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra G Type of engine: i 16V Size of motor: 2.2 Brand of engine: Z22SE From date: 01-03-2001 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Opel Model: Signum Model series: Signum Size of motor: 2.2 Brand of engine: Z22YH Body: Hatchback From date: 01-05-2003 To date: 01-09-2008 Fuel: Gasoline Approved: Yes
    Opel Model: Vectra Model series: Vectra C Model type: Direct Size of motor: 2.2 Brand of engine: Z22YH Body: Estate From date: 01-10-2003 To date: 01-08-2008 Fuel: Gasoline Approved: Yes Manufacture type: CARAVAN
    Opel Model: Vectra Model series: Vectra C Model type: Direct Size of motor: 2.2 Brand of engine: Z22YH From date: 01-10-2003 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    Opel Model: Vectra Model series: Vectra C Model type: GTS Direct Size of motor: 2.2 Brand of engine: Z22YH Body: Hatchback From date: 01-10-2003 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    Opel Model: Vectra Model series: Vectra C Model type: GTS Type of engine: i 16V Size of motor: 2.2 Brand of engine: Z22SE Body: Hatchback From date: 01-08-2002 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    Opel Model: Vectra Model series: Vectra C Type of engine: i 16V Size of motor: 2.2 Brand of engine: Z22SE From date: 01-04-2002 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Opel Model: Vectra Model series: Vectra C Type of engine: Turbo 16V Size of motor: 2.0 Brand of engine: Z20NET From date: 01-03-2003 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    Opel Model: Vectra Model series: Vectra C Type of engine: Turbo Size of motor: 2.0 Brand of engine: Z20NET Body: Estate From date: 01-10-2003 To date: 01-08-2008 Fuel: Gasoline Approved: Yes Manufacture type: CARAVAN
    Opel Model: Zafira Model series: Zafira A Type of engine: 16V Size of motor: 2.2 Brand of engine: Z22SE Body: MPV From date: 01-09-2000 To date: 01-06-2005 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Signum Model series: Signum Type of engine: i Turbo Size of motor: 2.0 Brand of engine: Z20NET Body: Hatchback From date: 01-03-2003 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Vectra Model series: Vectra Model type: Direct GTS Size of motor: 2.2 Brand of engine: Z22YH Body: Hatchback From date: 01-10-2003 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Vectra Model series: Vectra Model type: Direct Size of motor: 2.2 Brand of engine: Z22YH Body: Estate From date: 01-10-2003 To date: 01-07-2008 Fuel: Gasoline Approved: Yes Manufacture type: estate
    Vauxhall Model: Vectra Model series: Vectra Model type: Direct Size of motor: 2.2 Brand of engine: Z22YH From date: 01-01-2002 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Vectra Model series: Vectra Model type: GTS Type of engine: i 16V Size of motor: 2.2 Brand of engine: Z22SE Body: Hatchback From date: 01-08-2002 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Vectra Model series: Vectra Type of engine: i 16V Size of motor: 2.2 Brand of engine: Z22SE From date: 01-01-2002 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Vectra Model series: Vectra Type of engine: Turbo 16V Size of motor: 2.0 Brand of engine: Z20NET Body: Estate From date: 01-10-2003 To date: 01-07-2008 Fuel: Gasoline Approved: Yes Manufacture type: estate
    1 / 6
