HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116487

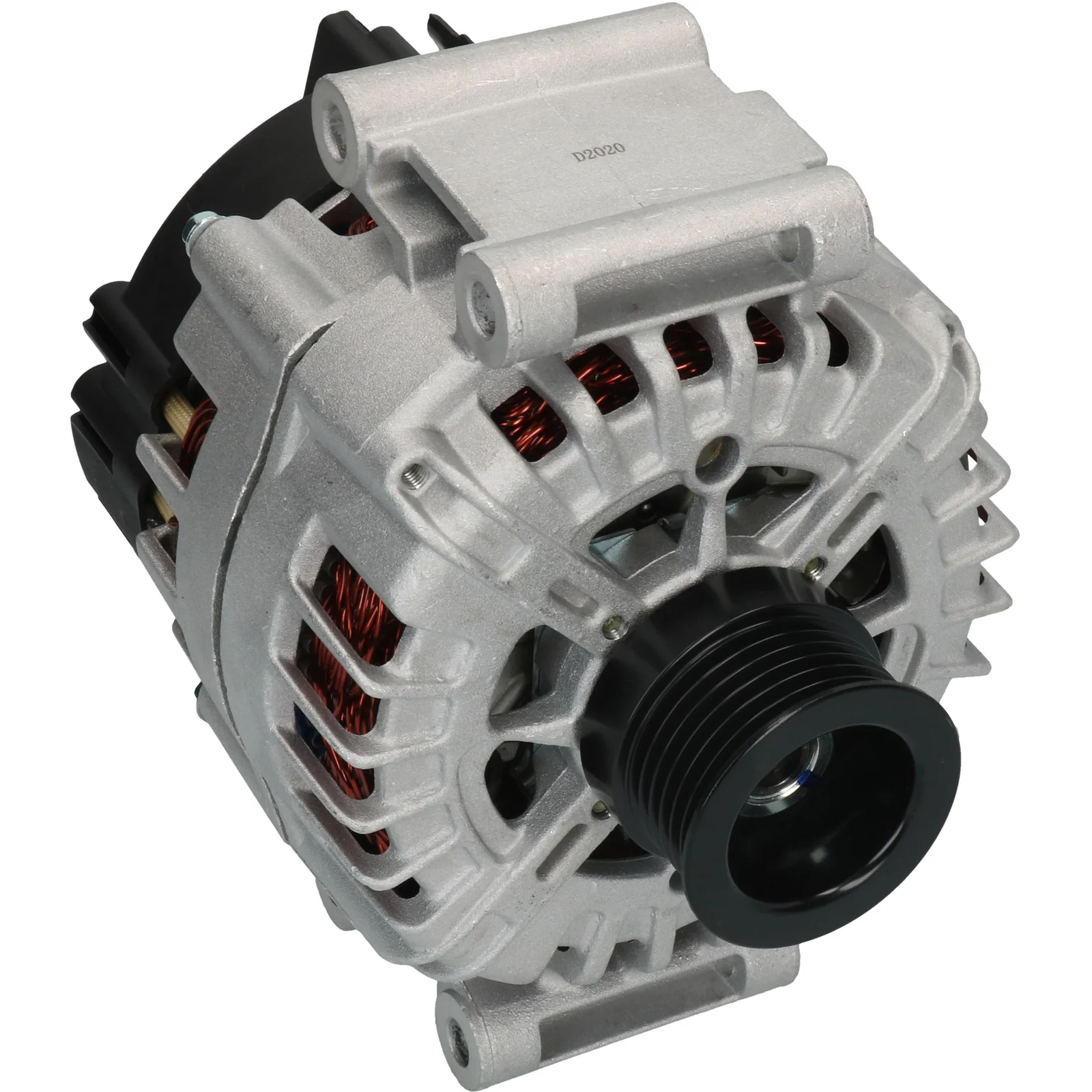

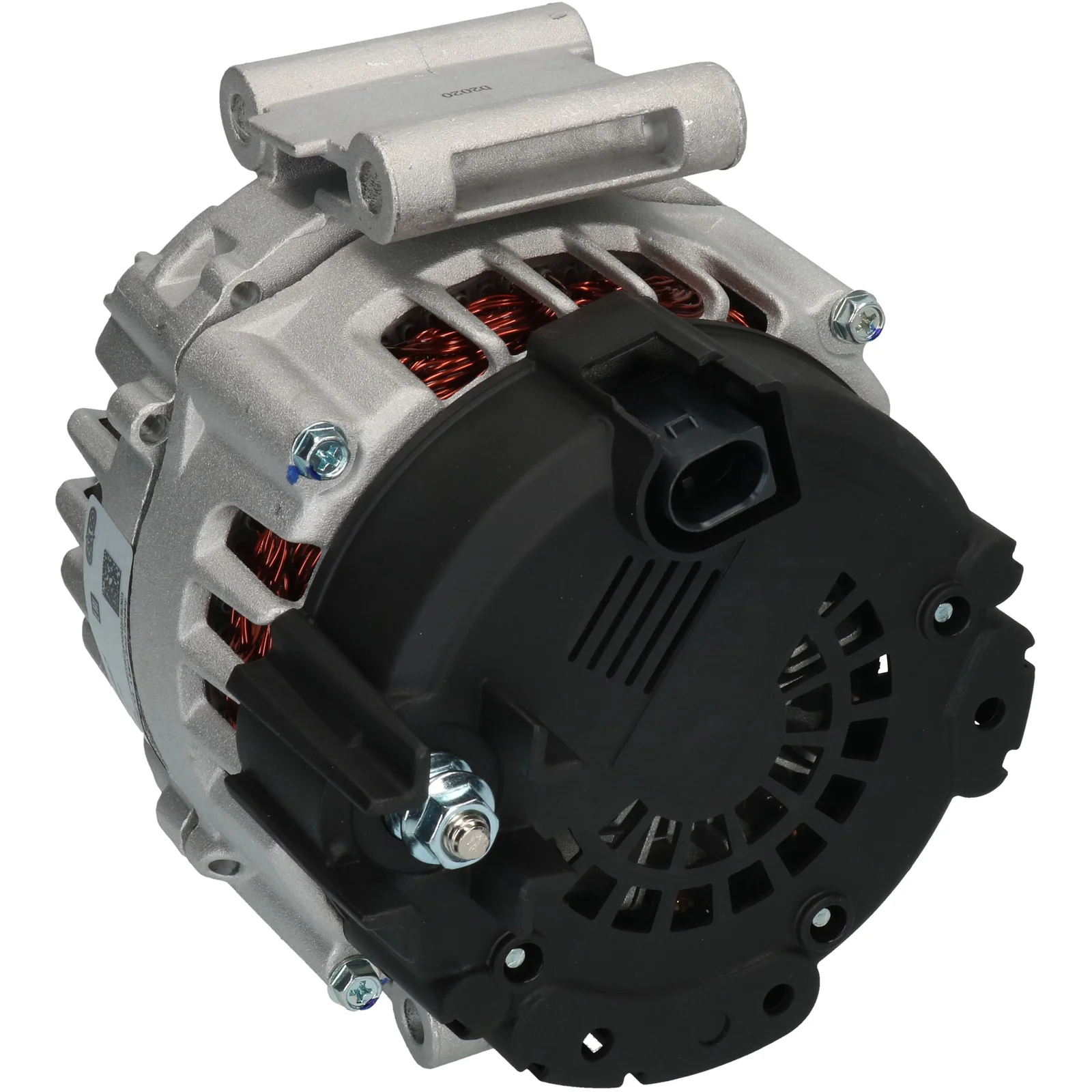

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 180, Monteringsbøssing fordeler: 56.00, Drivskive diameter: 49.50

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsråd: 14
Ampere: 180
Drevhjulets avstand: 31,50
Bredde/holder arm: 70,00
Monteringsbrakettets avstand: 56,00
Brakettspor: 9,20
Bånd. justeringsbrakett spor 1: 9,20
Drevets diameter: 49,50
Riller/drev: 6
Radius: 77,50
Radius 2: 85,00
B+: M8
Posisjon/B+ i min.: 45
Plugg nr.: PL125
Total lengde mm: 191,00
Terminaltype: COM
Kommunikasjon: LIN
Drevhjul: SP
Vifte: IF
Regulator type: IR
Anmerkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnetheten før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.20
Plug no. PL125
Bracket hole 9.20
Position/B+ in min. 45
Pulley SP
Pulley dia. 49.50
Pulley dist. 31.50
Radius 77.50
Radius 2 85.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 191.00 mm
Width/holder arm 70.00
Amp 180

  • OEM
    a0141540402, F00E100550, F032116487, FG18S016, FGN18S016, 1986A00041, 2543467A, 0141540402

  • Konkurrentreferens
    A3430S, CAL15384, DRA1269, LRA03435, 28-6547, 225.301.1802, 555.973.180, 200221, 439649, 440219, 12091048, 0986047651

  • NormaliseratArtNr
    a0141540402, a3430s, cal15384, dra1269, f00e100550, f032116487, fg18s016, fgn18s016, lra03435, 1986a00041, 200221, 286547, 439649, 440219, 2543467a, 12091048, 0141540402, 555973180, 0986047651, 2253011802

  • Passar modeller
    Mercedes-Benz Model: 280 Model series: R 280 Size of motor: 3.0 Brand of engine: M272.945 Type description: W251 Body: MPV From date: 01-01-2007 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 300 Model series: R 300 Size of motor: 3.0 Brand of engine: M272.945 Type description: W251 Body: MPV From date: 01-07-2009 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: ML 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M272.967 Type description: 164 From date: 01-02-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: R 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M272.967 Type description: 251 Body: MPV From date: 01-08-2005 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: R 350 Size of motor: 3.5 Brand of engine: M272.967 Type description: W251 Body: MPV From date: 01-01-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: SL 350 Size of motor: 3.5 Brand of engine: M272.968 Type description: R230 Body: Convertible From date: 01-04-2008 To date: 01-01-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: SLK 350 Size of motor: 3.5 Brand of engine: M272.969 Type description: R171 Body: Convertible From date: 01-01-2008 To date: 01-02-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: SLK 350 Size of motor: 3.5 Brand of engine: M276.956 Type description: R172 Body: Convertible From date: 01-02-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 450 Model series: GL 450 Size of motor: 4.7 Brand of engine: M273.923 Type description: 164 From date: 01-09-2006 To date: 01-08-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 500 Model series: GL 500 Size of motor: 5.5 Brand of engine: M273.963 Type description: 164 From date: 01-09-2006 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 500 Model series: ML 500 Model type: 4 Matic Size of motor: 5.5 Brand of engine: M273.963 Type description: W164 From date: 01-12-2007 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 500 Model series: R 500 Model type: 4 Matic Size of motor: 5.5 Brand of engine: M273.963 Type description: W251 Body: MPV From date: 01-05-2007 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: R-Class Model series: R-Class Model type: 4 Matic Size of motor: 3.0 Brand of engine: M272.945 Type description: W251 Body: MPV From date: 01-05-2007 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
