HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116494

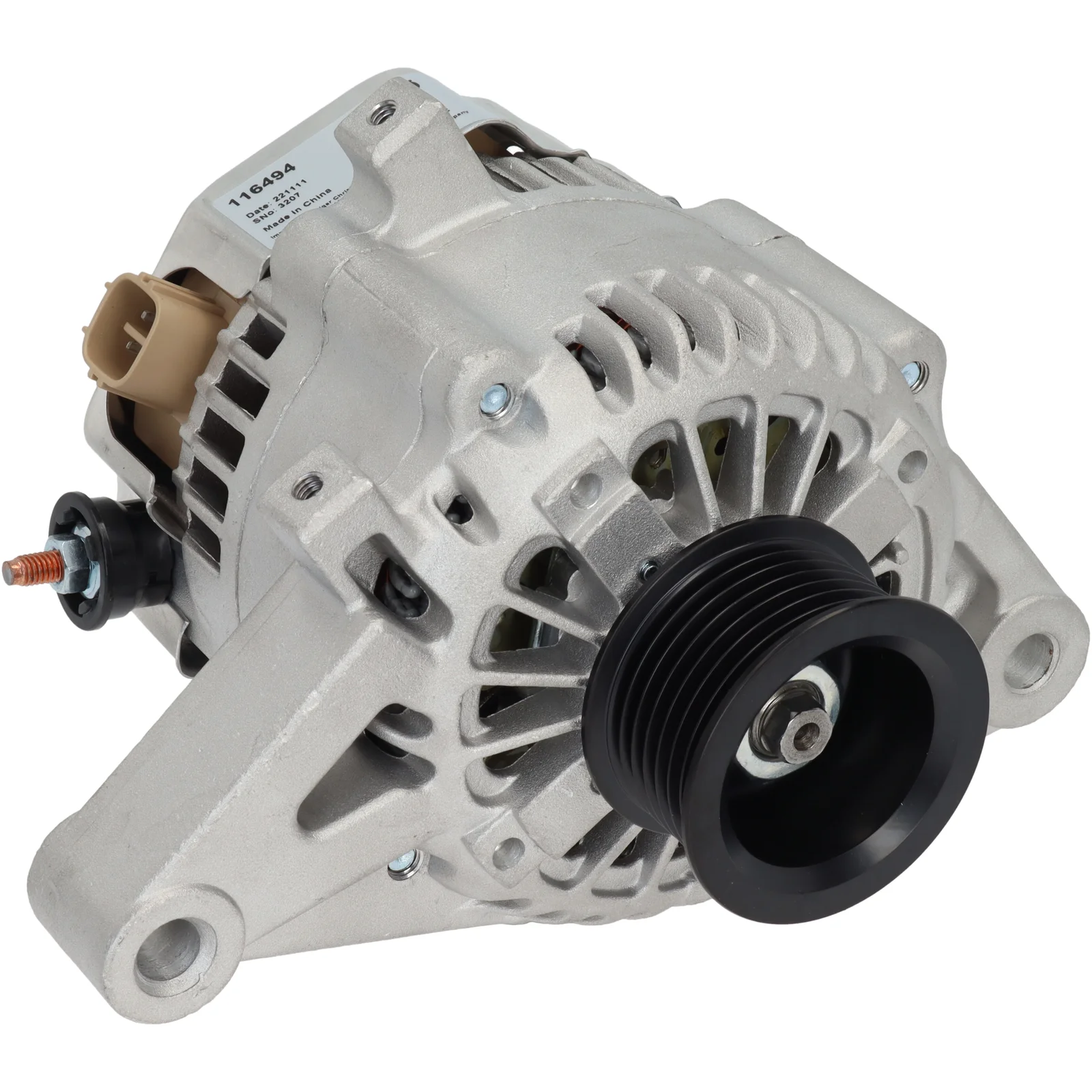

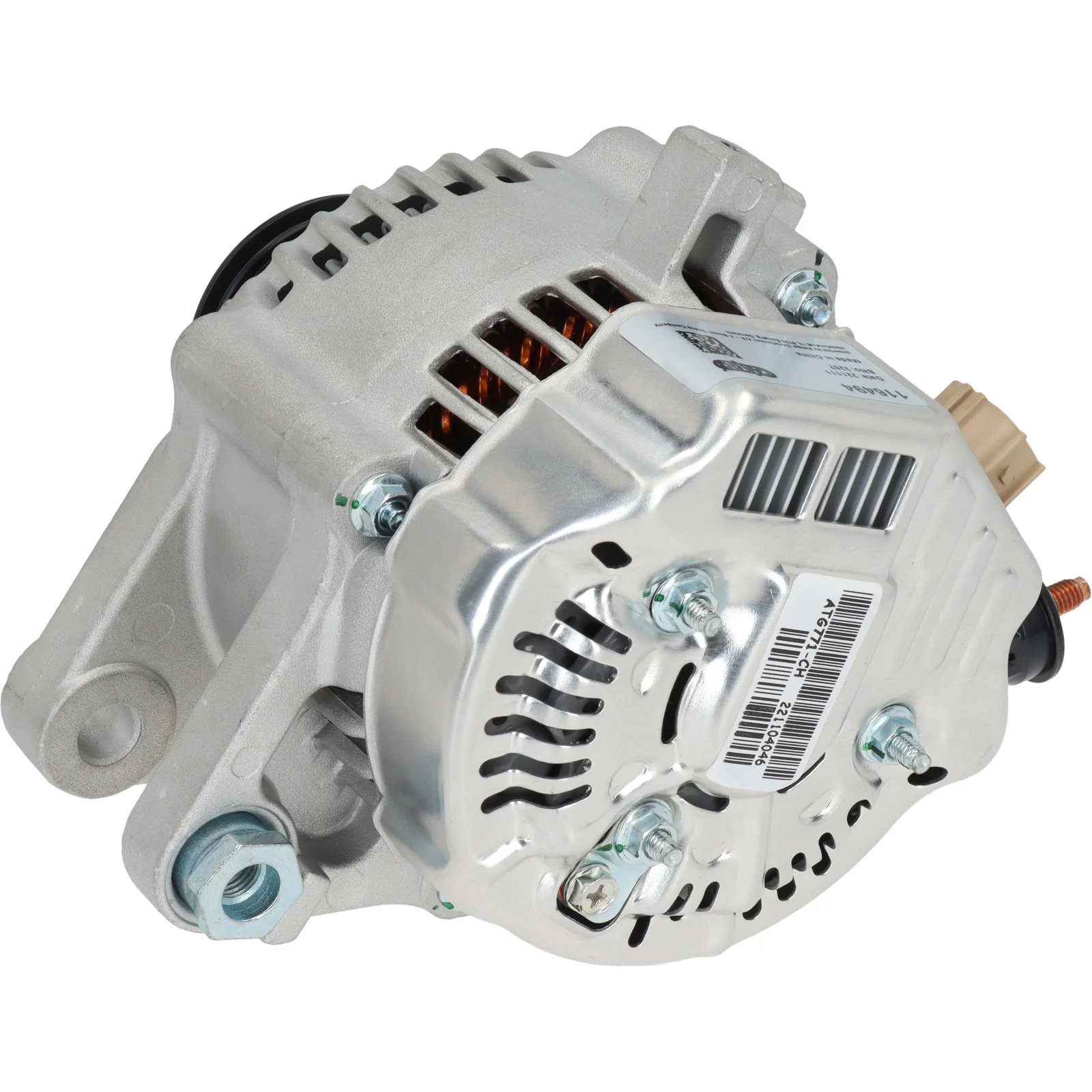

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 80, Rotasjon: CW, Monteringsbrakett avstand: 32.00

Beskrivelse

Spenning: 14
Amp: 80
Reim distanse: 40,00
Bredde/holderarm: 18,00
Montasjebrakettavstand: 32,00
Brakettåpning: 11,00
Belt. justeringsbrakettåpningsposisjon: 54
Belt. justeringsbrakettåpning 1: 11,00
Reimskive diameter: 52,00
Riller/reimskive: 7
Radius: 84,50
Radius 2: 102,50
B+: M6
Posisjon/B+ i min.: 50
D+ størrelse: Plugg
Rotasjon: med urviseren
Plugg nr.: PL78
Total lengde mm: 162,00
Reimskive: SP
Vifte: IF
Regulator type: IR

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 32.00
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 54
Plug no. PL78
Bracket hole 11.00
Position/B+ in min. 50
Pulley SP
Pulley dia. 52.00
Pulley dist. 40.00
Radius 84.50
D+ Size Plug
Radius 2 102.50
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Voltage 14
Total length 162.00 mm
Width/holder arm 18.00
Amp 80

  • OEM
    F032116494, 27060-31010, 27060-31011, 104210-8040, 104210-8410, 104210-8411

  • Konkurrentreferens
    A6439S, CAL40383, CAL40391, DAN1080, J5112156, 28-7544, 195.960.080, 235.352.802, 209427, 209427A, 12061153

  • NormaliseratArtNr
    a6439s, cal40383, cal40391, dan1080, f032116494, j5112156, 209427, 209427a, 287544, 12061153, 195960080, 235352802, 1042108040, 1042108410, 1042108411, 2706031010, 2706031011

  • Passar modeller
    Toyota Model: FJ Cruiser Model series: FJ Cruiser Model type: 4WD Size of motor: 4.0 Brand of engine: 1GR-FE Type description: GSJ1_ Body: SUV From date: 01-01-2007 To date: 01-06-2014 Fuel: Petrol Approved: Yes
    Toyota Model: FJ CRUISER Model series: FJ CRUISER Type of engine: V6 Size of motor: 4.0 Brand of engine: 1GR-FE Type description: GSJ1_ From date: 01-01-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Toyota Model: FJ CRUISER Model series: FJ CRUISER Type of engine: VVTi Size of motor: 4.0 Brand of engine: 1GR-FE Type description: GSJ1_ From date: 01-01-2006 To date: 01-01-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4x4 Size of motor: 4.0 Brand of engine: 1GR-FE Body: Pick Up From date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 4x4 Size of motor: 4.0 Brand of engine: 1GR-FE Type description: _J7_ Body: Platform / Chassis From date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Prado Size of motor: 4.0 Brand of engine: 1GR-FE Type description: _J12_ Body: Closed Off-Road Vehicle From date: 01-11-2004 To date: 01-06-2009 Fuel: Petrol Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Prado Type of engine: V6 Size of motor: 4.0 Brand of engine: 1GR-FE Type description: _J12_ From date: 01-01-2003 To date: 01-07-2009 Fuel: Gasoline Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.0 Brand of engine: 1GR-FE From date: 01-12-2002 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.0 Brand of engine: 1GR-FE Type description: KDJ12_, GRJ12_ From date: 01-08-2005 To date: 01-07-2009 Fuel: Gasoline Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.0 Type description: J12 From date: 01-09-2002 To date: 01-08-2010 Fuel: Gasoline Approved: Yes
