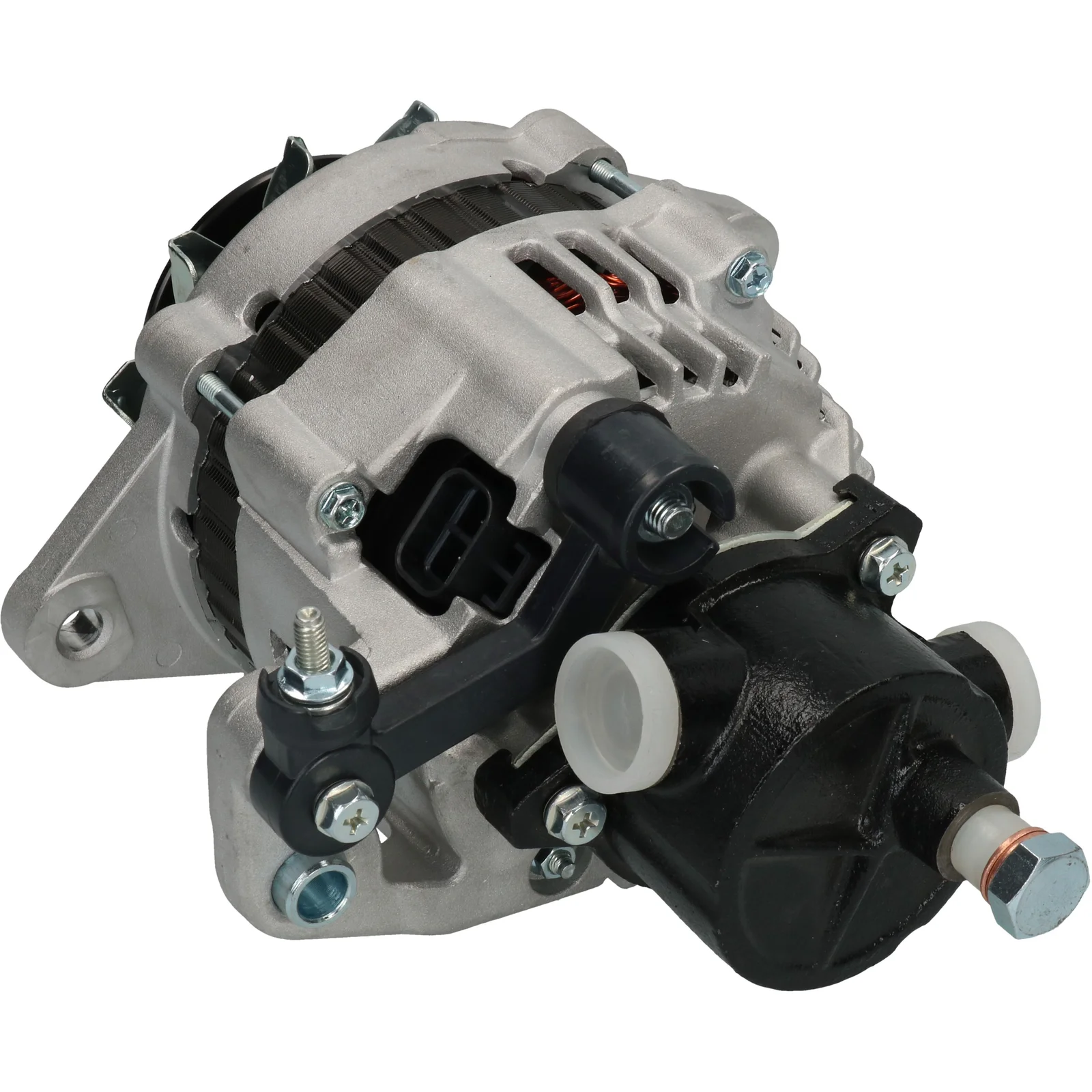

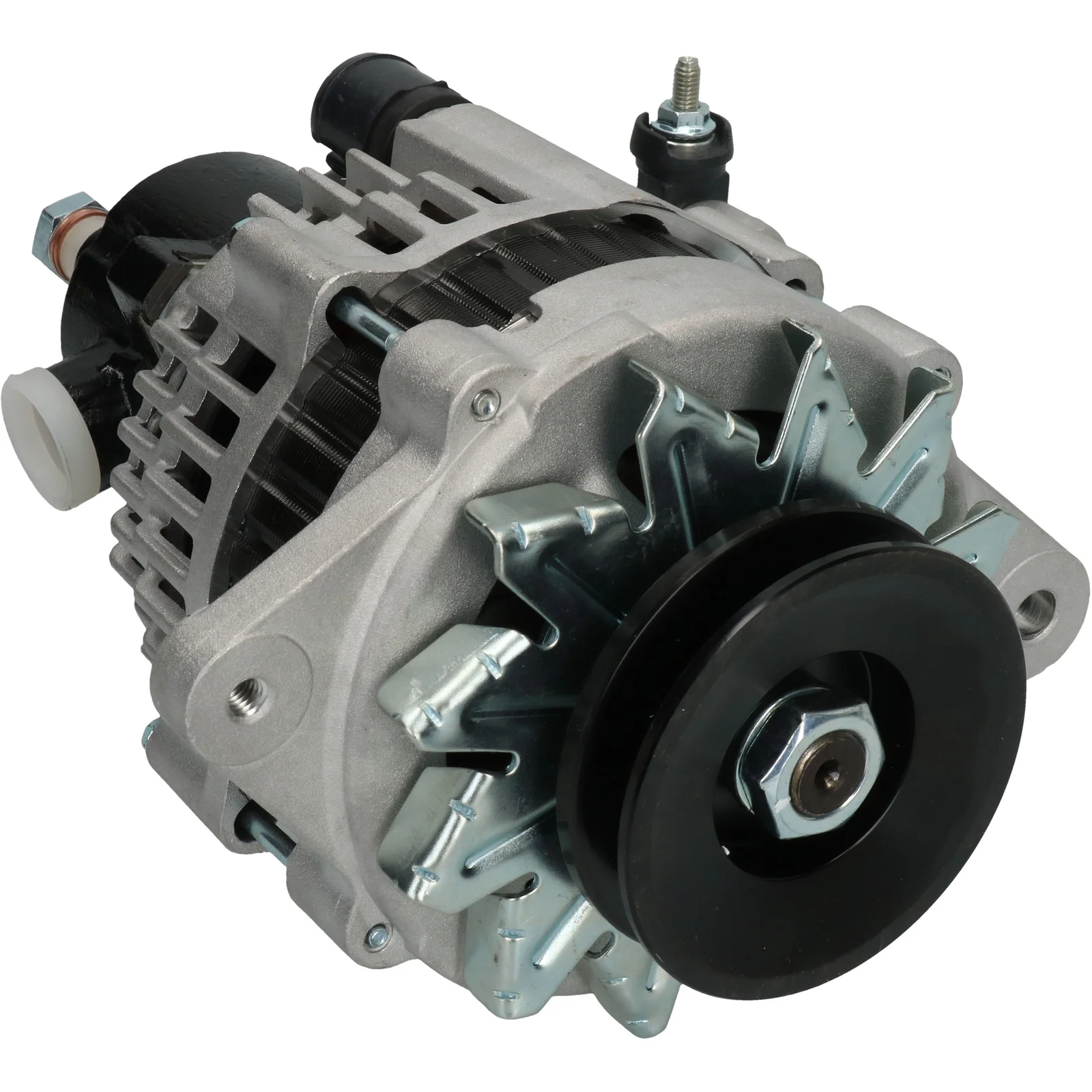

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116495

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 70, Rotasjon: med urviseren, Montering. bøssing avstand: 84,50

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsspenning: 14
Ampere: 70
Leddkopp dist.: 50.60
Bredde/holderarm: 12.70
Festebrakett dist.: 84.50
Brakett hull: 10.30
Belt. justering brakett hull pos.: 60
Belt. justering brakett hull 1: 10.50
Leddkopp dia.: 84.00
Grooves/leddkopp: 1
Radius: 90.00
Radius 2: 85.00
B+: M6
Posisjon/B+ i min.: 37
Rotasjon: CW
Kontakt nr.: PL07
Total lengde mm: 258.00
Leddkopp: P
Vifte: EF
Regulator type: IR
Vac. pumpe: Ja

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 84.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.30
Position/B+ in min. 37
Pulley P
Pulley dia. 84.00
Pulley dist. 50.60
Radius 90.00
Radius 2 85.00
Regulator type IR
Rotation CW
Fan EF
Grooves/pulley 1
Vac. pump Yes
Voltage 14
Total length 258.00 mm
Width/holder arm 12.70
Amp 70

  • OEM
    F032116495, LR170-510, LR170-510B, R2S2-18-300, R2S2-18-300B

  • Konkurrentreferens
    A2078S, CAL20230, LRA02029, 28-3942, 145.811.070, 553926RI, 12060882

  • NormaliseratArtNr
    a2078s, cal20230, f032116495, lr170510, lr170510b, lra02029, r2s218300, r2s218300b, 283942, 553926ri, 12060882, 145811070

  • Passar modeller
    Mazda Model: E Model series: E 2000 Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2 Type description: SR2 Body: Van From date: 01-02-1997 To date: 01-05-2003 Fuel: Diesel Approved: Yes
    Mazda Model: E Model series: E 2000 Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2 Type description: SR2 Body: Van From date: 01-02-1997 To date: 01-08-2002 Fuel: Diesel Approved: Yes
    Mazda Model: E Model series: E 2200 Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2 Type description: SR2 Body: Van From date: 01-02-1997 To date: 01-05-2003 Fuel: Diesel Approved: Yes
    Mazda Model: E Model series: E 2200 Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2 Type description: SR2 Body: Van From date: 01-02-1997 To date: 01-08-2002 Fuel: Diesel Approved: Yes
    Mazda Model: E-Serie Model series: E-Serie Model type: E2200 Type of engine: Diesel Size of motor: 2.2 Brand of engine: R21N Type description: SD1, SL Body: Platform / Chassis From date: 01-09-1999 To date: 01-07-2004 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenningsspenning: 14
    Ampere: 70
    Leddkopp dist.: 50.60
    Bredde/holderarm: 12.70
    Festebrakett dist.: 84.50
    Brakett hull: 10.30
    Belt. justering brakett hull pos.: 60
    Belt. justering brakett hull 1: 10.50
    Leddkopp dia.: 84.00
    Grooves/leddkopp: 1
    Radius: 90.00
    Radius 2: 85.00
    B+: M6
    Posisjon/B+ i min.: 37
    Rotasjon: CW
    Kontakt nr.: PL07
    Total lengde mm: 258.00
    Leddkopp: P
    Vifte: EF
    Regulator type: IR
    Vac. pumpe: Ja

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 84.50
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.30
    Position/B+ in min. 37
    Pulley P
    Pulley dia. 84.00
    Pulley dist. 50.60
    Radius 90.00
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Fan EF
    Grooves/pulley 1
    Vac. pump Yes
    Voltage 14
    Total length 258.00 mm
    Width/holder arm 12.70
    Amp 70
  • Kjøretøymatching

    • OEM
      F032116495, LR170-510, LR170-510B, R2S2-18-300, R2S2-18-300B

    • Konkurrentreferens
      A2078S, CAL20230, LRA02029, 28-3942, 145.811.070, 553926RI, 12060882

    • NormaliseratArtNr
      a2078s, cal20230, f032116495, lr170510, lr170510b, lra02029, r2s218300, r2s218300b, 283942, 553926ri, 12060882, 145811070

    • Passar modeller
      Mazda Model: E Model series: E 2000 Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2 Type description: SR2 Body: Van From date: 01-02-1997 To date: 01-05-2003 Fuel: Diesel Approved: Yes
      Mazda Model: E Model series: E 2000 Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2 Type description: SR2 Body: Van From date: 01-02-1997 To date: 01-08-2002 Fuel: Diesel Approved: Yes
      Mazda Model: E Model series: E 2200 Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2 Type description: SR2 Body: Van From date: 01-02-1997 To date: 01-05-2003 Fuel: Diesel Approved: Yes
      Mazda Model: E Model series: E 2200 Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2 Type description: SR2 Body: Van From date: 01-02-1997 To date: 01-08-2002 Fuel: Diesel Approved: Yes
      Mazda Model: E-Serie Model series: E-Serie Model type: E2200 Type of engine: Diesel Size of motor: 2.2 Brand of engine: R21N Type description: SD1, SL Body: Platform / Chassis From date: 01-09-1999 To date: 01-07-2004 Fuel: Diesel Approved: Yes
