HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116504

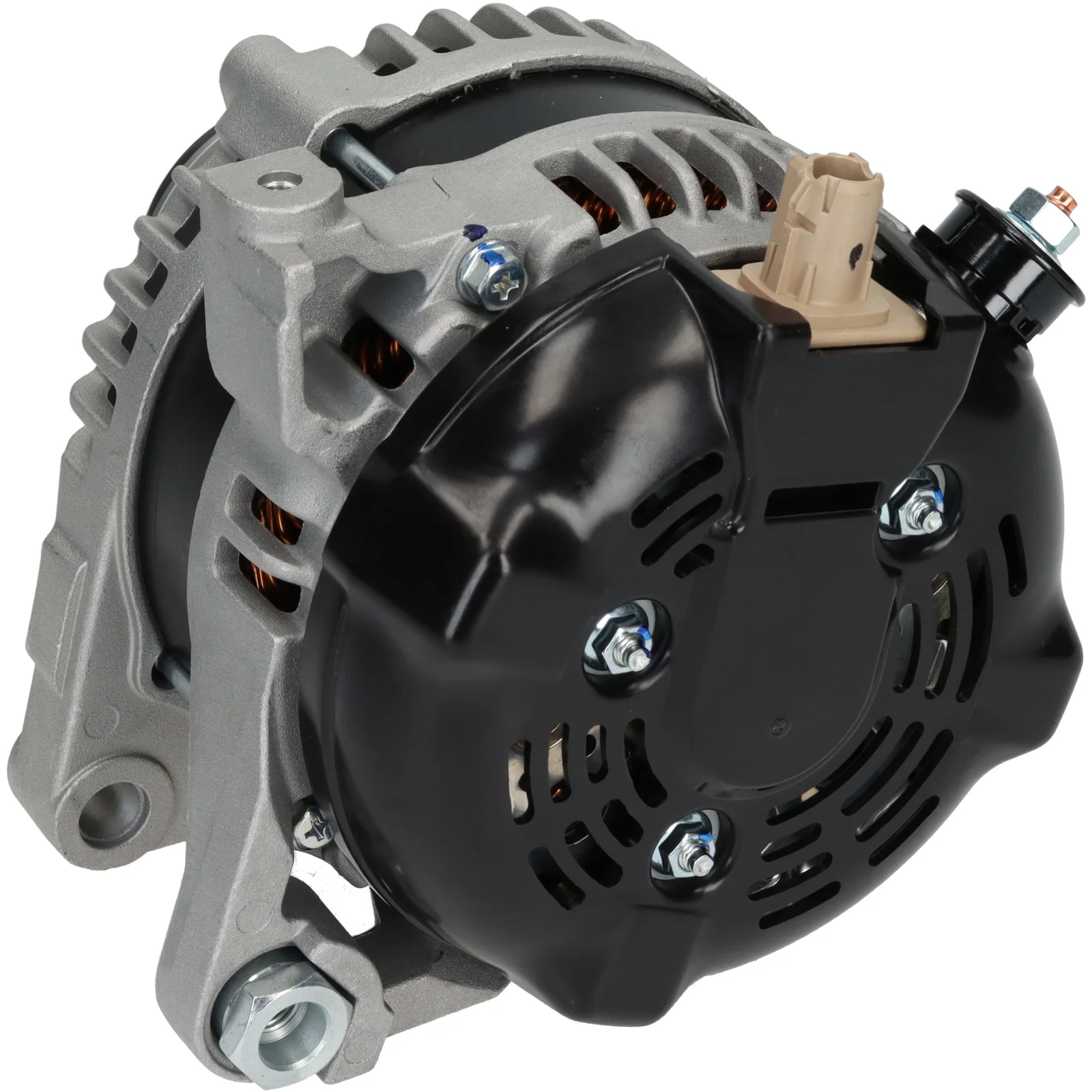

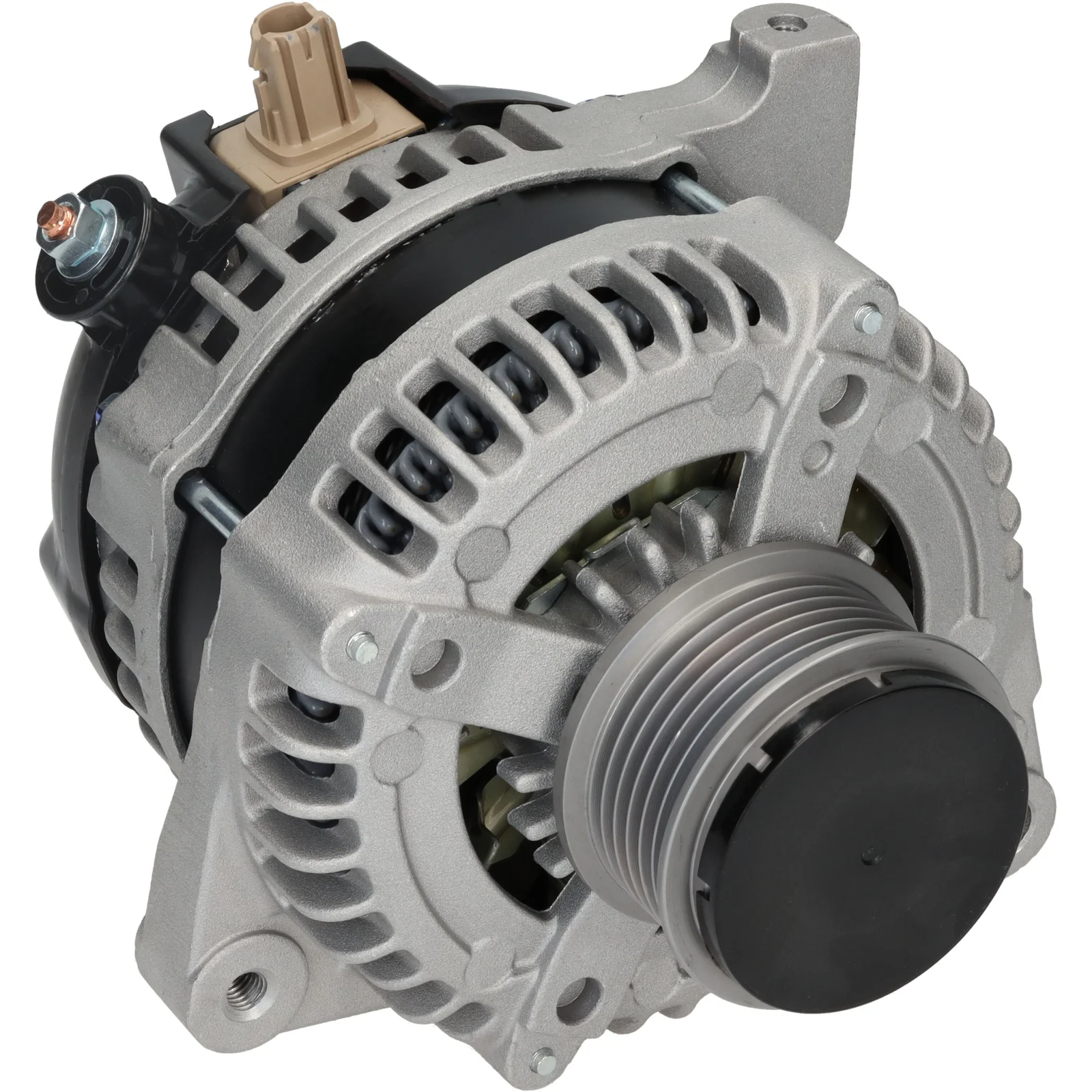

HC-Cargo Dynamo

Teknisk info:

Spenningsnivå: 14, Amp: 100, Rotasjon: CW, Monteringsfeste avstand: 43.00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsfaktor: 14
Ampere: 100
Drevskive avstand: 48.00
Bredde/holderarm: 20.00
Monteringsbrakett avstand: 43.00
Bracketthull: 11.00
Belt. justering av brakkettposisjon: 45
Belt. justering av brakkethull 1: M8
Drevskive diameter: 58.40
Groper/drevskive: 6
Radius: 86.00
Radius 2: 82.00
B+: M6
Posisjon/B+ i min.: 60
Rotasjon: CW
Prikk nummer: PL204
Total lengde mm: 167.00
Kommunikasjon: LIN
Drevskive: SP/FW
Vifte: IF

Filer

Spesifikasjon

B+ M6
Communication LIN
Mount. bracket dist. 43.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 45
Plug no. PL204
Bracket hole 11.00
Position/B+ in min. 60
Pulley SP/FW
Pulley dia. 58.40
Pulley dist. 48.00
Radius 86.00
Radius 2 82.00
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Total length 167.00 mm
Width/holder arm 20.00
Amp 100

  • OEM
    F032116504, 1986A00641, 27060-0N090, 27060-0N100, 27060-0N140, 27060-33110, 104210-1370, 104211-3000, 104211-3001, 104211-3002, 104211-3130, 104211-3780

  • Konkurrentreferens
    A6337, CAL40377, DAN1094, DRA1095, LRA03563, 28-6673, 195.971.090, 195.971.100, 235.343.1002, 209108, 209108A, 553910RI, 12061099, 0986085130

  • NormaliseratArtNr
    a6337, cal40377, dan1094, dra1095, f032116504, lra03563, 1986a00641, 209108, 209108a, 270600n090, 270600n100, 270600n140, 286673, 553910ri, 12061099, 195971090, 195971100, 0986085130, 1042101370, 1042113000, 1042113001, 1042113002, 1042113130, 1042113780, 2353431002, 2706033110

  • Passar modeller
    Toyota Model: Auris Model series: Auris Touring Sports Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Body: Estate From date: 01-07-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes Manufacture type: Touring Sp
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NZE18_, ZRE18_ Body: Hatchback From date: 01-10-2012 To date: 01-12-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: ZRE18_, NZE18_ Body: Van From date: 01-03-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NRE18_, ZRE18_, NDE18_ From date: 01-06-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _P13_ Body: Hatchback From date: 01-09-2011 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenningsfaktor: 14
    Ampere: 100
    Drevskive avstand: 48.00
    Bredde/holderarm: 20.00
    Monteringsbrakett avstand: 43.00
    Bracketthull: 11.00
    Belt. justering av brakkettposisjon: 45
    Belt. justering av brakkethull 1: M8
    Drevskive diameter: 58.40
    Groper/drevskive: 6
    Radius: 86.00
    Radius 2: 82.00
    B+: M6
    Posisjon/B+ i min.: 60
    Rotasjon: CW
    Prikk nummer: PL204
    Total lengde mm: 167.00
    Kommunikasjon: LIN
    Drevskive: SP/FW
    Vifte: IF

    Filer

  • Spesifikasjon
    B+ M6
    Communication LIN
    Mount. bracket dist. 43.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 45
    Plug no. PL204
    Bracket hole 11.00
    Position/B+ in min. 60
    Pulley SP/FW
    Pulley dia. 58.40
    Pulley dist. 48.00
    Radius 86.00
    Radius 2 82.00
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Voltage 14
    Total length 167.00 mm
    Width/holder arm 20.00
    Amp 100
  • Kjøretøymatching

    • OEM
      F032116504, 1986A00641, 27060-0N090, 27060-0N100, 27060-0N140, 27060-33110, 104210-1370, 104211-3000, 104211-3001, 104211-3002, 104211-3130, 104211-3780

    • Konkurrentreferens
      A6337, CAL40377, DAN1094, DRA1095, LRA03563, 28-6673, 195.971.090, 195.971.100, 235.343.1002, 209108, 209108A, 553910RI, 12061099, 0986085130

    • NormaliseratArtNr
      a6337, cal40377, dan1094, dra1095, f032116504, lra03563, 1986a00641, 209108, 209108a, 270600n090, 270600n100, 270600n140, 286673, 553910ri, 12061099, 195971090, 195971100, 0986085130, 1042101370, 1042113000, 1042113001, 1042113002, 1042113130, 1042113780, 2353431002, 2706033110

    • Passar modeller
      Toyota Model: Auris Model series: Auris Touring Sports Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Body: Estate From date: 01-07-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes Manufacture type: Touring Sp
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NZE18_, ZRE18_ Body: Hatchback From date: 01-10-2012 To date: 01-12-2018 Fuel: Diesel Approved: Yes
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: ZRE18_, NZE18_ Body: Van From date: 01-03-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NRE18_, ZRE18_, NDE18_ From date: 01-06-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _P13_ Body: Hatchback From date: 01-09-2011 Fuel: Diesel Approved: Yes
