HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116512

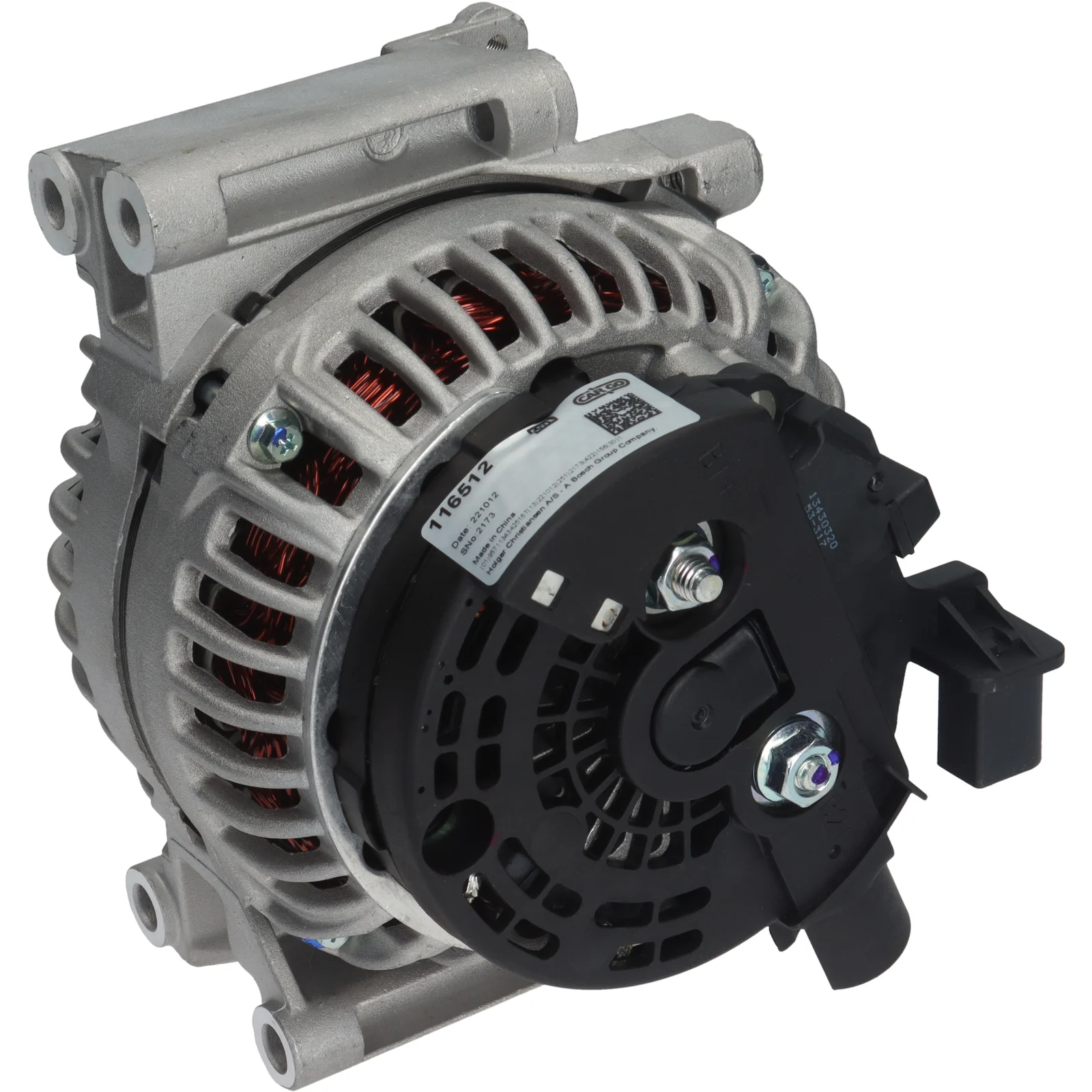

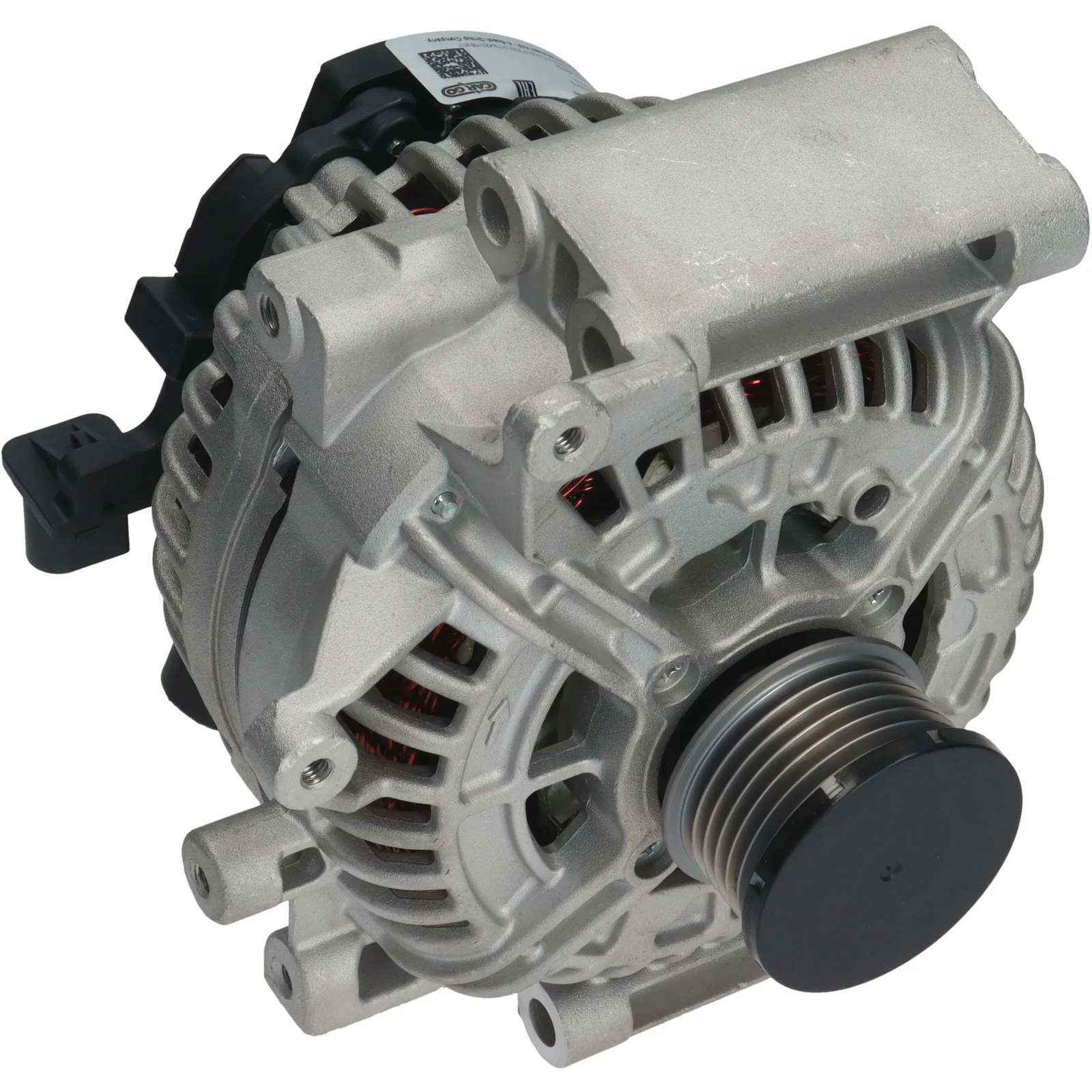

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 200, Rotasjon: CW, Festeholderavstand: 56,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Amp: 200
Drev dist.: 31,50
Bredde/holder arm: 97,40
monteringsbrakkets dist.: 56,00
Brakett hål: 9,00
Bånd justering brakett hull 1: 9,00
Bånd justering brakett hull 2: 8,00
Drev dia.: 50,00
Groper/drev: 6
Radius: 81,50
Radius 2: 81,50
B+: M8
Posisjon/B+ i min.: 23
Rotasjon: CW
Plugg nr.: PL166
Total lengde mm: 186,00
Terminaltype: COM
Kommunikasjon: LIN
Drev: SP/FW
Vifte: IF
Regulator type: IR
Merkninger: Denne Dynamo har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.00
Belt. adj. bracket hole 2 8.00
Plug no. PL166
Bracket hole 9.00
Position/B+ in min. 23
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 31.50
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 186.00 mm
Width/holder arm 97.40
Amp 200

  • OEM
    A0131545902, A013154590280, F032116512, 0124625033, 0131545902, 013154590280

  • Konkurrentreferens
    A0503, CAL10416, DRA0804, LRA03313, 28-5925, 225.190.2002, 555.586.200, 113213, 210712, 210712A, 553629RI, 9090665, 12090302, 32002316, 0986047883

  • NormaliseratArtNr
    a0131545902, a013154590280, a0503, cal10416, dra0804, f032116512, lra03313, 113213, 210712, 210712a, 285925, 553629ri, 9090665, 12090302, 32002316, 0124625033, 0131545902, 555586200, 0986047883, 2251902002, 013154590280

  • Passar modeller
    Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.820 Type description: 211 From date: 01-04-2006 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 T Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.821 Type description: S211 Body: Estate From date: 01-03-2003 To date: 01-07-2009 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.821 Type description: 211 Body: Estate From date: 01-04-2006 To date: 01-07-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.821 Type description: 211 From date: 01-04-2006 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM646.821 Type description: VF211 Body: Platform / Chassis From date: 01-04-2006 To date: 01-07-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.821 Type description: W211 From date: 01-03-2003 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 14
    Amp: 200
    Drev dist.: 31,50
    Bredde/holder arm: 97,40
    monteringsbrakkets dist.: 56,00
    Brakett hål: 9,00
    Bånd justering brakett hull 1: 9,00
    Bånd justering brakett hull 2: 8,00
    Drev dia.: 50,00
    Groper/drev: 6
    Radius: 81,50
    Radius 2: 81,50
    B+: M8
    Posisjon/B+ i min.: 23
    Rotasjon: CW
    Plugg nr.: PL166
    Total lengde mm: 186,00
    Terminaltype: COM
    Kommunikasjon: LIN
    Drev: SP/FW
    Vifte: IF
    Regulator type: IR
    Merkninger: Denne Dynamo har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.00
    Belt. adj. bracket hole 2 8.00
    Plug no. PL166
    Bracket hole 9.00
    Position/B+ in min. 23
    Pulley SP/FW
    Pulley dia. 50.00
    Pulley dist. 31.50
    Radius 81.50
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 186.00 mm
    Width/holder arm 97.40
    Amp 200
  • Kjøretøymatching

    • OEM
      A0131545902, A013154590280, F032116512, 0124625033, 0131545902, 013154590280

    • Konkurrentreferens
      A0503, CAL10416, DRA0804, LRA03313, 28-5925, 225.190.2002, 555.586.200, 113213, 210712, 210712A, 553629RI, 9090665, 12090302, 32002316, 0986047883

    • NormaliseratArtNr
      a0131545902, a013154590280, a0503, cal10416, dra0804, f032116512, lra03313, 113213, 210712, 210712a, 285925, 553629ri, 9090665, 12090302, 32002316, 0124625033, 0131545902, 555586200, 0986047883, 2251902002, 013154590280

    • Passar modeller
      Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.820 Type description: 211 From date: 01-04-2006 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: E 220 T Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.821 Type description: S211 Body: Estate From date: 01-03-2003 To date: 01-07-2009 Fuel: Diesel Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.821 Type description: 211 Body: Estate From date: 01-04-2006 To date: 01-07-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.821 Type description: 211 From date: 01-04-2006 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM646.821 Type description: VF211 Body: Platform / Chassis From date: 01-04-2006 To date: 01-07-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.821 Type description: W211 From date: 01-03-2003 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      1 / 2
