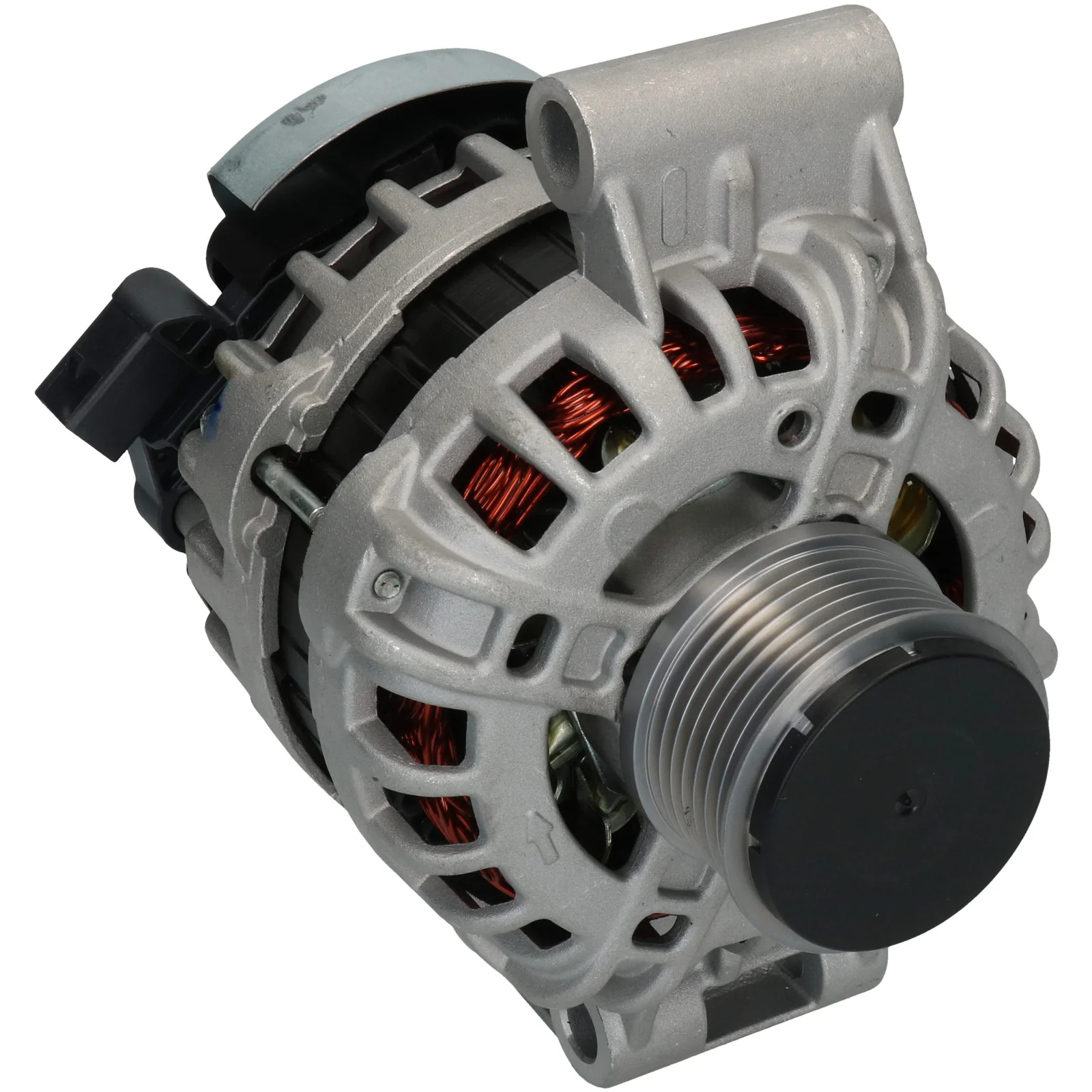

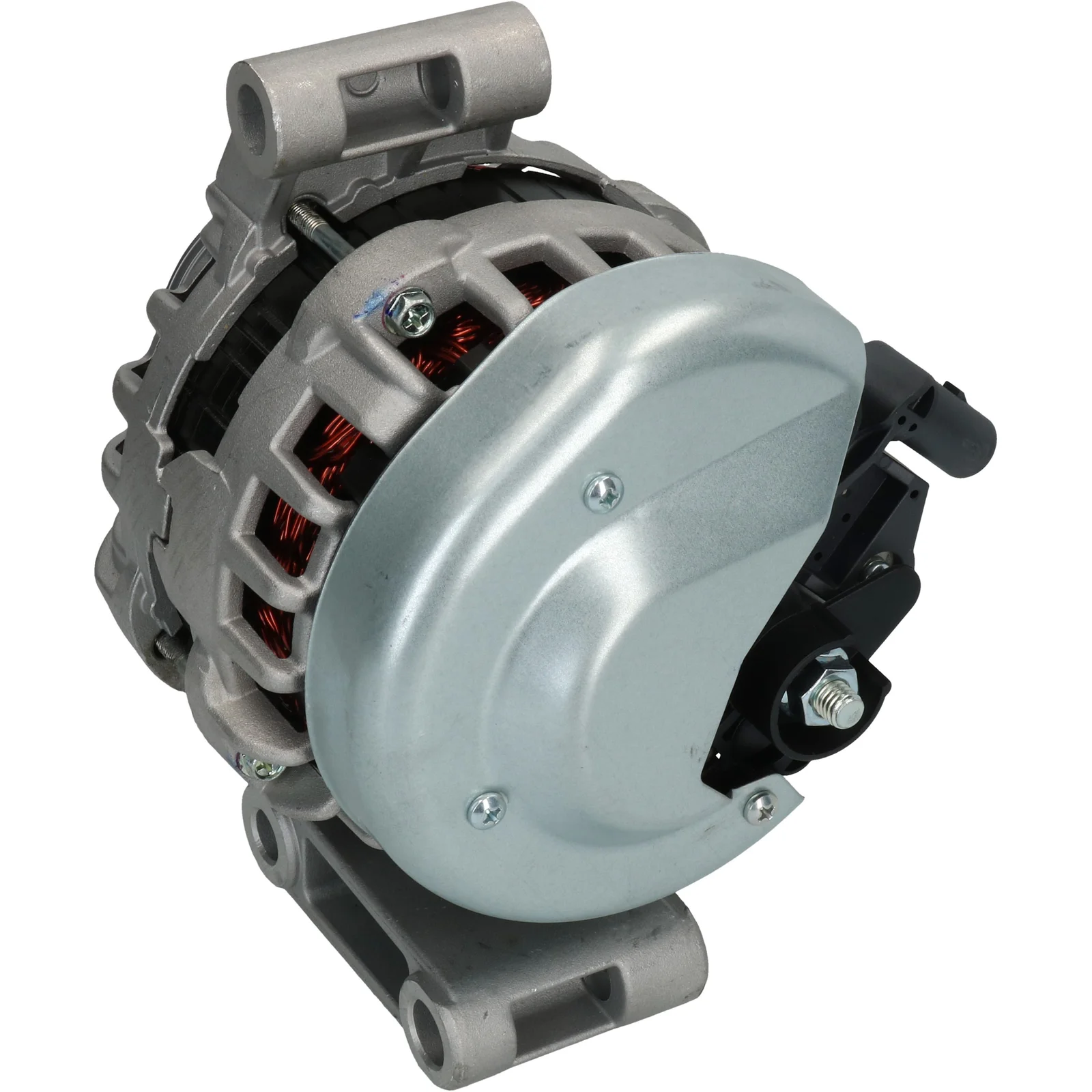

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116546

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 110, Rotasjon: CW, Monteringsbrakett avstand: 74,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

HC-Cargo Dynamo

Spenning: 14
Amp: 110
Ledd: 43.00
Bredde/holderarm: 61.00
Festebrakettavstand: 74.00
Brakettårehull: 10.40
Beltesugetilpasningsbrakett hull 1: 11.00
Ledd diameter: 59.00
Grove/ledd: 7
Radius: 87.50
Radius 2: 87.50
B+: M8
Posisjon/B+ i min.: 20
Rotasjon: medur
Støpselek no.: PL137
Total lengde mm: 180.00
Terminaltype: COM
Kommunikasjon: LIN
Drev: SP/FW
Løfter: IF
Regulator type: IR
Anmerkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnetheten før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 74.00
Belt. adj. bracket hole 1 11.00
Plug no. PL137
Bracket hole 10.40
Position/B+ in min. 20
Pulley SP/FW
Pulley dia. 59.00
Pulley dist. 43.00
Radius 87.50
Radius 2 87.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 180.00 mm
Width/holder arm 61.00
Amp 110

  • OEM
    AB3910300AD, AB3910300AE, AB3910300AF, AB3910300AFFC, AB3910300AG, AB3910300BE, AB391030AG, F000BL0639, F000BL06BG, F000BL06BK, F000BL06BM, F000BL06EY, F032116546, UK01-18-400D, 1916724, 5215796, 5287955

  • Konkurrentreferens
    A0588S, CAL10557, 58-6992, 595.901.110, 595.948.110, 20499N, 444295, 12090778, 32002317

  • NormaliseratArtNr
    a0588s, ab3910300ad, ab3910300ae, ab3910300af, ab3910300affc, ab3910300ag, ab3910300be, ab391030ag, cal10557, f000bl0639, f000bl06bg, f000bl06bk, f000bl06bm, f000bl06ey, f032116546, uk0118400d, 20499n, 444295, 586992, 1916724, 5215796, 5287955, 12090778, 32002317, 595901110, 595948110

  • Passar modeller
    Ford Australia Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDDi Size of motor: 2.2 Type description: PX Body: Pick Up From date: 01-11-2011 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Australia Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDDi Size of motor: 2.2 Type description: PX Body: Platform / Chassis From date: 01-11-2011 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Australia Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDDi Size of motor: 3.2 Type description: PX Body: Pick Up From date: 01-11-2011 Fuel: Diesel Approved: Yes
    Ford Australia Model: Ranger Model series: Ranger Type of engine: TDDi Size of motor: 2.2 Type description: PX Body: Pick Up From date: 01-11-2011 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQJ Body: Pick Up From date: 01-04-2011 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQJ, T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQW Body: Pick Up From date: 01-04-2011 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 3.2 Brand of engine: SAFA Body: Pick Up From date: 01-04-2011 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Model type: TDCi 4x4 Type of engine: Diesel Size of motor: 3.2 Brand of engine: P5-AT Type description: TKE Body: Pickup Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQJ, T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQW Body: Pick Up From date: 01-04-2011 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Type of engine: TDCi Size of motor: 2.2 Brand of engine: T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Type of engine: TDCi Size of motor: 3.2 Body: Pick Up From date: 01-11-2011 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Type of engine: TDdi Size of motor: 2.2 Brand of engine: GBVAJQJ Body: Pick Up From date: 01-11-2011 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    HC-Cargo Dynamo

    Spenning: 14
    Amp: 110
    Ledd: 43.00
    Bredde/holderarm: 61.00
    Festebrakettavstand: 74.00
    Brakettårehull: 10.40
    Beltesugetilpasningsbrakett hull 1: 11.00
    Ledd diameter: 59.00
    Grove/ledd: 7
    Radius: 87.50
    Radius 2: 87.50
    B+: M8
    Posisjon/B+ i min.: 20
    Rotasjon: medur
    Støpselek no.: PL137
    Total lengde mm: 180.00
    Terminaltype: COM
    Kommunikasjon: LIN
    Drev: SP/FW
    Løfter: IF
    Regulator type: IR
    Anmerkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnetheten før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 74.00
    Belt. adj. bracket hole 1 11.00
    Plug no. PL137
    Bracket hole 10.40
    Position/B+ in min. 20
    Pulley SP/FW
    Pulley dia. 59.00
    Pulley dist. 43.00
    Radius 87.50
    Radius 2 87.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Terminal type COM
    Voltage 14
    Total length 180.00 mm
    Width/holder arm 61.00
    Amp 110
  • Kjøretøymatching

    • OEM
      AB3910300AD, AB3910300AE, AB3910300AF, AB3910300AFFC, AB3910300AG, AB3910300BE, AB391030AG, F000BL0639, F000BL06BG, F000BL06BK, F000BL06BM, F000BL06EY, F032116546, UK01-18-400D, 1916724, 5215796, 5287955

    • Konkurrentreferens
      A0588S, CAL10557, 58-6992, 595.901.110, 595.948.110, 20499N, 444295, 12090778, 32002317

    • NormaliseratArtNr
      a0588s, ab3910300ad, ab3910300ae, ab3910300af, ab3910300affc, ab3910300ag, ab3910300be, ab391030ag, cal10557, f000bl0639, f000bl06bg, f000bl06bk, f000bl06bm, f000bl06ey, f032116546, uk0118400d, 20499n, 444295, 586992, 1916724, 5215796, 5287955, 12090778, 32002317, 595901110, 595948110

    • Passar modeller
      Ford Australia Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDDi Size of motor: 2.2 Type description: PX Body: Pick Up From date: 01-11-2011 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Ford Australia Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDDi Size of motor: 2.2 Type description: PX Body: Platform / Chassis From date: 01-11-2011 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Ford Australia Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDDi Size of motor: 3.2 Type description: PX Body: Pick Up From date: 01-11-2011 Fuel: Diesel Approved: Yes
      Ford Australia Model: Ranger Model series: Ranger Type of engine: TDDi Size of motor: 2.2 Type description: PX Body: Pick Up From date: 01-11-2011 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQJ Body: Pick Up From date: 01-04-2011 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQJ, T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQW Body: Pick Up From date: 01-04-2011 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 3.2 Brand of engine: SAFA Body: Pick Up From date: 01-04-2011 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Model type: TDCi 4x4 Type of engine: Diesel Size of motor: 3.2 Brand of engine: P5-AT Type description: TKE Body: Pickup Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQJ, T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQW Body: Pick Up From date: 01-04-2011 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Type of engine: TDCi Size of motor: 2.2 Brand of engine: T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Type of engine: TDCi Size of motor: 3.2 Body: Pick Up From date: 01-11-2011 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Type of engine: TDdi Size of motor: 2.2 Brand of engine: GBVAJQJ Body: Pick Up From date: 01-11-2011 Fuel: Diesel Approved: Yes
