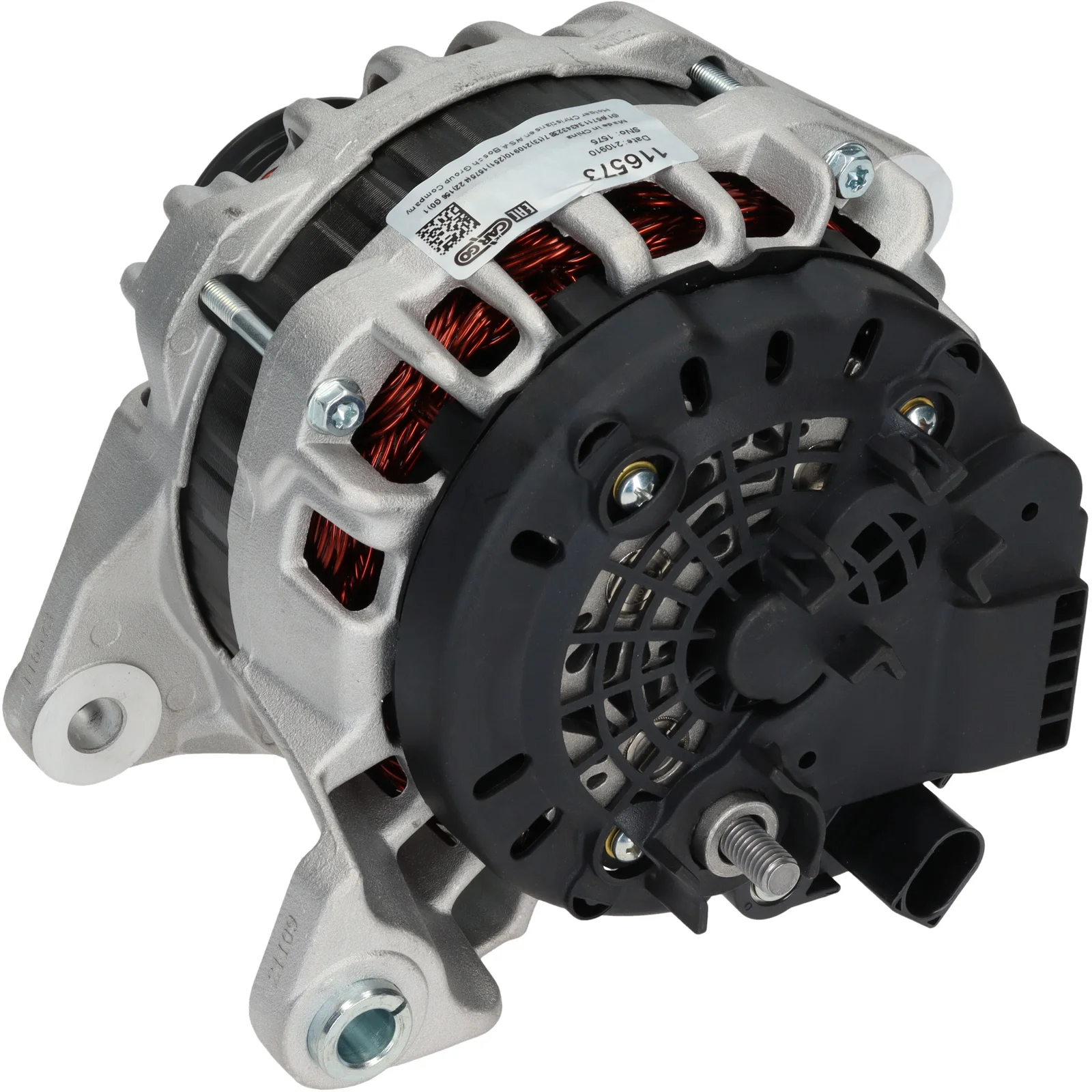

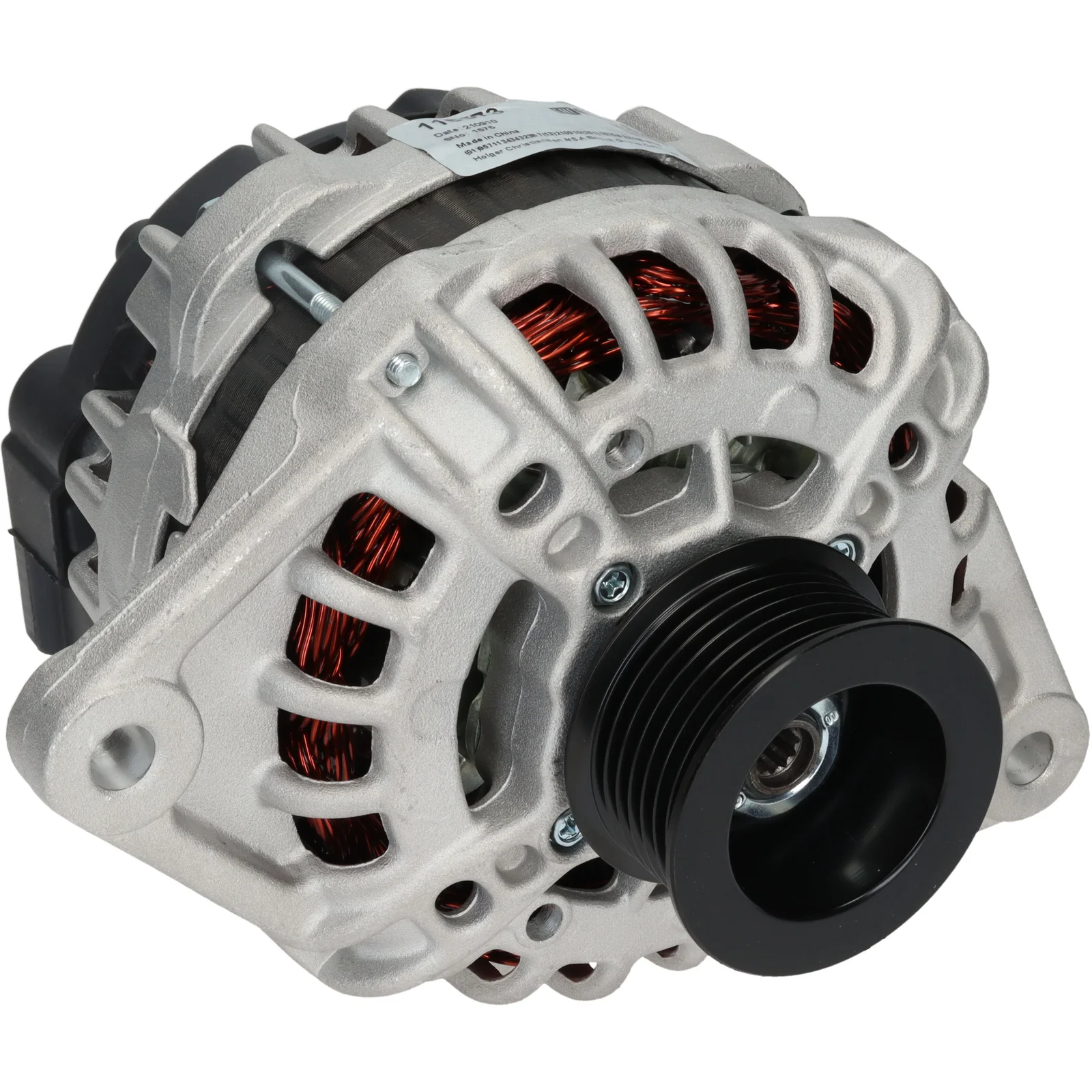

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116573

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 150, Rotasjon: HØYRE, Monteringsbrakett avstand: 83,40

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsnivå: 14
Ampere: 150
Bøssing av drivskive: 41,40
Bredde/holderarm: 14,20
Monteringsbrakett avstand: 83,40
Brakettgjerne: 10,50
Beltets justeringsbrakettgjerne posisjon: 55
Beltets justeringsbrakettgjerne 1: 11,00
Drivskivens diameter: 55,00
Riller/drivskive: 7
Radius: 95,00
Radius 2: 95,00
B+: M8
Posisjon / B+ i min.: 22
Rotasjon: med urviseren
Plugg nr.: PL174
Total lengde mm: 180,00
Terminaltype: COM
ID-kode: 24
Kommunikasjon: LIN
Drivskive: SP
Regulator type: IR
Anmerkninger: Denne generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 83.40
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 55
Plug no. PL174
Bracket hole 10.50
Position/B+ in min. 22
Pulley SP
Pulley dia. 55.00
Pulley dist. 41.40
Radius 95.00
Radius 2 95.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
ID Code 24
Terminal type COM
Voltage 14
Total length 180.00 mm
Width/holder arm 14.20
Amp 150

  • OEM
    F000BL0781, F000BL0782, F032116573, 5801580927

  • Konkurrentreferens
    A0665PR, A0665S, CAL10547, 8EL015637-381, 28-7631, 505.594.150, 12090817

  • NormaliseratArtNr
    a0665pr, a0665s, cal10547, f000bl0781, f000bl0782, f032116573, 8el015637381, 287631, 12090817, 505594150, 5801580927

  • Passar modeller
    Iveco Model: Daily Model series: 33 S 13 Size of motor: 2.3 Brand of engine: F1AFL411B Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 33S11, 35S11, 35C11 Size of motor: 2.3 Brand of engine: F1AFL411A Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 33S15, 35S15, 35C15 Size of motor: 2.3 Brand of engine: F1AFL411C Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 33S15, 35S15, 35C15 Size of motor: 2.3 Brand of engine: F1AFL411C Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 35 C 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AFL411A Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481A Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481B Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481C Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-120, 35-120 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-120, 35-120 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-140, 35-140 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-140, 35-140 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-160, 35-160 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-160, 35-160 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481A Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481C Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AFL411B Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spenningsnivå: 14
    Ampere: 150
    Bøssing av drivskive: 41,40
    Bredde/holderarm: 14,20
    Monteringsbrakett avstand: 83,40
    Brakettgjerne: 10,50
    Beltets justeringsbrakettgjerne posisjon: 55
    Beltets justeringsbrakettgjerne 1: 11,00
    Drivskivens diameter: 55,00
    Riller/drivskive: 7
    Radius: 95,00
    Radius 2: 95,00
    B+: M8
    Posisjon / B+ i min.: 22
    Rotasjon: med urviseren
    Plugg nr.: PL174
    Total lengde mm: 180,00
    Terminaltype: COM
    ID-kode: 24
    Kommunikasjon: LIN
    Drivskive: SP
    Regulator type: IR
    Anmerkninger: Denne generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 83.40
    Belt. adj. bracket hole 1 11.00
    Belt. adj. brackethole pos. 55
    Plug no. PL174
    Bracket hole 10.50
    Position/B+ in min. 22
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 41.40
    Radius 95.00
    Radius 2 95.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 7
    ID Code 24
    Terminal type COM
    Voltage 14
    Total length 180.00 mm
    Width/holder arm 14.20
    Amp 150
  • Kjøretøymatching

    • OEM
      F000BL0781, F000BL0782, F032116573, 5801580927

    • Konkurrentreferens
      A0665PR, A0665S, CAL10547, 8EL015637-381, 28-7631, 505.594.150, 12090817

    • NormaliseratArtNr
      a0665pr, a0665s, cal10547, f000bl0781, f000bl0782, f032116573, 8el015637381, 287631, 12090817, 505594150, 5801580927

    • Passar modeller
      Iveco Model: Daily Model series: 33 S 13 Size of motor: 2.3 Brand of engine: F1AFL411B Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily Model series: 33S11, 35S11, 35C11 Size of motor: 2.3 Brand of engine: F1AFL411A Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily Model series: 33S15, 35S15, 35C15 Size of motor: 2.3 Brand of engine: F1AFL411C Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily Model series: 33S15, 35S15, 35C15 Size of motor: 2.3 Brand of engine: F1AFL411C Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily Model series: 35 C 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AFL411A Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481A Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481B Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481C Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33-120, 35-120 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33-120, 35-120 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33-140, 35-140 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33-140, 35-140 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33-160, 35-160 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33-160, 35-160 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481A Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481C Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AFL411B Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      1 / 4
