HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116586

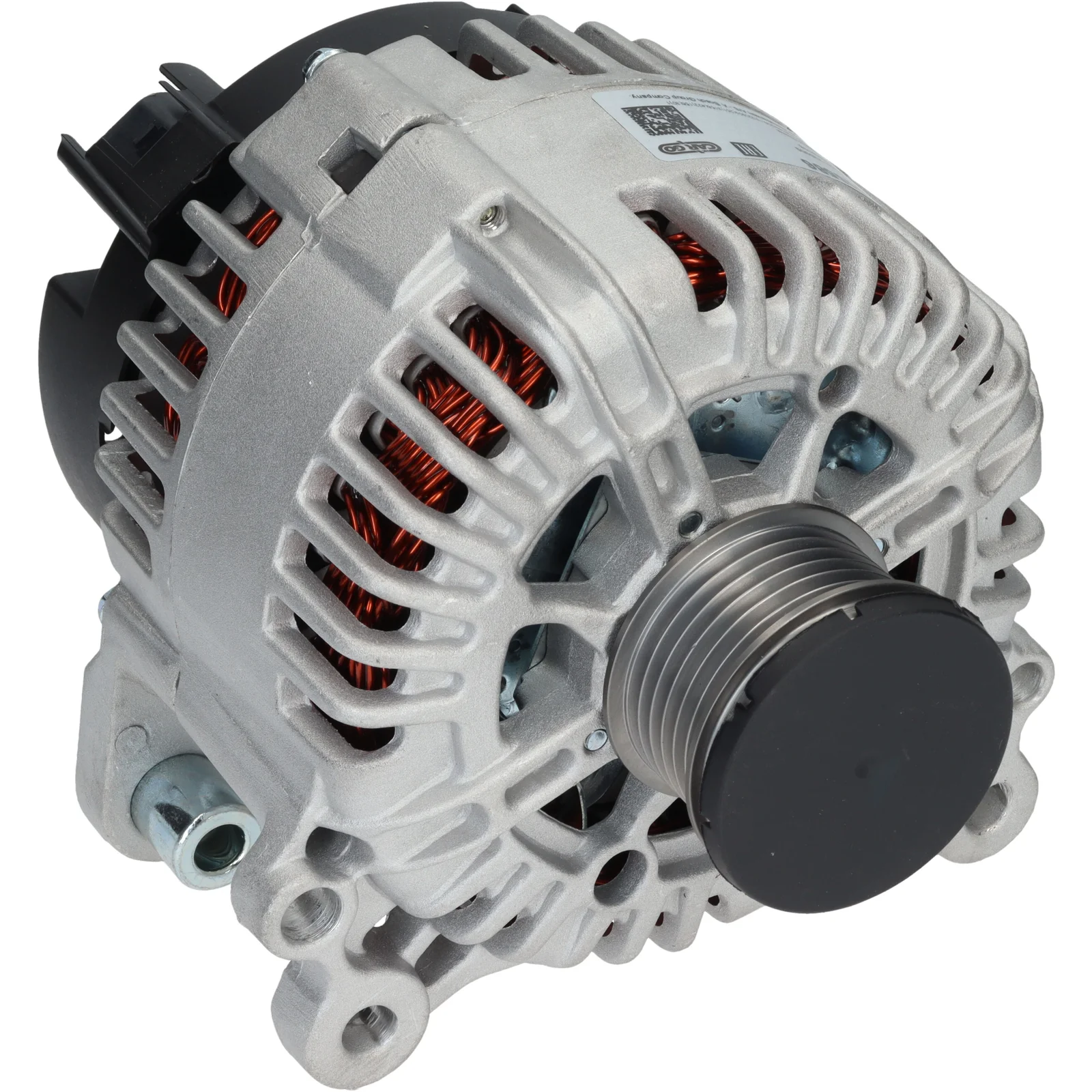

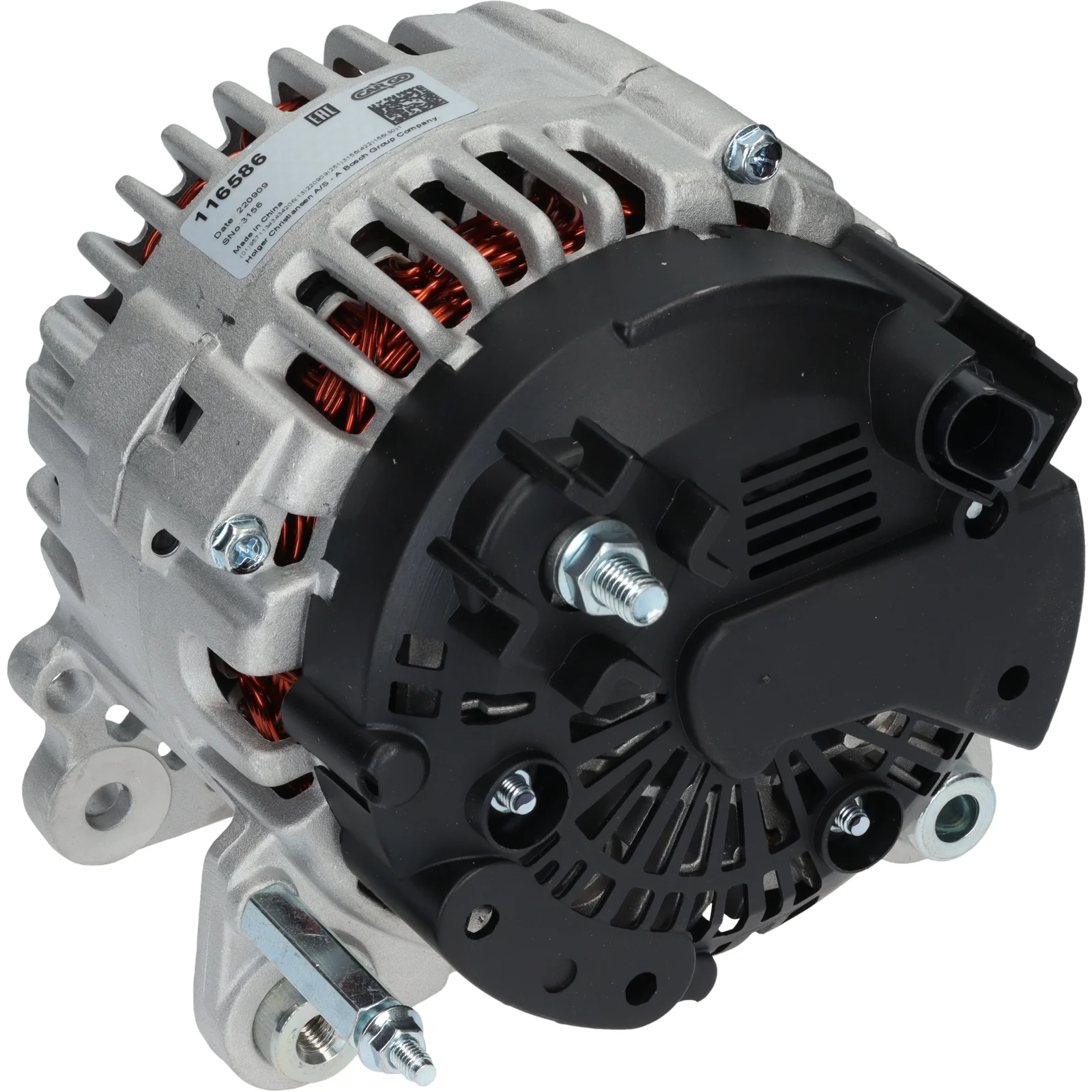

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 140, Rotasjon: CW, Festebrakett avstand: 61.00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Amp: 140
Drivreim avstand: 30.00
Bredde/holderarm: 14.00
Festebrakett avstand: 61.00
Brakett bore: 8.50
Reimjusteringsbrakkets posisjon for borehull: 45
Reimjusteringsbrakkets hull for bore: 8.50
Drivreims diameter: 49.50
Groper/drivreim: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 45
Rotasjon: CW
Plugg nr.: PL125
Total lengde mm: 190.00
Terminaltype: COM
ID-kode: 25
Kommunikasjon: LIN
Drivreim: SP/FW
Vifte: IF
Regulator type: IR
Anmerkninger: Denne generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å kontrollere egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 8.50
Position/B+ in min. 45
Pulley SP/FW
Pulley dia. 49.50
Pulley dist. 30.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 25
Terminal type COM
Voltage 14
Total length 190.00 mm
Width/holder arm 14.00
Amp 140

  • OEM
    A0009060304, CG25S020, CG25S036, F032116586, TG14C054, 03C903024F, 03C903024FX, 2617851A, 0009060304

  • Konkurrentreferens
    A0468PR, A3309PR, CAL15498, CAL15577, DRA1294, 305.920.250, 209228, 209228A, 439850, 440590, 440921, 442298, 553840RI, 12090588

  • NormaliseratArtNr
    a0009060304, a0468pr, a3309pr, cal15498, cal15577, cg25s020, cg25s036, dra1294, f032116586, tg14c054, 03c903024f, 03c903024fx, 209228, 209228a, 439850, 440590, 440921, 442298, 553840ri, 2617851a, 0009060304, 12090588, 305920250

  • Passar modeller
    VW Model: CC Model series: CC Type of engine: TSi MultiFuel Size of motor: 1.4 Brand of engine: CKMA Type description: 358 Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    VW Model: CC Model series: CC Type of engine: TSI Size of motor: 1.4 Brand of engine: CTHD Type description: 358 Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Model type: BlueMotion Type of engine: TSI Size of motor: 1.4 Brand of engine: CAXA Type description: 365 Body: Box Body / Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Model type: EcoFuel Type of engine: TSi Size of motor: 1.4 Brand of engine: CDGA Type description: 362 From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: EcoFuel Type of engine: TSi Size of motor: 1.4 Brand of engine: CDGA Type description: 365 Body: Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TSi MultiFuel Size of motor: 1.4 Brand of engine: CKMA Type description: 362 From date: 01-11-2010 To date: 01-12-2014 Fuel: Bi-Fuel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TSi MultiFuel Size of motor: 1.4 Brand of engine: CKMA Type description: 365 Body: Estate From date: 01-11-2010 To date: 01-12-2014 Fuel: Bi-Fuel Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.4 Brand of engine: CAXA Type description: 362 From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.4 Brand of engine: CAXA Type description: 365 Body: Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 1.4 Brand of engine: CTHD Type description: 362 From date: 01-11-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 1.4 Brand of engine: CTHD Type description: 365 Body: Estate From date: 01-11-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Touran Model series: Touran Model type: EcoFuel Type of engine: TSI Size of motor: 1.4 Brand of engine: CDGA Type description: 1T3 Body: MPV From date: 01-05-2010 To date: 01-05-2015 Fuel: Gas Approved: Yes
    VW Model: Touran Model series: Touran Van Model type: Ecofuel Type of engine: TSI Size of motor: 1.4 Brand of engine: CDGA Type description: 1T3 Body: Van From date: 01-05-2010 To date: 01-05-2015 Fuel: Petrol/Compressed Na Approved: Yes
    1 / 3
  • Beskrivelse
    Spenning: 14
    Amp: 140
    Drivreim avstand: 30.00
    Bredde/holderarm: 14.00
    Festebrakett avstand: 61.00
    Brakett bore: 8.50
    Reimjusteringsbrakkets posisjon for borehull: 45
    Reimjusteringsbrakkets hull for bore: 8.50
    Drivreims diameter: 49.50
    Groper/drivreim: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Posisjon/B+ i min.: 45
    Rotasjon: CW
    Plugg nr.: PL125
    Total lengde mm: 190.00
    Terminaltype: COM
    ID-kode: 25
    Kommunikasjon: LIN
    Drivreim: SP/FW
    Vifte: IF
    Regulator type: IR
    Anmerkninger: Denne generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å kontrollere egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 61.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL125
    Bracket hole 8.50
    Position/B+ in min. 45
    Pulley SP/FW
    Pulley dia. 49.50
    Pulley dist. 30.00
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    ID Code 25
    Terminal type COM
    Voltage 14
    Total length 190.00 mm
    Width/holder arm 14.00
    Amp 140
  • Kjøretøymatching

    • OEM
      A0009060304, CG25S020, CG25S036, F032116586, TG14C054, 03C903024F, 03C903024FX, 2617851A, 0009060304

    • Konkurrentreferens
      A0468PR, A3309PR, CAL15498, CAL15577, DRA1294, 305.920.250, 209228, 209228A, 439850, 440590, 440921, 442298, 553840RI, 12090588

    • NormaliseratArtNr
      a0009060304, a0468pr, a3309pr, cal15498, cal15577, cg25s020, cg25s036, dra1294, f032116586, tg14c054, 03c903024f, 03c903024fx, 209228, 209228a, 439850, 440590, 440921, 442298, 553840ri, 2617851a, 0009060304, 12090588, 305920250

    • Passar modeller
      VW Model: CC Model series: CC Type of engine: TSi MultiFuel Size of motor: 1.4 Brand of engine: CKMA Type description: 358 Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      VW Model: CC Model series: CC Type of engine: TSI Size of motor: 1.4 Brand of engine: CTHD Type description: 358 Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Model type: BlueMotion Type of engine: TSI Size of motor: 1.4 Brand of engine: CAXA Type description: 365 Body: Box Body / Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Model type: EcoFuel Type of engine: TSi Size of motor: 1.4 Brand of engine: CDGA Type description: 362 From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Model type: EcoFuel Type of engine: TSi Size of motor: 1.4 Brand of engine: CDGA Type description: 365 Body: Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Variant
      VW Model: Passat Model series: Passat Type of engine: TSi MultiFuel Size of motor: 1.4 Brand of engine: CKMA Type description: 362 From date: 01-11-2010 To date: 01-12-2014 Fuel: Bi-Fuel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TSi MultiFuel Size of motor: 1.4 Brand of engine: CKMA Type description: 365 Body: Estate From date: 01-11-2010 To date: 01-12-2014 Fuel: Bi-Fuel Approved: Yes Manufacture type: Variant
      VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.4 Brand of engine: CAXA Type description: 362 From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.4 Brand of engine: CAXA Type description: 365 Body: Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
      VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 1.4 Brand of engine: CTHD Type description: 362 From date: 01-11-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 1.4 Brand of engine: CTHD Type description: 365 Body: Estate From date: 01-11-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
      VW Model: Touran Model series: Touran Model type: EcoFuel Type of engine: TSI Size of motor: 1.4 Brand of engine: CDGA Type description: 1T3 Body: MPV From date: 01-05-2010 To date: 01-05-2015 Fuel: Gas Approved: Yes
      VW Model: Touran Model series: Touran Van Model type: Ecofuel Type of engine: TSI Size of motor: 1.4 Brand of engine: CDGA Type description: 1T3 Body: Van From date: 01-05-2010 To date: 01-05-2015 Fuel: Petrol/Compressed Na Approved: Yes
      1 / 3
