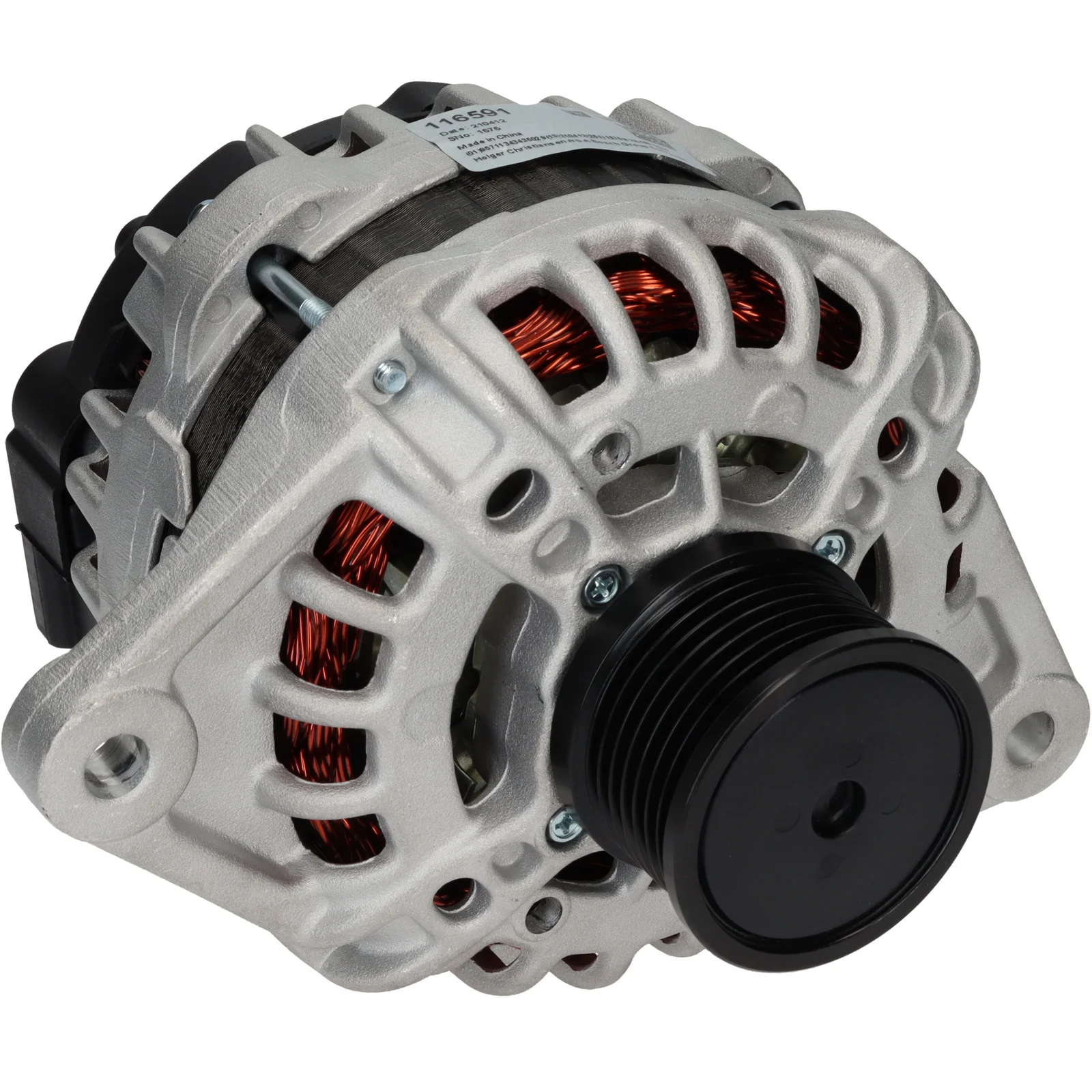

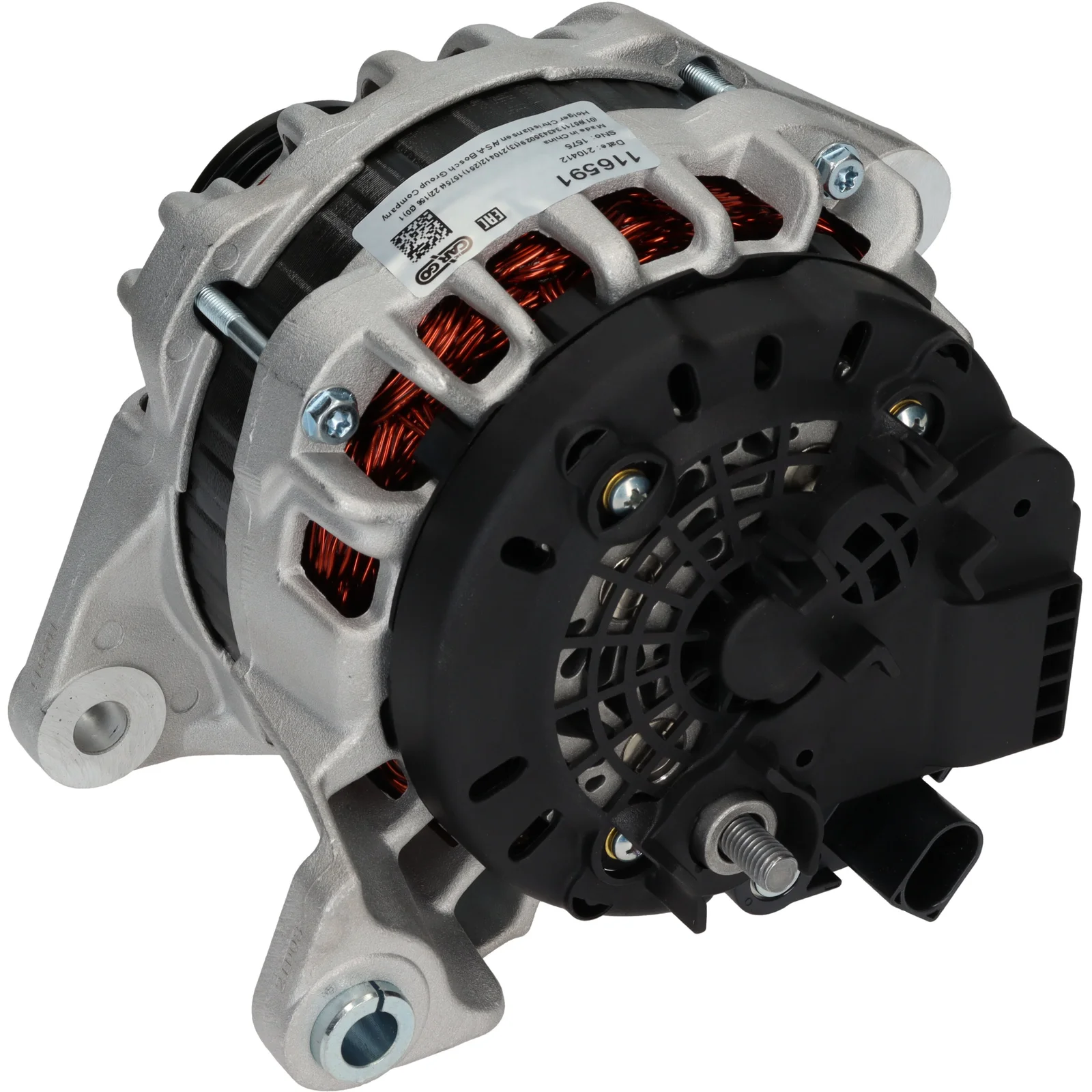

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116591

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 150, Monteringsbøssing avstand: 83,50, Reimskive diameter: 55,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningskilde: 14
Ampere: 150
Bøssing dist.: 41.50
Bredde/holderarm: 14.00
Festebrakett dist.: 83.50
Brakettåpning: 10.50
Bånd. justering brakettåpning pos.: 56
Bånd. justering brakettåpning 1: 10.50
Bøssing dia.: 55.00
Grove/renne: 7
Radius: 94.00
Radius 2: 95.50
B+: M8
Posisjon/B+ i min.: 22
Plugg nr.: PL174
Total lengde mm: 184.00
Terminaltype: COM
ID-kode: 24
Kommunikasjon: LIN
Bøssing: SP/FW
Vifte: IF
Regulator type: IR
Merknader: Denne generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 83.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 56
Plug no. PL174
Bracket hole 10.50
Position/B+ in min. 22
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 41.50
Radius 94.00
Radius 2 95.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Fan IF
Grooves/pulley 7
ID Code 24
Terminal type COM
Voltage 14
Total length 184.00 mm
Width/holder arm 14.00
Amp 150

  • OEM
    F000BL07CE, F000BL07CF, F032116591, 1986A01521, 5802217842

  • Konkurrentreferens
    A0826S, CAL10024, LRA04476, 28-8585, 505.906.150, 443396, 444279, 554856RIB, 12090984, 32446540

  • NormaliseratArtNr
    a0826s, cal10024, f000bl07ce, f000bl07cf, f032116591, lra04476, 1986a01521, 288585, 443396, 444279, 554856rib, 12090984, 32446540, 505906150, 5802217842

  • Passar modeller
    Iveco Model: Daily Model series: 33 S 13 Size of motor: 2.3 Brand of engine: F1AFL411B Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 33S11, 35S11, 35C11 Size of motor: 2.3 Brand of engine: F1AFL411A Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 33S15, 35S15, 35C15 Size of motor: 2.3 Brand of engine: F1AFL411C Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 33S15, 35S15, 35C15 Size of motor: 2.3 Brand of engine: F1AFL411C Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 35 C 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AFL411A Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481A Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481B Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481C Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-120, 35-120 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-120, 35-120 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-140, 35-140 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-140, 35-140 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-160, 35-160 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-160, 35-160 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481A Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481C Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AFL411B Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spenningskilde: 14
    Ampere: 150
    Bøssing dist.: 41.50
    Bredde/holderarm: 14.00
    Festebrakett dist.: 83.50
    Brakettåpning: 10.50
    Bånd. justering brakettåpning pos.: 56
    Bånd. justering brakettåpning 1: 10.50
    Bøssing dia.: 55.00
    Grove/renne: 7
    Radius: 94.00
    Radius 2: 95.50
    B+: M8
    Posisjon/B+ i min.: 22
    Plugg nr.: PL174
    Total lengde mm: 184.00
    Terminaltype: COM
    ID-kode: 24
    Kommunikasjon: LIN
    Bøssing: SP/FW
    Vifte: IF
    Regulator type: IR
    Merknader: Denne generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 83.50
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 56
    Plug no. PL174
    Bracket hole 10.50
    Position/B+ in min. 22
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 41.50
    Radius 94.00
    Radius 2 95.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Fan IF
    Grooves/pulley 7
    ID Code 24
    Terminal type COM
    Voltage 14
    Total length 184.00 mm
    Width/holder arm 14.00
    Amp 150
  • Kjøretøymatching

    • OEM
      F000BL07CE, F000BL07CF, F032116591, 1986A01521, 5802217842

    • Konkurrentreferens
      A0826S, CAL10024, LRA04476, 28-8585, 505.906.150, 443396, 444279, 554856RIB, 12090984, 32446540

    • NormaliseratArtNr
      a0826s, cal10024, f000bl07ce, f000bl07cf, f032116591, lra04476, 1986a01521, 288585, 443396, 444279, 554856rib, 12090984, 32446540, 505906150, 5802217842

    • Passar modeller
      Iveco Model: Daily Model series: 33 S 13 Size of motor: 2.3 Brand of engine: F1AFL411B Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily Model series: 33S11, 35S11, 35C11 Size of motor: 2.3 Brand of engine: F1AFL411A Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily Model series: 33S15, 35S15, 35C15 Size of motor: 2.3 Brand of engine: F1AFL411C Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily Model series: 33S15, 35S15, 35C15 Size of motor: 2.3 Brand of engine: F1AFL411C Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily Model series: 35 C 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AFL411A Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481A Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481B Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481C Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33-120, 35-120 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33-120, 35-120 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33-140, 35-140 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33-140, 35-140 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33-160, 35-160 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33-160, 35-160 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481A Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481C Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AFL411B Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
      1 / 4
