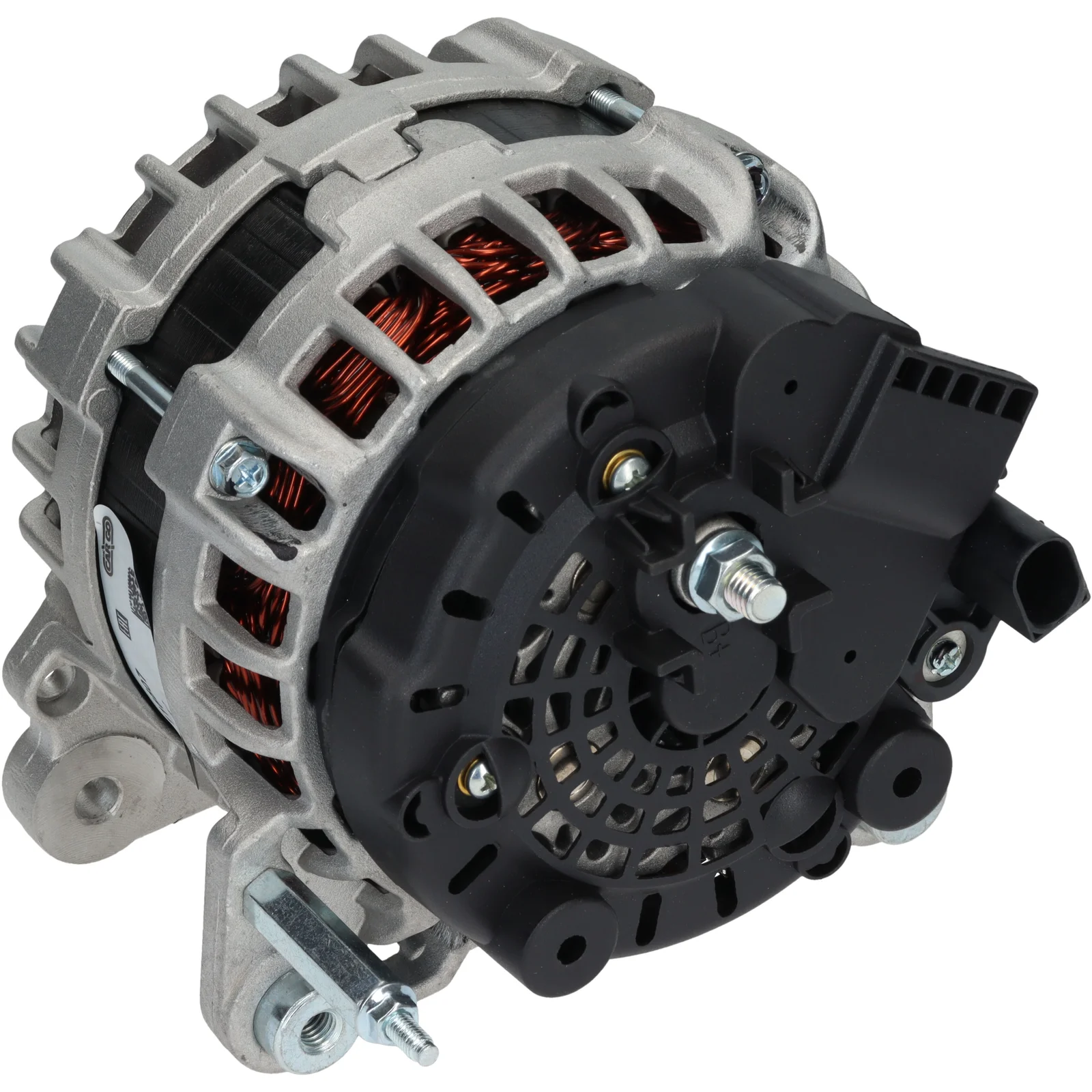

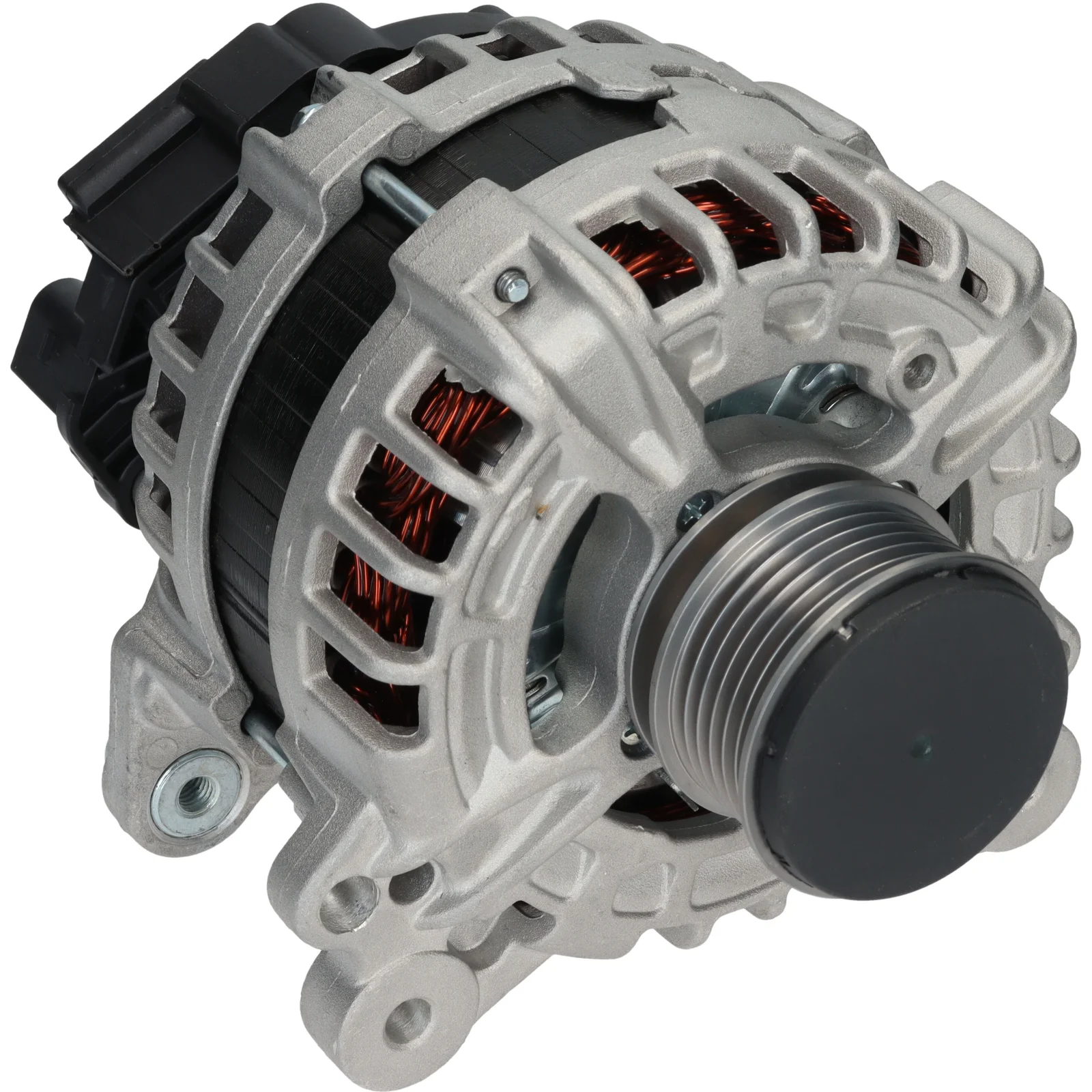

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116607

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 140, Rotasjon: CW, Festebraktdistanse: 61.50

Beskrivelse

Spenning: 14
Ampere: 140
Driftsavstand: 39.50
Bredde/holderarm: 14.00
Festebrakett avstand: 61.50
Brakettåpning: 8.50
Båndjusteringsbrakettåpning pos.: 45
Båndjusteringsbrakettåpning 1: 8.50
Drivskives diameter: 56.00
Groper/drivskive: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 52
Rotasjon: CW
Plugg nr.: PL125
Total lengde mm: 191.00
Terminaltype: COM
Kommunikasjon: LIN
Vifte: IF
Regulator type: IR
Anmerkninger: Denne generatoren har en COM-terminal på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnetheten før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 61.50
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 8.50
Position/B+ in min. 52
Pulley dia. 56.00
Pulley dist. 39.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 191.00 mm
Width/holder arm 14.00
Amp 140

  • OEM
    F000BL08E1, f000bl08e2, F000BL08F7, F000BL08F8, F000BL08S6, F032116607, 04B903023B, 04B903023BX, 04B903023D, 04B903023DX, 06K903026B, 1986A00634, 1986A01248

  • Konkurrentreferens
    305.940.140, 305.950.140, 32085040, 0986085040

  • NormaliseratArtNr
    f000bl08e1, f000bl08e2, f000bl08f7, f000bl08f8, f000bl08s6, f032116607, 04b903023b, 04b903023bx, 04b903023d, 04b903023dx, 06k903026b, 1986a00634, 1986a01248, 32085040, 305940140, 305950140, 0986085040

  • Passar modeller
    Audi Model: A1 Model series: A1 Model type: Sportback Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: 8XA, 8XK Body: Hatchback From date: 01-11-2014 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Audi Model: A1 Model series: A1 Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: 8X1, 8XF Body: Hatchback From date: 01-11-2014 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSA Type description: NJ3 Body: Hatchback From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSA Type description: NJ5 Body: Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: NJ3 Body: Hatchback From date: 01-08-2014 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: NJ5 Body: Estate From date: 01-10-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUTA Type description: NJ3 Body: Hatchback From date: 01-08-2014 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUTA Type description: NJ5 Body: Estate From date: 01-10-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Skoda Model: Rapid Model series: Rapid Model type: Spaceback Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: NH1 Body: Hatchback From date: 01-05-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
    Skoda Model: Rapid Model series: Rapid Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: NH3 Body: Hatchback From date: 01-05-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
    VW Model: Jetta Model series: Jetta Model type: GLI Size of motor: 2.0 Brand of engine: DKFA, DXSA Type description: BU3, BU4 Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
    VW Model: Polo Model series: Polo Van Model type: TDI Type of engine: TDI Size of motor: 1.4 Brand of engine: CUTA Type description: 6R Body: Hatchback Van From date: 01-03-2014 To date: 01-10-2017 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Spenning: 14
    Ampere: 140
    Driftsavstand: 39.50
    Bredde/holderarm: 14.00
    Festebrakett avstand: 61.50
    Brakettåpning: 8.50
    Båndjusteringsbrakettåpning pos.: 45
    Båndjusteringsbrakettåpning 1: 8.50
    Drivskives diameter: 56.00
    Groper/drivskive: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Posisjon/B+ i min.: 52
    Rotasjon: CW
    Plugg nr.: PL125
    Total lengde mm: 191.00
    Terminaltype: COM
    Kommunikasjon: LIN
    Vifte: IF
    Regulator type: IR
    Anmerkninger: Denne generatoren har en COM-terminal på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnetheten før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 61.50
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL125
    Bracket hole 8.50
    Position/B+ in min. 52
    Pulley dia. 56.00
    Pulley dist. 39.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 191.00 mm
    Width/holder arm 14.00
    Amp 140
  • Kjøretøymatching

    • OEM
      F000BL08E1, f000bl08e2, F000BL08F7, F000BL08F8, F000BL08S6, F032116607, 04B903023B, 04B903023BX, 04B903023D, 04B903023DX, 06K903026B, 1986A00634, 1986A01248

    • Konkurrentreferens
      305.940.140, 305.950.140, 32085040, 0986085040

    • NormaliseratArtNr
      f000bl08e1, f000bl08e2, f000bl08f7, f000bl08f8, f000bl08s6, f032116607, 04b903023b, 04b903023bx, 04b903023d, 04b903023dx, 06k903026b, 1986a00634, 1986a01248, 32085040, 305940140, 305950140, 0986085040

    • Passar modeller
      Audi Model: A1 Model series: A1 Model type: Sportback Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: 8XA, 8XK Body: Hatchback From date: 01-11-2014 To date: 01-10-2018 Fuel: Diesel Approved: Yes
      Audi Model: A1 Model series: A1 Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: 8X1, 8XF Body: Hatchback From date: 01-11-2014 To date: 01-10-2018 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSA Type description: NJ3 Body: Hatchback From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSA Type description: NJ5 Body: Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: NJ3 Body: Hatchback From date: 01-08-2014 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: NJ5 Body: Estate From date: 01-10-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUTA Type description: NJ3 Body: Hatchback From date: 01-08-2014 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUTA Type description: NJ5 Body: Estate From date: 01-10-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Skoda Model: Rapid Model series: Rapid Model type: Spaceback Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: NH1 Body: Hatchback From date: 01-05-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
      Skoda Model: Rapid Model series: Rapid Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: NH3 Body: Hatchback From date: 01-05-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
      VW Model: Jetta Model series: Jetta Model type: GLI Size of motor: 2.0 Brand of engine: DKFA, DXSA Type description: BU3, BU4 Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
      VW Model: Polo Model series: Polo Van Model type: TDI Type of engine: TDI Size of motor: 1.4 Brand of engine: CUTA Type description: 6R Body: Hatchback Van From date: 01-03-2014 To date: 01-10-2017 Fuel: Diesel Approved: Yes
