Varenr.: F032116610

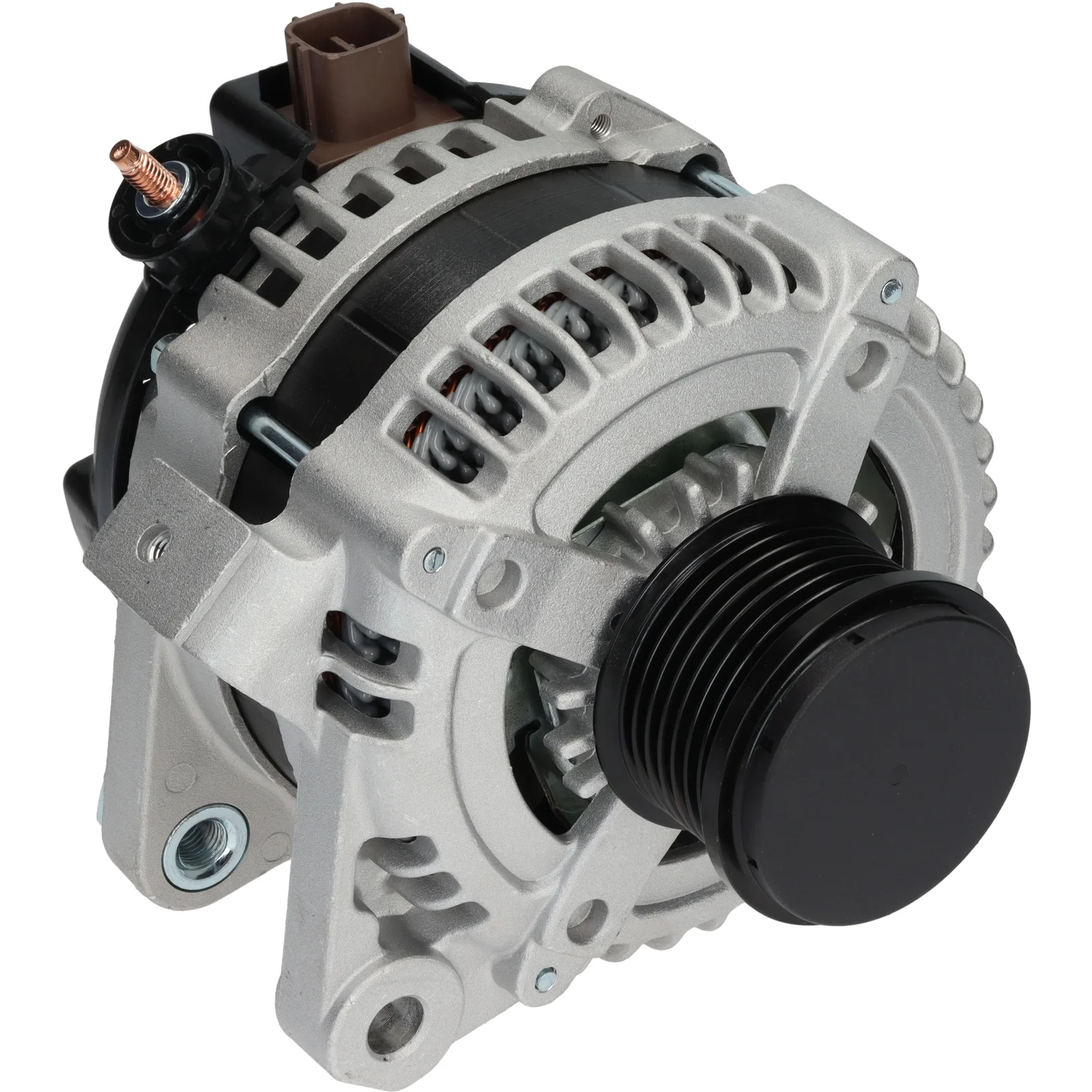

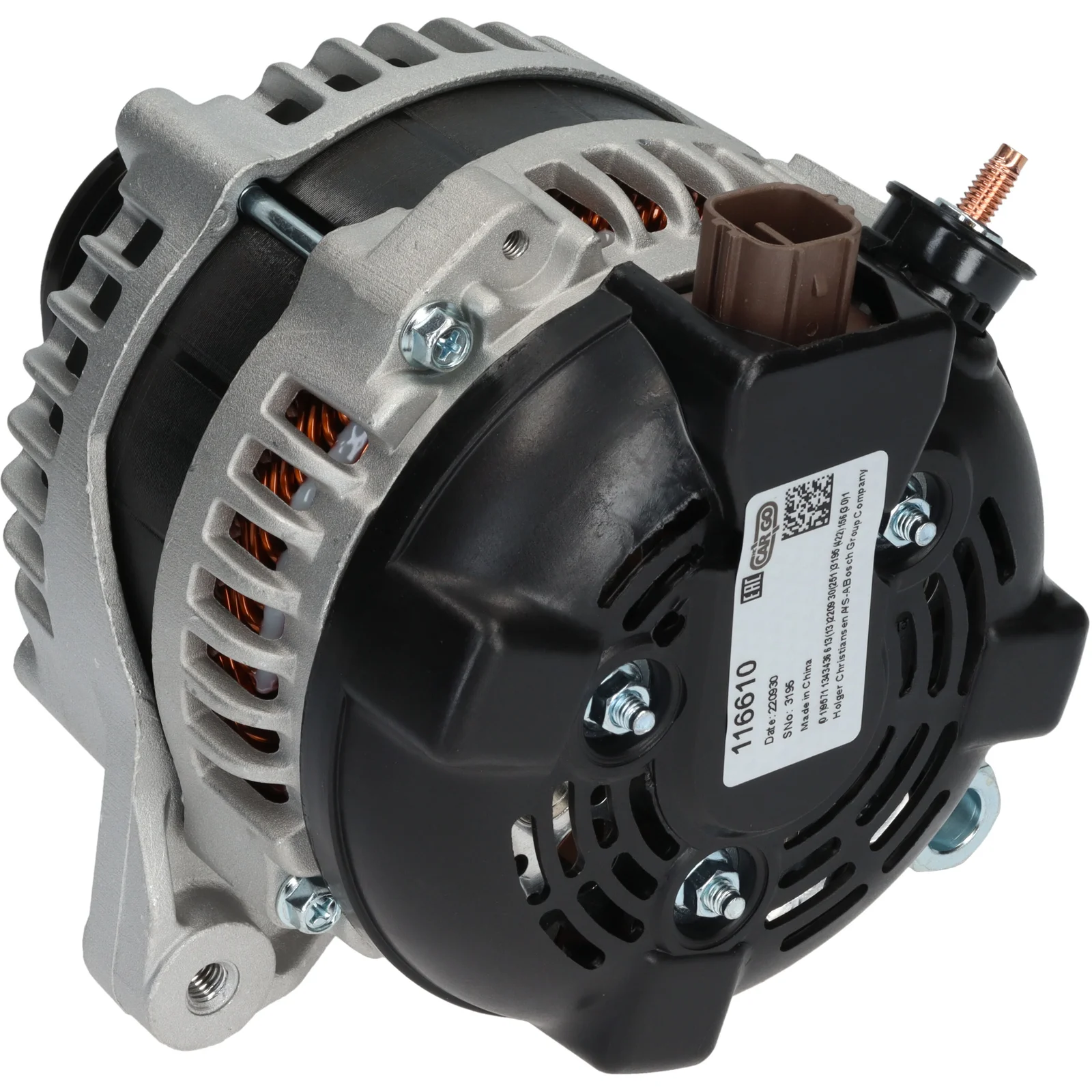

HC-Cargo Dynamo

Teknisk info:

Spenningsv, 14, Amp: 100, Rotasjon: CW, Festebrakett avstand: 45,50

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsspenning: 14
Ampere: 100
Drevkugg dist.: 36.00
Bredde/holderarm: 18.00
Monteringsbeslag dist.: 45.50
Beslagshull: 11.00
Belt. justering beslagshull pos.: 14
Belt. justering beslagshull 1: M8
Drevkuggs dia.: 55.00
Grooves/drevkugg: 7
Radius: 84.00
Radius 2: 86.00
B+: M6
Posisjon/B+ i min.: 10
Rotasjon: CW
Plugg nr.: PL146
Total lengde mm: 172.00
Drevkugg: SP/FW
Vifte: IF
Regulator type: IR

Spesifikasjon

B+ M6
Mount. bracket dist. 45.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 14
Plug no. PL146
Bracket hole 11.00
Position/B+ in min. 10
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 36.00
Radius 84.00
Radius 2 86.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Voltage 14
Total length 172.00 mm
Width/holder arm 18.00
Amp 100
  • OEM

    F032116610, 1986A01463, 27060-28300, 27060-28301, 27060-28311, 104210-4790, 104210-4791, 104210-4795
  • Konkurrentreferens

    A6316, CAL40381, LRA04217, 28-7826, 195.955.100, 553965RI, 12060896
  • NormaliseratArtNr

    a6316, cal40381, f032116610, lra04217, 1986a01463, 287826, 553965ri, 12060896, 195955100, 1042104790, 1042104791, 1042104795, 2706028300, 2706028301, 2706028311
  • Passar modeller

    Toyota Model: RAV 4 Model series: RAV 4 Model type: 4WD Type of engine: VVTi Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: ACA_, ACE_ From date: 01-11-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spenningsspenning: 14
    Ampere: 100
    Drevkugg dist.: 36.00
    Bredde/holderarm: 18.00
    Monteringsbeslag dist.: 45.50
    Beslagshull: 11.00
    Belt. justering beslagshull pos.: 14
    Belt. justering beslagshull 1: M8
    Drevkuggs dia.: 55.00
    Grooves/drevkugg: 7
    Radius: 84.00
    Radius 2: 86.00
    B+: M6
    Posisjon/B+ i min.: 10
    Rotasjon: CW
    Plugg nr.: PL146
    Total lengde mm: 172.00
    Drevkugg: SP/FW
    Vifte: IF
    Regulator type: IR
  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 45.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 14
    Plug no. PL146
    Bracket hole 11.00
    Position/B+ in min. 10
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 36.00
    Radius 84.00
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Voltage 14
    Total length 172.00 mm
    Width/holder arm 18.00
    Amp 100
  • Kjøretøymatching
    • OEM

      F032116610, 1986A01463, 27060-28300, 27060-28301, 27060-28311, 104210-4790, 104210-4791, 104210-4795
    • Konkurrentreferens

      A6316, CAL40381, LRA04217, 28-7826, 195.955.100, 553965RI, 12060896
    • NormaliseratArtNr

      a6316, cal40381, f032116610, lra04217, 1986a01463, 287826, 553965ri, 12060896, 195955100, 1042104790, 1042104791, 1042104795, 2706028300, 2706028301, 2706028311
    • Passar modeller

      Toyota Model: RAV 4 Model series: RAV 4 Model type: 4WD Type of engine: VVTi Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: ACA_, ACE_ From date: 01-11-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
