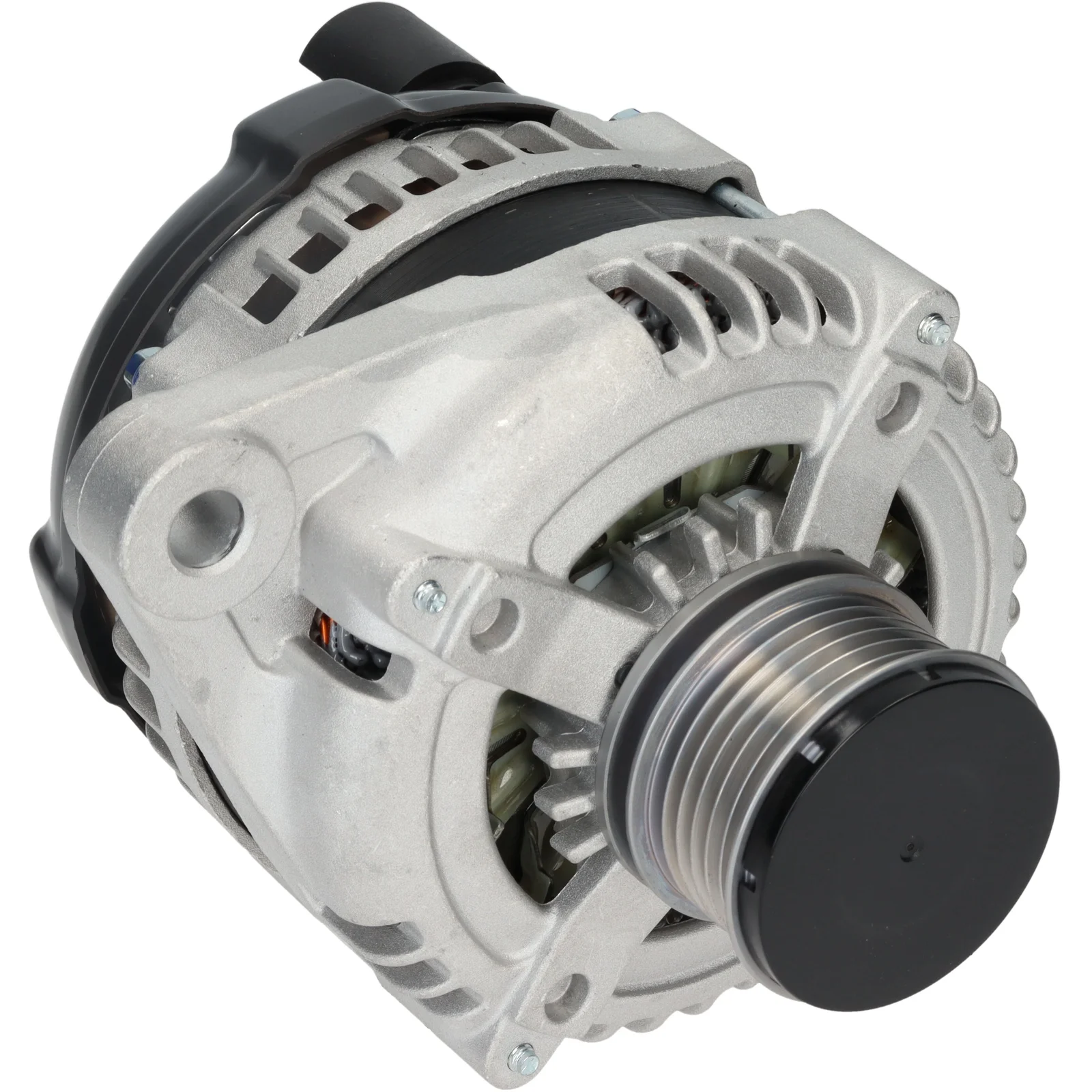

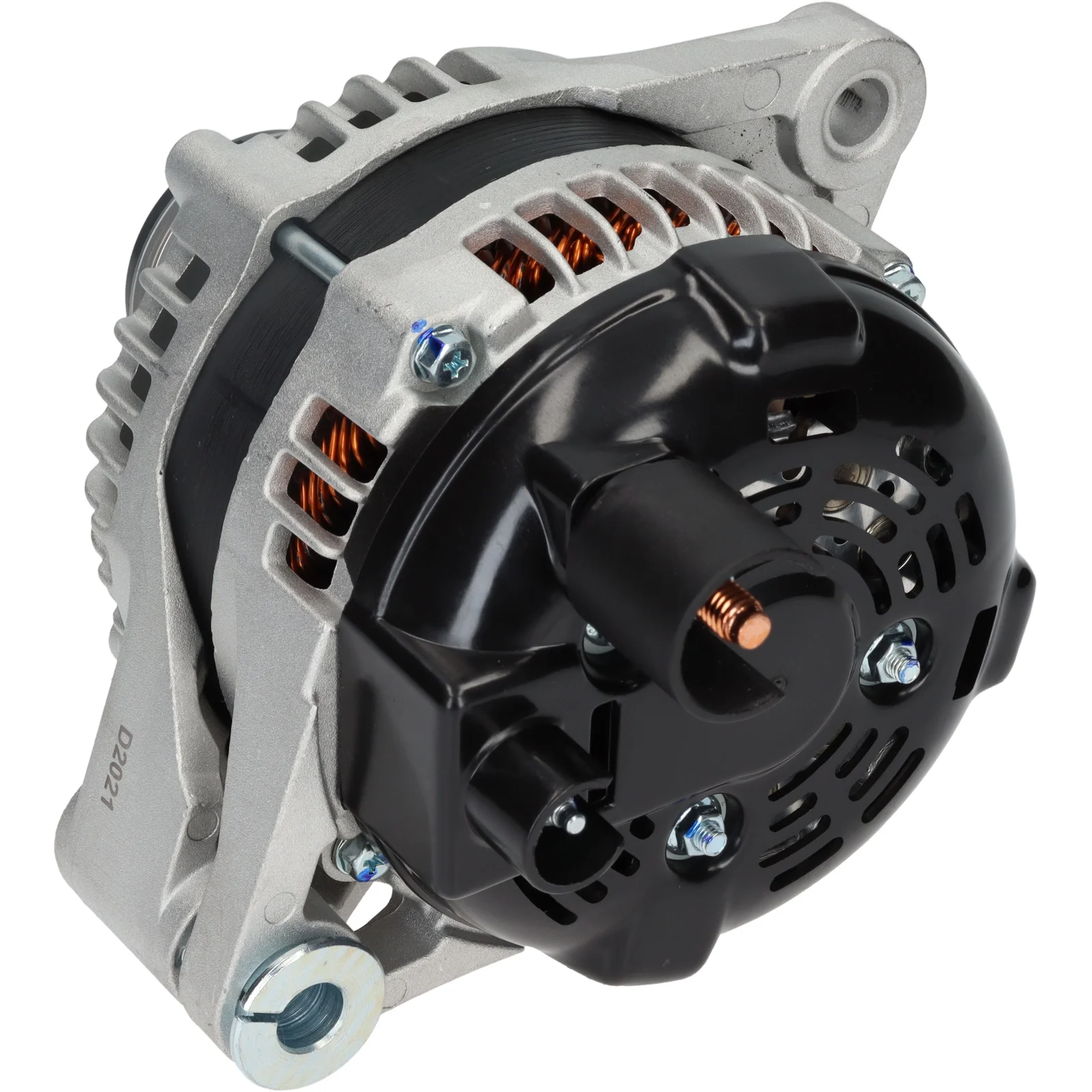

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116649

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 150, Rotasjon: CW, Drivreimskive dia.: 53.80

Beskrivelse

Spenning: 14
Ampere: 150
Drevskive avstand: 51.50
Brakettfeste hull: 12.30
Belt. just. braketone pos.: 59
Belt. just. braketone 1: 12.30
Drevskive diameter: 53.80
Grove/drevetskive: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 44
D+ Størrelse: M5
Rotasjon: medur (CW)
Total lengde mm: 200.00
Drevskive: SP/FW
Vifte: IF
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 12.30
Belt. adj. brackethole pos. 59
Bracket hole 12.30
Position/B+ in min. 44
Pulley SP/FW
Pulley dia. 53.80
Pulley dist. 51.50
Radius 90.00
D+ Size M5
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Total length 200.00 mm
Amp 150

  • OEM
    A6472(DENSO), A6472S, A6563S, A6674S, CAL40402, dan1123, DAN1123, dra1395, DRA1395, F032116649, 28-7515, 218.323.1502, 505.586.150, 1986A01821, 104210-1200, 104211-8530, 210935, 210935A, 553967RI, 849251, 1202273, 1202453, 1203273, 12090981, 32083920, 51808561, 51863675, 51943777, 52003623, 52021968, 95511969, 95519889, 95520425

  • Konkurrentreferens
    A6472(DENSO), A6472S, A6563S, A6674S, CAL40402, dan1123, dra1395, 28-7515, 218.323.1502, 505.586.150, 210935, 210935A, 553967RI, 849251, 12090981, 32083920

  • Bilmärken
    ALFA ROMEO, FIAT, OPEL

  • NormaliseratArtNr
    a6472denso, a6472s, a6563s, a6674s, cal40402, dan1123, dra1395, f032116649, 1986a01821, 210935, 210935a, 287515, 553967ri, 849251, 1202273, 1202453, 1203273, 12090981, 32083920, 51808561, 51863675, 51943777, 52003623, 52021968, 95511969, 95519889, 95520425, 505586150, 1042101200, 1042118530, 2183231502

  • Passar modeller
    ALFA ROMEO GIULIETTA (940_) 1.6 JTDM (940FXD1A) Engine volume: 1.6 Engine type: 940 A3.000 Year: 04.10-02.16
    ALFA ROMEO GIULIETTA (940_) 1.6 JTDM (940FYB11, 940FYB1A, 940FYF11, 940FYF1A) Engine volume: 1.6 Engine type: 940 C1.000, 552 80 444, 940 C5.000 Year: 02.15-12.20
    ALFA ROMEO GIULIETTA (940_) 1.6 JTDM (940FYE11, 940FYE1A) Engine volume: 1.6 Engine type: 940 C5.000 Year: 09.15-10.18
    ALFA ROMEO GIULIETTA (940_) 1.8 TBi (940FXC1A) Engine volume: 1.8 Engine type: 940 A1.000 Year: 04.10-02.16
    ALFA ROMEO GIULIETTA (940_) 1.8 TBi (940FXC1A) Engine volume: 1.8 Engine type: 940 A1.000 Year: 04.10-09.13
    ALFA ROMEO GIULIETTA (940_) 1.8 TBi (940FXR11) Engine volume: 1.8 Engine type: 940 B2.000 Year: 09.13-10.18
    ALFA ROMEO GIULIETTA (940_) 2.0 JTDM (940.FXL1A) Engine volume: 2.0 Engine type: 940 A5.000 Year: 04.10-12.20
    ALFA ROMEO GIULIETTA (940_) 2.0 JTDM (940FXE1A, 940FXG11) Engine volume: 2.0 Engine type: 940 A4.000, 552 83 099 Year: 04.10-12.20
    ALFA ROMEO GIULIETTA (940_) 2.0 JTDM (940FXH1A, 940FXH11, 940FXZ11, 940FXZ1A) Engine volume: 2.0 Engine type: 940 B9.000, 940 A7.000 Year: 04.10-10.18
    ALFA ROMEO GIULIETTA (940_) 2.0 JTDM (940FXM1A, 940FXS1A, 940FYD1A) Engine volume: 2.0 Engine type: 940 A8.000, 940 C4.000, 940 B6.000 Year: 04.10-02.16
    ALFA ROMEO GIULIETTA (940_) 2.0 JTDM (940FXQ1A, 940FYC1A) Engine volume: 2.0 Engine type: 940 C3.000, 940 B5.000 Year: 08.13-10.18
    ALFA ROMEO GIULIETTA (940_) 2.0 JTDM (940FXV11) Engine volume: 2.0 Engine type: 940 B4.000 Year: 11.13-10.18
    ALFA ROMEO GIULIETTA Skåp/halvkombi (940_) 1.6 JTDM (940FXD1A) Engine volume: 1.6 Engine type: 940 A3.000 Year: 04.11-02.16
    ALFA ROMEO GIULIETTA Skåp/halvkombi (940_) 1.8 (940FXC1A) Engine volume: 1.8 Engine type: 940 A1.000 Year: 04.11-02.16
    ALFA ROMEO GIULIETTA Skåp/halvkombi (940_) 2.0 JTDM (940FXE1A) Engine volume: 2.0 Engine type: 940 A4.000 Year: 04.11-02.16
    ALFA ROMEO GIULIETTA Skåp/halvkombi (940_) 2.0 JTDM (940FXL1A) Engine volume: 2.0 Engine type: 940 A5.000 Year: 07.13-02.16
    ALFA ROMEO GIULIETTA Skåp/halvkombi (940_) 2.0 JTDM (940FXQ1A) Engine volume: 2.0 Engine type: 940 B5.000 Year: 08.13-02.16
    ALFA ROMEO GIULIETTA Skåp/halvkombi (940_) 2.0 JTDM (940FXV11) Engine volume: 2.0 Engine type: 940 B4.000 Year: 05.15-12.20
    FIAT DOBLO Buss (263_) 1.6 D Multijet (263AXD1B, 263AXX1B) Engine volume: 1.6 Engine type: 263 A8.000, 198 A3.000, 552 80 444 Year: 01.10-12.23
    FIAT DOBLO Buss (263_) 1.6 D Multijet (263AXE1B, 263AXY1B) Engine volume: 1.6 Engine type: 263 A3.000, 263 A9.000, 552 80 444 Year: 03.16-12.23
    FIAT DOBLO Buss (263_) 1.6 D Multijet (263AXH1A, 263AXL11, 263AXH1B) Engine volume: 1.6 Engine type: 263 A4.000, 263 A5.000 Year: 02.10-12.23
    FIAT DOBLO Buss (263_) 1.6 D Multijet (263AXN1B, 263AXV1B) Engine volume: 1.6 Engine type: 940 C1.000, 552 80 444 Year: 03.15-12.23
    FIAT DOBLO Buss (263_) 1.6 D Multijet (263AXP1B, 263AXW1B) Engine volume: 1.6 Engine type: 263 A7.000, 552 80 444 Year: 03.15-12.23
    FIAT DOBLO Buss (263_) 2.0 D Multijet (263AXF1B) Engine volume: 2.0 Engine type: 263 A1.000 Year: 01.10-12.23
    FIAT DOBLO Cargo (263_) 1.6 D Multijet (263WXD1B, 263WXR1B, 263WXX1B, 263ZXD1B,... Engine volume: 1.6 Engine type: 263 A8.000, 198 A3.000, 552 80 444, 463 46 020 Year: 02.10-
    FIAT DOBLO Cargo (263_) 1.6 D Multijet (263WXN1B, 263ZXN1B, 263ZXV1B, 263WXV1B,... Engine volume: 1.6 Engine type: 940 C1.000, 552 80 444, 463 46 020 Year: 02.16-12.23
    FIAT DOBLO Cargo (263_) 1.6 D Multijet (263ZXE1B, 263ZXS1B, 263ZXY1B, 263WXE1B,... Engine volume: 1.6 Engine type: 263 A3.000, 263 A9.000, 552 80 444, 463 46 020 Year: 02.10-12.23
    FIAT DOBLO Cargo (263_) 1.6 D Multijet Engine volume: 1.6 Engine type: 263 A4.000, 263 A5.000, 463 46 020 Year: 02.10-12.23
    FIAT DOBLO Cargo (263_) 2.0 D Multijet Engine volume: 2.0 Engine type: 263 A1.000 Year: 02.10-12.23
    FIAT DOBLO Flak/chassi (263_) 1.6 D Multijet (263HXE1B, 263HXS1B, 263HXY1B, 263YXE1B,... Engine volume: 1.6 Engine type: 263 A3.000, 263 A9.000, 552 80 444 Year: 02.11-12.23
    FIAT DOBLO Flak/chassi (263_) 1.6 D Multijet (263HXN1B, 263YXN1B, 263HXV1B, 263YXV1B) Engine volume: 1.6 Engine type: 940 C1.000, 552 80 444 Year: 02.16-12.23
    FIAT DOBLO Flak/chassi (263_) 1.6 D Multijet (263YXD1B, 263XYR1B, 263YXX1B, 263HXD1B,... Engine volume: 1.6 Engine type: 263 A8.000, 198 A3.000, 552 80 444 Year: 02.10-12.23
    FIAT DOBLO Flak/chassi (263_) 1.6 D Multijet Engine volume: 1.6 Engine type: 263 A4.000, 263 A5.000 Year: 02.10-12.23
    FIAT DOBLO Flak/chassi (263_) 2.0 D Multijet Engine volume: 2.0 Engine type: 263 A1.000 Year: 02.10-12.23
    FIAT DUCATO Buss (250_) 115 Multijet 2,0 D Engine volume: 2.0 Engine type: 250 A2.000, 250 A1.000 Year: 06.11-
    FIAT DUCATO Flak/chassi (250_) 115 Multijet 2,0 D Engine volume: 2.0 Engine type: 250 A2.000, 250 A1.000 Year: 06.11-
    FIAT DUCATO Skåp (250_) 115 Multijet 2,0 D Engine volume: 2.0 Engine type: 250 A2.000, 250 A1.000 Year: 06.11-
    OPEL COMBO Skåp/stor limousine (X12) 1.6 CDTI (B05) Engine volume: 1.6 Engine type: A 16 FDH Year: 02.12-
    OPEL COMBO Skåp/stor limousine (X12) 1.6 CDTI (B05) Engine volume: 1.6 Engine type: A 16 FDL Year: 02.12-
    OPEL COMBO Skåp/stor limousine (X12) 1.6 CDTI (B05) Engine volume: 1.6 Engine type: A 16 FDL Year: 04.15-
    OPEL COMBO Skåp/stor limousine (X12) 2.0 CDTI (B05) Engine volume: 2.0 Engine type: A 20 FD Year: 02.12-
    OPEL COMBO Tour (X12) 1.6 CDTI (C26, D26, E26, C05) Engine volume: 1.6 Engine type: A 16 FDH Year: 02.12-
    OPEL COMBO Tour (X12) 1.6 CDTI (C26, D26, E26, C05) Engine volume: 1.6 Engine type: A 16 FDL Year: 02.12-
    OPEL COMBO Tour (X12) 1.6 CDTI (C26, D26, E26, C05) Engine volume: 1.6 Engine type: A 16 FDL Year: 03.15-
    OPEL COMBO Tour (X12) 2.0 CDTI (C26, D26, E26, C05) Engine volume: 2.0 Engine type: A 20 FD Year: 02.12-
